How to Wire a Push Button Switch?

push-button-switches-types-and-applications

What is a Push Button Switch?

Pushbutton switches are devices that control circuits and mechanical equipment by pressing. The size and dimensional function of the switch is designed according to the actual environment in which it will be used.

What is a Push Button Switch

Types of Push Button Switches

Types of Push Button Switches

Types of Push Button Switches

Pushbutton switch terminal type

Pushbutton switch terminal type

Terminal TypeDefinitionAdvantagesDisadvantages
Pin Terminal:A pin terminal is a type of electrical connector where a wire is attached to a pin-like conductor. This conductor can be inserted into a socket or connector block.Easy to connect and disconnect.
Suitable for small and precise connections.
Good for high-density packaging.
Prone to bending or breaking if mishandled.
Not ideal for high-current applications.
Plug TerminalPlug terminals are connectors that involve plugging a male component into a female component.Easy to use and require no special tools.
Versatile and can be used in a variety of applications.
Connections may become loose over time.
Not as secure as other types of terminals in high-vibration environments.
Screw TerminalA screw terminal involves a screw mechanism to secure a wire to the terminal.Strong and reliable connections.
Can accommodate a range of wire sizes.
Easy to inspect and maintain.
Requires a screwdriver for installation.
Screws can loosen over time, especially in vibrating environments.
Wire TerminalGenerally, wire terminals are end connectors used to make secure electrical connections.Provides a secure connection.
Can be tailored to specific wire types and sizes
May require special tools for installation.
Not always reusable.
Wire ButtonOften used in telecom and data applications, wire buttons are small, press-down connectors.
Advantages:
Quick and easy to use.
Requires no special tools.
Not suitable for high-power applications.
Less durable compared to other types of terminals.

Push Button Switch Wiring

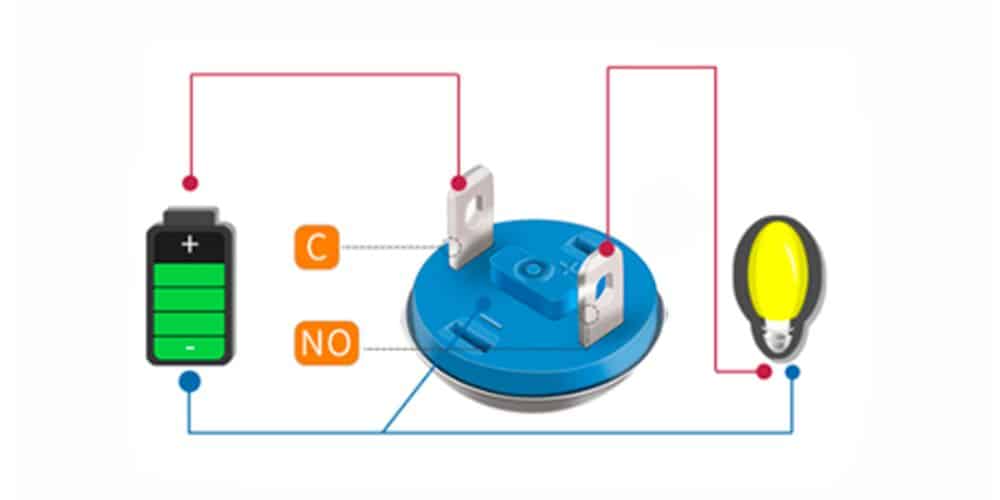

2 Pin Push Button Switch Wiring

2 Pin Push Button Switch Wiring

3 Pin Push Button Switch Wiring

3 Pin Push Button Switch Wiring 3 Pin Push Button Switch Wiring

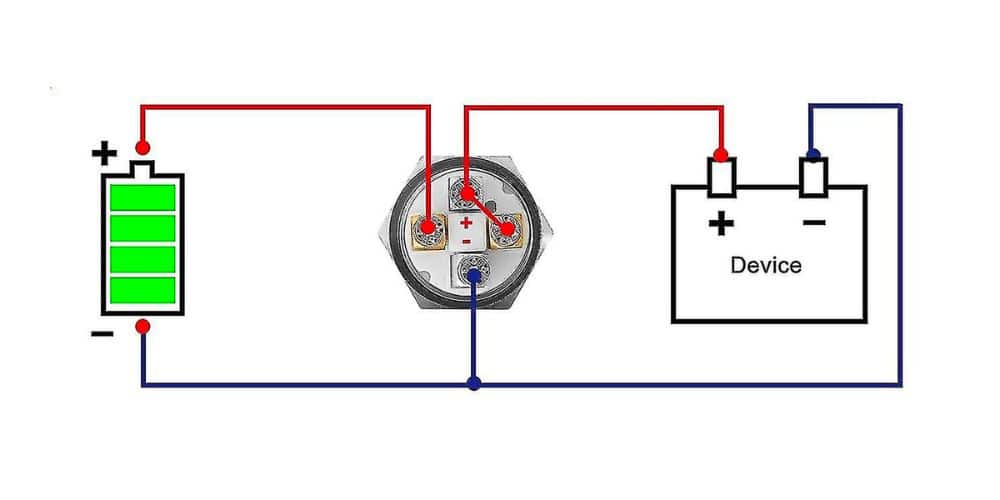

4 Pin Push Button Switch Wiring

4 Pin Push Button Switch Wiring

LED light can be on only when switch is in ON mode

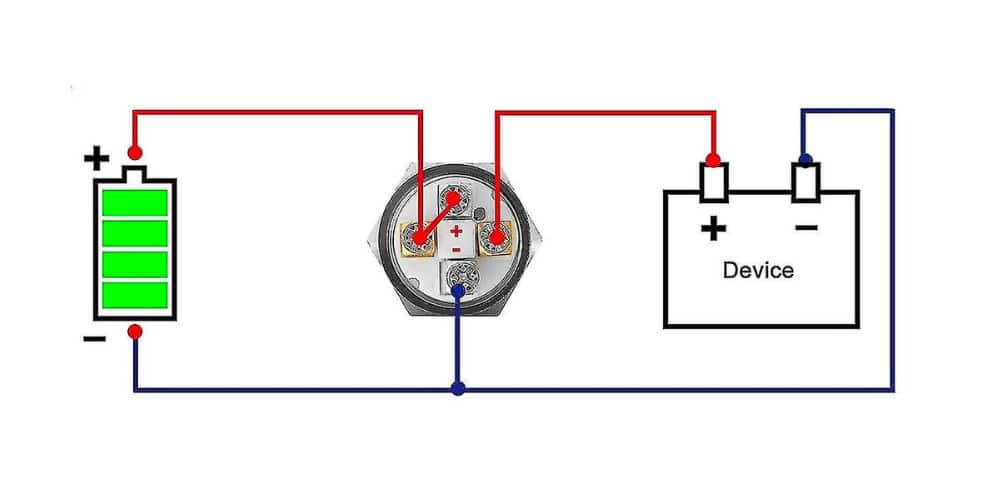

4 Pin Push Button Switch Wiring

LED light is aways on.

4 Pin Push Button Switch Wiring

Turn ON button switch, LED Light ON; Turn OFF button switch, LED Light OFF

4 Pin Push Button Switch Wiring

LED light always ON; Turn on push button switch, Device ON:Turn off push button switch, Device OFF

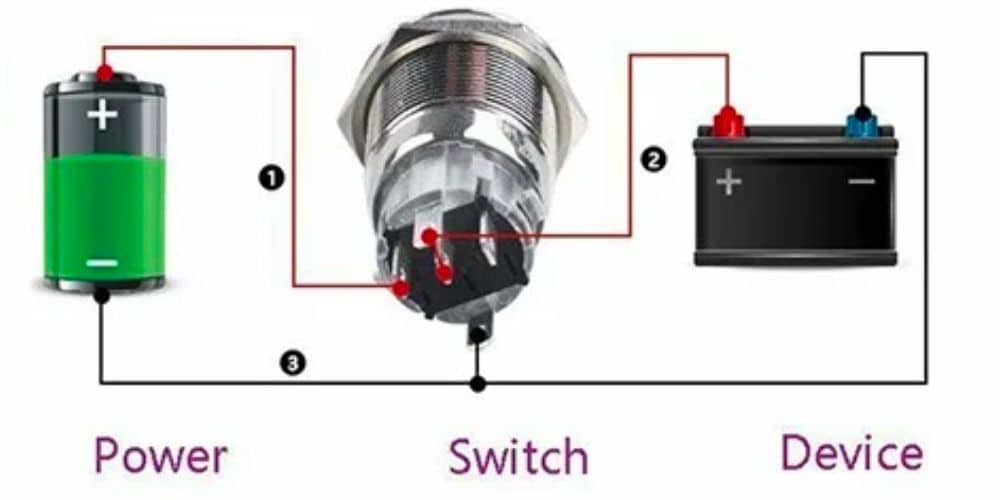

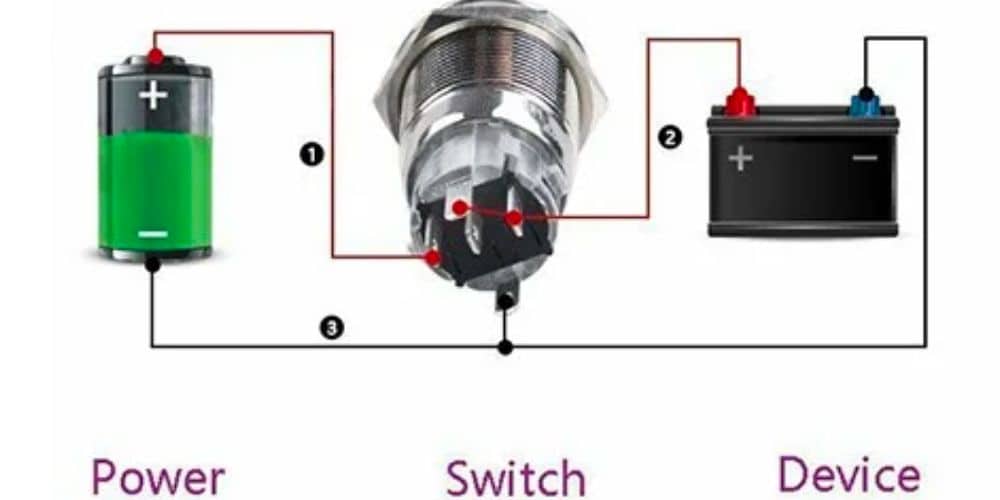

5 Pin Push Button Switch Wiring

5 Pin Push Button Switch Wiring

Turn ON Push Button Switch, LED Light ON, Device 0N:Turn 0FF Push Button Switch, LED Light 0FF, Device 0FF

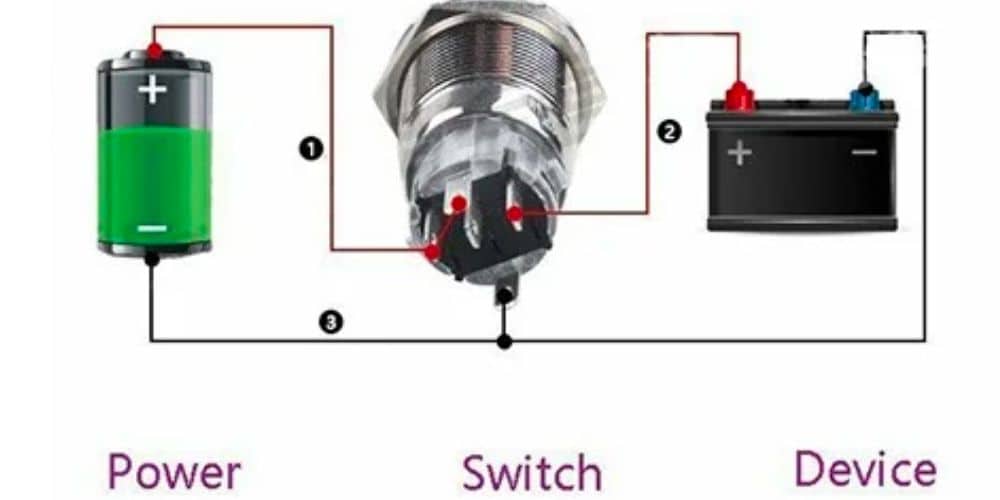

5 Pin Push Button Switch WiringLED Light Always 0N:Turn ON Push Button Switch,Device 0N; Turn 0FF Push Button Switch, Device 0FF

5 Pin Push Button Switch Wiring

Turn ON Push Button Switch, LED Light oFF, Device 0Ff;Turn 0FF Push Button Switch, LED Light 0N, Device 0N

5 Pin Push Button Switch Wiring

LED Light Always 0N:Turn 0N Push Button Switch,Device 0FF; Turn 0FF Push Button Switch, Device 0N

6 Pin Push Button Switch Wiring

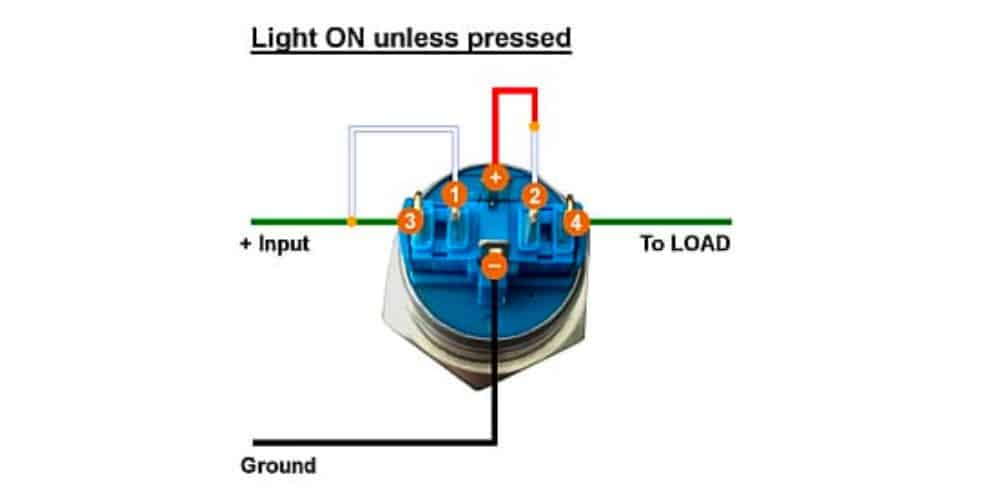

6 Pin Push Button Switch Wiring

Light ON unless pressed

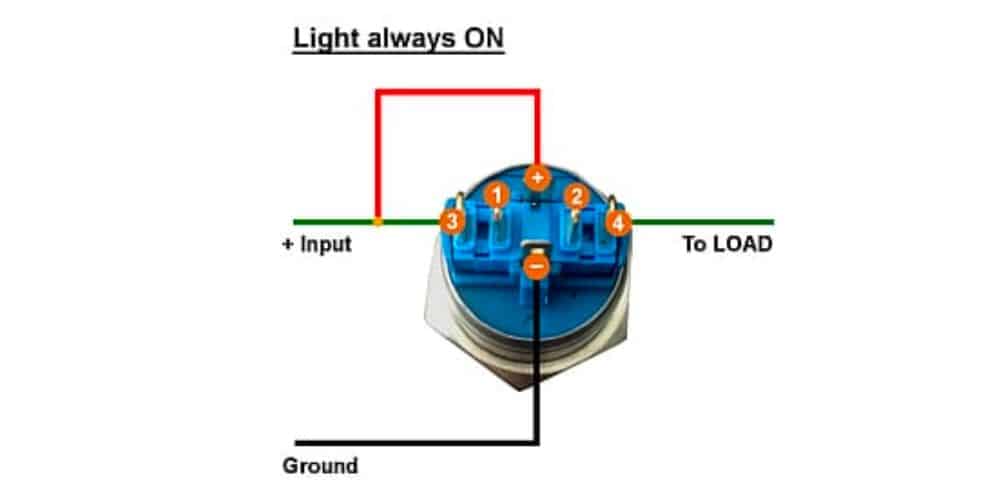

6 Pin Push Button Switch Wiring

Light always ON

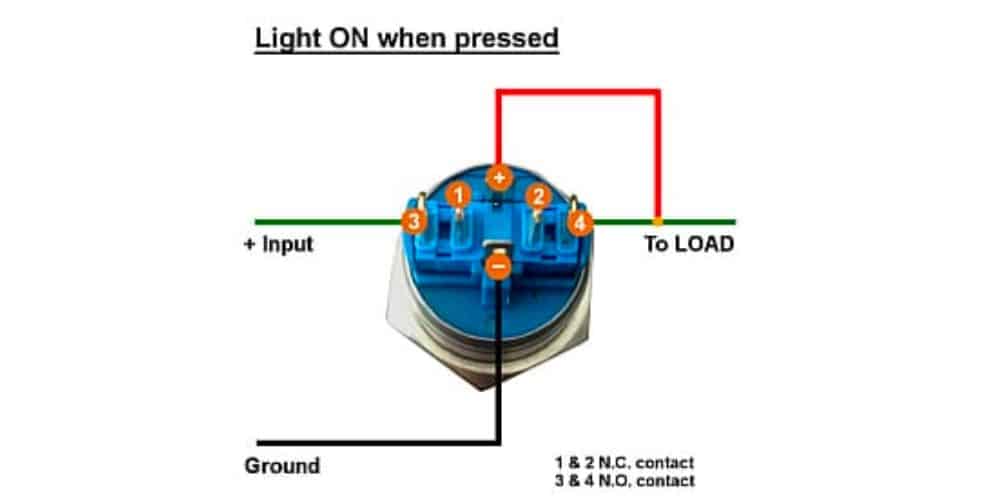

6 Pin Push Button Switch Wiring

Light ON when pressed

7 Pin Push Button Switch Wiring

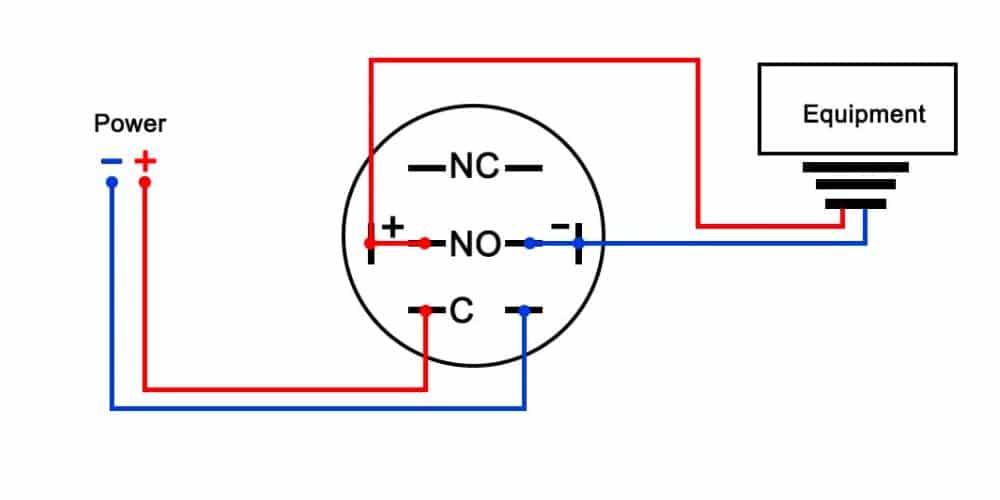

8 Pin Push Button Switch Wiring

8 Pin Push Button Switch Wiring

The lighted switch is connected to No, and the LED lights up when pressed
