What is a 3 Way Toggle Switch?
3-way toggle switch is a type of electrical switch that has three positions or settings: “On,” “Off,” and a third position that can be used to control a circuit in one of two different ways. It is often used in electrical wiring and circuits to allow for multiple control options.
3 Way Toggle Switch
- 3 Way Toggle Switch
- 3 Way On On On Toggle Switch
- 3-Way Toggle Switch
- 3 Way Toggle Switch 12V
- Guitar 3 Way Toggle Switch
- 3 Way Toggle Switches
- Toggle Switch 3-Way
With Full Product Certification
3 Way Toggle Switch
A 3 way toggle switch is an electrical switch that enables control of a single circuit or electrical device from two different locations. It has three terminals: one is common, and the other two are called travelers, which alternate connection with the common terminal. In a typical setup, when you flip the switch in one position, the common terminal connects to one traveler, allowing current to pass and the circuit to be “on.” When flipped to the opposite position, it disconnects from the first traveler and connects to the second, keeping the circuit “off” or connecting it to another circuit. This type of switch is commonly used in residential and commercial lighting systems where it’s convenient to control lights from different points, such as at the top and bottom of a staircase or at either end of a hallway.
3 Way On On On Toggle Switch
A 3 way on-on-on toggle switch is an electrical switch that allows the user to control an electrical circuit from two different locations. It has three positions, each of which either connects or disconnects different combinations of terminals, resulting in different circuit configurations. These switches are commonly used in situations where it is convenient to control a single light, fan, or other devices from multiple locations. Unlike a standard on-off toggle switch, which has only two positions, the 3-way on-on-on switch offers more flexibility, allowing not just for turning a device on or off but also potentially connecting to different circuits or enabling different functions in each of its on positions.
3 Way Toggle Switch Guitar

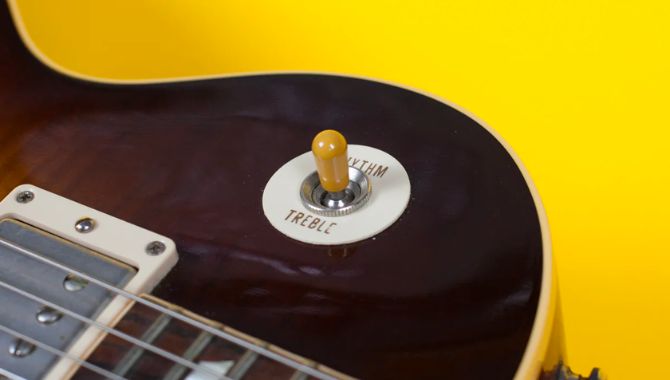

A 3-way toggle switch on a guitar is a type of electrical switch that allows the player to select between different pickups or combine them. Pickups are the components that capture the vibrations of the strings and convert them into an electrical signal. Most guitars have multiple pickups, typically positioned at the bridge, middle, and neck. The 3-way toggle switch offers three positions:
- Bridge pickup only (sharp, bright tone)
- Neck pickup only (warmer, fuller tone)
- Middle position which may combine bridge and neck pickups depending on the guitar’s wiring (blended tone)
This switch is commonly found on guitars with two pickups like the Gibson Les Paul. It provides quick and easy tonal changes while playing, which is essential for achieving different sounds across various genres of music. The switch’s design is usually a small lever that can be flicked up or down (or left and right) to select the desired pickup configuration.
3 Way Toggle Switch 12v
A 3-way toggle switch for 12 volts is an electrical switch that allows the user to control a circuit from two different locations. It has three terminals: one common (C) and two that are alternately used as input or output (A and B). In a typical setup, flipping the switch changes the active connection between the common terminal and one of the other two terminals. This is often used in lighting circuits where you might want to control a light from two different switches, such as at the top and bottom of a staircase. The 12v specification indicates that the switch is designed for low-voltage applications, such as automotive, marine, or certain off-grid systems, making it suitable for use in vehicles, boats, or RVs. Proper wiring is essential for the switch to function correctly and safely.
3 Way Momentary Toggle Switch
A 3-way momentary toggle switch is an electrical component that allows the user to control a circuit by toggling between three positions: two active positions and one neutral or off position. Unlike a standard 3-way switch which maintains its position once switched, a momentary switch returns to the neutral position when released. Each active position can be wired to complete separate circuits, allowing for different actions. Momentary switches are commonly used in applications where temporary activation of a device is needed, such as in machinery, vehicles, or electronic instruments. When the toggle is moved to an active position and held, the circuit remains closed, allowing current to flow and activate a function. Once released, the toggle springs back to the off position, opening the circuit and stopping the current flow.
3 Way Toggle Switch Wiring
A 3-way toggle switch allows for controlling a single light, outlet, or device from two different locations. It has three terminals: one common (C) and two travelers (T1, T2). Wiring involves connecting the common terminal to the live wire, and the travelers to corresponding terminals on a second 3-way switch, enabling alternate circuits.
3 Way Toggle Switch VS 2 Way Toggle Switch
- 2-way toggle switch has two positions and is used for simple on/off control of a single device or light.
- 3-way toggle switch has three positions and is used to control a single device or light from two different locations, providing a convenient way to create multiple switch points for the same load.
SPST VS SPDT
- A 2-way toggle switch has two positions: “On” and “Off.”
- It is a simple on/off switch that is used to control the flow of electricity to a device or light. When in the “On” position, it completes the circuit, allowing electricity to flow, and when in the “Off” position, it interrupts the circuit, cutting off the electricity.
- 2-way switches are commonly used for basic lighting control in homes and buildings, where you need a simple on/off control for a single light or device.
- A 3-way toggle switch has three positions: two “On” positions and an “Off” position.
- It is used to control a single device or light from two different locations. When in one “On” position, it completes one circuit, allowing electricity to flow to the device. When in the other “On” position, it completes a different circuit, allowing electricity to flow to the same device but from a different source or location. The “Off” position interrupts both circuits.
- 3-way switches are commonly used in scenarios where you want to control a light or device from two different switch locations, such as in staircases, hallways, or rooms with multiple entrances.
