A push button switch is a momentary-action electrical switch that makes contact only while pressed. Unlike latching switches that hold their position after actuation, push button switches return to their normal state when pressure is released. This behavior makes push button switches essential for start, stop, and reset functions where temporary actuation is required.
WEUP push button switches are anti-vandal switches designed for demanding applications including industrial equipment, access control systems, and public interfaces. All WEUP push button switches carry CE certification and are rated for 250V AC at 3A current.
WEUP Push Button Switch Product Range
QN12 Series Anti Vandal Push Button Switches
The QN12 series combines rugged anti-vandal construction with reliable electrical switching. These switches are designed to withstand abuse, moisture, and outdoor environments while providing consistent electrical performance.
The QN12 series includes multiple variants:

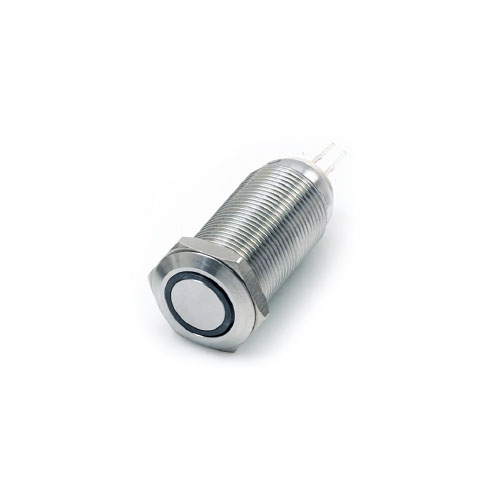

- QN12-D5/D6/D7/D8 – Illuminated push button switches with LED indicators for status indication

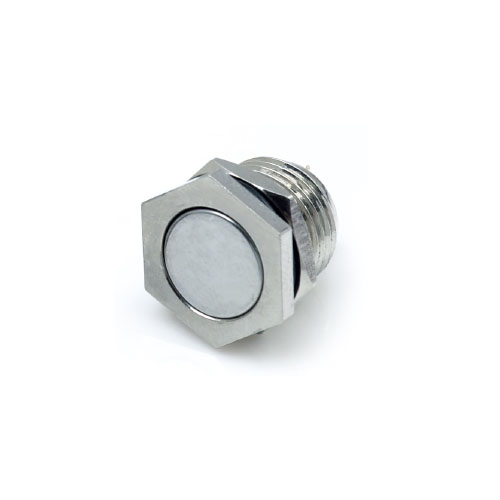

- QN12-F1/F2 – Non-illuminated push button switches for standard applications

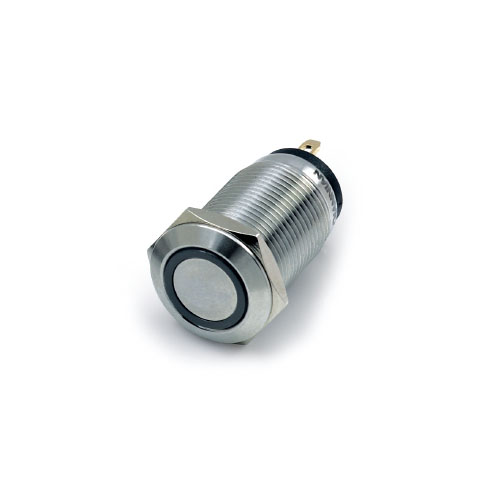

- QN12-G1/G2 – Illuminated variants with different aesthetic styles
Anti Vandal Design Features
WEUP anti vandal push button switches feature robust construction that resists physical abuse and environmental exposure:
- Stainless steel or zinc alloy housing for impact resistance
- IP65 or higher waterproof rating for outdoor and wet environments
- IK10 impact rating for vandal resistance
- Long mechanical life exceeding 1,000,000 operations
Push Button Switch Applications
Access Control and Security
Anti vandal push button switches are the standard choice for access control systems including door entry intercoms, elevator controls, and security panel interfaces. The rugged construction prevents damage from impact, moisture, and attempted vandalism that would destroy standard switches in public locations.
Common access control applications include building entry panels, parking garage controls, and gate control stations where switches must survive harsh treatment and outdoor exposure.
Industrial Equipment Control
Manufacturing equipment, packaging machines, and industrial control panels use push button switches for operator interface functions. Start/stop buttons, emergency stop buttons, and function selection buttons all rely on push button switch technology for reliable control.
According to NEMA standards, industrial control push buttons must meet specific requirements for mechanical strength and contact reliability. WEUP push button switches are tested to exceed these requirements for industrial reliability.
HVAC and Building Automation
Heating, ventilation, and air conditioning systems use push button switches in outdoor environments where standard switches would fail prematurely. The waterproof construction of WEUP anti vandal switches ensures reliable operation despite exposure to rain, humidity, and temperature extremes.
Transportation Infrastructure
Public transportation stations, parking facilities, and outdoor wayfinding systems use anti vandal push button switches throughout. The combination of waterproof rating and impact resistance makes these switches ideal for the demanding conditions of public infrastructure.
Selecting the Right Push Button Switch
Consider Illuminated vs Non-Illuminated
Illuminated push button switches include LED indicators that show switch status or provide visual feedback. These are appropriate when operators need confirmation that their input was received, or when status indication improves system usability. Non-illuminated switches work well for basic on/off functions where status is apparent from the controlled equipment.
Consider Environmental Rating
Select a push button switch with an IP rating appropriate for your installation environment. For outdoor or wet locations, IP65 or higher rating ensures protection against rain and water spray. For submerged or frequently washed areas, IP67 rating provides protection against temporary immersion.
Consider Mounting Requirements
WEUP push button switches mount through standard panel holes. Verify that the mounting hole size and panel thickness in your application match the switch specifications. The switch body diameter and installation depth must fit your panel construction.
WEUP Push Button Switch Certifications
All WEUP push button switches carry certifications supporting global market access:
- CE marking – European Union compliance for products sold in EU markets
- IP65 waterproof rating – protection against water spray from any direction
- IK10 impact rating – protection against heavy impact or vandalism
These certifications verify that WEUP push button switches meet relevant safety and performance standards for demanding applications.
Related WEUP Products
Beyond push button switches, WEUP offers complementary switch products:
- Rocker Switches – KCD series rockers for power switching
- Toggle Switches – classic flip-style switches for industrial panels
- Micro Switches – precision snap-action switches for position sensing
- IEC Connectors – power cord connectors for equipment
Contact WEUP
WEUP push button switches combine rugged anti-vandal construction with reliable electrical performance for demanding applications. Contact our engineering team to discuss your push button switch requirements or to request samples for evaluation.
