What is Switch Symbol?

The term “Switch Symbol” typically refers to a graphical representation used in electrical diagrams or circuit schematics to denote a switch, which is a device that can make, break, or change the connection in an electrical circuit. The symbol varies depending on the type of switch it represents — for example, a simple on-off switch, a push-button, a toggle, or a relay. The most basic switch symbol consists of two dots representing the connection points and a line that is either straight (indicating the switch is closed and the circuit is complete) or angled (indicating the switch is open and the circuit is broken). More complex switch symbols may include additional details to depict the specific function or operation of the switch within an electrical system.

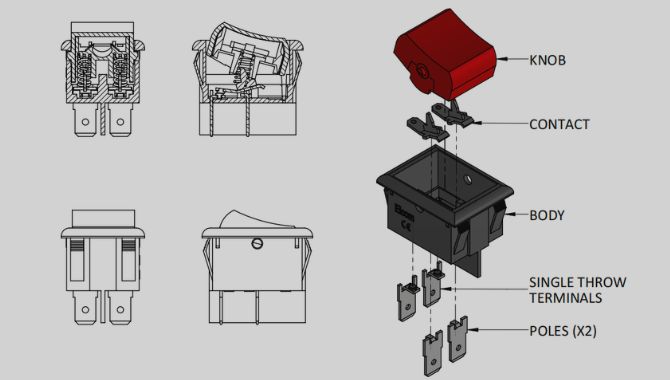

Guide to Rocker Switches
R&D & Design Team

Why switch symbols should be harmonized globally

That’s an interesting question! Harmonizing switch symbols globally can bring several benefits:

  1. Consistency: Having standardized switch symbols worldwide can ensure that people from different countries or regions can easily understand and interpret them without confusion.
  2. Safety: Standardizing switch symbols can help prevent accidents or errors that may occur due to misunderstanding or misinterpretation of symbols, especially in critical situations.
  3. Efficiency: With globally harmonized switch symbols, there can be more efficient communication and implementation of instructions related to switches in various contexts, such as electrical systems, machinery, or appliances.
  4. Ease of Learning: When symbols are consistent across borders, it becomes easier for individuals to learn and remember them, leading to increased knowledge and awareness of switch functions and operations.

In conclusion, global harmonization of switch symbols can lead to improved communication, safety, efficiency, and overall understanding in various settings where switches are used.

Symbol for Switch

Single Pole Single Throw
Double Pole Double Throw

The symbol for a rocker switch is similar to other toggle switch symbols but may be distinguished by its representation of the actuator. It usually shows a line that indicates the circuit’s connection path, with a small arc or bump in the middle to symbolize the rocking action. If it’s a Single Pole Single Throw (SPST) rocker switch, the symbol will simply show two terminals with the rocking mechanism between them. For a Single Pole Double Throw (SPDT) rocker switch, the symbol might show three terminals, indicating the switch can connect the common terminal

Switch Types - Switch Symbol

KCD3-102KDA SERIES ROCKER SWITCH
ON-OFF-(ON) Switch Symbol
KCD3-101KDW SPDT ON OFF ON ROCKER SWITCH
(ON)-OFF-(ON) Switch Symbol
KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker Switch
ON-OFF-ON Switch Symbol
lighted rocker switch 12v
ON-OFF illuminated Switch Symbol
KCD4 30 Amp Lighted Rocker Switch SPST Welding Machine
ON-OFF illuminated Switch Symbol
KCD4 30 Amp Lighted Rocker Switch SPST Welding Machine
ON-ON illuminated Switch Symbol

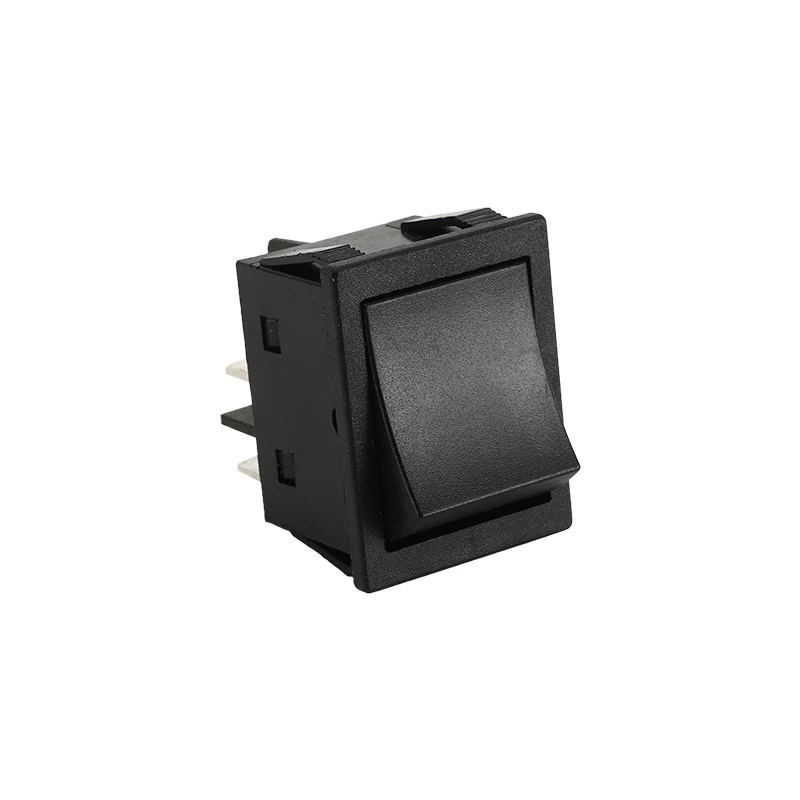

KCD4 30 Amp Rocker Switch DPDT Welding Machine
(ON)-OFF-ON Switch Symbol
KCD2-502R4P LIGHT ILLUMINATED SWITCH DPST
ON-OFF (ON-OFF) Switch Symbol
KCD2-502K4PA DOUBLE ROCKER SWITCH SPST
ON-ON (ON-ON) Switch Symbol
KCD4-202R 6PIN DOUBLE ROCKER SWITCH
(ON)-OFF-ON [(ON)-OFF-ON] Switch Symbol
Micro Switch
Micro Switch SPST NC

Micro Switch SPST NC

Micro Switch
Micro Switch SPST NO

Micro Switch SPST NO

Switch Symbol FAQ



What does the switch symbol typically represent?

The switch symbol is commonly used in electrical and electronic schematics to indicate a device that can open or close a circuit, allowing or stopping the flow of electricity.

How is the switch symbol represented in circuit diagrams?

The switch symbol is usually depicted as a line with a gap, with an arrow pointing in the direction that the switch controls the flow of current.

What are the different types of switches represented by this symbol?

There are various types of switches represented by the switch symbol, including toggle switches, push-button switches, rotary switches, and more.

Why is the switch symbol important in electrical design?

The switch symbol is crucial in electrical design as it helps engineers and technicians to understand how different components in a circuit interact and control the flow of electricity.

Where can I find more information about electrical symbols and their meanings?

You can refer to electrical engineering textbooks, online resources, or consult with professionals in the field for detailed information on electrical symbols and their significance.
