Toggle Switch Manufacturer

As a top toggle switch manufacturer, our success comes from advanced technology and a solid dedication to quality. Our skilled team is committed to providing creative solutions that exceed customer expectations. We understand the importance of a smooth user experience, so our toggles are designed to be efficient and easy to use.

  • High-quality and reliable switches
  • Incredibly versatile for various applications
  • State-of-the-art technology
  • Seamless user experience
  • Efficient and effortless operation

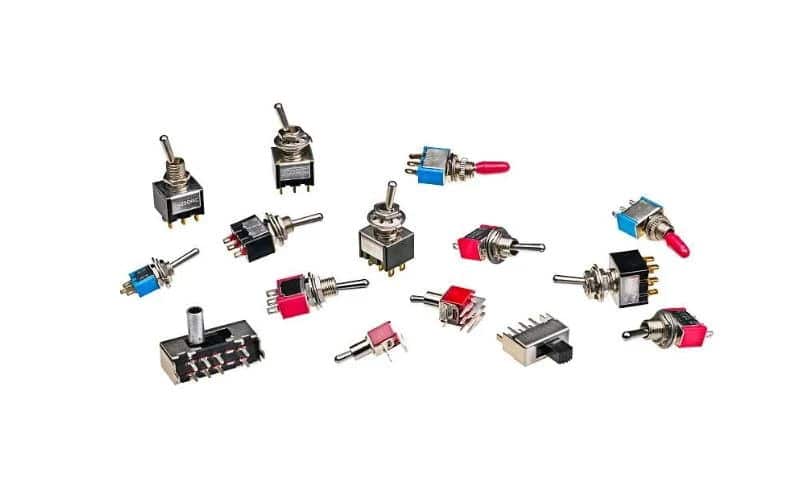

What is a Toggle Switch

A toggle switch is an electrical control switch primarily used as the main power switch for devices or as a crucial electrical component to control specific functions of electrical equipment. Therefore, selecting a high-quality toggle switch is particularly important.

Switches come in different shapes and sizes, and they can be categorized based on their size or their function within a circuit. They can be divided into two-terminal, three-terminal, four-terminal, six-terminal, or nine-terminal switches. Depending on the specific equipment and circuit requirements, it’s essential to choose the appropriate switch. You can now contact our customer service to assist you in selecting the most cost-effective toggle switch for your needs.

Read More

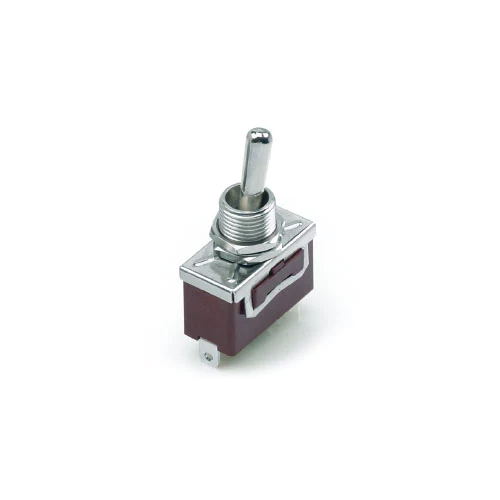

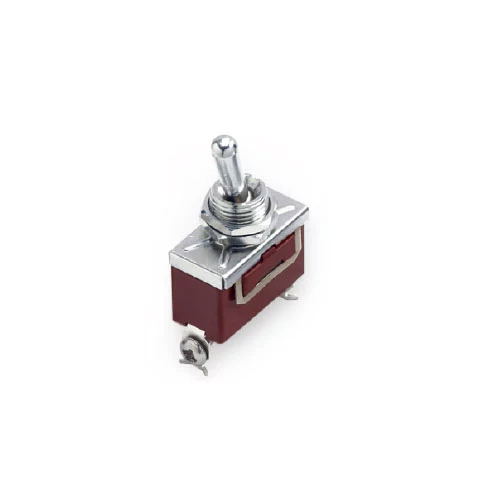

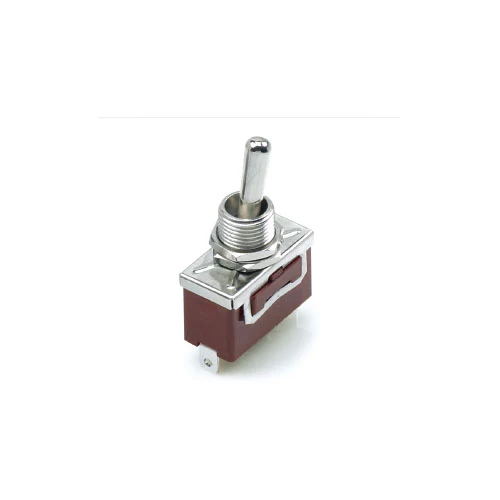

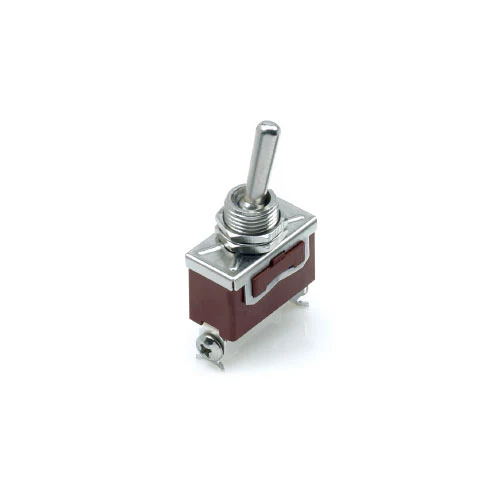

3 Way Toggle Switch

The hundred series miniature toggle switches offer numerous actuator options and termination options, including right angle BC model. These toggle switches offer up to four poles with 40,000 make breaks cycles. A locking toggle is also available common applications for this miniature taco switch include audio, visual cookment, consumer electronics, industrial controls, commercial equipment, instrumentation, and medical equipment

12V Toggle Switch

12V toggle switch is a type of electrical switch that is commonly used to control power in low-voltage applications, such as in automotive, marine, or certain types of hobbyist projects. This switch operates on a 12-volt system, which is a standard voltage for many small-scale electrical systems.

Waterproof Toggle Switch

A waterproof toggle switch is a type of toggle switch that is designed to resist water and moisture infiltration. This feature makes it suitable for use in environments where the switch might be exposed to rain, splashes, or other forms of moisture. The waterproofing aspect is crucial for maintaining the switch’s functionality and safety in wet conditions.

On Off On Toggle Switch

An “On-Off-On” toggle switch is a type of switch that offers three positions for controlling electrical circuits: two “On” positions and one “Off” position. This kind of switch is typically a variant of the Single-Pole Double-Throw (SPDT) or Double-Pole Double-Throw (DPDT) toggle switch, depending on the number of circuits it controls.

6 Way Toggle Switch

6-way toggle switch is a type of electrical switch that can control multiple circuits or devices. It’s called “6-way” because it offers six different functions or positions. Each position of the switch connects or disconnects certain circuit paths, allowing the user to control different aspects or devices within an electrical system.

Toggle Switch Cover

A toggle switch cover is an accessory used to protect and enhance the functionality of a toggle switch. These covers serve various purposes, including safety, environmental protection, and aesthetic enhancement. The specific design and features of a toggle switch cover can vary.

With Full Product Certification

CB Certification
CE Certification
PAHS Certification
PAHS Certification
CQC Certification
CQC Certification
CE Certification
CE Certification
UL Certification
UL Certification
TUV Certification
TUV Certification
ROHS Certification
RoHS Certification
ENEC Certification
ENEC Certification

Toggle Light Switch

A toggle light switch is a mechanical device used to interrupt or connect the electrical circuit, allowing users to control the flow of electricity to a light fixture. It features a lever or “toggle” that can be flipped up or down, translating into an “on” or “off” position. When the switch is in the “on” position, the circuit is complete, and electricity flows to the light fixture, illuminating the bulb. Conversely, when the switch is flipped to the “off” position, the circuit is broken, stopping the flow of electricity and turning off the light. Toggle switches are common in residential and commercial settings and offer a simple and reliable method for controlling lighting.

Toggle Light Switch
3 Way Toggle Switch

3 Way Toggle Switch

A 3-way toggle switch is an electrical switch that allows the user to control a single circuit or electrical device from two different locations. It has three terminals: one common (C) and two travelers (A and B). When the toggle is in one position, it connects the common terminal to one traveler; in the other position, it connects to the second traveler. This setup is often used in residential and commercial lighting applications, enabling control of lights from both ends of a room or stairway. To have a fully functional 3-way circuit, you need two 3-way switches installed at separate points. The wiring between the switches includes a hot wire, a neutral wire, and two traveler wires that connect the traveler terminals of both switches, allowing the on/off state to be toggled from either location.

On Off On Toggle Switch

An “on off on toggle switch” is a type of electrical switch that allows a user to control the flow of electricity to a device. This particular switch has three positions: two “on” positions at opposite ends and an “off” position in the middle. When the switch is toggled to either of the “on” positions, it completes an electrical circuit, allowing current to flow and power a device. When moved to the “off” position, it breaks the circuit, stopping the flow of electricity and turning the device off. This switch is commonly used in applications where a user needs to select from one of two different operation modes or circuits, each activated by one of the “on” positions, while still having the option to completely power down or disconnect by switching to the “off” position.

How to Know if Toggle Switch Is on or Off
Toggle Switch Cover

Toggle Switch Cover

A toggle switch cover is a protective device designed to enclose and shield a toggle switch, which is a type of electrical switch that operates by moving a lever back and forth to open or close an electrical circuit. The cover serves both functional and aesthetic purposes. Functionally, it prevents dust, dirt, and accidental contact with the switch, which could cause unintended activation or damage. It may also offer a degree of water resistance for switches exposed to moisture. Aesthetically, the cover can be designed to blend with the surrounding area or to stand out as a feature, depending on the design intent. Covers can be made from various materials including plastic, metal, or rubber, and they often come in different colors and styles to match the preferences or requirements of the particular application where they are being used.

Waterproof Toggle Switch

A waterproof toggle switch is an electrical switch designed to maintain functionality and integrity in moist or wet environments. It features a mechanical lever for operation, which can be toggled between different positions to open or close a circuit, allowing for the control of electrical flow. The “waterproof” aspect signifies that the switch is protected against water ingress, often accomplished with rubber boots, seals, or specialized housing that comply with specific ingress protection (IP) ratings. This enables the switch to be used in outdoor settings, marine applications, or any location where exposure to water is a concern. Its construction materials and design ensure durability and reliability despite exposure to water, making it suitable for applications where regular switches would fail due to corrosion or short-circuiting.

Waterproof Toggle Switch

Lighted Toggle Switch

A lighted toggle switch is an electrical switch that features a small bulb, often an LED, that illuminates the switch lever or button. This lighting serves as an indicator that the switch is on or in a specific position. Lighted toggle switches are commonly used in applications where visibility of the switch status is important, such as in dark environments or on control panels. They can be found in various settings, from industrial equipment to consumer electronics and vehicles. The toggling mechanism allows the user to flip the switch up or down to open or close an electrical circuit, enabling or disabling power to a device or system. The lighted feature adds both functional and aesthetic value, ensuring the switch is easy to locate and providing immediate visual feedback about whether a device is powered.

Momentary Toggle Switch

A momentary toggle switch is a type of electrical switch that is designed to control the flow of electricity in a circuit while it is being actuated. Unlike a standard toggle switch that remains in either an “on” or “off” position, a momentary toggle switch will only stay in its “on” state as long as it is being physically held or pressed by the user. Once released, it returns to its “off” position automatically due to an internal spring mechanism. This type of switch is commonly used in applications where a temporary action is required, such as in push-button stations, keyboards, or as a reset or start button on various devices. They are available in various configurations, including normally open (NO), normally closed (NC), or a combination of both.

How to Know if Toggle Switch Is on or Off
12v Toggle Switch

12v Toggle Switch

The 12-volt toggle switch is an electrical component that allows the user to control the current in a 12-volt circuit. It utilizes a simple switching mechanism, a binary device where the switch lever can be toggled between two positions. In the “on” position, the switch opens the circuit and allows current to flow, powering any connected devices. Conversely, in the “off” position, the circuit is disconnected, current cannot flow, and connected devices are disabled. For contemporary new energy products or electrician’s appliances or DC power tools with lithium batteries.

30 Amp Toggle Switch

A 30-amp toggle switch is an electrical switch designed to handle a maximum current of 30 amperes. It operates using a lever, or “toggle,” which can be manually flipped to open or close an electrical circuit, allowing the flow of electricity to be controlled. This type of switch is commonly used in applications where moderate to high-power devices or systems need to be turned on or off, such as industrial machinery, large lighting setups, or heavy-duty appliances. The “30-amp” rating signifies that the switch can safely carry electrical currents up to 30 amperes without overheating or posing a fire risk. It is important to use a switch with an appropriate current rating for the connected device to prevent electrical hazards. Toggle switches are known for their durability and ease of use, often providing a clear indication of whether the circuit is active based on the position of the toggle.

30 Amp Toggle Switch

Toggle VS Rocker Switch

toggle switch
rocker switch

A toggle switch is a mechanical device that operates using a lever, or “toggle,” which is moved up and down to open or close an electrical circuit. When the lever is flipped to one side, the switch is in the “on” position, allowing current to flow through the circuit; when flipped to the opposite side, it is in the “off” position, interrupting the current.

A rocker switch operates on a similar principle but uses a seesaw-like action. It features a button that rocks back and forth within a casing, with one side of the button protruding further out than the other when pressed. Pressing one side of the rocker will close the circuit (“on”), while pressing the opposite side opens it (“off”).

Both switches are commonly used in various applications ranging from household appliances to industrial machinery. The choice between a toggle and rocker switch often depends on user preference, design requirements, and the intended application’s specific needs.

Toggle Switch Working parameters

Mini Toggle Switch Working parameters
Mini Toggle Switch Working parameters

Rating:3A 125VAC; 1.5A 250VAC

6A 125VAC; 3A 250VAC

10A 125VAC; 6A 250VAC

Contact Resistance: 20mΩ max

Insulation Resistance: 500VDC 1000MΩ min

Dielectric strength: 1500VAC, 1 Minute

Operating Temperature: -25℃ to +85℃

Electrical Life: ≥10,000 Cycles

Get instant Quote

Medium Toggle Switch Working parameters

Rating: 10A 125VAC; 6A 250VAC

15A 125VAC; 10A 250VAC

20A 125VAC; 15A 250VAC

Contact Resistance: 20mΩ max

Insulation Resistance: 500VDC 1000MΩ min

Dielectric strength: 1500VAC, 1 Minute

Operating Temperature: -25℃ to +85℃

Electrical Life: ≥10,000 Cycles

Get instant Quote

Switch Diagrams

Single Pole Single Throw (SPST)
Single Pole Single Throw Switch (SPST)
Single Pole Double Throw (SPDT)
Single Pole Double Throw Switch (SPDT)
Double Pole Single Throw (DPST)
Double Pole Single Throw Switch (DPST)
Double Pole Double Throw (DPDT)
Double Pole Double Throw Switch (DPDT)

Toggle Switch FAQ

A toggle switch is a type of electrical switch characterized by a lever, handle, or rocker that “toggles” between two states. These switches are commonly used in many electronic devices, appliances, and machinery to control power or function settings. Here are some frequently asked questions about toggle switches:

How To Wire a Toggle Switch?

How To Wire a Toggle Switch?

A toggle switch is an electrical component that can interrupt or connect the electrical circuit, allowing the flow of electricity to be controlled. It typically has a lever or baton that can be toggled between on and off positions, thus opening or closing an electrical circuit. Wiring a toggle switch involves connecting the wires from the power source to the terminals on the switch.

How to Wire a Light Bar to a Toggle Switch?

How to Wire a Light Bar to a Toggle Switch?

To wire a light bar to a toggle switch, you need to connect the light bar’s power wire to the power terminal on the switch and the ground wire of the light bar to a ground point on the vehicle. The switch will also need a power source, typically connected to the vehicle’s battery with an inline fuse for protection. The switch then controls the electrical circuit, allowing you to turn the light bar on and off.

The Sealed Design Advantage of Toggle Switches

Another critical advantage of toggle switches is their sealed design. This design protects them from moisture, dust, and other environmental factors that could damage the switch. The added protection enhances the durability of toggle switches and extends their lifespan even further. Whether used in automotive applications, industrial machinery, or household appliances, toggle switches offer a reliable solution that can endure various conditions.

The Reliable and Durable Choice

Toggle switches have gained popularity across industries for their reliability and long lifespan. With their ability to withstand frequent use without wearing out quickly, toggle switches provide a dependable solution for various applications. Their robust construction, made from sturdy materials like metal or high-quality plastics, allows them to thrive even in demanding environments. Additionally, toggle switches often feature self-cleaning contacts that prevent dirt and dust build-up, ensuring optimal performance over time.

Reliable and Durable Solutions for All Industries

In summary, toggle switches are renowned for their longevity and durability. Their sturdy construction and ability to handle repeated switching without wearing out quickly make them highly reliable for various applications. The sealed design of toggle switches provides additional protection against moisture, dust, and other environmental factors, enhancing their durability even further. Toggle switches are prevalent across industries because of their reliability and ability to maintain performance over time. Whether used in automotive, industrial, or household settings, toggle switches offer a dependable solution that can withstand the test of time.
