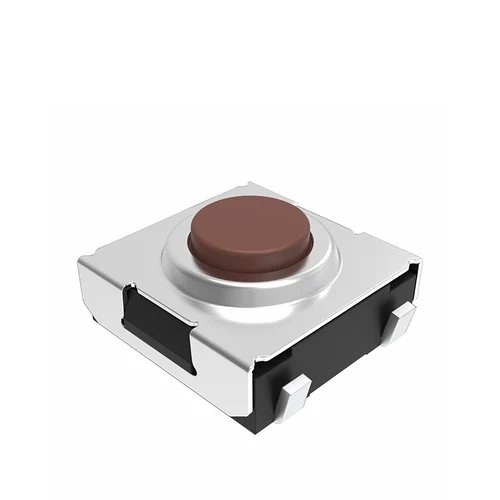

TVEU19 6.2x6.2mm Micro Tactile Switch Push Button Switches SMT SMD

TVEU19

FEATURES AND BENEFITS

  • Fully encapsulated contacts for increased reliability
  • Ultra Small Tactile Switches
  • IP67 splashproof rubber boot option
  • Suitable for high-density installations

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
DC 12V  50mA

DC   1V  10μA

  • Bounce
<5mS
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 67
  • Operating Temperature:
T +5/+35
  • Contact Resistance:
≦ 100mΩ

A tactile switch allows electricity to flow in an electrical circuit by manually pressing the operating section. The switch is used to supply input signal to actuate a device or equipment. It is designed with a small footprint suited for mounting onto the surface of printed circuit
boards (PCBs) made to connect electronic components to form electronic circuits (Figure 1). The switch activates when pressed and then turns off when released. This action is called ‘momentary action’ and can only be performed at low voltage and low current.
There are many different types of tactile switches, also known as tactile push switches or tact switches, used in a variety of applications including household appliances, office equipment, commercial equipment, and industrial machinery.
There are optional features such as size (external dimension), board mounting, and sealing structure for users to select for their applications. A tactile switch is literally a switch that users can “feel a click sense of touch”.
<Click response>
A click response of a button is the most characteristic feature of a tactile switch that lets users
feel the response of the operation from a switch. A clicking feel is generated from the contact
dome embedded in the switch. How large an operation stroke and how sharp a click sense of
touch depends on the materials and shapes of the contact dome.
<High Durability>
The contact dome also acts as a movable contact in a tactile switch. The resistance value
(contact resistance) which is generated between a movable contact and a fixed contact when a
switch is turned on can be stabilized by using specific materials, surface processing, and shape
enabling high durability capable of withstanding 100 thousand to 10 million times of use.

Models

There are two types of tactile switches: Standard tactile switches and sealed tactile switches. The
sealed tactile switches are dust-protected and water-resistant to withstand harsh environmental
conditions. They are further sub-categorized into two types: PCB insert hole terminals type
and PCB surface mounted terminals type. For PCB insert hole terminals type, terminals are
inserted into holes on the PCB and are fixed by soldering. For PCB surface-mounted terminals
type, terminals are surface-mounted and soldered on the PCB. These switches can be
transported in a standalone package, or using a taping packaging method where a carrier tape
holds the switches in place with clearance between them.
Other variations include horizontal push button type, long-stroke type, and ultra subminiature
type switches and many more, ranging from different shapes and specifications that cater to
various applications

Read More

Product Features

              • Introducing the WEUP Tact Switch: High-Quality, Reliable, and VersatileThe WEUP Tact Switch (model number TVEU19) is a compact and reliable push button switch that is perfect for a wide range of applications in various industries. Whether you are in the market for small appliances, computers and peripherals, or medical instrumentation, the WEUP Tact Switch is designed to meet your needs and exceed your expectations.Fully Encapsulated Contacts for Increased Reliability One of the standout features of the WEUP Tact Switch is its fully encapsulated contacts. This design ensures increased reliability by protecting the internal components from dust, moisture, and other environmental factors. With the WEUP Tact Switch, you can trust that your devices and equipment will operate smoothly and consistently.

                Ultra Small Tactile Switches The WEUP Tact Switch is designed with a small footprint, making it ideal for high-density installations. Its compact size allows for efficient use of space on printed circuit boards (PCBs), which are commonly used to connect electronic components and form electronic circuits. With the WEUP Tact Switch, you can achieve a sleek and streamlined design without compromising on functionality.

                IP67 Splash Proof Rubber Boot Option For applications that require additional protection against water and dust, the WEUP Tact Switch offers an IP67 splash proof rubber boot option. This feature ensures that the switch remains operational even in harsh environments, making it suitable for outdoor or industrial use. With the splash-proof rubber boot, you can have peace of mind knowing that your devices are well-protected.

                Superior Performance The WEUP Tact Switch delivers outstanding performance across a range of specifications. With a contact rating of DC 12V 50mA and DC 1V 10μA, it can handle various electrical loads. The bounce time of less than 5ms ensures quick and responsive operation, while the insulation resistance of ≥100 MΩ guarantees reliable electrical isolation. The WEUP Tact Switch is built to withstand the test of time, with a contact resistance of ≤100mΩ and a high durability capable of withstanding 100 thousand to 10 million times of use.

                Wide Range of Applications The versatility of the WEUP Tact Switch makes it a perfect fit for a wide range of applications. It is commonly used in small appliances such as kitchen appliances, home electronics, and personal care devices. Additionally, it finds its place in computers and peripherals, providing reliable input signals for keyboards, mice, and other computer accessories. Medical instrumentation also benefits from the precision and reliability of the WEUP Tact Switch, ensuring accurate and responsive control in critical healthcare settings.

                Quality Assurance and Certifications With WEUP’s commitment to quality, you can trust that every Tact Switch undergoes rigorous testing and meets industry standards. The WEUP Tact Switch is certified by CQC, CCC, CE, RoHS, ENEC, PAHS, VDE, TUV, and UL, ensuring compliance with international regulations and safety standards. When you choose the WEUP Tact Switch, you are choosing a product that has been thoroughly tested for performance, reliability, and safety.

                Why Choose WEUP Tact Switch?

                • Reliability: The fully encapsulated contacts ensure consistent performance even in challenging environments.
                • Compact Design: The ultra-small footprint allows for high-density installations without compromising on functionality.
                • Versatility: The WEUP Tact Switch is suitable for a wide range of applications in various industries.
                • Performance: With superior specifications and durability, the WEUP Tact Switch delivers outstanding performance.
                • Quality Assurance: The WEUP Tact Switch is certified by reputable organizations, guaranteeing its quality and safety.

                Conclusion When it comes to choosing a tactile switch for your B2B needs, the WEUP Tact Switch stands out as a reliable and versatile option. Its fully encapsulated contacts ensure increased reliability, while its compact design allows for efficient use of space on PCBs. The optional IP67 splash-proof rubber boot provides additional protection in harsh environments. With superior performance and certifications from renowned organizations, the WEUP Tact Switch is the perfect choice for importers, distributors, manufacturers, brands, wholesalers, and retailers.

                Don’t miss out on the opportunity to partner with one of China’s leading manufacturers. Contact our trusted suppliers at WEUP today to learn more about the WEUP Tact Switch and how it can enhance your products and applications. Wholesale pricing options are available for bulk orders. Choose the WEUP Tact Switch for quality, reliability, and performance that exceeds expectations.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

Rating (resistive load)1 to 50 mA, 3 to 24 VDC
Minimum applicable load (reference value)10 A at 1 VDC (resistive load)
Ambient operating temperature-25C to +70C at 60%RH max. (with no icing or condensation)
Ambient operating humidity35% to 85% (at +5 to +35C)
Contact formSPST-NO
Contact resistance (initial value)100 mΩ max.
Insulation resistance100 MΩ min. (at 250 VDC with insulation tester)
Dielectric strength500 VAC, 50/60 Hz for 1 min
Bounce time5 ms max.
Vibration resistanceMalfunction: 10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceDestruction: 1,000 m/s2 {approx. 100G} max. Malfunction: 100 m/s2 {approx. 10G} max.
DurabilityStandard force models (1.57 N {160 gf}): 500,000 operations min. High-force models (2.26 N {230 gf}): 300,000 operations min.
WeightApprox. 0.3 g
Degree of protectionIEC IP67
WashingPossible
