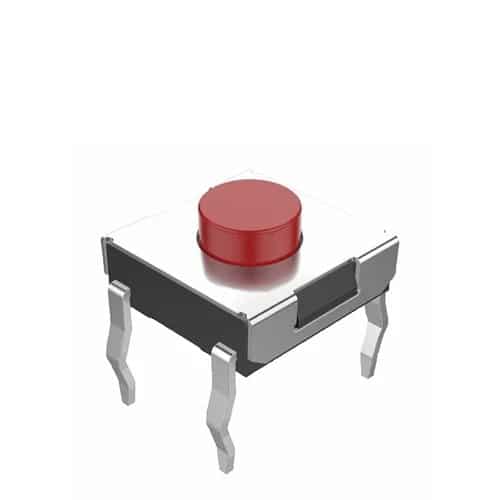

TVEP07 6.2X6.2mm Micro Tactile Switch Push Button Switches SMT SMD

TVEP07

FEATURES AND BENEFITS

  • Fully encapsulated contacts for increased reliability
  • Ultra Small Tactile Switches
  • IP67 splashproof rubber boot option
  • Suitable for high-density installations

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
DC 12V  50mA

DC   1V  10μA

  • Bounce
<5mS
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 67
  • Operating Temperature:
T +5/+35
  • Contact Resistance:
≦ 100mΩ

A tactile switch allows electricity to flow in an electrical circuit by manually pressing the operating section. The switch is used to supply input signal to actuate a device or equipment. It is designed with a small footprint suited for mounting onto the surface of printed circuit
boards (PCBs) made to connect electronic components to form electronic circuits (Figure 1). The switch activates when pressed and then turns off when released. This action is called ‘momentary action’ and can only be performed at low voltage and low current.
There are many different types of tactile switches, also known as tactile push switches or tact switches, used in a variety of applications including household appliances, office equipment, commercial equipment, and industrial machinery.
There are optional features such as size (external dimension), board mounting, and sealing structure for users to select for their applications. A tactile switch is literally a switch that users can “feel a click sense of touch”.
<Click response>
A click response of a button is the most characteristic feature of a tactile switch that lets users
feel the response of the operation from a switch. A clicking feel is generated from the contact
dome embedded in the switch. How large an operation stroke and how sharp a click sense of
touch depends on the materials and shapes of the contact dome.
<High Durability>
The contact dome also acts as a movable contact in a tactile switch. The resistance value
(contact resistance) which is generated between a movable contact and a fixed contact when a
switch is turned on can be stabilized by using specific materials, surface processing, and shape
enabling high durability capable of withstanding 100 thousand to 10 million times of use.

Models

There are two types of tactile switches: Standard tactile switches and sealed tactile switches. The
sealed tactile switches are dust-protected and water-resistant to withstand harsh environmental
conditions. They are further sub-categorized into two types: PCB insert hole terminals type
and PCB surface mounted terminals type. For PCB insert hole terminals type, terminals are
inserted into holes on the PCB and are fixed by soldering. For PCB surface-mounted terminals
type, terminals are surface-mounted and soldered on the PCB. These switches can be
transported in a standalone package, or using a taping packaging method where a carrier tape
holds the switches in place with clearance between them.
Other variations include horizontal push button type, long-stroke type, and ultra subminiature
type switches and many more, ranging from different shapes and specifications that cater to
various applications

Read More

Product Features

              • Introducing the WEUP Tact SwitchAre you in search of a reliable and high-quality tactile switch for your business needs? Look no further! We proudly present the WEUP Tact Switch, a top-notch product designed to meet the demands of importers, distributors, manufacturers, brands, wholesalers, and retailers. With its exceptional features and functions, this switch is sure to enhance the performance and reliability of your electronic devices. Let us delve into the compelling reasons why the WEUP Tact Switch is the perfect choice for your business.

                Reliability and Durability

                • The WEUP Tact Switch is equipped with fully encapsulated contacts, ensuring increased reliability even in demanding environments. With dust protection and water resistance (IP67), this switch is designed to withstand harsh conditions, making it ideal for a wide range of applications.
                • Boasting high durability and capable of withstanding 100 thousand to 10 million times of use, this switch guarantees longevity and reduces the need for frequent replacements. This feature is particularly beneficial for manufacturers and brands looking for components that can withstand heavy usage.

                Compact Design for High-Density Installations

                • The ultra-small size of the WEUP Tact Switch allows for seamless integration into small appliances, computers and peripherals, and medical instrumentation. Its compact footprint is perfectly suited for mounting onto the surface of printed circuit boards (PCB), enabling high-density installations.
                • This compact design also makes the switch an excellent choice for applications where space is limited. Whether you are designing a portable device or an intricate electronic system, the WEUP Tact Switch offers a space-efficient solution.

                Versatility and Customization

                • The WEUP Tact Switch is highly versatile, catering to a wide range of applications. From household appliances to office equipment, commercial equipment, and industrial machinery, this switch guarantees optimal performance across various industries.
                • With multiple variations available, including standard tactile switches and sealed tactile switches, you can choose the specific type that best suits your needs. Additionally, options such as size (external dimension), board mounting, and sealing structure provide customization possibilities for different applications.

                Enhanced User Experience

                • A click response is a defining feature of the WEUP Tact Switch. Users can feel the response of the operation from the switch, providing tactile feedback that enhances the user experience.
                • The switch’s momentary action ensures precise control as it activates when pressed and turns off when released. This feature is particularly advantageous for applications requiring low voltage and low current operations.

                Quality Assurance and Certifications

                • As a testament to its quality and compliance with international standards, the WEUP Tact Switch has obtained certifications such as CQC, CCC, CE, RoHS, ENEC, PAHS, VDE, TUV, and UL. These certifications underscore the product’s adherence to safety and quality regulations.
                • When sourcing electronic components, it is crucial to partner with reliable suppliers. WEUP, one of China’s leading manufacturers in the industry, ensures consistent quality control throughout the production process. By choosing the WEUP Tact Switch, you can rely on a trusted brand that prioritizes excellence.

                Applications Across Industries The WEUP Tact Switch finds its application in various industries due to its versatile nature. Here are just a few examples:

                1. Commercial Equipment and Industrial Machinery: Tactile switches are crucial in operating units of devices and equipment. Whether it’s temperature controllers, air conditioning systems, inverter control panels, or measuring instruments and medical devices, the WEUP Tact Switch enables setting operating modes and conditions while ensuring reliable performance.
                2. Household Appliances and Office Equipment: Control panels in printers, multifunction printers, dishwashers, and washing machines benefit from the WEUP Tact Switch’s ability to set operating modes and conditions accurately. The sealed tactile switches provide water resistance, making them perfect for appliances that require protection against moisture.
                3. Electronics Manufacturing: As manufacturers strive to create compact and efficient electronic devices, the WEUP Tact Switch offers a space-efficient solution due to its small footprint. Its compatibility with PCBs allows for streamlined assembly processes, enabling manufacturers to meet high-density installation requirements.

                In conclusion, the WEUP Tact Switch is a reliable and versatile component that meets the demands of B2B buyers across various industries. Its fully encapsulated contacts ensure increased reliability while its compact design allows for high-density installations. With customization options available and certifications attesting to its quality, this switch is an excellent choice for importers, distributors, manufacturers, brands, wholesalers, and retailers.

                Partner with WEUP – a trusted manufacturer known for delivering top-quality products. By incorporating the WEUP Tact Switch into your electronic devices, you can enhance their performance and provide an exceptional user experience. Don’t compromise on reliability or durability; choose the WEUP Tact Switch for your business needs today!

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

Rating (resistive load)1 to 50 mA, 3 to 24 VDC
Minimum applicable load (reference value)10 A at 1 VDC (resistive load)
Ambient operating temperature-25C to +70C at 60%RH max. (with no icing or condensation)
Ambient operating humidity35% to 85% (at +5 to +35C)
Contact formSPST-NO
Contact resistance (initial value)100 mΩ max.
Insulation resistance100 MΩ min. (at 250 VDC with insulation tester)
Dielectric strength500 VAC, 50/60 Hz for 1 min
Bounce time5 ms max.
Vibration resistanceMalfunction: 10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceDestruction: 1,000 m/s2 {approx. 100G} max. Malfunction: 100 m/s2 {approx. 10G} max.
DurabilityStandard force models (1.57 N {160 gf}): 500,000 operations min. High-force models (2.26 N {230 gf}): 300,000 operations min.
WeightApprox. 0.3 g
Degree of protectionIEC IP67
WashingPossible
