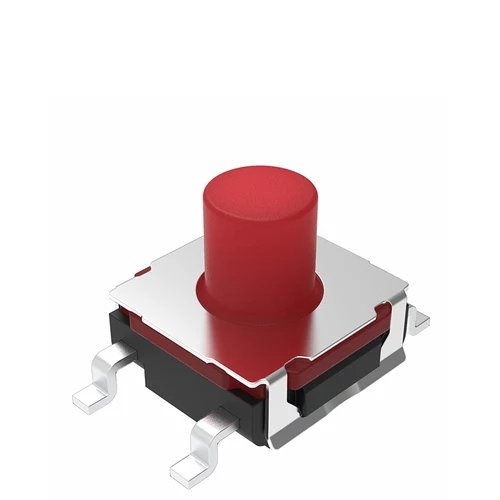

TVEM17 6.2X6.2mm Micro Tactile Switch Push Button Switches SMT SMD
TVEM17
FEATURES AND BENEFITS
- Fully encapsulated contacts for increased reliability
- Ultra Small Tactile Switches
- IP67 splashproof rubber boot option
- Suitable for high-density installations
TYPICAL APPLICATIONS
- Small appliances
- Computers and peripherals
- Medical instrumentation
SPECIFICATIONS
| DC 12V 50mA DC 1V 10μA |
| ＜5mS |
| ≧ 100 MΩ |
| IP 67 |
| T +5/+35 |
| ≦ 100mΩ |
Models
There are two types of tactile switches: Standard tactile switches and sealed tactile switches. The
sealed tactile switches are dust-protected and water-resistant to withstand harsh environmental
conditions. They are further sub-categorized into two types: PCB insert hole terminals type
and PCB surface mounted terminals type. For PCB insert hole terminals type, terminals are
inserted into holes on the PCB and are fixed by soldering. For PCB surface-mounted terminals
type, terminals are surface-mounted and soldered on the PCB. These switches can be
transported in a standalone package, or using a taping packaging method where a carrier tape
holds the switches in place with clearance between them.
Other variations include horizontal push button type, long-stroke type, and ultra subminiature
type switches and many more, ranging from different shapes and specifications that cater to
various applications
Product Features
- Introducing the WEUP Tact SwitchAre you in the market for a reliable and high-quality tactile switch? Look no further than the WEUP Tact Switch! Designed with cutting-edge technology and precision engineering, this micro tactile switch is perfect for a wide range of applications, from small appliances to medical instrumentation. In this compelling argument, we will explore the features and benefits of the WEUP Tact Switch, highlighting its effectiveness and versatility for B2B buyers such as importers, distributors, manufacturers, brands, wholesalers, and retailers.1. Fully Encapsulated Contacts for Increased Reliability
The WEUP Tact Switch is built with fully encapsulated contacts, ensuring enhanced reliability and durability. This feature makes it ideal for applications that require consistent and long-lasting performance. Whether you are using it in small appliances or medical instrumentation, you can trust that the WEUP Tact Switch will deliver exceptional reliability even in demanding conditions.
2. Ultra Small Tactile Switches for High Density Installations
With a compact size of 6.2×6.2mm, the WEUP Tact Switch is perfect for high-density installations. Its small footprint allows for efficient use of space on printed circuit boards (PCBs), making it an excellent choice for applications where space is limited. Whether you are designing compact devices or densely packed electronic circuits, the WEUP Tact Switch provides a seamless solution.
3. IP67 Splash Proof Rubber Boot Option for Added Protection
For applications that require additional protection against moisture and dust, the WEUP Tact Switch offers an IP67 splash-proof rubber boot option. This feature ensures that the switch remains fully functional even in harsh environments. From household appliances to industrial machinery, the WEUP Tact Switch is designed to withstand challenging conditions while maintaining optimal performance.
4. Wide Range of Applications
The WEUP Tact Switch is highly versatile, making it suitable for a wide range of applications. Whether you are in the market for switches for small appliances, computers and peripherals, or medical instrumentation, the WEUP Tact Switch has got you covered. Its reliability, durability, and compact size make it an excellent choice for various industries.
5. High Durability for Long-Term Use
When it comes to tactile switches, durability is a key factor. The WEUP Tact Switch excels in this area, thanks to its high-quality construction and materials. With a contact resistance of less than 100mΩ and an insulation resistance of over 100 MΩ, this switch can withstand 100 thousand to 10 million cycles of use. Whether you are a manufacturer looking for switches that can handle heavy usage or a retailer seeking long-lasting products, the WEUP Tact Switch delivers exceptional durability.
6. Wide Range of Models to Choose From
The WEUP Tact Switch offers a wide range of models to suit different requirements and applications. From standard tactile switches to sealed tactile switches, there are options available for various needs. Whether you prefer PCB insert hole terminals or surface-mounted terminals, the WEUP Tact Switch has got you covered. With options like horizontal push button type, long-stroke type, and ultra subminiature type switches, there is a model to cater to every application.
7. Certifications and Compliance
The WEUP Tact Switch meets stringent quality standards and certifications, ensuring that you receive a reliable and safe product. With certifications such as CCC, CE, RoHS, ENEC, PAHS, VDE, TUV, and UL, you can trust that the WEUP Tact Switch complies with industry regulations and requirements.
In conclusion, the WEUP Tact Switch is a top-notch choice for B2B buyers looking for a reliable and high-quality tactile switch. Its fully encapsulated contacts, ultra-small size, wide range of models, and high durability make it an excellent investment for importers, distributors, manufacturers, brands, wholesalers, and retailers. Whether you are sourcing switches for small appliances or medical instrumentation, the WEUP Tact Switch offers exceptional performance and reliability.
Don’t miss out on this opportunity to partner with one of the leading China manufacturers in the industry. Contact us today to connect with our reliable suppliers, factory direct wholesale vendors, and secure your supply of the WEUP Tact Switch!
- Introducing the WEUP Tact SwitchAre you in the market for a reliable and high-quality tactile switch? Look no further than the WEUP Tact Switch! Designed with cutting-edge technology and precision engineering, this micro tactile switch is perfect for a wide range of applications, from small appliances to medical instrumentation. In this compelling argument, we will explore the features and benefits of the WEUP Tact Switch, highlighting its effectiveness and versatility for B2B buyers such as importers, distributors, manufacturers, brands, wholesalers, and retailers.1. Fully Encapsulated Contacts for Increased Reliability
Why Choose WEUP?
High Quality
Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.
Affordability
We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.
Reliable Supplier
As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.
Excellent Customer Service
At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.
Certificates
Technical Data
- Characteristics
- Drawings
| Rating (resistive load) | 1 to 50 mA, 3 to 24 VDC |
| Minimum applicable load (reference value) | 10 A at 1 VDC (resistive load) |
| Ambient operating temperature | -25C to +70C at 60%RH max. (with no icing or condensation) |
| Ambient operating humidity | 35% to 85% (at +5 to +35C) |
| Contact form | SPST-NO |
| Contact resistance (initial value) | 100 mΩ max. |
| Insulation resistance | 100 MΩ min. (at 250 VDC with insulation tester) |
| Dielectric strength | 500 VAC, 50/60 Hz for 1 min |
| Bounce time | 5 ms max. |
| Vibration resistance | Malfunction: 10 to 55 Hz, 1.5-mm double amplitude |
| Shock resistance | Destruction: 1,000 m/s2 {approx. 100G} max. Malfunction: 100 m/s2 {approx. 10G} max. |
| Durability | Standard force models (1.57 N {160 gf}): 500,000 operations min. High-force models (2.26 N {230 gf}): 300,000 operations min. |
| Weight | Approx. 0.3 g |
| Degree of protection | IEC IP67 |
| Washing | Possible |
Related Products (4)
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore etfer
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore etfer
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore etfer
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore etfer
Download Latest Catalog
Yes. Usually, 1-2 samples are free of charge, please support us by providing us with any express account such as DHL, FedEx, TNT, or UPS.
Our nearest port is Ningbo and Shanghai port, but if you collect the goods to ship together, we could send them to the other farther port. Usually, our customers will choose TNT, DHL, FedEx, and UPS to ship them.
Usually the samples 1-5 days to prepare. For orders, it depends on the quantity. Usually 5-15 days.
For standard packing, dozens per box, 500pcs or 1000pcs per carton. We also provide you with custom box or carton packing with your logo and design.
All the products will be 100% checked before the shipment.
