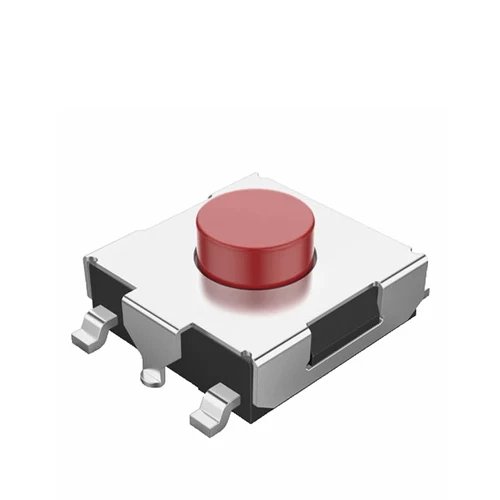

TVEM05-N 6.2X6.2mm Micro Tactile Switch Push Button Switches SMT SMD

TVEM05-N

FEATURES AND BENEFITS

  • Fully encapsulated contacts for increased reliability
  • Ultra Small Tactile Switches
  • IP67 splashproof rubber boot option
  • Suitable for high-density installations

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
DC 12V  50mA

DC   1V  10μA

  • Bounce
<5mS
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 67
  • Operating Temperature:
T +5/+35
  • Contact Resistance:
≦ 100mΩ

A tactile switch allows electricity to flow in an electrical circuit by manually pressing the operating section. The switch is used to supply input signal to actuate a device or equipment. It is designed with a small footprint suited for mounting onto the surface of printed circuit
boards (PCBs) made to connect electronic components to form electronic circuits (Figure 1). The switch activates when pressed and then turns off when released. This action is called ‘momentary action’ and can only be performed at low voltage and low current.
There are many different types of tactile switches, also known as tactile push switches or tact switches, used in a variety of applications including household appliances, office equipment, commercial equipment, and industrial machinery.
There are optional features such as size (external dimension), board mounting, and sealing structure for users to select for their applications. A tactile switch is literally a switch that users can “feel a click sense of touch”.
<Click response>
A click response of a button is the most characteristic feature of a tactile switch that lets users
feel the response of the operation from a switch. A clicking feel is generated from the contact
dome embedded in the switch. How large an operation stroke and how sharp a click sense of
touch depends on the materials and shapes of the contact dome.
<High Durability>
The contact dome also acts as a movable contact in a tactile switch. The resistance value
(contact resistance) which is generated between a movable contact and a fixed contact when a
switch is turned on can be stabilized by using specific materials, surface processing, and shape
enabling high durability capable of withstanding 100 thousand to 10 million times of use.

Models

There are two types of tactile switches: Standard tactile switches and sealed tactile switches. The
sealed tactile switches are dust-protected and water-resistant to withstand harsh environmental
conditions. They are further sub-categorized into two types: PCB insert hole terminals type
and PCB surface mounted terminals type. For PCB insert hole terminals type, terminals are
inserted into holes on the PCB and are fixed by soldering. For PCB surface-mounted terminals
type, terminals are surface-mounted and soldered on the PCB. These switches can be
transported in a standalone package, or using a taping packaging method where a carrier tape
holds the switches in place with clearance between them.
Other variations include horizontal push button type, long-stroke type, and ultra subminiature
type switches and many more, ranging from different shapes and specifications that cater to
various applications

Read More

Product Features

                  • Introducing WEUP’s Tact Switch: The Ultimate Solution for Your Electronic NeedsIn the fast-paced world of electronics, finding reliable and efficient components is crucial for businesses in the B2B sector. If you are an importer, distributor, manufacturer, brand, wholesaler, or retailer seeking high-quality tactile switches, look no further than WEUP’s Tact Switch. With its exceptional features and functions, this product is the ideal choice for your electronic applications.Why Choose WEUP’s Tact Switch?
                    1. Fully Encapsulated Contacts for Increased Reliability: WEUP’s Tact Switch is designed with fully encapsulated contacts, ensuring enhanced reliability and durability. This feature provides excellent protection against dust, moisture, and other external factors that could potentially affect the performance of your electronic devices.
                    2. Ultra Small Tactile Switches: With a compact size of 6.2X6.2mm, these switches are perfect for high-density installations. They are specifically designed to fit onto the surface of printed circuit boards (PCBs), enabling seamless integration into your electronic circuits.
                    3. IP67 Splash Proof Rubber Boot Option: For applications that require additional protection from moisture and splashes, WEUP’s Tact Switch offers an IP67 splash-proof rubber boot option. This feature ensures that your devices remain operational even in challenging environments.
                    4. Wide Range of Applications: Whether you are in the small appliances industry, computers and peripherals sector, or medical instrumentation field, WEUP’s Tact Switch is perfectly suited for a variety of applications. From household appliances to office equipment and industrial machinery, these switches can be seamlessly integrated into different electronic devices.

                    Key Specifications of WEUP’s Tact Switch (Model: TVEM05-N):

                    • Contact Rating: DC 12V 50mA, DC 1V 10μA
                    • Bounce: <5mS
                    • Insulation Resistance: ≥ 100 MΩ
                    • Degree of Protection: IP67
                    • Operating Temperature: -25°C to +70°C
                    • Contact Resistance: ≤ 100mΩ

                    Advantages of WEUP’s Tact Switch

                    1. Click Response: WEUP’s Tact Switch provides a distinctive click response that allows users to feel the operation of the switch. This feature enhances user experience by providing tactile feedback, ensuring accurate input signal supply to actuate devices or equipment.
                    2. High Durability: The contact dome embedded in WEUP’s Tact Switch acts as a movable contact, offering high durability capable of withstanding 100 thousand to 10 million times of use. This ensures long-lasting performance and reduces the need for frequent replacements or repairs.
                    3. Versatile Models: WEUP offers two types of tactile switches – standard tactile switches and sealed tactile switches. The sealed tactile switches are dust protected and water-resistant, making them suitable for harsh environmental conditions. Furthermore, WEUP provides various models such as horizontal push button type, long-stroke type, and ultra subminiature type switches to cater to diverse applications.
                    4. Reliable Performance: With a contact resistance of ≤ 100mΩ and insulation resistance of ≥ 100 MΩ, WEUP’s Tact Switch guarantees reliable electrical connections and minimizes the risk of signal loss or interference. These switches have been rigorously tested for their bounce time, vibration resistance, shock resistance, and durability to ensure consistent performance in demanding environments.

                    Applications and Versatility

                    WEUP’s Tact Switch finds its applications in a wide range of industries:

                    1. Commercial Equipment and Industrial Machinery: These switches are essential components in operating units of devices and equipment used for setting operating modes and conditions, as well as starting and stopping operations. From temperature controllers to air conditioning systems, inverter control panels, measuring instruments, and medical devices, WEUP’s Tact Switch ensures smooth operation and precise control.
                    2. Household Appliances and Office Equipment: Control panels of household appliances and office equipment require reliable tactile switches for mode settings and operation control. Printers, multifunction printers, dishwashers, washing machines – all benefit from the accurate input provided by WEUP’s Tact Switch.

                    Why Choose WEUP?

                    As a B2B buyer, choosing the right supplier is crucial for your business success. WEUP stands out among China manufacturers as a reliable partner for all your electronic component needs. Here’s why:

                    1. Manufacturer with Extensive Expertise: With years of experience in manufacturing high-quality electronic components, WEUP has established itself as a leader in the industry. Our expertise ensures that you receive products that meet stringent quality standards.
                    2. Wide Network of Suppliers: As a manufacturer with a vast network of suppliers, WEUP can provide competitive prices without compromising on quality. Our wholesale options make it convenient for businesses of all sizes to procure our products.
                    3. Superior Customer Support: At WEUP, customer satisfaction is our top priority. Our dedicated team is ready to assist you with any queries or concerns you may have. We value our relationship with each customer and strive to provide exceptional support throughout your purchasing journey.
                    4. Certifications and Compliance: Our products adhere to various international certifications such as CQC, CCC, CE, RoHS, ENEC, PAHS, VDE, TUV, and UL. This ensures that you receive products that meet global standards and comply with relevant regulations.

                    In conclusion, WEUP’s Tact Switch (Model: TVEM05-N) is the ideal choice for B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers seeking reliable and efficient tactile switches. With its fully encapsulated contacts, ultra-small size, optional splash-proof rubber boot, and wide range of applications, this product offers exceptional performance and durability. Backed by superior customer support and supplied by a reputable manufacturer like WEUP, you can trust that your electronic needs will be met with excellence. Contact us today to explore our product range and experience the difference firsthand!

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

Rating (resistive load)1 to 50 mA, 3 to 24 VDC
Minimum applicable load (reference value)10 A at 1 VDC (resistive load)
Ambient operating temperature-25C to +70C at 60%RH max. (with no icing or condensation)
Ambient operating humidity35% to 85% (at +5 to +35C)
Contact formSPST-NO
Contact resistance (initial value)100 mΩ max.
Insulation resistance100 MΩ min. (at 250 VDC with insulation tester)
Dielectric strength500 VAC, 50/60 Hz for 1 min
Bounce time5 ms max.
Vibration resistanceMalfunction: 10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceDestruction: 1,000 m/s2 {approx. 100G} max. Malfunction: 100 m/s2 {approx. 10G} max.
DurabilityStandard force models (1.57 N {160 gf}): 500,000 operations min. High-force models (2.26 N {230 gf}): 300,000 operations min.
WeightApprox. 0.3 g
Degree of protectionIEC IP67
WashingPossible

TVEM05-N 6.2X6.2mm Micro Tactile Switch Push Button Switches SMT SMDTVEM05-N 6.2X6.2mm Micro Tactile Switch Push Button Switches SMT SMD



Related Products (4)

Download Latest Catalog

Do you supply samples? Are the Samples free?

Yes. Usually, 1-2 samples are free of charge, please support us by providing us with any express account such as DHL, FedEx, TNT, or UPS.

How is the shipping?

Our nearest port is Ningbo and Shanghai port, but if you collect the goods to ship together, we could send them to the other farther port. Usually, our customers will choose TNT, DHL, FedEx, and UPS to ship them.

How long is the delivery leading time?

Usually the samples 1-5 days to prepare. For orders, it depends on the quantity. Usually 5-15 days.

How is the packing?

For standard packing, dozens per box, 500pcs or 1000pcs per carton. We also provide you with custom box or carton packing with your logo and design.

How do you do regarding quality control?

All the products will be 100% checked before the shipment.
