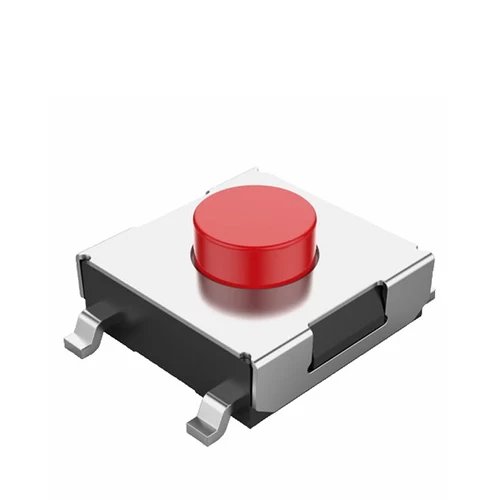

TVEM04 6.2X6.2mm Micro Tactile Switch Push Button Switches SMT SMD

TVEM04

FEATURES AND BENEFITS

  • Fully encapsulated contacts for increased reliability
  • Ultra Small Tactile Switches
  • IP67 splashproof rubber boot option
  • Suitable for high-density installations

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
DC 12V  50mA

DC   1V  10μA

  • Bounce
<5mS
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 67
  • Operating Temperature:
T +5/+35
  • Contact Resistance:
≦ 100mΩ

A tactile switch allows electricity to flow in an electrical circuit by manually pressing the operating section. The switch is used to supply input signal to actuate a device or equipment. It is designed with a small footprint suited for mounting onto the surface of printed circuit
boards (PCBs) made to connect electronic components to form electronic circuits (Figure 1). The switch activates when pressed and then turns off when released. This action is called ‘momentary action’ and can only be performed at low voltage and low current.
There are many different types of tactile switches, also known as tactile push switches or tact switches, used in a variety of applications including household appliances, office equipment, commercial equipment, and industrial machinery.
There are optional features such as size (external dimension), board mounting, and sealing structure for users to select for their applications. A tactile switch is literally a switch that users can “feel a click sense of touch”.
<Click response>
A click response of a button is the most characteristic feature of a tactile switch that lets users
feel the response of the operation from a switch. A clicking feel is generated from the contact
dome embedded in the switch. How large an operation stroke and how sharp a click sense of
touch depends on the materials and shapes of the contact dome.
<High Durability>
The contact dome also acts as a movable contact in a tactile switch. The resistance value
(contact resistance) which is generated between a movable contact and a fixed contact when a
switch is turned on can be stabilized by using specific materials, surface processing, and shape
enabling high durability capable of withstanding 100 thousand to 10 million times of use.

Models

There are two types of tactile switches: Standard tactile switches and sealed tactile switches. The
sealed tactile switches are dust-protected and water-resistant to withstand harsh environmental
conditions. They are further sub-categorized into two types: PCB insert hole terminals type
and PCB surface mounted terminals type. For PCB insert hole terminals type, terminals are
inserted into holes on the PCB and are fixed by soldering. For PCB surface-mounted terminals
type, terminals are surface-mounted and soldered on the PCB. These switches can be
transported in a standalone package, or using a taping packaging method where a carrier tape
holds the switches in place with clearance between them.
Other variations include horizontal push button type, long-stroke type, and ultra subminiature
type switches and many more, ranging from different shapes and specifications that cater to
various applications

Read More

Product Features

  • Introducing WEUP’s Tact Switch: The Perfect Choice for Your Business NeedsAre you a B2B buyer in search of a reliable and high-quality tactile switch for your business? Look no further! WEUP’s Tact Switch (TVEM04) is the ultimate solution for importers, distributors, manufacturers, brands, wholesalers, and retailers seeking a top-notch product. With its exceptional features and outstanding performance, this switch is guaranteed to meet your specific requirements. Let’s dive into the reasons why WEUP’s Tact Switch should be your go-to choice.1. Unmatched Reliability

    WEUP’s Tact Switch is designed with fully encapsulated contacts, ensuring increased reliability and longevity. The switch is built to withstand demanding conditions and can handle high-density installations effortlessly. Its IP67 splash-proof rubber boot option provides additional protection, making it suitable for various applications in different environments. Whether you need it for small appliances, computers and peripherals, or medical instrumentation, WEUP’s Tact Switch will exceed your expectations.

    2. Compact Size with Optimal Performance

    One of the standout features of WEUP’s Tact Switch is its ultra-small size, measuring 6.2×6.2mm. This compact design allows for easy installation onto printed circuit boards (PCBs), making it an ideal choice for space-constrained applications. Despite its small footprint, this switch boasts impressive performance, with a contact rating of DC 12V 50mA and DC 1V 10μA. Its low contact resistance of ≤ 100mΩ ensures efficient electrical conductivity, enhancing the overall functionality of your devices.

    3. Click Response and High Durability

    The click response of WEUP’s Tact Switch is truly remarkable. With the embedded contact dome, users can experience a satisfying tactile feedback when operating the switch. This feature not only enhances user experience but also provides assurance that the switch has been successfully activated. Additionally, the contact dome acts as a movable contact, enabling high durability capable of withstanding 100 thousand to 10 million times of use. This ensures the longevity of your products and reduces the need for frequent replacements or repairs.

    4. Wide Range of Models and Applications

    WEUP offers a diverse range of models to suit various applications and preferences. Whether you require standard tactile switches or sealed tactile switches, WEUP has got you covered. The sealed tactile switches are dust protected and water resistant, perfect for harsh environmental conditions. With options such as PCB insert hole terminals type and PCB surface mounted terminals type, you can select the most suitable configuration for your specific needs.

    Moreover, WEUP’s Tact Switch is highly versatile and finds applications in numerous industries. It is widely used in small appliances, computers and peripherals, medical instrumentation, commercial equipment, industrial machinery, and more. This versatility makes it an indispensable component for a wide range of products.

    5. Superior Quality from China Manufacturers

    WEUP takes pride in its commitment to providing superior quality products. As one of the leading China manufacturers, they adhere to stringent manufacturing standards to ensure that their products meet and exceed customer expectations. By sourcing from WEUP, you can rest assured that you are getting a reliable and top-notch product.

    Conclusion

    In conclusion, WEUP’s Tact Switch (TVEM04) is the optimal choice for B2B buyers seeking a reliable and high-performance tactile switch. With its fully encapsulated contacts, compact size, click response, and high durability, this switch offers unparalleled reliability and functionality. Furthermore, the wide range of models and applications cater to diverse requirements across various industries.

    By choosing WEUP’s Tact Switch, you are not only investing in a top-quality product but also benefiting from the expertise and commitment of one of China’s leading manufacturers. Don’t miss out on this opportunity to enhance your products and provide your customers with exceptional user experience.

    So why wait? Contact WEUP today and join the multitude of satisfied customers who have made WEUP’s Tact Switch their preferred choice. Experience the difference that WEUP brings to your business with their superior products and outstanding customer support.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

Rating (resistive load)1 to 50 mA, 3 to 24 VDC
Minimum applicable load (reference value)10 A at 1 VDC (resistive load)
Ambient operating temperature-25C to +70C at 60%RH max. (with no icing or condensation)
Ambient operating humidity35% to 85% (at +5 to +35C)
Contact formSPST-NO
Contact resistance (initial value)100 mΩ max.
Insulation resistance100 MΩ min. (at 250 VDC with insulation tester)
Dielectric strength500 VAC, 50/60 Hz for 1 min
Bounce time5 ms max.
Vibration resistanceMalfunction: 10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceDestruction: 1,000 m/s2 {approx. 100G} max. Malfunction: 100 m/s2 {approx. 10G} max.
DurabilityStandard force models (1.57 N {160 gf}): 500,000 operations min. High-force models (2.26 N {230 gf}): 300,000 operations min.
WeightApprox. 0.3 g
Degree of protectionIEC IP67
WashingPossible
