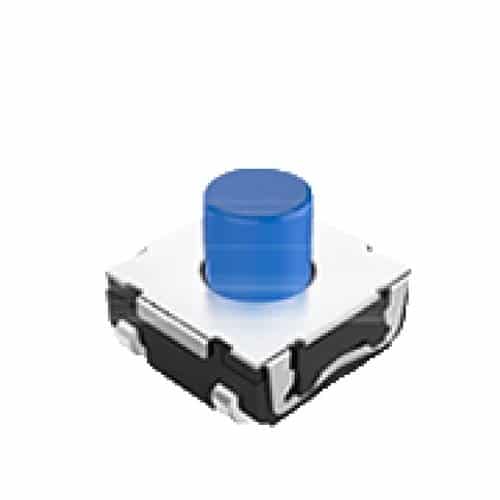

TVEJ16 6.2X6.2mm Micro Tactile Switch Push Button Switches SMT SMD

TVEJ16

FEATURES AND BENEFITS

  • Fully encapsulated contacts for increased reliability
  • Ultra Small Tactile Switches
  • IP67 splashproof rubber boot option
  • Suitable for high-density installations

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
DC 12V  50mA

DC   1V  10μA

  • Bounce
<5mS
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 67
  • Operating Temperature:
T +5/+35
  • Contact Resistance:
≦ 100mΩ

A tactile switch allows electricity to flow in an electrical circuit by manually pressing the operating section. The switch is used to supply input signal to actuate a device or equipment. It is designed with a small footprint suited for mounting onto the surface of printed circuit
boards (PCBs) made to connect electronic components to form electronic circuits (Figure 1). The switch activates when pressed and then turns off when released. This action is called ‘momentary action’ and can only be performed at low voltage and low current.
There are many different types of tactile switches, also known as tactile push switches or tact switches, used in a variety of applications including household appliances, office equipment, commercial equipment, and industrial machinery.
There are optional features such as size (external dimension), board mounting, and sealing structure for users to select for their applications. A tactile switch is literally a switch that users can “feel a click sense of touch”.
<Click response>
A click response of a button is the most characteristic feature of a tactile switch that lets users
feel the response of the operation from a switch. A clicking feel is generated from the contact
dome embedded in the switch. How large an operation stroke and how sharp a click sense of
touch depends on the materials and shapes of the contact dome.
<High Durability>
The contact dome also acts as a movable contact in a tactile switch. The resistance value
(contact resistance) which is generated between a movable contact and a fixed contact when a
switch is turned on can be stabilized by using specific materials, surface processing, and shape
enabling high durability capable of withstanding 100 thousand to 10 million times of use.

Models

There are two types of tactile switches: Standard tactile switches and sealed tactile switches. The
sealed tactile switches are dust-protected and water-resistant to withstand harsh environmental
conditions. They are further sub-categorized into two types: PCB insert hole terminals type
and PCB surface mounted terminals type. For PCB insert hole terminals type, terminals are
inserted into holes on the PCB and are fixed by soldering. For PCB surface-mounted terminals
type, terminals are surface-mounted and soldered on the PCB. These switches can be
transported in a standalone package, or using a taping packaging method where a carrier tape
holds the switches in place with clearance between them.
Other variations include horizontal push button type, long-stroke type, and ultra subminiature
type switches and many more, ranging from different shapes and specifications that cater to
various applications

Read More

Product Features

  • Introducing the WEUP Tact Switch for B2B BuyersAre you a B2B buyer in search of high-quality tactile switches for your business? Look no further than the WEUP Tact Switch (TVEJ16). With its exceptional features and reliable performance, this switch is an ideal choice for importers, distributors, manufacturers, brands, wholesalers, and retailers. Let’s explore why the WEUP Tact Switch is a compelling option for your business needs.Reliability and Durability
    • Fully encapsulated contacts: The WEUP Tact Switch is designed with fully encapsulated contacts, ensuring increased reliability and longevity. This feature guarantees that your electronic circuits will function smoothly without any interruptions.
    • High durability: The switch boasts a high durability rating, capable of withstanding 100 thousand to 10 million cycles of use. This ensures that the switch will continue to perform optimally even in demanding conditions.

    Compact Design and High Density Installation

    • Ultra small size: The WEUP Tact Switch is designed with a compact 6.2×6.2mm footprint, making it suitable for installations where space is limited.
    • High density installations: This switch is perfect for applications that require high-density installations, such as small appliances, computers and peripherals, and medical instrumentation. Its small size allows for efficient use of space on printed circuit boards (PCB).

    IP67 Splash Proof Option

    • Versatility in harsh environments: The WEUP Tact Switch offers an optional IP67 splash-proof rubber boot. This feature ensures protection against dust and water, making it suitable for applications in diverse environments. Whether it’s a dusty industrial setting or a splash-prone area, this switch can handle it all.

    Wide Range of Applications The WEUP Tact Switch caters to a wide range of applications across different industries:

    • Small appliances: From kitchen appliances to handheld devices, the compact size and reliable performance of the switch make it an ideal choice for various small appliances.
    • Computers and peripherals: Whether it’s a keyboard, mouse, or any other computer peripheral, the WEUP Tact Switch provides precise and responsive operation.
    • Medical instrumentation: With its durability and reliability, this switch is well-suited for medical instruments that require consistent and accurate inputs.

In conclusion, the WEUP Tact Switch (TVEJ16) is an exceptional choice for B2B buyers seeking reliable tactile switches. Its encapsulated contacts, compact design, IP67 splash-proof option, and wide range of applications make it a versatile solution for various industries. By partnering with China manufacturers like WEUP, you can benefit from their expertise, competitive pricing, and commitment to quality assurance. Don’t miss out on this opportunity to enhance your business operations with the WEUP Tact Switch. Contact WEUP today to discuss your requirements and start sourcing this exceptional product.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

Rating (resistive load)1 to 50 mA, 3 to 24 VDC
Minimum applicable load (reference value)10 A at 1 VDC (resistive load)
Ambient operating temperature-25C to +70C at 60%RH max. (with no icing or condensation)
Ambient operating humidity35% to 85% (at +5 to +35C)
Contact formSPST-NO
Contact resistance (initial value)100 mΩ max.
Insulation resistance100 MΩ min. (at 250 VDC with insulation tester)
Dielectric strength500 VAC, 50/60 Hz for 1 min
Bounce time5 ms max.
Vibration resistanceMalfunction: 10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceDestruction: 1,000 m/s2 {approx. 100G} max. Malfunction: 100 m/s2 {approx. 10G} max.
DurabilityStandard force models (1.57 N {160 gf}): 500,000 operations min. High-force models (2.26 N {230 gf}): 300,000 operations min.
WeightApprox. 0.3 g
Degree of protectionIEC IP67
WashingPossible
