  • TVEF20-E 6.2x6.2mm Micro Tactile Switch Push Button Switches SMT SMD
  • TVEF20-E 6.2x6.2mm Micro Tactile Switch Push Button Switches SMT SMD

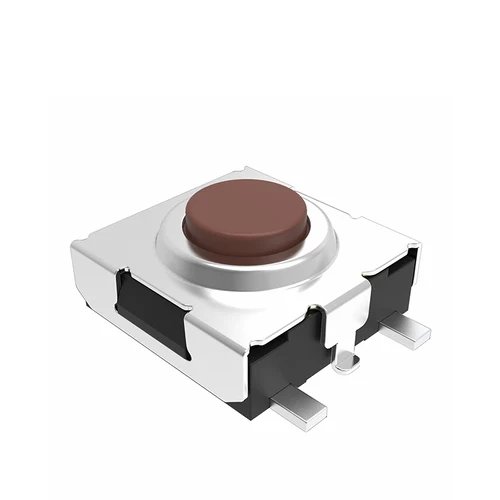

TVEF20-E 6.2x6.2mm Micro Tactile Switch Push Button Switches SMT SMD

TVEF20-E

FEATURES AND BENEFITS

  • Fully encapsulated contacts for increased reliability
  • Ultra Small Tactile Switches
  • IP67 splashproof rubber boot option
  • Suitable for high-density installations

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
DC 12V  50mA

DC   1V  10μA

  • Bounce
<5mS
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 67
  • Operating Temperature:
T +5/+35
  • Contact Resistance:
≦ 100mΩ

A tactile switch allows electricity to flow in an electrical circuit by manually pressing the operating section. The switch is used to supply input signal to actuate a device or equipment. It is designed with a small footprint suited for mounting onto the surface of printed circuit
boards (PCBs) made to connect electronic components to form electronic circuits (Figure 1). The switch activates when pressed and then turns off when released. This action is called ‘momentary action’ and can only be performed at low voltage and low current.
There are many different types of tactile switches, also known as tactile push switches or tact switches, used in a variety of applications including household appliances, office equipment, commercial equipment, and industrial machinery.
There are optional features such as size (external dimension), board mounting, and sealing structure for users to select for their applications. A tactile switch is literally a switch that users can “feel a click sense of touch”.
<Click response>
A click response of a button is the most characteristic feature of a tactile switch that lets users
feel the response of the operation from a switch. A clicking feel is generated from the contact
dome embedded in the switch. How large an operation stroke and how sharp a click sense of
touch depends on the materials and shapes of the contact dome.
<High Durability>
The contact dome also acts as a movable contact in a tactile switch. The resistance value
(contact resistance) which is generated between a movable contact and a fixed contact when a
switch is turned on can be stabilized by using specific materials, surface processing, and shape
enabling high durability capable of withstanding 100 thousand to 10 million times of use.

Models

There are two types of tactile switches: Standard tactile switches and sealed tactile switches. The
sealed tactile switches are dust-protected and water-resistant to withstand harsh environmental
conditions. They are further sub-categorized into two types: PCB insert hole terminals type
and PCB surface mounted terminals type. For PCB insert hole terminals type, terminals are
inserted into holes on the PCB and are fixed by soldering. For PCB surface-mounted terminals
type, terminals are surface-mounted and soldered on the PCB. These switches can be
transported in a standalone package, or using a taping packaging method where a carrier tape
holds the switches in place with clearance between them.
Other variations include horizontal push button type, long-stroke type, and ultra subminiature
type switches and many more, ranging from different shapes and specifications that cater to
various applications

Read More

Product Features

    • Ideal for B2B Buyers: WEUP’s Tact Switch (TVEF20-E) is the perfect solution for B2B buyers such as importers, distributors, manufacturers, brands, wholesalers, and retailers. With its impressive features and reliable performance, this micro tactile switch is a must-have for various industries.
    • Fully Encapsulated Contacts: One of the standout features of the TVEF20-E Tact Switch is its fully encapsulated contacts. This design ensures increased reliability, making it suitable for demanding applications in small appliances, computers and peripherals, and medical instrumentation. The switch’s durability is further enhanced by its ability to withstand 100 thousand to 10 million times of use.
    • Ultra Small Form Factor: The TVEF20-E is designed with an ultra small 6.2×6.2mm footprint, making it perfect for high density installations. This compact size allows for efficient use of space on printed circuit boards (PCBs) and ensures seamless integration with other electronic components.
    • IP67 Splash Proof Option: For applications where protection against splash or water ingress is necessary, the TVEF20-E offers an IP67 splash proof rubber boot option. This feature provides added peace of mind in environments where moisture or liquid exposure is a concern.
    • Versatile Applications: The TVEF20-E Tact Switch caters to a wide range of applications. Whether you’re in the market for switches for small appliances, computer peripherals, or medical instrumentation, this switch is designed to meet your needs. Its versatility makes it an essential component in various industries.
    • Click Response and High Durability: The TVEF20-E Tact Switch delivers satisfying click response, allowing users to “feel a click sense of touch” when operating the switch. This tactile feedback enhances the user experience and ensures precise operation. Additionally, the switch’s high durability ensures long-lasting performance, capable of withstanding rigorous use over time.
    • Wide Operating Temperature Range: The TVEF20-E Tact Switch operates reliably within a temperature range of T +5/+35. This wide operating temperature range makes it suitable for use in diverse environments, ensuring consistent performance even in challenging conditions.
    • Reliable Electrical Performance: With a contact rating of DC 12V 50mA and DC 1V 10μA, the TVEF20-E Tact Switch provides reliable electrical performance. Its contact resistance of ≤100mΩ and insulation resistance of ≥100 MΩ ensure minimal power loss and effective signal transmission.
    • Compliance with Industry Standards: The TVEF20-E Tact Switch meets stringent industry standards, including IP67 degree of protection and RoHS compliance. This ensures that the switch adheres to quality and safety requirements, giving buyers confidence in its performance and reliability.

    In conclusion, WEUP’s Tact Switch (TVEF20-E) is a highly reliable and versatile solution for B2B buyers in need of quality switches. Its fully encapsulated contacts, ultra small form factor, IP67 splash proof option, and wide operating temperature range make it ideal for various applications. With its satisfying click response, high durability, and compliance with industry standards, this tact switch stands out among its competitors. Trust in WEUP’s commitment to excellence and choose the TVEF20-E Tact Switch for your business needs. Contact China manufacturers, suppliers, factories, wholesalers, and vendors today to explore the possibilities offered by this exceptional product.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

Rating (resistive load)1 to 50 mA, 3 to 24 VDC
Minimum applicable load (reference value)10 A at 1 VDC (resistive load)
Ambient operating temperature-25C to +70C at 60%RH max. (with no icing or condensation)
Ambient operating humidity35% to 85% (at +5 to +35C)
Contact formSPST-NO
Contact resistance (initial value)100 mΩ max.
Insulation resistance100 MΩ min. (at 250 VDC with insulation tester)
Dielectric strength500 VAC, 50/60 Hz for 1 min
Bounce time5 ms max.
Vibration resistanceMalfunction: 10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceDestruction: 1,000 m/s2 {approx. 100G} max. Malfunction: 100 m/s2 {approx. 10G} max.
DurabilityStandard force models (1.57 N {160 gf}): 500,000 operations min. High-force models (2.26 N {230 gf}): 300,000 operations min.
WeightApprox. 0.3 g
Degree of protectionIEC IP67
WashingPossible

TVEF20-E 6.2x6.2mm Micro Tactile Switch Push Button Switches SMT SMD



Related Products (4)

Download Latest Catalog

Do you supply samples? Are the Samples free?

Yes. Usually, 1-2 samples are free of charge, please support us by providing us with any express account such as DHL, FedEx, TNT, or UPS.

How is the shipping?

Our nearest port is Ningbo and Shanghai port, but if you collect the goods to ship together, we could send them to the other farther port. Usually, our customers will choose TNT, DHL, FedEx, and UPS to ship them.

How long is the delivery leading time?

Usually the samples 1-5 days to prepare. For orders, it depends on the quantity. Usually 5-15 days.

How is the packing?

For standard packing, dozens per box, 500pcs or 1000pcs per carton. We also provide you with custom box or carton packing with your logo and design.

How do you do regarding quality control?

All the products will be 100% checked before the shipment.
