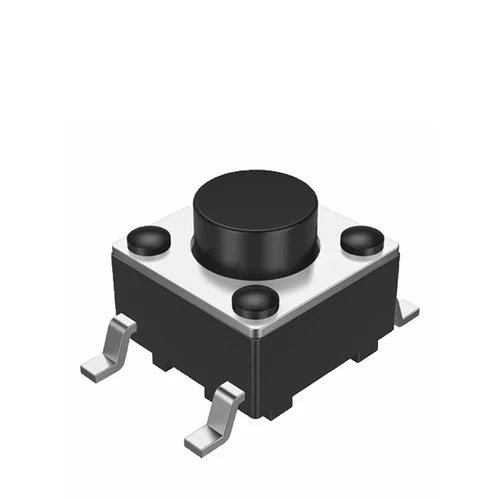

TVDM04 Micro Tactile Switch Push Button Switches SMT SMD

TVDM04

FEATURES AND BENEFITS

  • Fully encapsulated contacts for increased reliability
  • Ultra Small Tactile Switches
  • IP67 splashproof rubber boot option
  • Suitable for high-density installations

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
DC 12V  50mA

DC   1V  10μA

  • Bounce
<5mS
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 67
  • Operating Temperature:
T +5/+35
  • Contact Resistance:
≦ 100mΩ

A tactile switch allows electricity to flow in an electrical circuit by manually pressing the operating section. The switch is used to supply input signal to actuate a device or equipment. It is designed with a small footprint suited for mounting onto the surface of printed circuit
boards (PCBs) made to connect electronic components to form electronic circuits (Figure 1). The switch activates when pressed and then turns off when released. This action is called ‘momentary action’ and can only be performed at low voltage and low current.
There are many different types of tactile switches, also known as tactile push switches or tact switches, used in a variety of applications including household appliances, office equipment, commercial equipment, and industrial machinery.
There are optional features such as size (external dimension), board mounting, and sealing structure for users to select for their applications. A tactile switch is literally a switch that users can “feel a click sense of touch”.
<Click response>
A click response of a button is the most characteristic feature of a tactile switch that lets users
feel the response of the operation from a switch. A clicking feel is generated from the contact
dome embedded in the switch. How large an operation stroke and how sharp a click sense of
touch depends on the materials and shapes of the contact dome.
<High Durability>
The contact dome also acts as a movable contact in a tactile switch. The resistance value
(contact resistance) which is generated between a movable contact and a fixed contact when a
switch is turned on can be stabilized by using specific materials, surface processing, and shape
enabling high durability capable of withstanding 100 thousand to 10 million times of use.

Models

There are two types of tactile switches: Standard tactile switches and sealed tactile switches. The
sealed tactile switches are dust-protected and water-resistant to withstand harsh environmental
conditions. They are further sub-categorized into two types: PCB insert hole terminals type
and PCB surface mounted terminals type. For PCB insert hole terminals type, terminals are
inserted into holes on the PCB and are fixed by soldering. For PCB surface-mounted terminals
type, terminals are surface-mounted and soldered on the PCB. These switches can be
transported in a standalone package, or using a taping packaging method where a carrier tape
holds the switches in place with clearance between them.
Other variations include horizontal push button type, long-stroke type, and ultra subminiature
type switches and many more, ranging from different shapes and specifications that cater to
various applications

Read More

Product Features

            • Introducing the WEUP Tact Switch (TVDM04)Are you a B2B buyer in search of a reliable and high-quality tactile switch for your business? Look no further than the WEUP Tact Switch, model TVDM04. With its impressive features and exceptional functionality, this switch is the perfect choice for importers, distributors, manufacturers, brands, wholesalers, and retailers. Let’s explore why the WEUP Tact Switch is the ideal solution for your business needs.Reliability and Durability
              • Fully encapsulated contacts: The WEUP Tact Switch is designed with fully encapsulated contacts, ensuring increased reliability. This feature enhances the lifespan of the switch and guarantees its long-term performance.
              • High durability: With a resistance value capable of withstanding 100 thousand to 10 million times of use, this switch is built to last. Its ability to withstand frequent usage makes it suitable for various applications, including small appliances, computers and peripherals, and medical instrumentation.
              • IP67 splash proof rubber boot option: For businesses operating in harsh environmental conditions, the WEUP Tact Switch offers an optional IP67 splash-proof rubber boot. This protective feature ensures the switch remains dust protected and water resistant, making it even more durable and reliable.

              Compact Design

              • Ultra Small Tactile Switches: The WEUP Tact Switch features an ultra-small design, making it perfect for high-density installations. Its small footprint allows for easy mounting onto printed circuit boards (PCB), which connect electronic components to form electronic circuits. This compact design maximizes space utilization and provides convenience during installation.

              Versatility and Customization

              The WEUP Tact Switch offers a range of options to cater to different applications and requirements:

              • Different types of tactile switches: The WEUP Tact Switch comes in two types – standard tactile switch and sealed tactile switch. The sealed tactile switch is particularly suitable for businesses operating in harsh environments, as it offers dust protection and water resistance.
              • Optional features: Users have the flexibility to choose from various optional features such as size (external dimension), board mounting, and sealing structure. This customization ensures that the WEUP Tact Switch can be tailored to meet specific application needs.

              Functionality

              • Click response: One of the most distinctive features of the WEUP Tact Switch is its click response. The switch provides users with a satisfying clicking feel upon operation, enhancing the overall user experience.
              • Low voltage and low current operation: The WEUP Tact Switch is designed for momentary action at low voltage and low current. This feature ensures safe and efficient operation within the specified parameters.

              Specifications

              To give you a better understanding of the WEUP Tact Switch TVDM04’s capabilities, here are its specifications:

              • Contact Rating: DC 12V 50mA, DC 1V 10μA
              • Bounce: <5mS
              • Insulation Resistance: ≥ 100 MΩ
              • Degree of Protection: IP67
              • Operating Temperature: -25°C to +70°C
              • Contact Resistance: ≤ 100mΩ

              Applications

              The versatility of the WEUP Tact Switch makes it suitable for a wide range of applications:

              • Commercial equipment and industrial machinery: The WEUP Tact Switch is used in operating units of devices and equipment to enable setting of operating modes and conditions, as well as starting and stopping operations. It finds applications in temperature controllers, air conditioning systems, control panels, measuring instruments, and medical devices.
              • Household appliances and office equipment: This switch is commonly used in control panels of devices like printers, copiers, and multifunction printers to enable mode settings and operation control. Its sealed variant is particularly useful in dishwashers and washing machines.

              Conclusion

              In conclusion, the WEUP Tact Switch (TVDM04) offers a reliable, durable, and versatile solution for B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers. Its fully encapsulated contacts ensure increased reliability, while its compact design allows for high-density installations. With options for customization and a satisfying click response, this switch meets a wide range of application needs.

              Whether your business operates in small appliances, computers and peripherals, or medical instrumentation, the WEUP Tact Switch delivers exceptional performance. Choose the WEUP Tact Switch today to experience its effectiveness and reliability firsthand.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

Rating (resistive load)1 to 50 mA, 3 to 24 VDC
Minimum applicable load (reference value)10 A at 1 VDC (resistive load)
Ambient operating temperature-25C to +70C at 60%RH max. (with no icing or condensation)
Ambient operating humidity35% to 85% (at +5 to +35C)
Contact formSPST-NO
Contact resistance (initial value)100 mΩ max.
Insulation resistance100 MΩ min. (at 250 VDC with insulation tester)
Dielectric strength500 VAC, 50/60 Hz for 1 min
Bounce time5 ms max.
Vibration resistanceMalfunction: 10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceDestruction: 1,000 m/s2 {approx. 100G} max. Malfunction: 100 m/s2 {approx. 10G} max.
DurabilityStandard force models (1.57 N {160 gf}): 500,000 operations min. High-force models (2.26 N {230 gf}): 300,000 operations min.
WeightApprox. 0.3 g
Degree of protectionIEC IP67
WashingPossible
