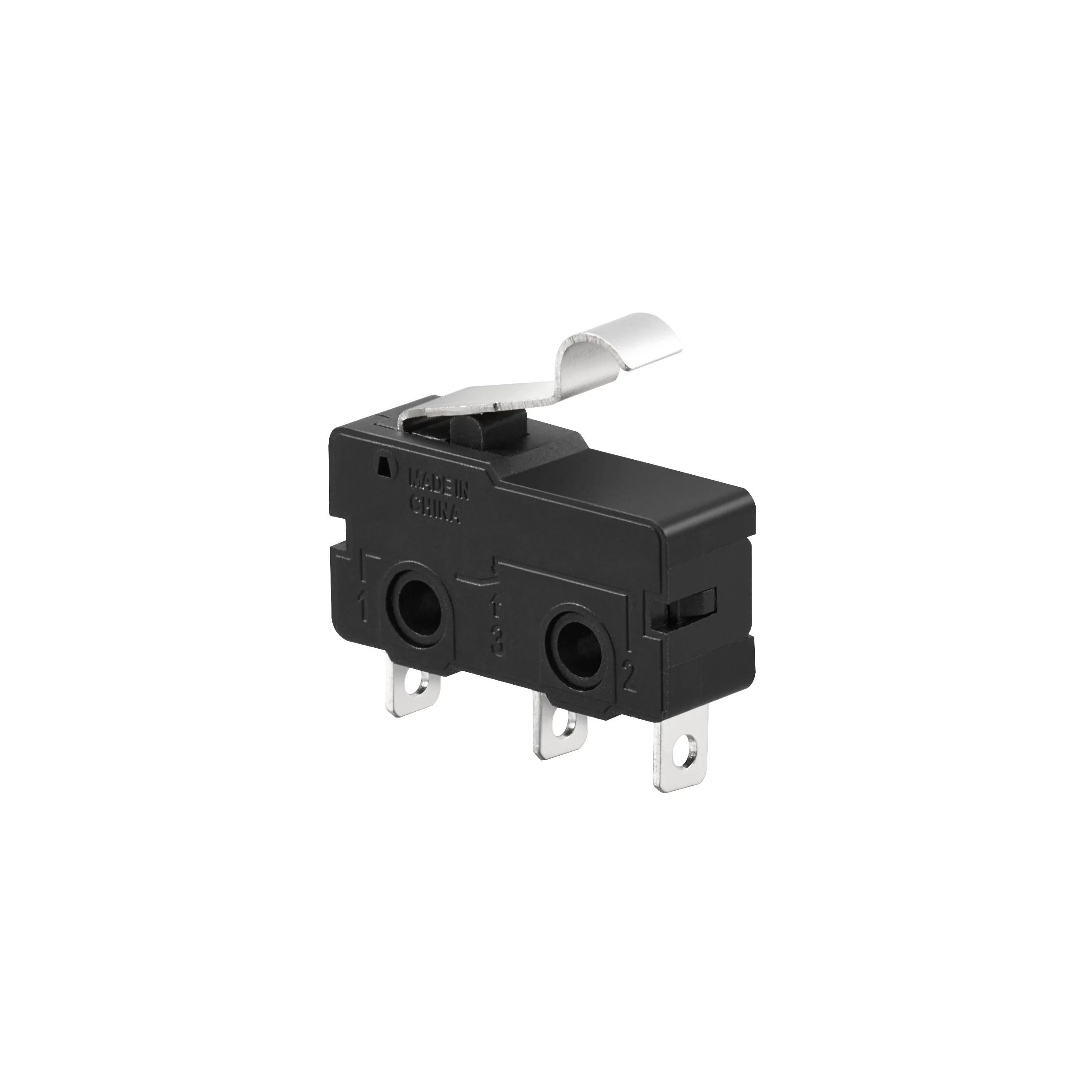

Micro Switch Subminiature Basic Switch SS-5GL13

Micro Switch SS

FEATURES AND BENEFITS

● The WEUP’s best-selling micro switches of a wide variety from 0.1A to 10.1A.

● A variety of models are available, with operating force ranging from low to high.

● Two split springs ensure a high stability and durability of 30,000,000 operations.

● 1 mm MIN Contact Gap Models available for Interlock applications

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
10A 250V AC

5A 125V AC

0.1A 30V DC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 40
  • Operating Temperature:
T 105/55
  • Contact Resistance:
≦ 50mΩ

Basic Switches have a micro contact gap and operate at the specified movement and force using a snap-action mechanism. They are available in models with split contacts, maintained operation, drip-proof specifications, high capacity, and DC current specifications.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP Micro switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also, WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.



Read More

Product Features

WEUP Micro Switch Subminiature: The Ultimate Choice for B2B Buyers

Are you a B2B buyer in search of high-quality micro switches? Look no further than the WEUP Micro Switch Subminiature! With its exceptional features and top-notch performance, this product is the perfect choice for importers, distributors, manufacturers, brands, wholesalers, and retailers. In this compelling argument, we will delve into the reasons why the WEUP Micro Switch Subminiature stands out from the competition and why it should be your go-to product. Let’s explore the key features and functions that make this micro switch a game-changer in the industry.

1. Wide Variety of Models: The WEUP Micro Switch Subminiature offers a wide range of models to suit diverse needs. Whether you require a micro switch with low or high operating force, this product has got you covered. Its versatility makes it an ideal choice for a variety of applications across different industries, including small appliances, computers and peripherals, and medical instrumentation.

2. High Stability and Durability: When it comes to micro switches, stability and durability are paramount. The WEUP Micro Switch Subminiature excels in both aspects. With two split springs, this product ensures a high level of stability and can withstand up to 30,000,000 operations. This impressive durability ensures longevity and reliability in even the most demanding environments.

3. Interlock Applications: Certain applications require micro switches with a minimal contact gap. The WEUP Micro Switch Subminiature offers models with a 1 mm MIN Contact Gap, making them suitable for interlock applications. This feature enhances safety and ensures optimal performance in critical situations.

4. Wide Contact Rating: The contact rating of a micro switch determines its electrical capabilities. The WEUP Micro Switch Subminiature boasts an impressive contact rating of 10A 250V AC, 5A 125V AC, and 0.1A 30V DC. This wide range allows for compatibility with various voltage and current requirements, making it a versatile choice for different applications.

5. Long Electrical Life: With an electrical life of over 50,000 cycles, the WEUP Micro Switch Subminiature guarantees consistent performance over an extended period. Its robust construction and reliable electrical connections ensure minimal downtime and maximum productivity.

6. Excellent Insulation Resistance: Insulation resistance is crucial to prevent electrical leakage and ensure safe operation. The WEUP Micro Switch Subminiature provides insulation resistance of at least 100 MΩ, meeting industry standards for reliable electrical insulation.

7. IP 40 Degree of Protection: In demanding environments, protection against external elements is essential. The WEUP Micro Switch Subminiature offers a degree of protection rated as IP 40, providing effective shielding against solid objects larger than 1 mm. This level of protection safeguards the micro switch and ensures its optimal functionality.

8. Wide Operating Temperature Range: The operating temperature range of a micro switch determines its suitability for different environmental conditions. The WEUP Micro Switch Subminiature can operate in temperatures ranging from -25°C to +85°C, making it suitable for various applications across different industries. Its ability to withstand extreme temperatures ensures reliability in both hot and cold environments.

9. Multiple Contact Forms: The WEUP Micro Switch Subminiature comes in different contact forms to accommodate various circuit requirements. From SPDT (Single Pole Double Throw) to SPST-NC (Single Pole Single Throw Normally Closed) and SPST-NO (Single Pole Single Throw Normally Open), this product offers versatility to meet specific needs.

In addition to these remarkable features, WEUP’s commitment to customization sets them apart from other manufacturers in the market. As a leading micro switch provider, WEUP can create new models according to customers’ requests. Whether you need custom shapes, sizes, construction, or functionality, WEUP has the capability to deliver tailored solutions that meet your requirements.

Furthermore, WEUP goes beyond just providing micro switches; they offer additional support such as custom wire harnesses and actuator marking requests. By collaborating closely with their customers, WEUP ensures that their products integrate seamlessly into their designs and fulfill specific application needs.

When it comes to sourcing micro switches, it is crucial to choose a reliable supplier. WEUP excels in this aspect by being one of the most reputable China manufacturers in the industry. Their dedication to high-quality manufacturing processes, stringent quality control measures, and exceptional customer service sets them apart as a preferred choice for importers, distributors, manufacturers, brands, wholesalers, and retailers.

In conclusion, the WEUP Micro Switch Subminiature is a top-notch product that caters to the needs of B2B buyers across industries. Its wide range of models, high stability and durability, interlock applications capability, wide contact rating, long electrical life, excellent insulation resistance, IP 40 degree of protection, wide operating temperature range, and multiple contact forms make it a standout choice.

Whether you’re searching for micro switches for small appliances, computers and peripherals, or medical instrumentation, WEUP has you covered. With their commitment to customization and exceptional customer support, they are your go-to supplier for quality micro switches.

Don’t miss out on the opportunity to enhance your products with the reliability and performance of the WEUP Micro Switch Subminiature. Choose WEUP as your trusted partner and unlock a world of possibilities for your business.

  • High stability and durability with two split springs
  • Wide contact rating from 10A 250V AC to 0.1A 30V DC
  • Interlock applications with 1 mm MIN Contact Gap models
  • Excellent insulation resistance of at least 100 MΩ
  • IP 40 degree of protection against solid objects
  • Wide operating temperature range from -25°C to +85°C
  • Multiple contact forms available for different circuit requirements
  • Customization options available for tailored solutions

Choose WEUP’s Micro Switch Subminiature and experience unparalleled reliability and performance in your applications!

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

Micro Switch Subminiature Basic Switch SS-5T

ratingsActuatorMaximum Operating Force (OF)Contact FormTerminalsHeat resistance
10: 250 VAC 10.1ANone: Pin plunger Micro Switch Subminiature Basic Switch SS-5GL13None: 1.47 N {150 gf}1: SPDT Micro Switch Subminiature Basic Switch SS-5GL13None: Solder terminalsNone: Standard (85°C)
5: 125 VAC 5 A1: Short hinge lever Micro Switch Subminiature Basic Switch SS-5GL13-F: 0.49 N {50 gf} (0.1 A, 5 A)2: SPST-NC Micro Switch Subminiature Basic Switch SS-5GL13T: Quick-connect terminals (#110)-T: Heat-resistant (120°C)
01: 30 VDC 0.1A2: Hinge lever Micro Switch Subminiature Basic Switch SS-5GL13-E : 0.25 N {25 gf} (0.1 A)3: SPST-NO Micro Switch Subminiature Basic Switch SS-5GL13D: PCB terminals
3: Long hinge lever Micro Switch Subminiature Basic Switch SS-5GL13Note:
4: Simulated roller lever Micro Switch Subminiature Basic Switch SS-5GL13
5: Short hinge roller lever Micro Switch Subminiature Basic Switch SS-5GL13
6: Hinge roller lever Micro Switch Subminiature Basic Switch SS-5GL13
ActuatorTerminalsContact FormMaximum Operating Force (OF)10.1 A5 A0.1 A
Pin plunger Micro Switch Subminiature Basic Switch SS-5TSolder terminalsSPDT1.47 N {150 gf}SS-10SS-5SS-01
SPST-NCSS-10-2SS-5-2SS-01-2
SPST-NOSS-10-3SS-5-3SS-01-3
Quick-connect terminals (#110)SPDTSS-10TSS-5TSS-01T
SPST-NCSS-10-2TSS-5-2TSS-01-2T
SPST-NOSS-10-3TSS-5-3TSS-01-3T
PCB terminalsSPDTSS-10DSS-5DSS-01D
SPST-NCSS-10-2DSS-5-2DSS-01-2D
SPST-NOSS-10-3DSS-5-3DSS-01-3D
Solder terminalsSPDT0.49 N {50 gf}SS-5-FSS-01-F
SPST-NCSS-5-F-2SS-01-F-2
SPST-NOSS-5-F-3SS-01-F-3
Quick-connect terminals (#110)SPDTSS-5-FTSS-01-FT
SPST-NCSS-5-F-2TSS-01-F-2T
SPST-NOSS-5-F-3TSS-01-F-3T
PCB terminalsSPDTSS-5-FDSS-01-FD
SPST-NCSS-5-F-2DSS-01-F-2D
SPST-NOSS-5-F-3DSS-01-F-3D
Solder terminalsSPDT0.25 N {25 gf}SS-01-E
SPST-NCSS-01-E-2
SPST-NOSS-01-E-3
Quick-connect terminals (#110)SPDTSS-01-ET
SPST-NCSS-01-E-2T
SPST-NOSS-01-E-3T
PCB terminalsSPDTSS-01-ED
SPST-NCSS-01-E-2D
SPST-NOSS-01-E-3D
Item                                                 ModelSS-10 modelsSS-5 modelsSS-01 modelsSS-5F models
Permissible operating speed0.1 mm to 1 m/s (for pin plunger models)
Permissible operating frequencyMechanical400 operations/min
Electrical60 operations/min
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)OF 1.47 N models30 mΩ max.50 mΩ max.30 mΩ max.
OF 0.49 N models50 mΩ max.100 mΩ max.
OF 0.25 N models150 mΩ max.
Dielectric strength *1Between terminals of the same polarity1,000 VAC 50/60 Hz for 1 min600 VAC
50/60 Hz for 1 min
1,000 VAC
50/60 Hz for 1 min
Between current-carrying metal parts and ground1,500 VAC 50/60 Hz for 1 min
Between each terminal and non-current-carrying metal parts1,500 VAC 50/60 Hz for 1 min
Vibration resistance
*2
Malfunction10 to 55 Hz, 1.5 mm double amplitude
Shock resistanceDurabilityOF 1.47 N models1,000 m/s2 {approx. 100G} max.
OF 0.49 N models500 m/s2 {approx. 50G} max.
OF 0.25 N models500 m/s2 {approx. 50G} max.
Malfunction
*2
OF 1.47 N models300 m/s2 {approx. 30G} max.
OF 0.49 N models200 m/s2 {approx. 20G} max.
OF 0.25 N models200 m/s2 {approx. 20G} max.
Durability
*3
Mechanical10,000,000 operations min.
(60 operations/min)
30,000,000 operations min.
(60 operations/min)
100,000
operations min. (60 operations/min)
Electrical50,000 operations min.
(30 operations/min)
200,000 operations min.
(30 operations/min)
100,000
operations min. (30 operations/min)
Degree of protectionIEC IP40
Degree of protection against electric shockClass I
Proof tracking index (PTI)175
Ambient operating temperature-25°C to 85°C (at ambient humidity of 60% max.) (with no icing or condensation)
Ambient operating humidity85% max. (for 5°C to 35°C)
WeightApprox. 1.6g (pin plunger models)

Micro Switch Subminiature Basic Switch SS-5T
