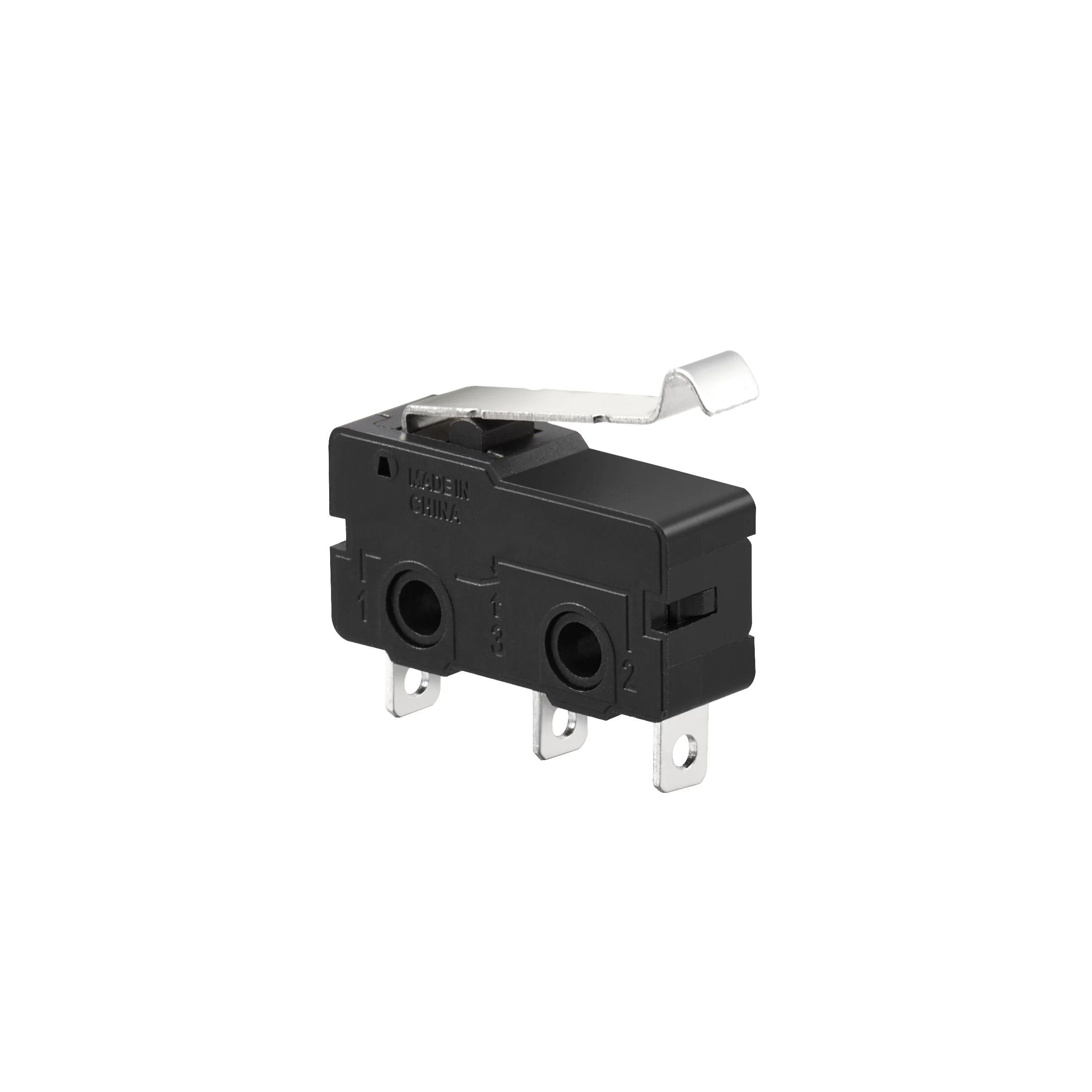

Micro Switch Subminiature Basic Switch SS-5GL13-F
Micro Switch SS
FEATURES AND BENEFITS
● The WEUP’s best-selling micro switches of a wide variety from 0.1A to 10.1A.
● A variety of models are available, with operating force ranging from low to high.
● Two split springs ensure a high stability and durability of 30,000,000 operations.
● 1 mm MIN Contact Gap Models available for Interlock applications
TYPICAL APPLICATIONS
- Small appliances
- Computers and peripherals
- Medical instrumentation
SPECIFICATIONS
| 10A 250V AC 5A 125V AC 0.1A 30V DC |
| ≧ 50000 Cycles |
| ≧ 100 MΩ |
| IP 40 |
| T 105/55 |
| ≦ 50mΩ |
Basic Switches have a micro contact gap and operate at the specified movement and force using a snap-action mechanism. They are available in models with split contacts, maintained operation, drip-proof specifications, high capacity, and DC current specifications.
WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.
CUSTOMIZING ROCKER SWITCHES
With multi-pole, multi-position functionality, WEUP Micro switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also, WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.
Product Features
Introducing WEUP’s Micro Switch Subminiature: the perfect choice for B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers. With its impressive features and functions, this micro switch is a game-changer in the industry. Let’s explore why WEUP’s Micro Switch Subminiature is the best option for your business needs.
Reliable and Durable
- WEUP’s Micro Switch Subminiature is built to last. With a high stability and durability of 30,000,000 operations, you can rely on this switch for long-term performance.
- The two split springs in this micro switch ensure enhanced stability and durability, making it suitable for various demanding applications.
- It has a long electrical life of at least 50,000 cycles, ensuring consistent performance over time.
- The micro contact gap and snap-action mechanism guarantee reliable operation at the specified movement and force.
Wide Variety of Models
- This micro switch comes in a wide range of models with different operating forces, allowing you to choose the one that suits your specific requirements.
- From low to high operating forces, you can find the perfect model for your application.
- The availability of models with a 1 mm MIN contact gap makes it ideal for interlock applications.
- Whether you need a subminiature size or high capacity, WEUP has got you covered.
Versatile Applications The WEUP Micro Switch Subminiature finds its application in various industries, including:
- Small Appliances: These switches are perfect for small appliances like air purifiers, dehumidifiers, and more.
- Computers and Peripherals: They are suitable for use in monitors, copiers, printers, and other computer peripherals.
- Medical Instrumentation: The reliability and durability of these switches make them an excellent choice for medical instrumentation.
Customizable Options
- At WEUP, customization is made easy. With their own D&R development, creating a new model according to your specific requirements is convenient.
- You can customize the shape, size, construction, frames, and more to meet your unique needs.
- WEUP also offers support for custom wire harness and actuator marking requests to ensure the switch integrates seamlessly into your design.
Exceptional Support from China Manufacturers
- WEUP stands out among China manufacturers as a reliable and trustworthy partner for your business needs.
- They have a strong network of suppliers and vendors, ensuring that you receive high-quality products at competitive prices.
- As a manufacturer with its own factory, WEUP has complete control over the production process to maintain the highest standards of quality.
- Their commitment to customer satisfaction means they are always ready to address any concerns or queries you may have.
Conclusion In conclusion, WEUP’s Micro Switch Subminiature is the ideal choice for B2B buyers looking for reliable, durable, and customizable micro switches. Its wide variety of models, versatile applications, and exceptional support from China manufacturers make it a top-notch product in the market. With WEUP as your trusted partner, you can be confident in receiving high-quality products that meet your specific requirements. Upgrade your business operations with WEUP’s Micro Switch Subminiature today!
Why Choose WEUP?
High Quality
Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.
Affordability
We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.
Reliable Supplier
As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.
Excellent Customer Service
At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.
Certificates
Technical Data
- Model
- Status
- Types
- Characteristics
- Drawings
- Applications
| ratings | Actuator | Maximum Operating Force (OF) | Contact Form | Terminals | Heat resistance |
| 10: 250 VAC 10.1A | None： Pin plunger  | None: 1.47 N {150 gf} | 1: SPDT  | None: Solder terminals | None: Standard (85°C) |
| 5: 125 VAC 5 A | 1: Short hinge lever  | -F: 0.49 N {50 gf} (0.1 A, 5 A) | 2: SPST-NC  | T: Quick-connect terminals (#110) | -T: Heat-resistant (120°C) |
| 01: 30 VDC 0.1A | 2: Hinge lever  | -E : 0.25 N {25 gf} (0.1 A) | 3: SPST-NO  | D: PCB terminals | |
3: Long hinge lever  | Note: | ||||
4: Simulated roller lever  | |||||
5: Short hinge roller lever  | |||||
6: Hinge roller lever  |
| Actuator | Terminals | Contact Form | Maximum Operating Force (OF) | 10.1 A | 5 A | 0.1 A |
Pin plunger  | Solder terminals | SPDT | 1.47 N {150 gf} | SS-10 | SS-5 | SS-01 |
| SPST-NC | SS-10-2 | SS-5-2 | SS-01-2 | |||
| SPST-NO | SS-10-3 | SS-5-3 | SS-01-3 | |||
| Quick-connect terminals (#110) | SPDT | SS-10T | SS-5T | SS-01T | ||
| SPST-NC | SS-10-2T | SS-5-2T | SS-01-2T | |||
| SPST-NO | SS-10-3T | SS-5-3T | SS-01-3T | |||
| PCB terminals | SPDT | SS-10D | SS-5D | SS-01D | ||
| SPST-NC | SS-10-2D | SS-5-2D | SS-01-2D | |||
| SPST-NO | SS-10-3D | SS-5-3D | SS-01-3D | |||
| Solder terminals | SPDT | 0.49 N {50 gf} | – | SS-5-F | SS-01-F | |
| SPST-NC | – | SS-5-F-2 | SS-01-F-2 | |||
| SPST-NO | – | SS-5-F-3 | SS-01-F-3 | |||
| Quick-connect terminals (#110) | SPDT | – | SS-5-FT | SS-01-FT | ||
| SPST-NC | – | SS-5-F-2T | SS-01-F-2T | |||
| SPST-NO | – | SS-5-F-3T | SS-01-F-3T | |||
| PCB terminals | SPDT | – | SS-5-FD | SS-01-FD | ||
| SPST-NC | – | SS-5-F-2D | SS-01-F-2D | |||
| SPST-NO | – | SS-5-F-3D | SS-01-F-3D | |||
| Solder terminals | SPDT | 0.25 N {25 gf} | – | – | SS-01-E | |
| SPST-NC | – | – | SS-01-E-2 | |||
| SPST-NO | – | – | SS-01-E-3 | |||
| Quick-connect terminals (#110) | SPDT | – | – | SS-01-ET | ||
| SPST-NC | – | – | SS-01-E-2T | |||
| SPST-NO | – | – | SS-01-E-3T | |||
| PCB terminals | SPDT | – | – | SS-01-ED | ||
| SPST-NC | – | – | SS-01-E-2D | |||
| SPST-NO | – | – | SS-01-E-3D |
| Item Model | SS-10 models | SS-5 models | SS-01 models | SS-5F models | ||
| Permissible operating speed | 0.1 mm to 1 m/s (for pin plunger models) | |||||
| Permissible operating frequency | Mechanical | 400 operations/min | ||||
| Electrical | 60 operations/min | |||||
| Insulation resistance | 100 MΩ min. (at 500 VDC with insulation tester) | |||||
| Contact resistance (initial value) | OF 1.47 N models | 30 mΩ max. | 50 mΩ max. | 30 mΩ max. | ||
| OF 0.49 N models | – | 50 mΩ max. | 100 mΩ max. | – | ||
| OF 0.25 N models | – | 150 mΩ max. | – | |||
| Dielectric strength *1 | Between terminals of the same polarity | 1,000 VAC 50/60 Hz for 1 min | 600 VAC 50/60 Hz for 1 min | 1,000 VAC 50/60 Hz for 1 min | ||
| Between current-carrying metal parts and ground | 1,500 VAC 50/60 Hz for 1 min | |||||
| Between each terminal and non-current-carrying metal parts | 1,500 VAC 50/60 Hz for 1 min | |||||
| Vibration resistance *2 | Malfunction | 10 to 55 Hz, 1.5 mm double amplitude | ||||
| Shock resistance | Durability | OF 1.47 N models | 1,000 m/s2 {approx. 100G} max. | |||
| OF 0.49 N models | 500 m/s2 {approx. 50G} max. | – | ||||
| OF 0.25 N models | 500 m/s2 {approx. 50G} max. | – | ||||
| Malfunction *2 | OF 1.47 N models | 300 m/s2 {approx. 30G} max. | ||||
| OF 0.49 N models | 200 m/s2 {approx. 20G} max. | – | ||||
| OF 0.25 N models | 200 m/s2 {approx. 20G} max. | – | ||||
| Durability *3 | Mechanical | 10,000,000 operations min. (60 operations/min) | 30,000,000 operations min. (60 operations/min) | 100,000 operations min. (60 operations/min) | ||
| Electrical | 50,000 operations min. (30 operations/min) | 200,000 operations min. (30 operations/min) | 100,000 operations min. (30 operations/min) | |||
| Degree of protection | IEC IP40 | |||||
| Degree of protection against electric shock | Class I | |||||
| Proof tracking index (PTI) | 175 | |||||
| Ambient operating temperature | -25°C to 85°C (at ambient humidity of 60% max.) (with no icing or condensation) | |||||
| Ambient operating humidity | 85% max. (for 5°C to 35°C) | |||||
| Weight | Approx. 1.6g (pin plunger models) | |||||
