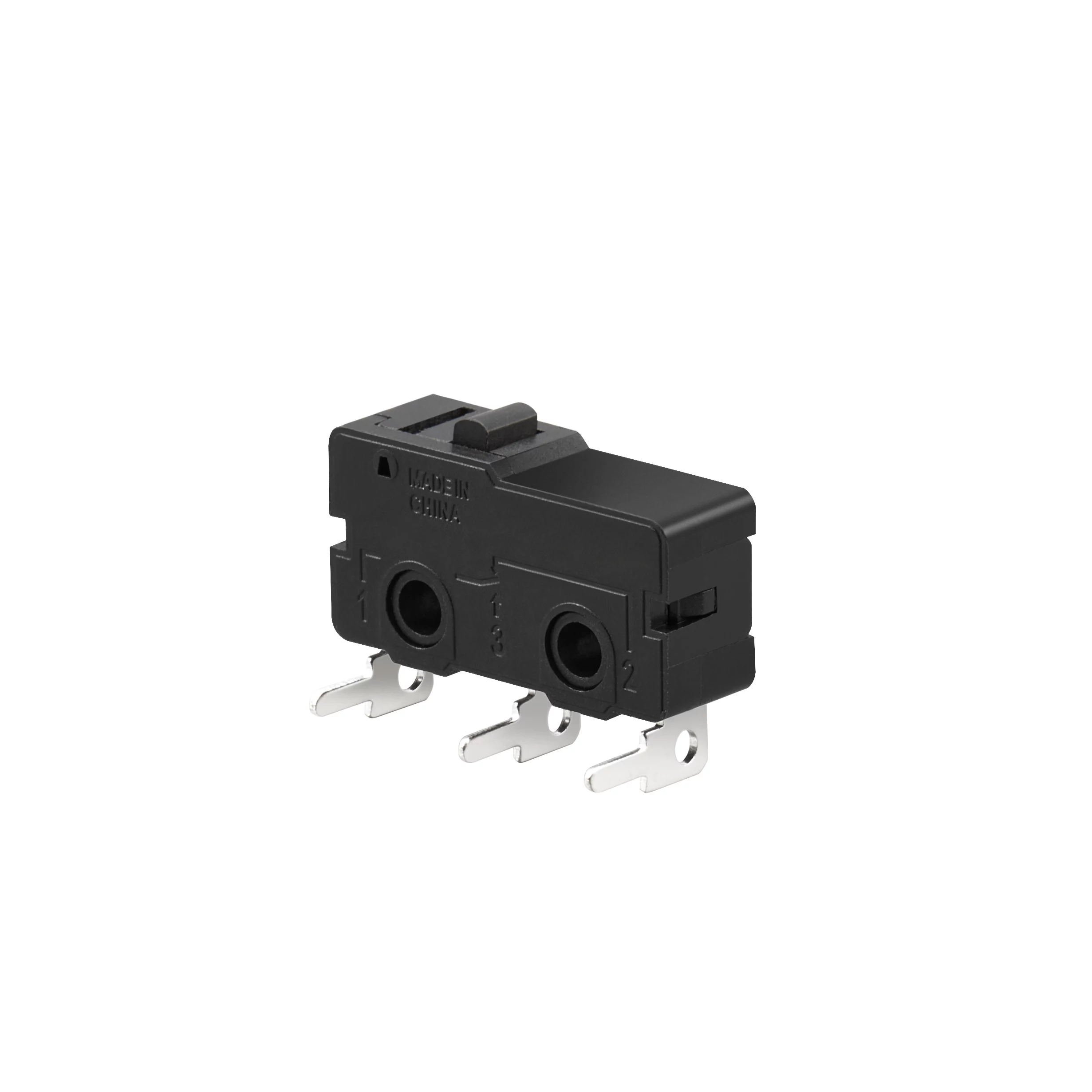

Micro Switch Subminiature Basic Switch SS-5GL13-F-3D

Micro Switch SS

FEATURES AND BENEFITS

● The WEUP’s best-selling micro switches of a wide variety from 0.1A to 10.1A.

● A variety of models are available, with operating force ranging from low to high.

● Two split springs ensure a high stability and durability of 30,000,000 operations.

● 1 mm MIN Contact Gap Models available for Interlock applications

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
10A 250V AC

5A 125V AC

0.1A 30V DC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 40
  • Operating Temperature:
T 105/55
  • Contact Resistance:
≦ 50mΩ

Basic Switches have a micro contact gap and operate at the specified movement and force using a snap-action mechanism. They are available in models with split contacts, maintained operation, drip-proof specifications, high capacity, and DC current specifications.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP Micro switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also, WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.



Read More

Product Features

WEUP’s Micro Switch Subminiature: The Ultimate Choice for B2B Buyers

When it comes to micro switches, WEUP’s Micro Switch Subminiature stands out as the top choice for B2B buyers such as importers, distributors, manufacturers, brands, wholesalers, and retailers. Its exceptional features and functions make it the go-to product in the market. Let’s delve into the details and explore why WEUP’s Micro Switch Subminiature is the ultimate choice for your business.

Reliable Performance and Wide Variety

WEUP offers a wide range of Micro Switch Subminiature models, ensuring that there is a perfect fit for every application. With contact ratings ranging from 0.1A to 10.1A, you can find a micro switch that meets your specific requirements. Whether you need a low operating force or high capacity, WEUP has got you covered. These switches are designed to deliver reliable performance in various industries, including small appliances, computers and peripherals, and medical instrumentation.

Durability and Longevity

One of the standout features of WEUP’s Micro Switch Subminiature is its exceptional durability and longevity. Equipped with two split springs, these switches provide high stability and can withstand up to 30,000,000 operations. This means that you can rely on these switches for a long time, reducing the need for frequent replacements and minimizing downtime in your operations. The robust construction ensures that they can handle demanding environments and continue to perform flawlessly.

Versatility and Customization

WEUP understands that different applications require different specifications. That’s why they offer a variety of options and customization capabilities for their Micro Switch Subminiature. From split contacts to maintained operation, drip-proof specifications, and high capacity, you can choose the features that best suit your needs. Additionally, WEUP can create custom models according to your specific requests. This level of flexibility allows you to tailor the micro switches to your unique requirements, giving you a competitive edge in the market.

Compact Design and Space-saving

In today’s fast-paced world, space is a valuable commodity. WEUP’s Micro Switch Subminiature is designed with a compact footprint, making it ideal for applications where space is limited. The sub-miniature sizes ensure that you can maximize your available space without compromising on performance. These switches are perfect for small appliances and other devices where every millimeter counts.

Quality Assurance and Compliance

WEUP takes pride in delivering high-quality products to their customers. Their Micro Switch Subminiature undergoes rigorous testing to ensure its reliability and performance. With an electrical life of over 50,000 cycles and insulation resistance of over 100 MΩ, you can trust that these switches will consistently deliver exceptional results. Moreover, they meet industry standards and have the necessary certifications such as CQC, CCC, CE, RoHS, ENEC, PAHS, VDE, TUV, and UL. This gives you peace of mind knowing that you are purchasing a product that meets all the necessary safety and quality requirements.

Easy Integration and Support

Integrating WEUP’s Micro Switch Subminiature into your existing systems or products is a breeze. With various terminals available including solder terminals, quick-connect terminals, and PCB terminals, you can easily connect these switches without any hassle. Additionally, WEUP provides excellent support and can assist with custom wire harnesses and actuator markings to meet your specific requirements.

Competitive Advantage with China Manufacturers

By choosing WEUP’s Micro Switch Subminiature, you gain a competitive advantage by partnering with one of the leading China manufacturers in the industry. WEUP has established itself as a reliable supplier with a strong reputation for delivering high-quality products. Their extensive experience and expertise enable them to provide competitive pricing without compromising on quality. With their vast network of suppliers and factories, they can fulfill your bulk orders efficiently and promptly.

In conclusion, WEUP’s Micro Switch Subminiature is the ultimate choice for B2B buyers seeking top-quality micro switches. Its wide variety of models, exceptional durability, versatility, compact design, and compliance with industry standards make it the perfect solution for various applications. By choosing WEUP as your supplier, you gain a competitive advantage and benefit from their expertise in the field. So why wait? Contact WEUP today to experience the excellence of their Micro Switch Subminiature.

Product Features at a Glance:

  • Contact ratings from 0.1A to 10.1A
  • High stability and durability with two split springs
  • Customization options available
  • Compact design for space-saving applications
  • Exceptional quality assurance and compliance with industry standards
  • Easy integration with various terminal options
  • Competitive advantage with China manufacturers

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

Micro Switch Subminiature Basic Switch SS-5T

ratingsActuatorMaximum Operating Force (OF)Contact FormTerminalsHeat resistance
10: 250 VAC 10.1ANone: Pin plunger Micro Switch Subminiature Basic Switch SS-5GL13None: 1.47 N {150 gf}1: SPDT Micro Switch Subminiature Basic Switch SS-5GL13None: Solder terminalsNone: Standard (85°C)
5: 125 VAC 5 A1: Short hinge lever Micro Switch Subminiature Basic Switch SS-5GL13-F: 0.49 N {50 gf} (0.1 A, 5 A)2: SPST-NC Micro Switch Subminiature Basic Switch SS-5GL13T: Quick-connect terminals (#110)-T: Heat-resistant (120°C)
01: 30 VDC 0.1A2: Hinge lever Micro Switch Subminiature Basic Switch SS-5GL13-E : 0.25 N {25 gf} (0.1 A)3: SPST-NO Micro Switch Subminiature Basic Switch SS-5GL13D: PCB terminals
3: Long hinge lever Micro Switch Subminiature Basic Switch SS-5GL13Note:
4: Simulated roller lever Micro Switch Subminiature Basic Switch SS-5GL13
5: Short hinge roller lever Micro Switch Subminiature Basic Switch SS-5GL13
6: Hinge roller lever Micro Switch Subminiature Basic Switch SS-5GL13
ActuatorTerminalsContact FormMaximum Operating Force (OF)10.1 A5 A0.1 A
Pin plunger Micro Switch Subminiature Basic Switch SS-5TSolder terminalsSPDT1.47 N {150 gf}SS-10SS-5SS-01
SPST-NCSS-10-2SS-5-2SS-01-2
SPST-NOSS-10-3SS-5-3SS-01-3
Quick-connect terminals (#110)SPDTSS-10TSS-5TSS-01T
SPST-NCSS-10-2TSS-5-2TSS-01-2T
SPST-NOSS-10-3TSS-5-3TSS-01-3T
PCB terminalsSPDTSS-10DSS-5DSS-01D
SPST-NCSS-10-2DSS-5-2DSS-01-2D
SPST-NOSS-10-3DSS-5-3DSS-01-3D
Solder terminalsSPDT0.49 N {50 gf}SS-5-FSS-01-F
SPST-NCSS-5-F-2SS-01-F-2
SPST-NOSS-5-F-3SS-01-F-3
Quick-connect terminals (#110)SPDTSS-5-FTSS-01-FT
SPST-NCSS-5-F-2TSS-01-F-2T
SPST-NOSS-5-F-3TSS-01-F-3T
PCB terminalsSPDTSS-5-FDSS-01-FD
SPST-NCSS-5-F-2DSS-01-F-2D
SPST-NOSS-5-F-3DSS-01-F-3D
Solder terminalsSPDT0.25 N {25 gf}SS-01-E
SPST-NCSS-01-E-2
SPST-NOSS-01-E-3
Quick-connect terminals (#110)SPDTSS-01-ET
SPST-NCSS-01-E-2T
SPST-NOSS-01-E-3T
PCB terminalsSPDTSS-01-ED
SPST-NCSS-01-E-2D
SPST-NOSS-01-E-3D
Item                                                 ModelSS-10 modelsSS-5 modelsSS-01 modelsSS-5F models
Permissible operating speed0.1 mm to 1 m/s (for pin plunger models)
Permissible operating frequencyMechanical400 operations/min
Electrical60 operations/min
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)OF 1.47 N models30 mΩ max.50 mΩ max.30 mΩ max.
OF 0.49 N models50 mΩ max.100 mΩ max.
OF 0.25 N models150 mΩ max.
Dielectric strength *1Between terminals of the same polarity1,000 VAC 50/60 Hz for 1 min600 VAC
50/60 Hz for 1 min
1,000 VAC
50/60 Hz for 1 min
Between current-carrying metal parts and ground1,500 VAC 50/60 Hz for 1 min
Between each terminal and non-current-carrying metal parts1,500 VAC 50/60 Hz for 1 min
Vibration resistance
*2
Malfunction10 to 55 Hz, 1.5 mm double amplitude
Shock resistanceDurabilityOF 1.47 N models1,000 m/s2 {approx. 100G} max.
OF 0.49 N models500 m/s2 {approx. 50G} max.
OF 0.25 N models500 m/s2 {approx. 50G} max.
Malfunction
*2
OF 1.47 N models300 m/s2 {approx. 30G} max.
OF 0.49 N models200 m/s2 {approx. 20G} max.
OF 0.25 N models200 m/s2 {approx. 20G} max.
Durability
*3
Mechanical10,000,000 operations min.
(60 operations/min)
30,000,000 operations min.
(60 operations/min)
100,000
operations min. (60 operations/min)
Electrical50,000 operations min.
(30 operations/min)
200,000 operations min.
(30 operations/min)
100,000
operations min. (30 operations/min)
Degree of protectionIEC IP40
Degree of protection against electric shockClass I
Proof tracking index (PTI)175
Ambient operating temperature-25°C to 85°C (at ambient humidity of 60% max.) (with no icing or condensation)
Ambient operating humidity85% max. (for 5°C to 35°C)
WeightApprox. 1.6g (pin plunger models)

Micro Switch Subminiature Basic Switch SS-5T

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
Micro Switch Subminiature Basic Switch SS-5TMicro Switch Subminiature Basic Switch SS-5TMicro Switch Subminiature Basic Switch SS-5T
Power SuppliesMeasuring DevicesPower Outlet Strips
Micro Switch Subminiature Basic Switch SS-5TMicro Switch Subminiature Basic Switch SS-5TMicro Switch Subminiature Basic Switch SS-5GL13-F
