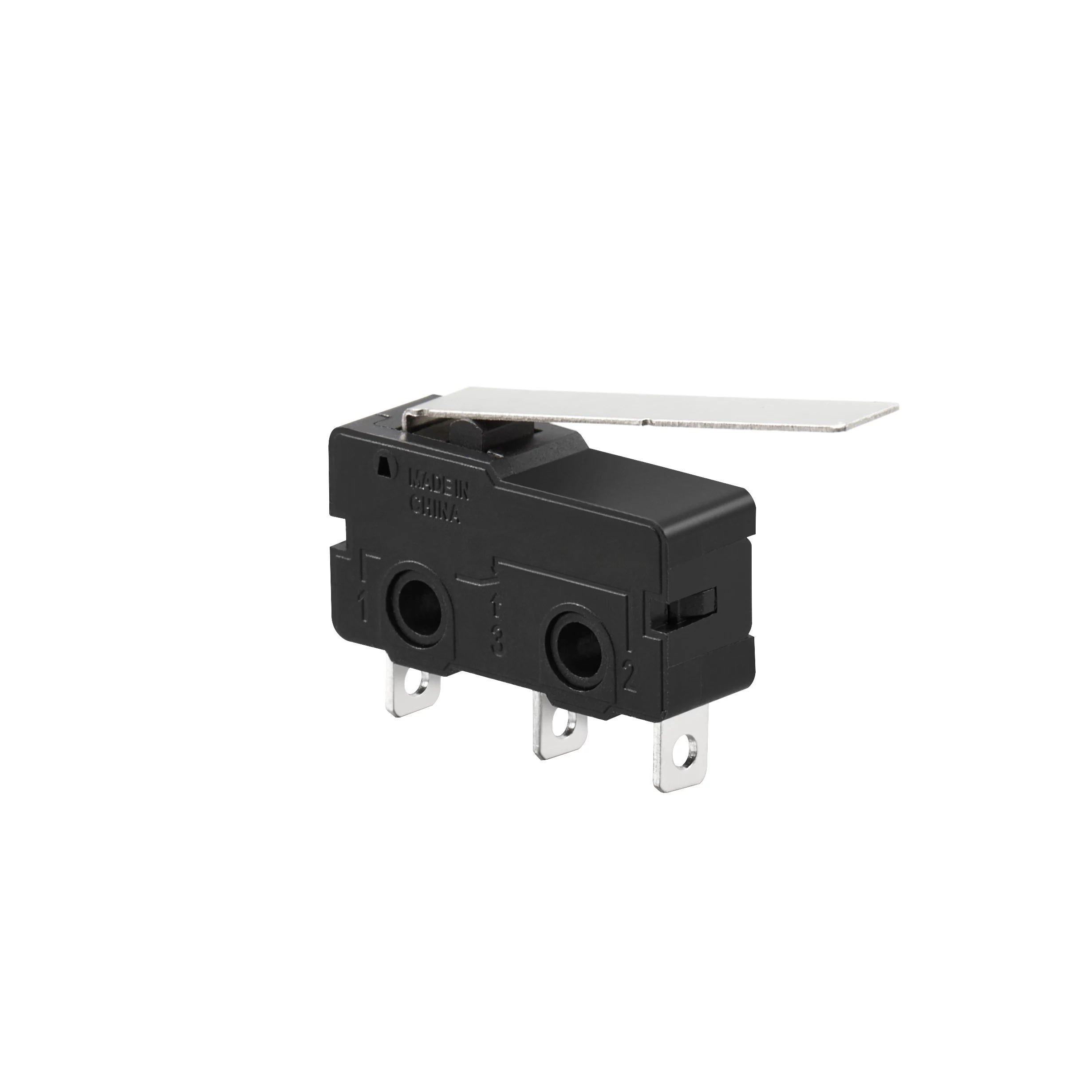

Micro Switch Subminiature Basic Switch SS-5GL111-E

Micro Switch SS

FEATURES AND BENEFITS

● The WEUP’s best-selling micro switches of a wide variety from 0.1A to 10.1A.

● A variety of models are available, with operating force ranging from low to high.

● Two split springs ensure a high stability and durability of 30,000,000 operations.

● 1 mm MIN Contact Gap Models available for Interlock applications

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
10A 250V AC

5A 125V AC

0.1A 30V DC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 40
  • Operating Temperature:
T 105/55
  • Contact Resistance:
≦ 50mΩ

Basic Switches have a micro contact gap and operate at the specified movement and force using a snap-action mechanism. They are available in models with split contacts, maintained operation, drip-proof specifications, high capacity, and DC current specifications.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP Micro switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also, WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.



Read More

Product Features

Introducing WEUP Micro Switch Subminiature: Reliable and Versatile Switches for B2B Buyers

WEUP’s Micro Switch Subminiature is the perfect solution for B2B buyers looking for high-quality switches. With a wide range of models and exceptional features, these micro switches are designed to meet the needs of importers, distributors, manufacturers, brands, wholesalers, and retailers. Let’s explore the compelling reasons why WEUP’s Micro Switch Subminiature should be your top choice.

1. Exceptional Quality and Reliability

  • WEUP is a renowned brand known for its commitment to delivering exceptional quality products. These micro switches are no exception.
  • Designed with a micro contact gap and a snap-action mechanism, they offer reliable and precise operation every time.
  • The switches are built to withstand rigorous usage with an electrical life of over 50,000 cycles, ensuring long-lasting performance.
  • With a contact rating of 10A 250V AC, 5A 125V AC, and 0.1A 30V DC, these switches can handle a wide range of applications.

2. Versatility for Various Applications

  • WEUP Micro Switch Subminiature is highly versatile and can be used in a wide range of applications such as small appliances, computers and peripherals, and medical instrumentation.
  • Whether you need a switch for your small appliance or medical instrument, these micro switches provide the reliability and functionality you require.
  • The switches are available in different models with varying operating forces, allowing you to choose the one that best suits your specific needs.
  • They also come with two split springs that ensure high stability and durability of up to 30,000,000 operations.

3. Customizability to Meet Your Requirements

  • WEUP understands that every business has unique requirements. That’s why they offer customization options for their micro switches.
  • With their own D&R development capabilities, WEUP can create new models according to your specific requests.
  • You can customize the switches in terms of shapes, size, construction, frames, and more.
  • The ability to add recessed switch guards, splash-proof rubber boots, and sub-miniature sizes makes these switches suitable for space-saving applications.
  • WEUP also offers support for custom wire harness and actuator marking requests to ensure the switches meet your exact requirements.

4. Wide Range of Models to Choose From

  • WEUP Micro Switch Subminiature comes in a variety of models to cater to different needs and preferences.
  • The models include pin plunger, hinge lever, quick-connect terminals, and PCB terminals, among others.
  • Each model offers unique features and advantages depending on the application.
  • The switches come with different contact forms such as SPDT, SPST-NC, and SPST-NO, providing flexibility in your design choices.

5. Global Certifications and Compliance

  • WEUP Micro Switch Subminiature meets various international standards and certifications.
  • The switches are certified by CQC, CCC, CE, RoHS, ENEC, PAHS, VDE, TUV, and UL.
  • This ensures that the products adhere to strict quality and safety standards.

6. Trusted Source: China Manufacturers and Suppliers

  • When it comes to electronic components like micro switches, China is well-known for its manufacturing capabilities.
  • WEUP is a trusted manufacturer and supplier based in China with an extensive network of vendors and wholesalers.
  • By choosing WEUP’s Micro Switch Subminiature, you can benefit from competitive pricing without compromising on quality.

In conclusion, WEUP Micro Switch Subminiature is the ideal choice for B2B buyers seeking reliable and versatile switches. With exceptional quality, customization options, a wide range of models, and global certifications, these micro switches are designed to meet your specific requirements. Trust in WEUP’s expertise as a leading manufacturer and supplier from China. Take advantage of their competitive pricing and experience the reliability and functionality offered by WEUP’s Micro Switch Subminiature.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

Micro Switch Subminiature Basic Switch SS-5T

ratingsActuatorMaximum Operating Force (OF)Contact FormTerminalsHeat resistance
10: 250 VAC 10.1ANone: Pin plunger Micro Switch Subminiature Basic Switch SS-5GL13None: 1.47 N {150 gf}1: SPDT Micro Switch Subminiature Basic Switch SS-5GL13None: Solder terminalsNone: Standard (85°C)
5: 125 VAC 5 A1: Short hinge lever Micro Switch Subminiature Basic Switch SS-5GL13-F: 0.49 N {50 gf} (0.1 A, 5 A)2: SPST-NC Micro Switch Subminiature Basic Switch SS-5GL13T: Quick-connect terminals (#110)-T: Heat-resistant (120°C)
01: 30 VDC 0.1A2: Hinge lever Micro Switch Subminiature Basic Switch SS-5GL13-E : 0.25 N {25 gf} (0.1 A)3: SPST-NO Micro Switch Subminiature Basic Switch SS-5GL13D: PCB terminals
3: Long hinge lever Micro Switch Subminiature Basic Switch SS-5GL13Note:
4: Simulated roller lever Micro Switch Subminiature Basic Switch SS-5GL13
5: Short hinge roller lever Micro Switch Subminiature Basic Switch SS-5GL13
6: Hinge roller lever Micro Switch Subminiature Basic Switch SS-5GL13
ActuatorTerminalsContact FormMaximum Operating Force (OF)10.1 A5 A0.1 A
Pin plunger Micro Switch Subminiature Basic Switch SS-5TSolder terminalsSPDT1.47 N {150 gf}SS-10SS-5SS-01
SPST-NCSS-10-2SS-5-2SS-01-2
SPST-NOSS-10-3SS-5-3SS-01-3
Quick-connect terminals (#110)SPDTSS-10TSS-5TSS-01T
SPST-NCSS-10-2TSS-5-2TSS-01-2T
SPST-NOSS-10-3TSS-5-3TSS-01-3T
PCB terminalsSPDTSS-10DSS-5DSS-01D
SPST-NCSS-10-2DSS-5-2DSS-01-2D
SPST-NOSS-10-3DSS-5-3DSS-01-3D
Solder terminalsSPDT0.49 N {50 gf}SS-5-FSS-01-F
SPST-NCSS-5-F-2SS-01-F-2
SPST-NOSS-5-F-3SS-01-F-3
Quick-connect terminals (#110)SPDTSS-5-FTSS-01-FT
SPST-NCSS-5-F-2TSS-01-F-2T
SPST-NOSS-5-F-3TSS-01-F-3T
PCB terminalsSPDTSS-5-FDSS-01-FD
SPST-NCSS-5-F-2DSS-01-F-2D
SPST-NOSS-5-F-3DSS-01-F-3D
Solder terminalsSPDT0.25 N {25 gf}SS-01-E
SPST-NCSS-01-E-2
SPST-NOSS-01-E-3
Quick-connect terminals (#110)SPDTSS-01-ET
SPST-NCSS-01-E-2T
SPST-NOSS-01-E-3T
PCB terminalsSPDTSS-01-ED
SPST-NCSS-01-E-2D
SPST-NOSS-01-E-3D
Item                                                 ModelSS-10 modelsSS-5 modelsSS-01 modelsSS-5F models
Permissible operating speed0.1 mm to 1 m/s (for pin plunger models)
Permissible operating frequencyMechanical400 operations/min
Electrical60 operations/min
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)OF 1.47 N models30 mΩ max.50 mΩ max.30 mΩ max.
OF 0.49 N models50 mΩ max.100 mΩ max.
OF 0.25 N models150 mΩ max.
Dielectric strength *1Between terminals of the same polarity1,000 VAC 50/60 Hz for 1 min600 VAC
50/60 Hz for 1 min
1,000 VAC
50/60 Hz for 1 min
Between current-carrying metal parts and ground1,500 VAC 50/60 Hz for 1 min
Between each terminal and non-current-carrying metal parts1,500 VAC 50/60 Hz for 1 min
Vibration resistance
*2
Malfunction10 to 55 Hz, 1.5 mm double amplitude
Shock resistanceDurabilityOF 1.47 N models1,000 m/s2 {approx. 100G} max.
OF 0.49 N models500 m/s2 {approx. 50G} max.
OF 0.25 N models500 m/s2 {approx. 50G} max.
Malfunction
*2
OF 1.47 N models300 m/s2 {approx. 30G} max.
OF 0.49 N models200 m/s2 {approx. 20G} max.
OF 0.25 N models200 m/s2 {approx. 20G} max.
Durability
*3
Mechanical10,000,000 operations min.
(60 operations/min)
30,000,000 operations min.
(60 operations/min)
100,000
operations min. (60 operations/min)
Electrical50,000 operations min.
(30 operations/min)
200,000 operations min.
(30 operations/min)
100,000
operations min. (30 operations/min)
Degree of protectionIEC IP40
Degree of protection against electric shockClass I
Proof tracking index (PTI)175
Ambient operating temperature-25°C to 85°C (at ambient humidity of 60% max.) (with no icing or condensation)
Ambient operating humidity85% max. (for 5°C to 35°C)
WeightApprox. 1.6g (pin plunger models)

Micro Switch Subminiature Basic Switch SS-5T

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
Micro Switch Subminiature Basic Switch SS-5TMicro Switch Subminiature Basic Switch SS-5TMicro Switch Subminiature Basic Switch SS-5T
Power SuppliesMeasuring DevicesPower Outlet Strips
Micro Switch Subminiature Basic Switch SS-5TMicro Switch Subminiature Basic Switch SS-5TMicro Switch Subminiature Basic Switch SS-5GL13-F
