  • Micro Switch Miniature Basic Switch V-162-1C6
  • Micro Switch Miniature Basic Switch V-162-1C6

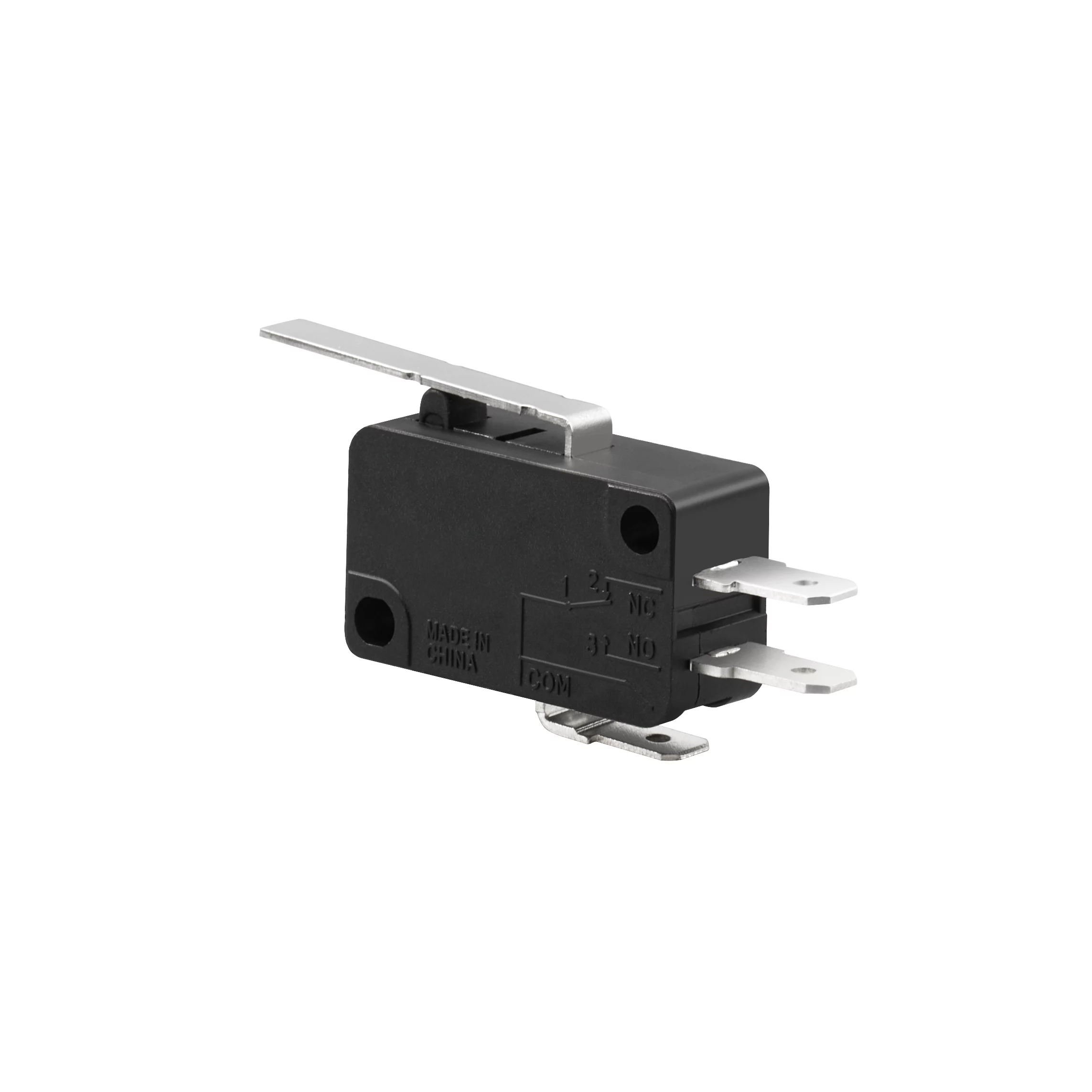

Micro Switch Miniature Basic Switch V-162-1C6

Micro Switch V16

FEATURES AND BENEFITS

● Wide variation of best-selling microswitches with switching currents of 10 to 21 A.
● Can be used for interrupting current when doors are opened or closed.
● Available in two types of cases: thermoplastic resin and thermosetting resin.
● Indium contact models available for DC load

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
21A 250V AC

16A 125V AC

15A 30V DC

10A 30V DC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 40
  • Operating Temperature:
T 105/55
  • Contact Resistance:
≦ 50mΩ

Understanding the Micro Switch in Gas Stoves

A gas stove is a vital component of any kitchen, adding both functionality and aesthetic value. An often overlooked but essential part of this useful appliance is the micro switch, a small but powerful device that plays a crucial role in ensuring your gas stove operates safely and efficiently.

A micro switch in a gas stove is essentially an electric switch that gets activated through minimal physical force from an external mechanism. This mechanism can be a push button or a lever, which triggers the switch once it reaches a specific point of tipping. Its main function is to respond to any changes in its environment by opening or closing an electrical circuit.

The Role and Functionality of Micro Switches

In the context of gas stoves, micro switches are typically used as safety devices. They are strategically positioned within the stove’s structure so that they can detect if the flame has accidentally been extinguished (for instance, due to wind or spillage). In such situations, the microswitch detects this change and automatically shuts off the gas supply to prevent dangerous gas leakage.

Micro switches also play an integral part in igniting the burner. When you turn on your stove, it’s actually triggering a mechanical process where pressure is applied onto the micro switch. Once triggered, it sends an electrical signal to create a spark at the burner – thus lighting up your gas stove with ease and precision.

Key Features of Micro Switches in Gas Stoves

  • Compact Size: Despite their small size, micro switches are known for performing heavy-duty tasks efficiently.
  • Highly Durable: They’re designed for longevity even under regular usage over extended periods.
  • Safety-First Design: Their primary function is to ensure user safety by preventing unwanted situations like accidental ignition or harmful gas leaks.
  • Broad Operating Range: Due to their inherent design characteristics, these switches can work under varying levels of pressure which makes them versatile.
  • Cost-Effective: Given their durability and minimal maintenance needs, they prove highly cost-effective in long-term use.

In conclusion, while we may take our everyday household appliances for granted all too frequently, each component – down to tiny parts like micro switches – plays its part in creating efficient systems that enhance our lives daily. The humble yet mighty micro switch within your gas stove serves as one such example demonstrating how now seemingly minute details contribute significantly towards maintaining safety standards and providing user convenience.

Read More

Product Features

The Versatile and Reliable Micro Switch Miniature V-162-1C6: Enhancing Safety and Efficiency

In today’s fast-paced world, businesses are constantly on the lookout for reliable and efficient components to enhance their products. Micro switches are crucial devices that play a vital role in ensuring the safety and functionality of various appliances, including gas stoves. When it comes to high-quality micro switches, the Micro Switch Miniature V-162-1C6 from WEUP is a standout choice for B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers.

Enhanced Safety Features for Optimal Protection

One of the key features of the Micro Switch Miniature V-162-1C6 is its exceptional safety features. Designed to be used as a safety device in gas stoves, this micro switch is strategically positioned within the stove’s structure to detect if the flame has accidentally been extinguished. By automatically shutting off the gas supply in such situations, it prevents dangerous gas leakage and potential hazards. This safety-first design ensures peace of mind for both manufacturers and end-users, making it an ideal choice for gas stove applications.

Efficient Performance for Various Applications

The Micro Switch Miniature V-162-1C6 is a versatile component that can be utilized in a wide range of applications. It offers a wide variation of best-selling micro switches with switching currents ranging from 10 to 21 A. This wide range allows for flexibility in different electrical circuits and ensures compatibility with various small appliances, computers and peripherals, and medical instrumentation. Whether you’re looking to enhance the functionality of small appliances or improve the performance of medical instrumentation, this micro switch is a reliable choice.

Durability and Longevity for Cost-Effective Solutions

When it comes to investing in components, durability and longevity are key factors that businesses consider. The Micro Switch Miniature V-162-1C6 excels in this regard. With an electrical life of at least 50,000 cycles, this micro switch is designed to withstand regular usage over extended periods. Its highly durable construction ensures that it can handle heavy-duty tasks efficiently, making it a cost-effective solution for B2B buyers.

Wide Range of Options for Flexibility

WEUP’s Micro Switch Miniature V-162-1C6 offers B2B buyers a wide range of options to cater to different requirements. It is available in two types of cases: thermoplastic resin and thermosetting resin. This allows manufacturers to choose the case material that best suits their specific application needs. Additionally, there are different contact models available, including indium contact models for DC load. This flexibility ensures that businesses can select the most suitable configuration for their products.

Reliable Performance Under Varying Conditions

The Micro Switch Miniature V-162-1C6 is designed to deliver consistent and reliable performance even under varying conditions. It has a wide operating temperature range of T 105/55, allowing it to function effectively in different environments. Furthermore, with a degree of protection of IP40, this micro switch offers sufficient protection against dust and solid objects, making it suitable for use in various industrial settings.

Trusted Supplier Network for Seamless Procurement

When it comes to sourcing components like micro switches, having access to a trusted supplier network is crucial. WEUP has established strong relationships with reputable China manufacturers, suppliers, factories, wholesale vendors, and certification organizations. This ensures that B2B buyers can rely on WEUP to provide genuine and high-quality micro switches that meet industry standards. With seamless procurement processes and reliable supply chain management, businesses can rest assured that they will receive the Micro Switch Miniature V-162-1C6 promptly and efficiently.

Conclusion

In conclusion, the Micro Switch Miniature V-162-1C6 from WEUP is a reliable and versatile component that offers enhanced safety features and efficient performance for various applications. Its durability and longevity make it a cost-effective solution, while its wide range of options provides flexibility for manufacturers. With reliable performance under varying conditions and a trusted supplier network, WEUP ensures that B2B buyers can confidently incorporate the Micro Switch Miniature V-162-1C6 into their products. Choose the Micro Switch Miniature V-162-1C6 to enhance safety and efficiency in your appliances and experience the difference it makes in your business operations.

Key Features of Micro Switch Miniature V-162-1C6:

  • Wide variation of best-selling micro switches with switching currents of 10 to 21 A
  • Enhanced safety features for gas stove applications
  • Can be used for interrupting current when doors are opened or closed
  • Available in thermoplastic resin and thermosetting resin cases
  • Indium contact models available for DC load
  • Suitable for small appliances, computers and peripherals, and medical instrumentation

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

Micro Switch Miniature Basic Switch V-164-3C6

RatingsActuatorMaximum Operating Force (OF)Contact FormTerminalsHeat resistance
21:21 A at 250 VACNone: Pin plunger Micro Switch Miniature Basic Switch V-164-3C6
6: 3.92 N {400 gf}
1: SPDT Micro Switch Miniature Basic Switch V-164-3C6
A : Solder terminals
None : Standard (80°C)
16:16A at 250 VAC1 : Short hinge lever Micro Switch Miniature Basic Switch V-164-3C6
5: 1.96 N {200 gf}
2: SPST-NC Micro Switch Miniature Basic Switch V-164-3C6
C2 : Quick-connect terminals (#187)
-T : Heat-resistive (150°C)
15:15 A at 250 VAC2 : Hinge lever Micro Switch Miniature Basic Switch V-164-3C6
4: 0.98 N {100 gf}
3: SPST-NO Micro Switch Miniature Basic Switch V-164-3C6
C : Quick-connect terminals (#250)
10:10 A at 250 VAC3 : Long hinge lever Micro Switch Miniature Basic Switch V-164-3C6
Note: These values are for the pin plunger models.
4 : Simulated roller lever Micro Switch Miniature Basic Switch V-164-3C6
5 : Short hinge roller lever Micro Switch Miniature Basic Switch V-164-3C6
6 : Hinge roller lever Micro Switch Miniature Basic Switch V-164-3C6

Micro Switch Miniature Basic Switch V-164-3C6

Micro Switch Miniature Basic Switch V-164-3C6

ActuatorTerminalsContact formMaximum operating force (OF)21A16A
Pin plunger Micro Switch Miniature Basic Switch V-164-3C6Solder terminals (A)SPDT3.92NV-16-1A6
SPST-NCV-16-2A6
SPST-NOV-16-3A6
SPDT1.96NV-16-1A5
SPST-NCV-16-2A5
SPST-NOV-16-3A5
SPDT0.98N
SPST-NC
SPST-NO
Quick-connect terminals (#187) (C2)SPDT3.92NV-16-1C26
SPST-NCV-16-2C26
SPST-NOV-16-3C26
SPDT1.96NV-16-1C25
SPST-NCV-16-2C25
SPST-NOV-16-3C25
SPDT0.98N
SPST-NC
SPST-NO
Quick-connect terminals (#250) (C)SPDT3.92NV-21-1C6V-16-1C6
SPST-NCV-21-2C6V-16-2C6
SPST-NOV-21-3C6V-16-3C6
SPDT1.96NV-16-1C5
SPST-NCV-16-2C5
SPST-NOV-16-3C5
SPDT0.98N
SPST-NC
SPST-NO
Item                                              ModelV-10V-15V-16V-21V-21(IN)
Permissible operating speed0.1mm to 1 m/s max. (pin plunger models)
Permissible operating frequencyMechanical600 operations/min max. (pin plunger models)
Electrical60 operations/min
Insulation resistance100MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)15mΩ max.
Dielectric strength  *1Between terminals of
the same polarity
AC1,000V  50/60Hz  1min
Between current-carrying metal parts
and ground
AC1,500V  50/60Hz
1min
AC1,500V  50/60Hz
1min
AC2,000V  50/60Hz  1min
Between each terminal and non-current-
carrying metal parts
AC1,500V  50/60Hz
1min
AC1,500V  50/60Hz
1min
AC2,000V  50/60Hz  1min
Vibration
resistance  *2
Malfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistance  *2Durability1,000 m/s2  {approx. 100 G} max.
Malfunction200 m/s2
{approx. 20G} max.
300 m/s2 {approx. 30 G} max.
Durability  *3Mechanical50,000,000 operations min. (60 operations/min)
Electrical300,000 operations min.
(30 operations/min)
Heat resistive: 50,000 operations min
(30 operations/min)
100,000 operations min.
(30 operations/min)
Heat resistive: 20,000 operations min
(30 operations/min)
100,000 operations min.
(30 operations/min)
Degree of protectionIEC IP40
Degree of protection against electric shockClass I
Proof tracking index (PTI)175
Ambient operating temperature-25 to 105C
(Heat resistive: -25 to 150C)
-25 to 105C-25 to 80C
-25 to 105C (V-21 series: -25 to 80C) (Heat resistive: -25 to 150C) at ambient humidity of 60% max.
(with no icing or condensation)
Ambient operating humidity85% max. (for 5 to 35C)
WeightApprox. 6.2g (pin plunger models)
