KCD1-104

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC

10A 125V AC

10(6) 250V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • Contact Resistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the Sub-mini Rocker Switch by WEUP: The Perfect Choice for B2B Buyers

Are you a B2B buyer looking for a reliable and efficient sub-mini rocker switch? Look no further than WEUP’s Sub-mini Rocker Switch, the ideal solution for importers, distributors, manufacturers, brands, wholesalers, and retailers. In this compelling argument, we will highlight the features and functions of this product, showcasing its effectiveness and demonstrating why it is the best choice for your business needs.

Why Choose WEUP’s Sub-mini Rocker Switch?

  1. Exceptional Quality: The Sub-mini Rocker Switch is manufactured by WEUP, one of the leading China manufacturers in the industry. With their expertise and commitment to excellence, you can trust that this product is of the highest quality.
  2. Wide Range of Configurations: WEUP offers various configurations for the Sub-mini Rocker Switch to cater to different requirements. Whether you need a two-position On/Off switch, a three-position switch, or a momentary switch, WEUP has got you covered.
  3. Versatility: The Sub-mini Rocker Switch is suitable for a multitude of applications. From small appliances to computers and peripherals, and even medical instrumentation, this switch can handle it all. Its adaptability makes it a perfect choice for businesses in different industries.
  4. Customization Options: WEUP understands that every business has unique needs. That’s why they offer customization options for the Sub-mini Rocker Switch. Whether it’s the shape, size, construction, or frame, WEUP can create a new model according to your specific requests. They can even provide recessed switch guards to prevent accidental actuation and splash-proof rubber boots for added protection.
  5. Reliable Performance: With a contact rating of 6A 250V AC and an electrical life of over 50,000 cycles, the Sub-mini Rocker Switch ensures long-lasting and reliable performance. It also boasts excellent insulation resistance of over 100 MΩ and a contact resistance of less than 50mΩ, guaranteeing efficient electrical conductivity.
  6. Ease of Installation: The Sub-mini Rocker Switch is designed with quick connect or blade terminals, making installation a breeze. This feature saves time and effort, allowing businesses to streamline their operations.
  7. IP54 Splash Proof Option: For applications that require additional protection against water splashes, WEUP offers an IP54 splash-proof rubber boot option for the Sub-mini Rocker Switch. This ensures that the switch remains functional even in potentially wet environments.

Applications and Benefits

The Sub-mini Rocker Switch by WEUP finds its application in various industries and products. Here are some key examples:

  • Small Appliances: This switch is perfect for controlling the on/off functions of small appliances like air purifiers, dehumidifiers, and more. Its reliability and ease of use make it an essential component in enhancing user experience.
  • Computers and Peripherals: From monitors to copiers and printers, the Sub-mini Rocker Switch is essential in powering these devices. Its robust design ensures smooth operation and minimizes downtime.
  • Medical Instrumentation: In the medical field, precision and reliability are crucial. The Sub-mini Rocker Switch provides the necessary control in medical instrumentation, ensuring accurate operation and patient safety.

Stand Out with WEUP’s Sub-mini Rocker Switch

By choosing WEUP’s Sub-mini Rocker Switch, B2B buyers can enjoy several advantages:

  1. Reliable Partner: As a trusted China manufacturer with years of experience, WEUP has established itself as a reliable partner to businesses worldwide. Their commitment to quality and customer satisfaction sets them apart from competitors.
  2. Customization Capabilities: WEUP understands that businesses have unique requirements. With their D&R development capabilities, they can create customized models that perfectly fit your needs. This level of flexibility ensures that you receive a product tailored to your specifications.
  3. Superior Customer Support: WEUP goes above and beyond to support their customers. They can assist with custom wire harness and actuator marking requests to meet your specific requirements. Their dedication to customer satisfaction sets them apart from other suppliers.
  4. Certifications and Compliance: The Sub-mini Rocker Switch by WEUP meets various certifications like CQC, CCC, CE, RoHS, ENEC, PAHS, VDE, TUV, and UL. This compliance ensures that your business adheres to industry standards and regulations.

In conclusion, WEUP’s Sub-mini Rocker Switch is an outstanding choice for B2B buyers looking for a reliable and versatile switch solution. With exceptional quality, customization options, ease of installation, and reliability in performance, this switch stands out among competitors. Whether you’re in the market for importers, distributors, manufacturers, brands, wholesalers, or retailers, choosing WEUP will ensure that you receive a top-notch product backed by excellent customer support. Upgrade your business operations today with WEUP’s Sub-mini Rocker Switch!

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

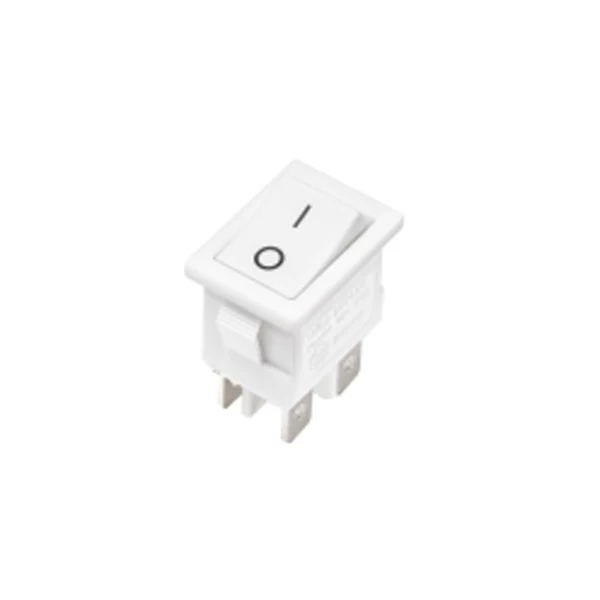

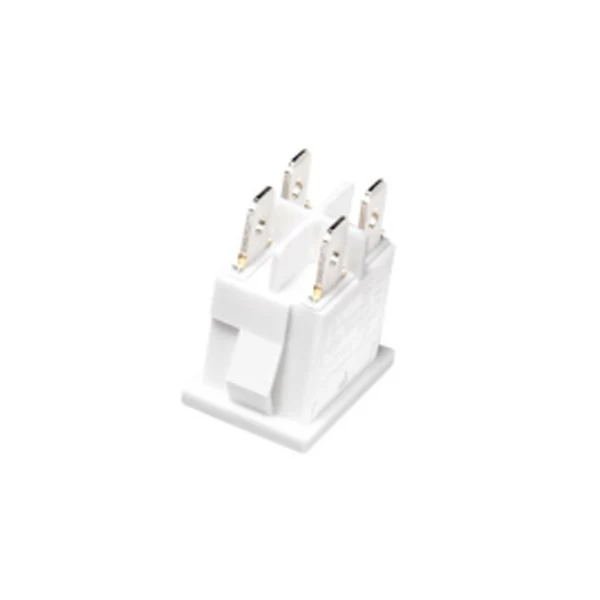

light illuminated switch/ DPST big current switch/ 4pins rocker canal KCD1-104 series rocker switch



KCD1-104K4PA1K
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton Color
Black light illuminated switch/ DPST big current switch/ 4pins rocker canal KCD1-104 series rocker switchON-OFF light illuminated switch/ DPST big current switch/ 4pins rocker canal KCD1-104 series rocker switch 4.8*0.8 light illuminated switch/ DPST big current switch/ 4pins rocker canal KCD1-104 series rocker switch  light illuminated switch/ DPST big current switch/ 4pins rocker canal KCD1-104 series rocker switchBlack light illuminated switch/ DPST big current switch/ 4pins rocker canal KCD1-104 series rocker switch
Blue light illuminated switch/ DPST big current switch/ 4pins rocker canal KCD1-104 series rocker switchON-OFF light illuminated switch/ DPST big current switch/ 4pins rocker canal KCD1-104 series rocker switch  light illuminated switch/ DPST big current switch/ 4pins rocker canal KCD1-104 series rocker switchBlue light illuminated switch/ DPST big current switch/ 4pins rocker canal KCD1-104 series rocker switch
Green light illuminated switch/ DPST big current switch/ 4pins rocker canal KCD1-104 series rocker switch  light illuminated switch/ DPST big current switch/ 4pins rocker canal KCD1-104 series rocker switchGreen light illuminated switch/ DPST big current switch/ 4pins rocker canal KCD1-104 series rocker switch
Orange light illuminated switch/ DPST big current switch/ 4pins rocker canal KCD1-104 series rocker switch  light illuminated switch/ DPST big current switch/ 4pins rocker canal KCD1-104 series rocker switchOrange light illuminated switch/ DPST big current switch/ 4pins rocker canal KCD1-104 series rocker switch
Red light illuminated switch/ DPST big current switch/ 4pins rocker canal KCD1-104 series rocker switch  light illuminated switch/ DPST big current switch/ 4pins rocker canal KCD1-104 series rocker switchRed light illuminated switch/ DPST big current switch/ 4pins rocker canal KCD1-104 series rocker switch
White light illuminated switch/ DPST big current switch/ 4pins rocker canal KCD1-104 series rocker switch  light illuminated switch/ DPST big current switch/ 4pins rocker canal KCD1-104 series rocker switchWhite light illuminated switch/ DPST big current switch/ 4pins rocker canal KCD1-104 series rocker switch
Yellow light illuminated switch/ DPST big current switch/ 4pins rocker canal KCD1-104 series rocker switch  light illuminated switch/ DPST big current switch/ 4pins rocker canal KCD1-104 series rocker switchYellow light illuminated switch/ DPST big current switch/ 4pins rocker canal KCD1-104 series rocker switch

Characteristics

Permissible operating frequencyMechanical20 operations/min max.
Electrical7 operations/min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2,000 VAC, 50/60 Hz, for 1 min
Between terminals of the different polarity2,000 VAC, 50/60 Hz, for 1 min
Between charged metal parts and the ground terminal4,000 VAC, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2
Destruction500 m/s2
DurabilityMechanical50,000 operations min.
Electrical10,000 operations min.
Inrush current100 A max. (8.3 ms max.)
Degree of protectionIEC IP40
Ambient operating temperature–20 to +55C (with no icing or condensation)
Ambient operating humidity45 to 85%RH

light illuminated switch/ DPST big current switch/ 4pins rocker canal KCD1-104 series rocker switch

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switchrocker switch

Related Products (4)

Download Latest Catalog
