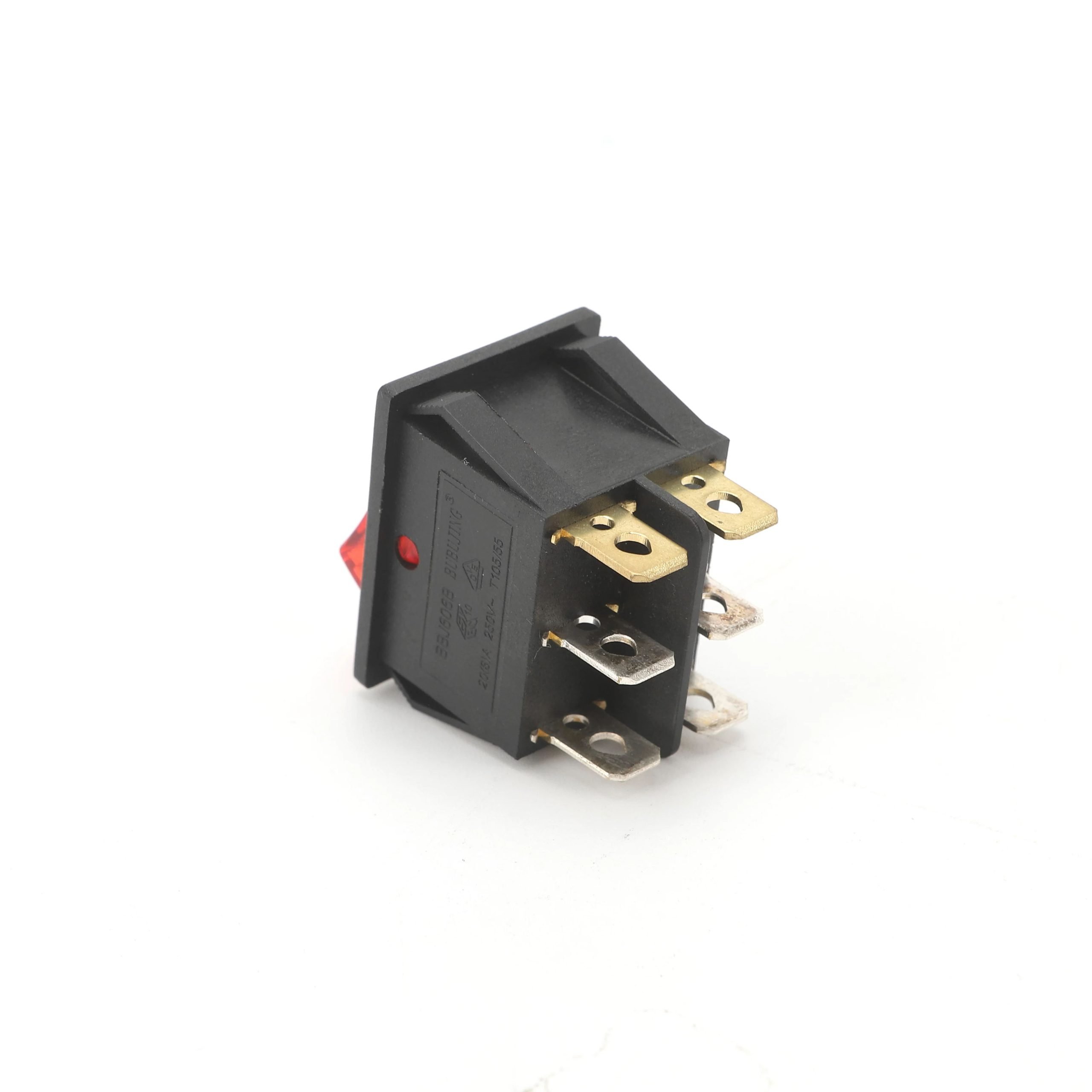

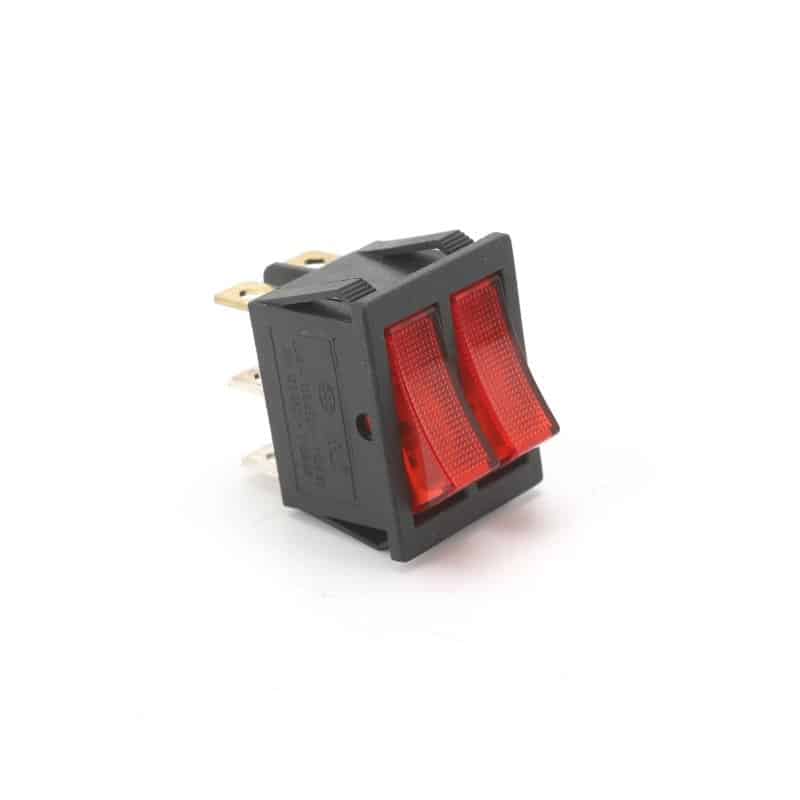

KCD4-202R 6PIN DOUBLE ROCKER SWITCH

KCD4-202R

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC  6(4)A 250V AC

10A 125V AC   12(6) 125V AC

10(6) 250V AC  12GP 125V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 105/55
  • Contact Resistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP Double Rocker Switch – The Perfect Choice for B2B Buyers

Are you in the market for a high-quality double rocker switch? Look no further than the WEUP Double Rocker Switch (KCD4-202R). Designed to meet the needs of B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers, this product is a game-changer in the world of electrical switches. In this compelling argument, we will explore the features and functions of the WEUP Double Rocker Switch and highlight its effectiveness in various applications.

1. Pilot Light or Illumination

  • The WEUP Double Rocker Switch comes with a pilot light or illumination feature, allowing users to easily identify the status of the switch.
  • This feature is particularly useful in low-light environments or applications where visual indication is crucial.
  • Whether it’s for small appliances, computers, peripherals, or medical instrumentation, the pilot light or illumination feature adds convenience and safety to your products.

2. Imprinted Markings

  • With clearly imprinted markings, the WEUP Double Rocker Switch ensures ease of use and enhances user experience.
  • The imprinted markings make it simple for users to identify the different positions and functions of the switch.
  • This feature is especially important in applications where multiple switches are used, reducing the chances of confusion or accidental actuation.

3. IP54 Splash Proof Rubber Boot Option

  • The WEUP Double Rocker Switch offers an IP54 splash proof rubber boot option for added protection against water splashes and dust.
  • This feature makes it suitable for a wide range of environments, including outdoor or industrial settings.
  • The splash proof rubber boot ensures the longevity and reliability of the switch, even in challenging conditions.

4. Quick Connect or Blade Terminals

  • The WEUP Double Rocker Switch provides flexibility with quick connect or blade terminals, allowing for easy installation and connection.
  • This feature simplifies the installation process, saving time and effort for manufacturers and installers.
  • Whether you prefer quick connect or blade terminals, the WEUP Double Rocker Switch has you covered.

5. Diverse Applications The WEUP Double Rocker Switch is versatile and can be used in a variety of applications. Some typical examples include:

  • Small appliances: From kitchen appliances to home entertainment devices, the WEUP Double Rocker Switch can handle them all.
  • Computers and peripherals: Whether it’s a desktop computer, printer, or external hard drive, this switch is a reliable choice.
  • Medical instrumentation: The precision and reliability of the WEUP Double Rocker Switch make it suitable for medical devices.

Specifications To ensure transparency, here are the specifications of the WEUP Double Rocker Switch:

  • Contact Rating:
    • 6A 250V AC 6(4)A 250V AC
    • 10A 125V AC 12(6) 125V AC
    • 10(6) 250V AC 12GP 125V AC
  • Electrical Life: ≥ 50000 Cycles
  • Insulation Resistance: ≥ 100 MΩ
  • Degree of Protection: IP55
  • Operating Temperature: T 105/55
  • Contact Resistance: ≤ 50mΩ

Why Choose WEUP Here are some compelling reasons why B2B buyers should choose WEUP as their preferred supplier for double rocker switches:

  1. Extensive Customization Options:
    • With our own D&R development capabilities, WEUP can create new models according to your specific requirements.
    • From shapes and size to construction and frames, we offer customization options to meet your unique needs.
    • We can also support custom wire harness and actuator marking requests to ensure your designs are perfectly tailored.
  2. High-Quality Manufacturing:
    • As one of the leading China manufacturers in the industry, WEUP takes pride in delivering superior quality products.
    • Our switches undergo rigorous testing and adhere to international standards to guarantee reliability and durability.
    • With WEUP, you can trust that you are receiving products of exceptional quality.
  3. Wide Range of Functionality:
    • WEUP offers a wide range of functionality options for double rocker switches.
    • Whether you need two-position On/Off, three-position, momentary, maintained, or other functionalities, we have you covered.
    • Our switches are available in illuminated (LED and incandescent) and sealed/waterproof versions to suit your specific needs.
  4. Excellent Customer Support:
    • At WEUP, we value our customers and strive to provide excellent customer support.
    • Our team is always ready to assist you with any inquiries or technical support you may require.
    • We are committed to building long-lasting partnerships with our customers based on trust and superior service.

Conclusion In conclusion, the WEUP Double Rocker Switch (KCD4-202R) is the ideal choice for B2B buyers in search of high-quality electrical switches. With its pilot light or illumination feature, imprinted markings, IP54 splash proof rubber boot option, quick connect or blade terminals, and diverse applications, this switch offers unparalleled convenience and reliability. When choosing a supplier for double rocker switches, turn to WEUP for extensive customization options, high-quality manufacturing, a wide range of functionality, and excellent customer support. Trust in WEUP to meet your needs and exceed your expectations as a reliable partner in your business journey.
