  • KCD3-603K2P SPST ON OFF ROCKER SWITCH
  • KCD3-603K2P SPST ON OFF ROCKER SWITCH
  • KCD3-603K2P SPST ON OFF ROCKER SWITCH
  • KCD3-603K2P SPST ON OFF ROCKER SWITCH

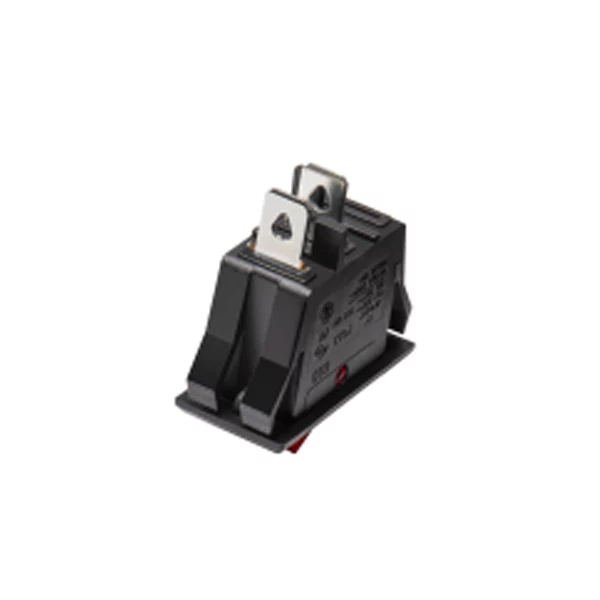

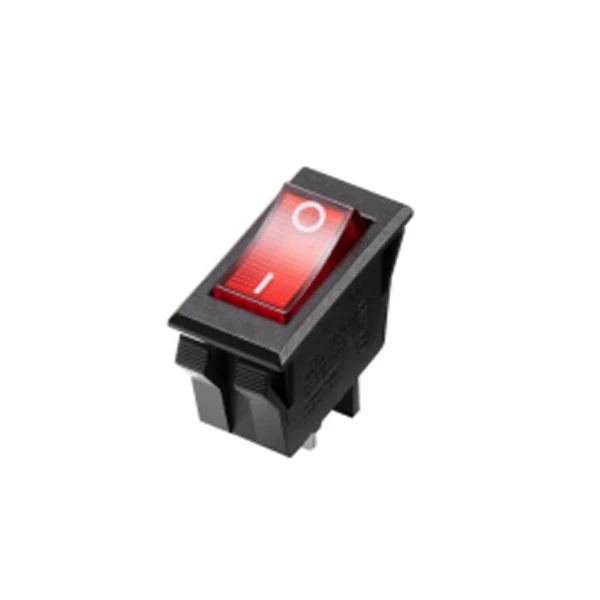

KCD3-603K2P SPST ON OFF ROCKER SWITCH

KCD3-603K2P

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
16A 250V AC 20(12)A 125V AC

20A 125V AC 20GP 125V AC

16(10)A 250V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 105/55
  • Contact Resistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP Medium Single Pole Rocker Switch

Are you in search of a reliable and versatile rocker switch for your business needs? Look no further than the WEUP Medium Single Pole Rocker Switch. This high-quality switch is designed to meet the demands of B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers. With its exceptional features and functions, this switch is an excellent choice for a wide range of applications.

1. Versatile Design

  • The WEUP Medium Single Pole Rocker Switch is available in various configurations, including two-position On/Off, three-position, momentary, maintained, and more. This versatility allows you to choose the perfect switch for your specific application.
  • With multi-pole, multi-position functionality, this switch can be used in a variety of industries such as small appliances, computers and peripherals, medical instrumentation, and more.

2. High Performance

  • This rocker switch has a contact rating of 16A 250V AC, making it suitable for handling both small and large electrical loads. Whether you need to control power supply switches for consumer electronics or office/commercial equipment, this switch can deliver the performance you require.
  • With an electrical life of over 50,000 cycles, you can rely on the WEUP Medium Single Pole Rocker Switch for long-lasting durability. It is built to withstand frequent use without compromising its functionality.

3. Customizable Options

  • At WEUP, we understand that every business has unique requirements. That’s why we offer customization options for our rocker switches. From different shapes and sizes to custom wire harness and actuator marking requests, we can tailor the switch to meet your specific needs.
  • Our own D&R development makes it convenient for us to create new models according to your requests. With WEUP as your partner, you can expect a personalized solution that perfectly aligns with your business goals.

4. Reliable Quality

  • The WEUP Medium Single Pole Rocker Switch is designed and manufactured by China manufacturers with a strong reputation for quality. We work closely with reliable suppliers and vendors to ensure that our products meet the highest standards.
  • With a permissible operating speed of 1 to 500 mm/s and vibration resistance up to 55 Hz, this switch can withstand demanding environments without compromising its performance. It is built to last and provide reliable operation even in harsh conditions.

5. Compliance and Certifications

  • The WEUP Medium Single Pole Rocker Switch is compliant with various industry standards, including CQC, CCC, CE, RoHS, ENEC, PAHS, VDE, TUV, and UL. These certifications ensure that the switch meets rigorous safety and quality requirements.
  • It has a degree of protection of IEC IP40 and electric shock protection class II, providing peace of mind knowing that safety is a top priority.

6. Supportive Services

  • As a leading manufacturer and supplier, WEUP takes pride in offering exceptional customer support. We are committed to providing you with the assistance you need throughout the entire process – from product selection to after-sales support.
  • If you have any specific requirements or questions, our knowledgeable team is always ready to assist you. We value your satisfaction and aim to build long-lasting partnerships based on trust and reliability.

In summary, the WEUP Medium Single Pole Rocker Switch is an ideal choice for B2B buyers seeking a versatile, high-performance switch. Its customizable options, reliable quality, compliance with industry standards, and exceptional customer support make it a standout product in the market. Whether you are an importer, distributor, manufacturer, brand, wholesaler, or retailer, this switch can meet your business needs effectively. Choose WEUP as your trusted partner for all your rocker switch requirements.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD3-603K2P SPST ON OFF ROCKER SWITCH

KCD3603K2PA1KC
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton ColorActuator
Black KCD3-603K2P SPST ON OFF ROCKER SWITCHON-OFF KCD3-603K2P SPST ON OFF ROCKER SWITCH6.3*0.8 KCD3-603K2P SPST ON OFF ROCKER SWITCH  KCD3-603K2P SPST ON OFF ROCKER SWITCHBlack KCD3-603K2P SPST ON OFF ROCKER SWITCH  KCD3-603K2P SPST ON OFF ROCKER SWITCH
Blue KCD3-603K2P SPST ON OFF ROCKER SWITCHON-OFF KCD3-603K2P SPST ON OFF ROCKER SWITCH6.3*0.8 KCD3-603K2P SPST ON OFF ROCKER SWITCH  KCD3-603K2P SPST ON OFF ROCKER SWITCHBlue KCD3-603K2P SPST ON OFF ROCKER SWITCH  KCD3-603K2P SPST ON OFF ROCKER SWITCH
Green KCD3-603K2P SPST ON OFF ROCKER SWITCHON-OFF KCD3-603K2P SPST ON OFF ROCKER SWITCH6.3*0.8 KCD3-603K2P SPST ON OFF ROCKER SWITCH  KCD3-603K2P SPST ON OFF ROCKER SWITCHGreen KCD3-603K2P SPST ON OFF ROCKER SWITCH  KCD3-603K2P SPST ON OFF ROCKER SWITCH
Orange KCD3-603K2P SPST ON OFF ROCKER SWITCHON-OFF-ON KCD3-603K2P SPST ON OFF ROCKER SWITCH6.3*0.8 KCD3-603K2P SPST ON OFF ROCKER SWITCH  KCD3-603K2P SPST ON OFF ROCKER SWITCHOrange KCD3-603K2P SPST ON OFF ROCKER SWITCH  KCD3-603K2P SPST ON OFF ROCKER SWITCH
Red KCD3-603K2P SPST ON OFF ROCKER SWITCHON-OFF-(ON) KCD3-603K2P SPST ON OFF ROCKER SWITCH6.3*0.8 KCD3-603K2P SPST ON OFF ROCKER SWITCH  KCD3-603K2P SPST ON OFF ROCKER SWITCHRed KCD3-603K2P SPST ON OFF ROCKER SWITCH
White KCD3-603K2P SPST ON OFF ROCKER SWITCH(ON)-OFF-(ON) KCD3-603K2P SPST ON OFF ROCKER SWITCH  KCD3-603K2P SPST ON OFF ROCKER SWITCHWhite KCD3-603K2P SPST ON OFF ROCKER SWITCH
Yellow KCD3-603K2P SPST ON OFF ROCKER SWITCH  KCD3-603K2P SPST ON OFF ROCKER SWITCHYellow KCD3-603K2P SPST ON OFF ROCKER SWITCH

Characteristics

Permissible operating speed1 to 500 mm/s
Permissible operating frequencyMechanical30 operations / min max.
Electrical20 operations / min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)20 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2.000 VAG, 50/60 Hz, for 1 min
Between terminals of the different polarity2.000 VAG, 50/60 Hz, for 1 min (See Note *)
Between charged metal parts and the ground terminal4.000 VAG, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2 max.
DurabilityMechanical40,000 operations min.
Electrical20,000 operations min.
WeightNon-illuminated: Approx 15g. Illuminated: Approx 16g.
Inrush current100A max. (100 ms max.)
Ambient operating temperature– 25 to +50 C (with no icing or condensation)
Ambient operating humidity45 to 85 %RH
Degree of protectionIEC IP40
Electric shock protection classClass II
PTI (proof tracking index)175
Pollution degree2

KCD3-603K2P SPST ON OFF ROCKER SWITCH

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD3-603K2P SPST ON OFF ROCKER SWITCHKCD3-603K2P SPST ON OFF ROCKER SWITCHKCD3-603K2P SPST ON OFF ROCKER SWITCH
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD3-603K2P SPST ON OFF ROCKER SWITCH

KCD3-603K2P SPST ON OFF ROCKER SWITCHKCD3-603K2P SPST ON OFF ROCKER SWITCH

Related Products (4)

Download Latest Catalog

Do you supply samples? Are the Samples free?

Yes. Usually, 1-2 samples are free of charge, please support us by providing us with any express account such as DHL, FedEx, TNT, or UPS.

How is the shipping?

Our nearest port is Ningbo and Shanghai port, but if you collect the goods to ship together, we could send them to the other farther port. Usually, our customers will choose TNT, DHL, FedEx, and UPS to ship them.

How long is the delivery leading time?

Usually the samples 1-5 days to prepare. For orders, it depends on the quantity. Usually 5-15 days.

How is the packing?

For standard packing, dozens per box, 500pcs or 1000pcs per carton. We also provide you with custom box or carton packing with your logo and design.

How do you do regarding quality control?

All the products will be 100% checked before the shipment.
