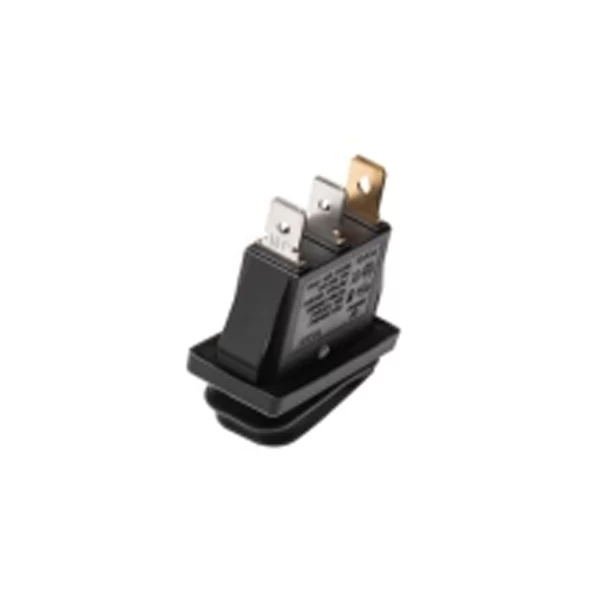

KCD3-101RD WATERPROOF ROCKER SWITCH

KCD3-101RD

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
16A 250V AC 20(12)A 125V AC

20A 125V AC 20GP 125V AC

16(10)A 250V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 105/55
  • Contact Resistance:
≦ 50mΩ

Have you been looking for the perfect switch that could add convenience and ease to your home automation projects? Well, look no further! Introducing our new Nylon 66 Button Switch–a reliable, durable, easy-to-use switch that’s sure to take your housing project up a notch. Aside from its swanky black color and sleek design, this button switch is rated 20A 125VAC/15A 250VAC with a dielectric strength of 1500 VAC 1 minute. It also comes with standard red and green lamps as well as CE, CQC, SGS certification. Best of all, it offers custom OEM or ODM options to make it fit perfectly within any setup!

Read More

Product Features

Introducing the WEUP Waterproof Rocker Switch, the perfect choice for B2B buyers such as importers, distributors, manufacturers, brands, wholesalers, and retailers. With its impressive features and reliable performance, this switch is designed to elevate your housing projects to new heights. Let’s explore why the WEUP Waterproof Rocker Switch stands out among its competitors:

1. Waterproof and Durable Design

  • The WEUP Waterproof Rocker Switch is built to withstand challenging environments. Its IP54 splash-proof rubber boot option ensures protection against water splashes and dust, making it ideal for both indoor and outdoor applications.
  • The switch’s durable construction guarantees long-lasting performance, allowing you to rely on it for years to come.

2. Pilot Light or Illumination

  • This rocker switch offers the option of a pilot light or illumination, providing visual feedback and enhancing user convenience. Whether you need to indicate power status or simply want an illuminated switch for aesthetic purposes, the WEUP Waterproof Rocker Switch has you covered.

3. Imprinted Markings

  • The switch features imprinted markings that make it easy to identify its functions. This ensures hassle-free operation and reduces the chances of confusion, especially in complex setups.

4. Versatile Terminal Options

  • The WEUP Waterproof Rocker Switch offers quick connect or blade terminals, providing flexibility in installation. Whether you prefer quick connections or traditional blade terminals, this switch accommodates your preferences.

5. Wide Range of Applications The versatility of the WEUP Waterproof Rocker Switch makes it suitable for various applications, including:

  • Small appliances: From kitchen gadgets to home automation systems, this switch seamlessly integrates into small appliances, enhancing their functionality.
  • Computers and peripherals: Whether you’re building a gaming PC or designing a cutting-edge office setup, the WEUP Waterproof Rocker Switch ensures reliable power control for computers and peripherals.
  • Medical instrumentation: In medical environments where precision and reliability are critical, this switch proves to be a trustworthy choice.

Technical Specifications:

  • Contact Rating:
    • 16A 250V AC
    • 20(12)A 125V AC
    • 20A 125V AC 20GP 125V AC
    • 16(10)A 250V AC
  • Electrical Life: ≥ 50,000 Cycles
  • Insulation Resistance: ≥ 100 MΩ
  • Degree of Protection: IP55
  • Operating Temperature: T 105/55
  • Contact Resistance: ≤ 50mΩ

The WEUP Waterproof Rocker Switch is manufactured by reputable China manufacturers with a focus on quality and reliability. With their expertise and advanced production capabilities, these manufacturers ensure that each switch meets the highest standards.

By choosing the WEUP Waterproof Rocker Switch from authorized suppliers and vendors, you can benefit from:

  • Competitive pricing: The direct sourcing from China manufacturers allows for cost-effective pricing, making it an attractive option for budget-conscious buyers.
  • Custom OEM or ODM options: The WEUP Waterproof Rocker Switch offers customization options to fit perfectly within any setup. Whether you require specific colors or unique designs, these options ensure that your housing projects stand out.

In conclusion, the WEUP Waterproof Rocker Switch with its waterproof design, pilot light or illumination options, imprinted markings, versatile terminal options, and wide range of applications is a reliable and user-friendly choice for B2B buyers. Its durability and certifications make it a dependable solution for various industries. Trust in the quality provided by China manufacturers and enjoy the convenience and efficiency that the WEUP Waterproof Rocker Switch brings to your housing projects.

Order now from our trusted suppliers and take your housing projects to the next level with the WEUP Waterproof Rocker Switch!

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD3-101RD WATERPROOF ROCKER SWITCH

  • Permissible operating speed: 1 to 500 mm/s
  • Permissible operating frequency:
    • Mechanical: 30 operations/min max.
    • Electrical: 20 operations/min max.
  • Insulation resistance: 100 MΩ min. (at 500 VDC with insulation tester)
  • Contact resistance (initial value): 20 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
  • Dielectric strength:
    • Between terminals of the same polarity: 2,000 VAG, 50/60 Hz, for 1 min
    • Between terminals of different polarity: 2,000 VAG, 50/60 Hz, for 1 min (See Note *)
    • Between charged metal parts and the ground terminal: 4,000 VAG, 50/60 Hz, for 1 min
  • Vibration resistance:
    • Malfunction: 10 to 55 Hz, 1.5-mm double amplitude
  • Shock resistance:
    • Malfunction: 300 m/s2 max.
  • Durability:
    • Mechanical: 40,000 operations min.
    • Electrical: 20,000 operations min.

KCD3-101RD WATERPROOF ROCKER SWITCH

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.



MonitorsCopiersPrinters
KCD3-101RD WATERPROOF ROCKER SWITCHKCD3-101RD WATERPROOF ROCKER SWITCHKCD3-101RD WATERPROOF ROCKER SWITCH
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD3-101RD WATERPROOF ROCKER SWITCHKCD3-101RD WATERPROOF ROCKER SWITCHKCD3-101RD WATERPROOF ROCKER SWITCH

Related Products (4)

Download Latest Catalog

Do you supply samples? Are the Samples free?

Yes. Usually, 1-2 samples are free of charge, please support us by providing us with any express account such as DHL, FedEx, TNT, or UPS.

How is the shipping?

Our nearest port is Ningbo and Shanghai port, but if you collect the goods to ship together, we could send them to the other farther port. Usually, our customers will choose TNT, DHL, FedEx, and UPS to ship them.

How long is the delivery leading time?

Usually the samples 1-5 days to prepare. For orders, it depends on the quantity. Usually 5-15 days.

How is the packing?

For standard packing, dozens per box, 500pcs or 1000pcs per carton. We also provide you with custom box or carton packing with your logo and design.

How do you do regarding quality control?

All the products will be 100% checked before the shipment.
