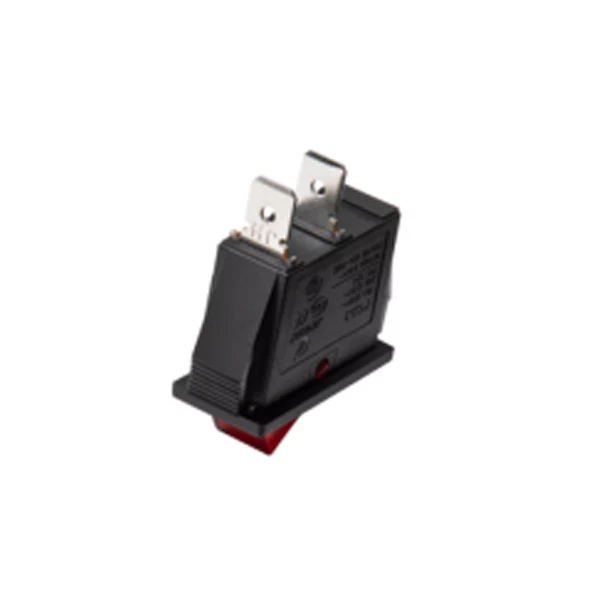

KCD3-101R2PA 2PINS ROCKER SWITCH ON OFF

KCD3-103

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
16A 250V AC 20(12)A 125V AC

20A 125V AC 20GP 125V AC

16(10)A 250V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 105/55
  • Dielectric Resistance:
≦ 50MΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP Medium Single Pole Rocker Switch

The WEUP Medium Single Pole Rocker Switch is a highly reliable and versatile electrical component that is ideal for B2B buyers such as importers, distributors, manufacturers, brands, wholesalers, and retailers. With its exceptional features and functions, this rocker switch offers a wide range of applications in various industries. Let’s explore why this product is the perfect choice for your business needs.

1. Exceptional Quality and Durability

  • The WEUP Medium Single Pole Rocker Switch is manufactured by China manufacturers who are known for their expertise and commitment to delivering high-quality products.
  • Each switch undergoes rigorous testing to ensure its durability, with a mechanical life of over 50,000 cycles. This longevity ensures that the switch will withstand continuous and frequent use without compromising its performance.

2. Wide Range of Applications

  • This rocker switch is suitable for a variety of industries and applications, making it a versatile choice for B2B buyers. Whether you’re in the small appliances, computers and peripherals, or medical instrumentation industry, this switch is designed to meet your specific needs.
  • It can be used in power supply switches for consumer electronics, PC peripherals, office/commercial equipment, air purifiers, monitors, copiers, printers, power outlet strips, and many more.

3. Easy Installation and Customization Options

  • The WEUP Medium Single Pole Rocker Switch features quick-connect or blade terminals, allowing for easy and efficient installation. This reduces the time and effort required during the manufacturing process.
  • Moreover, WEUP offers customization options for the rocker switches. With their own D&R development capabilities, they can create new models according to your specific requests. This means you can have switches tailored to your unique requirements in terms of shapes, size, construction, frames, recessed switch guards, splash-proof rubber boots, and sub-miniature sizes.

4. Enhanced Safety Features

  • The WEUP Medium Single Pole Rocker Switch prioritizes safety with its IP54 splash-proof rubber boot option. This feature protects the switch from water splashes or dust particles, making it suitable for environments where moisture or debris may be present.
  • Additionally, the rocker switch is designed with a high degree of protection (IP55) and meets the required standards for insulation resistance (≧ 100 MΩ). These features ensure the safety and reliability of the switch in various operating conditions.

5. Versatile Functionality

  • The WEUP Medium Single Pole Rocker Switch comes in different configurations to suit your specific requirements. It offers two-position On/Off, three-position, momentary, maintained, and more functionalities.
  • You can choose from various button colors such as black, blue, green, orange, red, white, and yellow. This allows for easy identification and differentiation between different switches in your application.

6. Excellent Customer Support

  • WEUP is dedicated to providing excellent customer support to their clients. They understand that each business has unique needs and they are committed to meeting those needs effectively.
  • In addition to providing standard models, WEUP can support custom wire harness and actuator marking requests. This level of customization ensures that the switches align perfectly with your brand identity and requirements.

In conclusion, the WEUP Medium Single Pole Rocker Switch is a reliable and versatile electrical component that offers exceptional quality and durability. Its wide range of applications, easy installation, customization options, enhanced safety features, versatile functionality, and excellent customer support make it the ideal choice for B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers. So why wait? Contact WEUP today to experience the reliability and effectiveness of this outstanding product.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD3-101R2PA 2PINS ROCKER SWITCH ON OFF







KCD3103K2PA1KC
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton ColorActuator
Black KCD3-101R2PA 2PINS ROCKER SWITCH ON OFFON-OFF KCD3-101R2PA 2PINS ROCKER SWITCH ON OFF6.3*0.8 KCD3-101R2PA 2PINS ROCKER SWITCH ON OFF  KCD3-101R2PA 2PINS ROCKER SWITCH ON OFFBlack KCD3-101R2PA 2PINS ROCKER SWITCH ON OFF  KCD3-101R2PA 2PINS ROCKER SWITCH ON OFF
Blue KCD3-101R2PA 2PINS ROCKER SWITCH ON OFFON-OFF KCD3-101R2PA 2PINS ROCKER SWITCH ON OFF6.3*0.8 KCD3-101R2PA 2PINS ROCKER SWITCH ON OFF  KCD3-101R2PA 2PINS ROCKER SWITCH ON OFFBlue KCD3-101R2PA 2PINS ROCKER SWITCH ON OFF  KCD3-101R2PA 2PINS ROCKER SWITCH ON OFF
Green KCD3-101R2PA 2PINS ROCKER SWITCH ON OFFON-OFF KCD3-101R2PA 2PINS ROCKER SWITCH ON OFF6.3*0.8 KCD3-101R2PA 2PINS ROCKER SWITCH ON OFF  KCD3-101R2PA 2PINS ROCKER SWITCH ON OFFGreen KCD3-101R2PA 2PINS ROCKER SWITCH ON OFF  KCD3-101R2PA 2PINS ROCKER SWITCH ON OFF
Orange KCD3-101R2PA 2PINS ROCKER SWITCH ON OFFON-OFF-ON KCD3-101R2PA 2PINS ROCKER SWITCH ON OFF6.3*0.8 KCD3-101R2PA 2PINS ROCKER SWITCH ON OFF  KCD3-101R2PA 2PINS ROCKER SWITCH ON OFFOrange KCD3-101R2PA 2PINS ROCKER SWITCH ON OFF  KCD3-101R2PA 2PINS ROCKER SWITCH ON OFF
Red KCD3-101R2PA 2PINS ROCKER SWITCH ON OFFON-OFF-(ON) KCD3-101R2PA 2PINS ROCKER SWITCH ON OFF6.3*0.8 KCD3-101R2PA 2PINS ROCKER SWITCH ON OFF  KCD3-101R2PA 2PINS ROCKER SWITCH ON OFFRed KCD3-101R2PA 2PINS ROCKER SWITCH ON OFF
White KCD3-101R2PA 2PINS ROCKER SWITCH ON OFF(ON)-OFF-(ON) KCD3-101R2PA 2PINS ROCKER SWITCH ON OFF  KCD3-101R2PA 2PINS ROCKER SWITCH ON OFFWhite KCD3-101R2PA 2PINS ROCKER SWITCH ON OFF
Yellow KCD3-101R2PA 2PINS ROCKER SWITCH ON OFF  KCD3-101R2PA 2PINS ROCKER SWITCH ON OFFYellow KCD3-101R2PA 2PINS ROCKER SWITCH ON OFF

Characteristics

Permissible operating speed1 to 500 mm/s
Permissible operating frequencyMechanical30 operations / min max.
Electrical20 operations / min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)20 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2.000 VAG, 50/60 Hz, for 1 min
Between terminals of the different polarity2.000 VAG, 50/60 Hz, for 1 min (See Note *)
Between charged metal parts and the ground terminal4.000 VAG, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2 max.
DurabilityMechanical40,000 operations min.
Electrical20,000 operations min.
WeightNon-illuminated: Approx 15g. Illuminated: Approx 16g.
Inrush current100A max. (100 ms max.)
Ambient operating temperature– 25 to +50 C (with no icing or condensation)
Ambient operating humidity45 to 85 %RH
Degree of protectionIEC IP40
Electric shock protection classClass II
PTI (proof tracking index)175
Pollution degree2

KCD3-101R2PA 2PINS ROCKER SWITCH ON OFF

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD3-101WD WHITE ROCKER SWITCHKCD3-101WD WHITE ROCKER SWITCHKCD3-101WD WHITE ROCKER SWITCH
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD3-101WD WHITE ROCKER SWITCHKCD3-101WD WHITE ROCKER SWITCHKCD3-101WD WHITE ROCKER SWITCH
