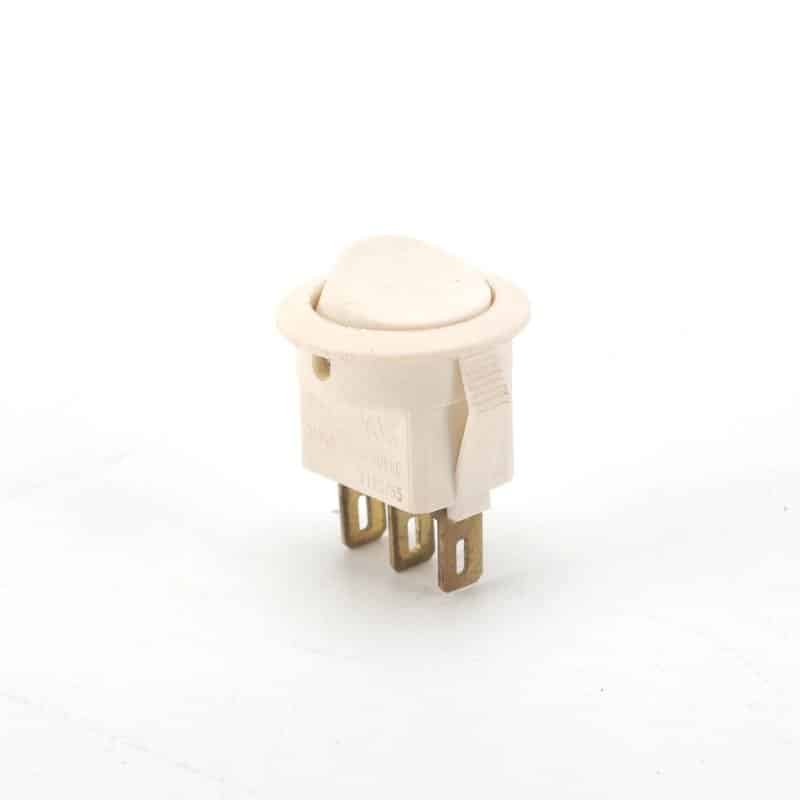

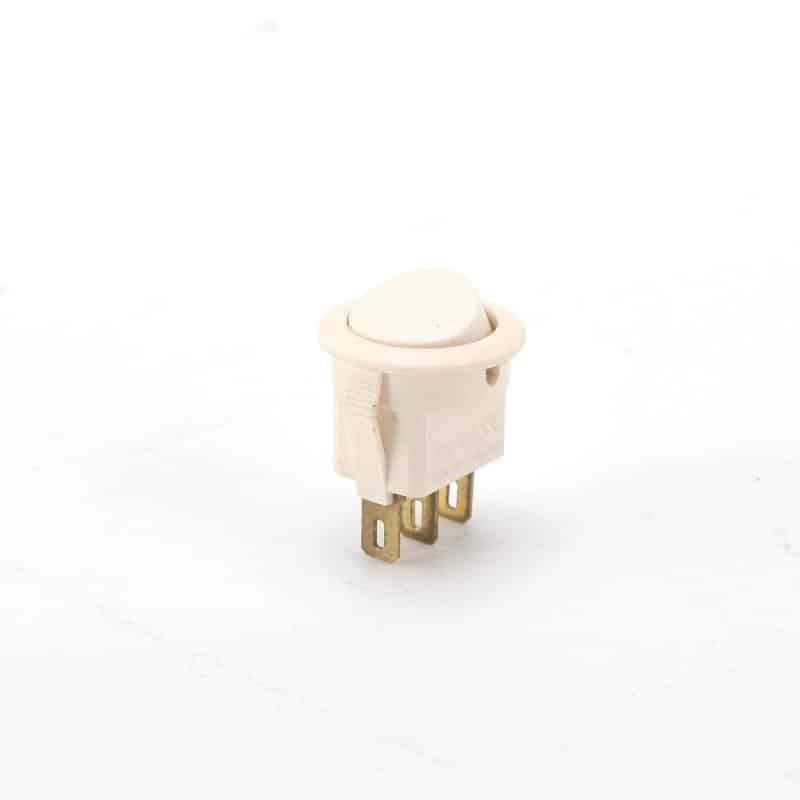

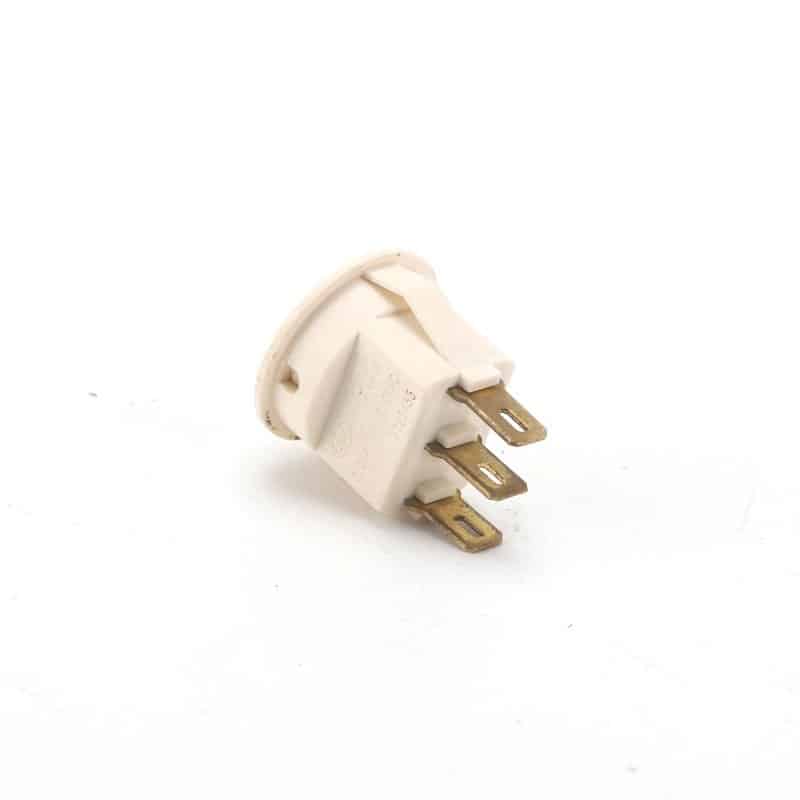

KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCH

KCD11-101K3P

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
3(2)A  250VAC

3(2)A  125VAC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • Contact Resistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP Mini Rocker Switch Are you in need of a reliable and versatile rocker switch for your B2B business? Look no further than the WEUP Mini Rocker Switch! With its exceptional features and functionalities, this switch is the perfect choice for importers, distributors, manufacturers, brands, wholesalers, and retailers. Let’s delve into the numerous reasons why the WEUP Mini Rocker Switch should be your top pick.

1. Wide Range of Applications

The WEUP Mini Rocker Switch is designed to cater to a variety of applications across different industries. From small appliances to computers and peripherals, and even medical instrumentation, this switch is adaptable to meet your specific needs. Whether you’re looking to incorporate it into consumer electronics or office/commercial equipment, the WEUP Mini Rocker Switch is a reliable choice.

2. High-Quality Construction

WEUP takes pride in its commitment to manufacturing excellence. The Mini Rocker Switch is no exception. Crafted with meticulous attention to detail, this switch boasts exceptional durability and longevity. With a mechanical life cycle of over 50,000 cycles, you can trust that the WEUP Mini Rocker Switch will withstand continuous use without compromising its performance.

3. Versatile Functionality

The Mini Rocker Switch offers a range of functionality options to suit your specific requirements. Whether you need a simple on/off switch or a more complex three-position or momentary switch, WEUP has got you covered. Additionally, you can choose from different circuit diagrams, including SPST, SPDT, DPST, DPDT, 3PDT, and 4DPT functionality. This versatility ensures that you can find the perfect configuration for your unique application.

4. Customization Options

At WEUP, we understand that each business has its own unique needs. That’s why we offer customization options for our Mini Rocker Switches. With our in-house D&R development capabilities, we can create a new model tailored to your specific requests. From different shapes and sizes to custom wire harnesses and actuator markings, we can work closely with you to ensure that the Mini Rocker Switch meets your exact requirements.

5. Enhanced Safety Features

Safety is a top priority when it comes to electrical switches. The WEUP Mini Rocker Switch is designed with safety in mind. It features imprinted markings for easy identification and a splash-proof rubber boot option with an IP54 rating for added protection against splashes and liquids. With these safety features in place, you can have peace of mind knowing that your equipment and appliances are in good hands.

6. Reliable Performance

When it comes to electrical switches, reliability is key. The WEUP Mini Rocker Switch delivers consistent performance, thanks to its low contact resistance of less than 50mΩ and high insulation resistance of over 100 MΩ. These specifications ensure optimal electrical conductivity and minimize the risk of malfunctions or disruptions in your equipment.

7. Global Certifications

WEUP takes pride in providing switches that meet global standards. The Mini Rocker Switch holds certifications such as CQC, CCC, CE, RoHS, ENEC, PAHS, VDE, TUV, and UL. These certifications serve as a testament to the product’s compliance with stringent quality and safety requirements across different markets.

By choosing the WEUP Mini Rocker Switch, you are investing in a product that meets international standards. In conclusion, the WEUP Mini Rocker Switch is an exceptional choice for B2B buyers seeking a reliable and versatile electrical switch. With its wide range of applications, high-quality construction, versatile functionality, customization options, enhanced safety features, reliable performance, and global certifications, the Mini Rocker Switch stands out from the competition.

Trust WEUP, one of the leading China manufacturers and suppliers, known for its commitment to excellence and customer satisfaction. Join our network of satisfied customers by incorporating the WEUP Mini Rocker Switch into your business today!

Order now from our reliable network of distributors and wholesalers to experience the quality and reliability that WEUP brings to every product.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

ORDER INFORMATION

KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCH

KCD1-106K2PA1KC
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton ColorActuator
Black KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCHON-OFF KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCH 3.8*0.4 KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCH  KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCHBlack KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCH  KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCH
Blue KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCHON-OFF KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCH2.6*0.4 KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCH  KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCHBlue KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCH  KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCH
Green KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCHON-OFF KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCH1.2*0.8  KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCHGreen KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCH  KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCH
Orange KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCHON-OFF-ON KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCH  KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCHOrange KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCH  KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCH
Red KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCHON-OFF-(ON) KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCH  KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCHRed KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCH
White KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCH(ON)-OFF-(ON) KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCH  KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCHWhite KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCH
Yellow KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCH  KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCHYellow KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCH

Characteristics

Permissible operating frequencyMechanical20 operations/min max.
Electrical7 operations/min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2,000 VAC, 50/60 Hz, for 1 min
Between terminals of the different polarity2,000 VAC, 50/60 Hz, for 1 min
Between charged metal parts and the ground terminal4,000 VAC, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2
Destruction500 m/s2
DurabilityMechanical50,000 operations min.
Electrical10,000 operations min.
Inrush current100 A max. (8.3 ms max.)
Degree of protectionIEC IP40
Ambient operating temperature–20 to +55C (with no icing or condensation)
Ambient operating humidity45 to 85%RH

KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCH

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCHKCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCHKCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCH
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCHKCD11-101K3P MINI ROUND WHITE MINI ROCKER SWITCHrocker switch
