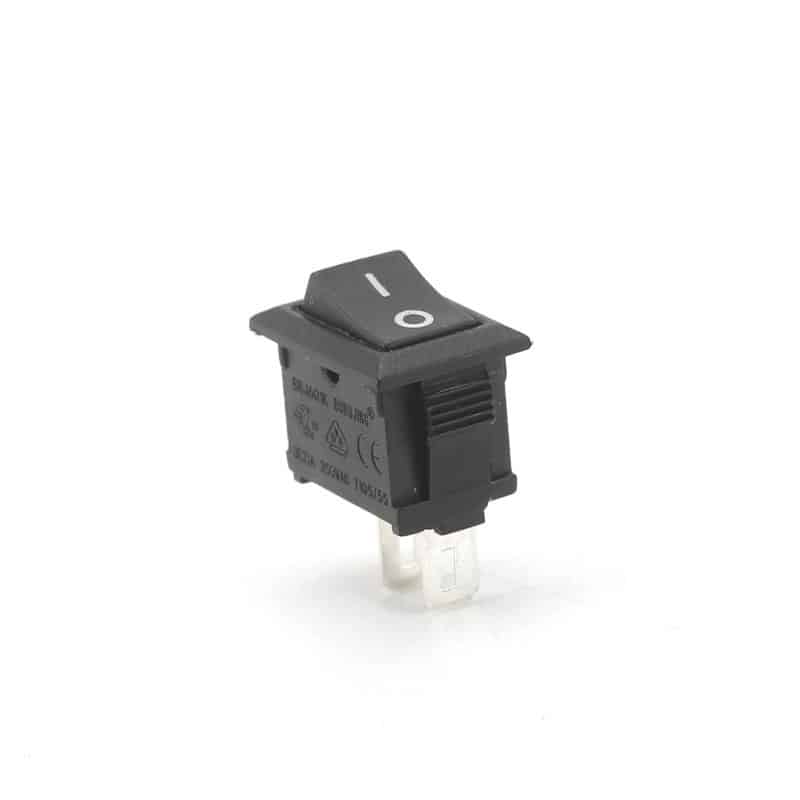

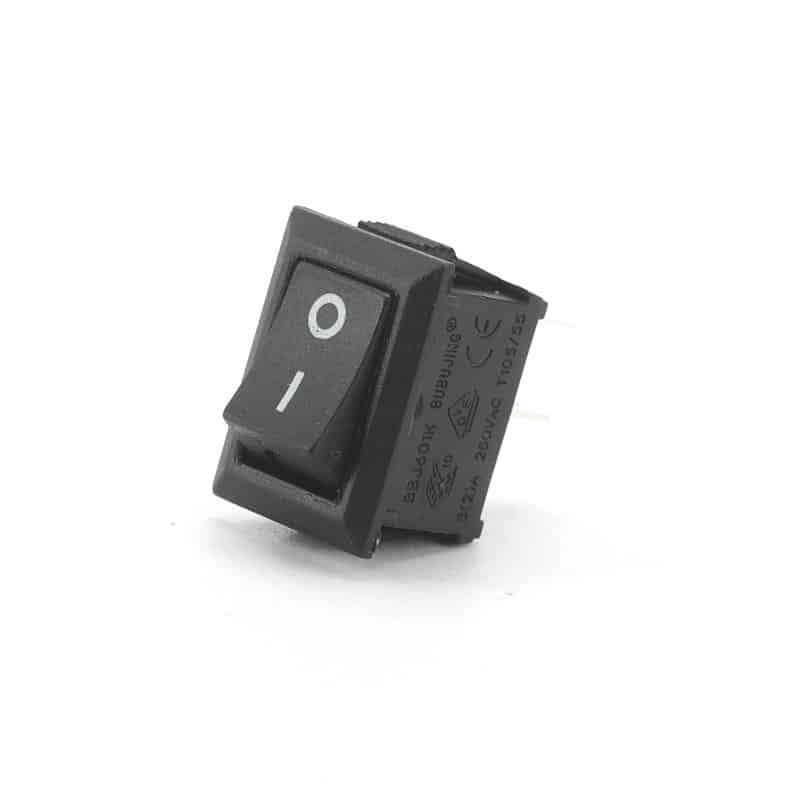

  • KCD11-101DK2P SPST MINI ROCKER SWITCH
  • KCD11-101DK2P SPST MINI ROCKER SWITCH
  • KCD11-101DK2P SPST MINI ROCKER SWITCH
  • KCD11-101DK2P SPST MINI ROCKER SWITCH
  • KCD11-101DK2P SPST MINI ROCKER SWITCH
  • KCD11-101DK2P SPST MINI ROCKER SWITCH
  • KCD11-101DK2P SPST MINI ROCKER SWITCH
  • KCD11-101DK2P SPST MINI ROCKER SWITCH
  • KCD11-101DK2P SPST MINI ROCKER SWITCH
  • KCD11-101DK2P SPST MINI ROCKER SWITCH

KCD11-101DK3P 12V SPDT MINI ROCKER SWITCH

KCD11-101DK3P

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
3(2)A  250VAC

3(2)A  125VAC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • Contact Resistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP Mini Rocker Switch: KCD11-101DK3P 12V SPDT

Are you in the market for a high-quality and reliable Mini Rocker Switch? Look no further than the WEUP KCD11-101DK3P 12V SPDT Mini Rocker Switch. Designed to control the on/off functions of various home appliance products, this Mini Rocker Switch is a must-have for B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers.

Unmatched Features and Benefits

The WEUP Mini Rocker Switch comes with an array of impressive features and benefits that set it apart from the competition:

  • Pilot light or illumination: This feature allows for easy visibility and operation, especially in low-light conditions. Whether it’s a small appliance, computer, or medical instrumentation, the pilot light ensures clear indication of the switch’s status.
  • Imprinted markings: The switch is conveniently marked with clear and durable imprints, making it easy to identify the different functions and positions. This ensures seamless operation and reduces the risk of errors.
  • IP54 splash-proof rubber boot option: For added durability and protection against water splashes, the WEUP Mini Rocker Switch offers an IP54 splash-proof rubber boot option. This makes it suitable for use in various environments, including those with potential water exposure.
  • Quick connect or blade terminals: The switch is designed with versatility in mind, offering both quick connect and blade terminal options. This allows for easy installation and compatibility with different wiring configurations.

Versatile Applications

The WEUP Mini Rocker Switch is highly versatile and can be used in a wide range of applications. Here are some typical applications where this switch excels:

  • Small appliances: From kitchen appliances to electronic devices, the Mini Rocker Switch is an essential component for controlling the on/off functions of various small appliances. Its compact size and reliable performance make it ideal for this purpose.
  • Computers and peripherals: In the world of computers and peripherals, the Mini Rocker Switch plays a crucial role in powering on/off devices such as monitors, printers, and power outlet strips. Its dependable operation ensures smooth functionality and user convenience.
  • Medical instrumentation: Precision and reliability are paramount when it comes to medical instrumentation. The WEUP Mini Rocker Switch meets these requirements, making it suitable for use in medical devices such as monitors, copiers, and printers.

Impressive Specifications

The specifications of the WEUP Mini Rocker Switch further demonstrate its exceptional performance:

  • Contact Rating: With a contact rating of 3(2)A 250VAC and 3(2)A 125VAC, this switch can handle a significant amount of electrical load, ensuring safe and efficient operation.
  • Electrical Life: The Mini Rocker Switch boasts an electrical life of more than 50,000 cycles, guaranteeing long-lasting durability and reliability.
  • Insulation Resistance: With insulation resistance of at least 100 MΩ, this switch provides excellent protection against electrical leakage and ensures safe operation.
  • Degree of Protection: Rated IP55 for protection against dust and water ingress, this switch is built to withstand challenging environments.
  • Operating Temperature: The switch can operate within a wide temperature range of T 85/55, making it suitable for use in various climates and conditions.
  • Contact Resistance: With contact resistance less than 50mΩ, this switch minimizes power loss and ensures efficient electrical transmission.

Customization Options

WEUP understands that different applications may require specific configurations. That’s why we offer customization options for our Mini Rocker Switches. Our in-house D&R development team enables us to create new models according to your specific requests. Whether it’s custom wire harnesses, actuator markings, or unique shapes and sizes, we can tailor our switches to meet your exact needs.

Order Information

To make your ordering process easier, here is a list of available options for the WEUP Mini Rocker Switch:

  • KCD1-1: Switch product type
  • 06: Base Type
  • K: Base Color
  • 2P: Circuit Diagram
  • A: Terminal
  • 1: Marking
  • K: Button Color
  • C: Actuator

Choose from a variety of color options:

  • Black
  • Blue
  • Green
  • Orange
  • Red
  • White
  • Yellow

Reliability and Durability

The WEUP Mini Rocker Switch has been rigorously tested to ensure its reliability and durability:

  • Operating Frequency: With a mechanical operating frequency of 20 operations/min max. and an electrical operating frequency of 7 operations/min max., this switch can withstand frequent use without compromising performance.
  • Insulation Resistance: Boasting insulation resistance of at least 100 MΩ (at 500 VDC with an insulation tester), this switch provides excellent protection against electrical leakage.
  • Contact Resistance: With an initial contact resistance of 100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method), this switch minimizes power loss and ensures efficient electrical transmission.
  • Dielectric Strength: Tested between terminals of the same polarity and terminals of different polarity, the switch can withstand voltages of up to 2,000 VAC (50/60 Hz) for 1 minute.

Wide Range of Applications

The WEUP Mini Rocker Switch finds its applications in various industries:

  • Power Supply Switches for Consumer Electronics: From air purifiers to dehumidifiers and other consumer electronics, the Mini Rocker Switch ensures reliable power control and enhances user experience.
  • PC Peripherals: Monitors, copiers, printers, and other PC peripherals rely on the Mini Rocker Switch for seamless on/off functionality. Its reliable operation ensures smooth performance in office and commercial environments.

Order from Trusted China Manufacturers

When it comes to sourcing high-quality Mini Rocker Switches, trust WEUP as your reliable partner. As one of the leading manufacturers, suppliers, factories, wholesalers, and vendors in China, we have a proven track record of delivering top-notch products to customers worldwide.

In conclusion, the WEUP KCD11-101DK3P 12V SPDT Mini Rocker Switch offers unmatched features, versatility, reliability, and customization options. Its impressive specifications make it suitable for various applications across different industries. Trust WEUP as your preferred supplier of Mini Rocker Switches. Contact us today to place your order or to discuss your specific requirements.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD11-101DK3P 12V SPDT MINI ROCKER SWITCH

KCD1-106K2PA1KC
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton ColorActuator
Black KCD11-101DK3P 12V SPDT MINI ROCKER SWITCHON-OFF KCD11-101DK3P 12V SPDT MINI ROCKER SWITCH 3.8*0.4 KCD11-101DK3P 12V SPDT MINI ROCKER SWITCH  KCD11-101DK3P 12V SPDT MINI ROCKER SWITCHBlack KCD11-101DK3P 12V SPDT MINI ROCKER SWITCH  KCD11-101DK3P 12V SPDT MINI ROCKER SWITCH
Blue KCD11-101DK3P 12V SPDT MINI ROCKER SWITCHON-OFF KCD11-101DK3P 12V SPDT MINI ROCKER SWITCH2.6*0.4 KCD11-101DK3P 12V SPDT MINI ROCKER SWITCH  KCD11-101DK3P 12V SPDT MINI ROCKER SWITCHBlue KCD11-101DK3P 12V SPDT MINI ROCKER SWITCH  KCD11-101DK3P 12V SPDT MINI ROCKER SWITCH
Green KCD11-101DK3P 12V SPDT MINI ROCKER SWITCHON-OFF KCD11-101DK3P 12V SPDT MINI ROCKER SWITCH1.2*0.8  KCD11-101DK3P 12V SPDT MINI ROCKER SWITCHGreen KCD11-101DK3P 12V SPDT MINI ROCKER SWITCH  KCD11-101DK3P 12V SPDT MINI ROCKER SWITCH
Orange KCD11-101DK3P 12V SPDT MINI ROCKER SWITCHON-OFF-ON KCD11-101DK3P 12V SPDT MINI ROCKER SWITCH  KCD11-101DK3P 12V SPDT MINI ROCKER SWITCHOrange KCD11-101DK3P 12V SPDT MINI ROCKER SWITCH  KCD11-101DK3P 12V SPDT MINI ROCKER SWITCH
Red KCD11-101DK3P 12V SPDT MINI ROCKER SWITCHON-OFF-(ON) KCD11-101DK3P 12V SPDT MINI ROCKER SWITCH  KCD11-101DK3P 12V SPDT MINI ROCKER SWITCHRed KCD11-101DK3P 12V SPDT MINI ROCKER SWITCH
White KCD11-101DK3P 12V SPDT MINI ROCKER SWITCH(ON)-OFF-(ON) KCD11-101DK3P 12V SPDT MINI ROCKER SWITCH  KCD11-101DK3P 12V SPDT MINI ROCKER SWITCHWhite KCD11-101DK3P 12V SPDT MINI ROCKER SWITCH
Yellow KCD11-101DK3P 12V SPDT MINI ROCKER SWITCH  KCD11-101DK3P 12V SPDT MINI ROCKER SWITCHYellow KCD11-101DK3P 12V SPDT MINI ROCKER SWITCH

Characteristics

Permissible operating frequencyMechanical20 operations/min max.
Electrical7 operations/min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2,000 VAC, 50/60 Hz, for 1 min
Between terminals of the different polarity2,000 VAC, 50/60 Hz, for 1 min
Between charged metal parts and the ground terminal4,000 VAC, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2
Destruction500 m/s2
DurabilityMechanical50,000 operations min.
Electrical10,000 operations min.
Inrush current100 A max. (8.3 ms max.)
Degree of protectionIEC IP40
Ambient operating temperature–20 to +55C (with no icing or condensation)
Ambient operating humidity45 to 85%RH

KCD11-101DK3P 12V SPDT MINI ROCKER SWITCH

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD11-101DK2P SPST MINI ROCKER SWITCHKCD11-101DK2P SPST MINI ROCKER SWITCHKCD11-101DK2P SPST MINI ROCKER SWITCH
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD11-101DK2P SPST MINI ROCKER SWITCHKCD11-101DK2P SPST MINI ROCKER SWITCHrocker switch
