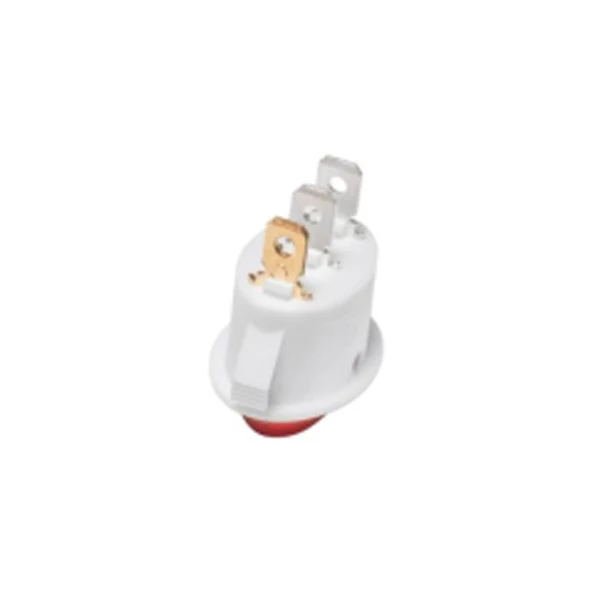

KCD1-311 illuminated current switch 3pin series rocker light switch

KCD1-311

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC  6(4)A 250V AC

10A 125V AC   12(6) 125V AC

10(6) 250V AC  12GP 125V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • Contact Resistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing WEUP’s Sub-mini Rocker Switch: A Reliable Solution for B2B Buyers

The Sub-mini Rocker Switch by WEUP is a cutting-edge electrical component that offers unmatched functionality and reliability. Designed to meet the needs of importers, distributors, manufacturers, brands, wholesalers, and retailers, this high-quality switch provides a range of features and benefits that set it apart from competitors. Let’s explore why the Sub-mini Rocker Switch should be your top choice.

1. Impeccable Quality and Durability

  • Built to withstand rigorous usage, the Sub-mini Rocker Switch exhibits remarkable durability, making it ideal for a wide range of applications.
  • With a mechanical durability of 50,000 operations and electrical durability of 10,000 operations, this switch ensures long-lasting performance, reducing the need for frequent replacements.
  • The switch is designed to withstand vibration and shock, ensuring reliable operation even in demanding environments.

2. Versatile Functionality

  • The Sub-mini Rocker Switch offers multiple configurations to suit diverse requirements. It is available in two-position On/Off, three-position, momentary, maintained, and more, providing flexibility for various applications.
  • Whether you require a switch for small appliances, computers and peripherals, or medical instrumentation, WEUP has you covered.

3. Customization Options

  • WEUP understands the unique needs of different customers. With our in-house D&R development capabilities, we can easily create custom models according to your specific requests.
  • From shapes and sizes to construction and frames, we offer extensive customization options. We can even provide recessed switch guards to prevent accidental actuation and splash-proof rubber boots for added protection.
  • Our sub-miniature sizes are perfect for space-saving applications where a small footprint is crucial.

4. Pilot Light or Illumination

  • The Sub-mini Rocker Switch is available in illuminated versions, with options for both LED and incandescent lighting. This feature enhances visibility, particularly in low-light environments.
  • The pilot light or illumination ensures that the switch’s status is easily discernible, providing convenience and ease of use.

5. Easy Installation and Wiring

  • The Sub-mini Rocker Switch is designed with quick connect or blade terminals, enabling effortless installation and wiring.
  • This user-friendly feature minimizes installation time and effort, making it an excellent choice for efficient assembly processes.

6. Reliable Performance

  • With a contact rating of 6A 250V AC and 10A 125V AC, the Sub-mini Rocker Switch delivers consistent performance across different voltage levels.
  • Its insulation resistance of ≥ 100 MΩ ensures safe operation, while the low contact resistance of ≤ 50mΩ minimizes energy loss.

7. IP54 Splash Proof Rubber Boot Option

  • For applications that require additional protection against water splashes or dust, WEUP offers an IP54 splash proof rubber boot option.
  • This feature ensures that the Sub-mini Rocker Switch remains functional even in challenging environments.

8. Wide Range of Applications The Sub-mini Rocker Switch finds application in various industries and settings, including:

  • Small appliances such as air purifiers and dehumidifiers
  • Computers and peripherals like monitors, copiers, printers
  • Medical instrumentation
  • Power supply switches for consumer electronics, PC peripherals, and office/commercial equipment
  • Measuring devices and power outlet strips

In conclusion, WEUP’s Sub-mini Rocker Switch is a versatile and reliable choice for B2B buyers seeking high-quality electrical components. Its impeccable quality, customizable options, versatile functionality, and easy installation make it a preferred solution for importers, distributors, manufacturers, brands, wholesalers, and retailers. With WEUP as your partner, you can benefit from our dedication to meeting customer requirements and needs. As one of the leading China manufacturers and suppliers in the industry, our factory ensures top-notch products that meet international standards. Join our satisfied customer base today and experience the excellence of WEUP’s Sub-mini Rocker Switch!

For more information or to place an order, contact our trusted vendors or visit our website today!
