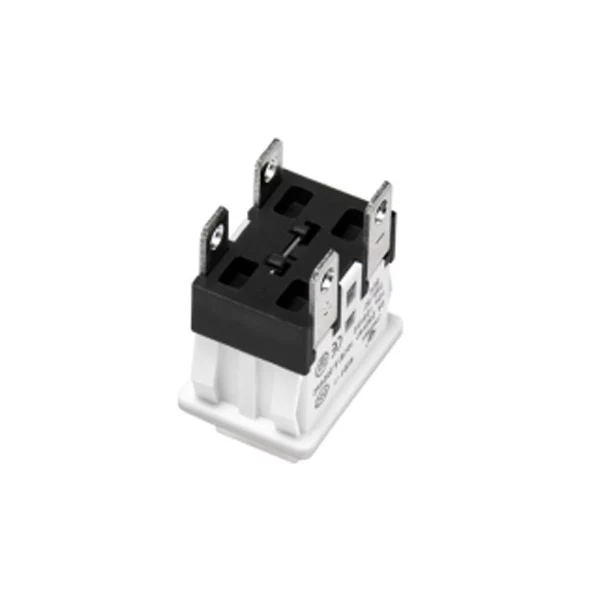

Kcd1-124 Illuminated Rocker Light Switch

KCD1-124

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC  6(4)A 250V AC

10A 125V AC  12(6)A 125V AC

10(6) 250V AC   12GP 125V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85
  • Contact Resistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing WEUP’s Lighted Rocker Switch: The Perfect Choice for B2B Buyers

Are you in search of a reliable and high-quality lighted rocker switch for your business? Look no further than WEUP’s Lighted Rocker Switch, model KCD1-124. Designed with precision and functionality in mind, this switch is the ideal choice for importers, distributors, manufacturers, brands, wholesalers, and retailers. Let us explore the features and benefits that make this product stand out from the competition.

Features and Benefits:

  1. Pilot Light or Illumination: The KCD1-124 Lighted Rocker Switch comes with a pilot light or illumination feature, allowing for easy identification of the switch’s status. This is particularly useful in applications where visibility is crucial, such as small appliances, computers, peripherals, and medical instrumentation.
  2. Imprinted Markings: The switch features clear imprinted markings, ensuring ease of use and readability. These markings make it simple to identify the switch’s functions and positions, enhancing user convenience.
  3. IP54 Splash Proof Rubber Boot Option: This rocker switch offers an IP54 splash-proof rubber boot option, providing an extra layer of protection against water splashes. This makes it suitable for a wide range of applications, including outdoor or potentially wet environments.
  4. Quick Connect or Blade Terminals: The KCD1-124 switch offers flexibility in terms of terminal options. It can be easily connected using either quick connect or blade terminals, catering to different installation requirements.

Specifications:

  • Contact Rating: The switch has a contact rating of 6A 250V AC and 10A 125V AC, making it suitable for various electrical applications.
  • Electrical Life: With a lifespan of over 50,000 cycles, this switch ensures long-lasting performance and reliability.
  • Insulation Resistance: The switch boasts insulation resistance of at least 100 MΩ, providing excellent electrical insulation properties.
  • Degree of Protection: It offers a degree of protection of IP55, safeguarding it against dust and water ingress.
  • Operating Temperature: The KCD1-124 switch can operate at temperatures up to T 85, making it suitable for use in different environmental conditions.
  • Contact Resistance: With contact resistance less than 50mΩ, this switch guarantees efficient and reliable electrical connections.

TYPICAL APPLICATIONS:

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation
