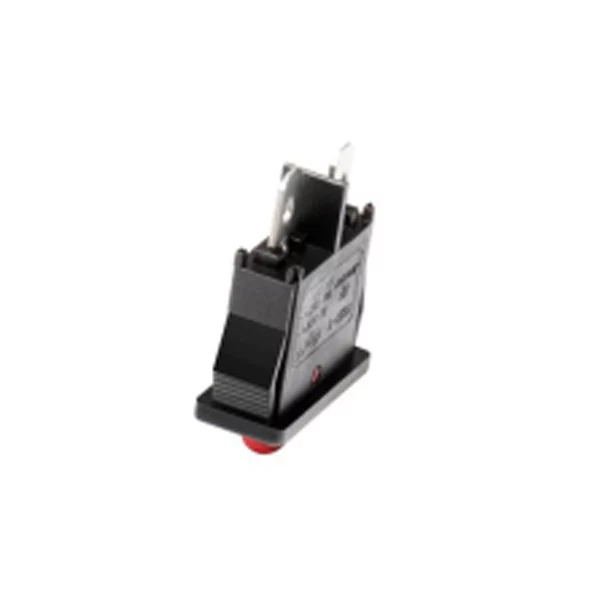

KCD1-110 PST Big Current Switch/ 2pins Rocker Canal Series Rocker Switch

KCD1-110

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC

10A 125V AC

10(6) 250V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • ContactResistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP Sub-mini Rocker Switch

The WEUP Sub-mini Rocker Switch is a versatile and reliable solution for B2B buyers in need of high-quality electrical switches. Designed with precision and functionality in mind, this switch is perfect for importers, distributors, manufacturers, brands, wholesalers, and retailers. With its exceptional features and wide range of applications, the WEUP Sub-mini Rocker Switch is the ideal choice for all your electrical switching needs.

Efficient and Reliable Performance

  • The WEUP Sub-mini Rocker Switch boasts a contact rating of 6A 250V AC, ensuring efficient and reliable performance in various applications.
  • With an electrical life of over 50,000 cycles, this switch guarantees long-lasting durability, making it a cost-effective solution for businesses.
  • The switch’s insulation resistance of over 100 MΩ provides added safety and peace of mind.
  • It offers a low contact resistance of less than 50mΩ, ensuring minimal power loss during operation.
  • Designed with a degree of protection of IP55, the switch is resistant to dust and water splashes, making it suitable for use in various environments.

Versatile Applications

The WEUP Sub-mini Rocker Switch is incredibly versatile and can be used in a wide range of applications. Here are just a few examples:

  • Small Appliances: Whether it’s controlling the power supply of air purifiers, dehumidifiers, or other home appliances, this switch provides reliable on/off functionality.
  • Computers and Peripherals: From monitors and printers to copiers and power outlets, this switch is perfect for controlling the power supply of various computer peripherals.
  • Medical Instrumentation: The switch’s precision and reliability make it an excellent choice for controlling medical equipment and instrumentation.

Customizable Options

WEUP understands that every business has unique requirements. That’s why we offer customizable options for our Sub-mini Rocker Switches. With our own D&R development capabilities, we can create new models according to your specific requests. Some of the customizable options include:

  • Shapes and Sizes: Choose from a variety of shapes and sizes to fit your application’s requirements.
  • Construction: Select the construction that best suits your needs, ensuring optimal performance and durability.
  • Frames: Add frames to enhance the switch’s appearance and protection.
  • Recessed Switch Guards: Prevent accidental actuation with recessed switch guards, ensuring safety and reliability.
  • Splash-proof Rubber Boots: Opt for splash-proof rubber boots to protect the switch from water damage in demanding environments.
  • Sub-miniature Sizes: Save space with sub-miniature sizes, perfect for applications where space is limited.

Superior Customer Support

At WEUP, we prioritize customer satisfaction. We understand that each business has unique demands, so we offer exceptional customer support to meet your specific requirements. Our team of experts is ready to assist you in designing custom wire harnesses and actuator markings that align with your needs. We are committed to providing you with top-notch service throughout the entire process.

Conclusion

When it comes to electrical switches, the WEUP Sub-mini Rocker Switch stands out as a reliable and versatile solution. Its exceptional features, customizable options, and superior customer support make it the preferred choice for B2B buyers. Whether you’re an importer, distributor, manufacturer, brand, wholesaler, or retailer, the WEUP Sub-mini Rocker Switch is the ideal product for your electrical switching needs. Trust in WEUP’s expertise as one of China’s leading manufacturers, suppliers, and wholesalers of high-quality electrical switches. Upgrade your products with the WEUP Sub-mini Rocker Switch today.

For more information about our products or to place an order, please visit our website or contact our sales team directly.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

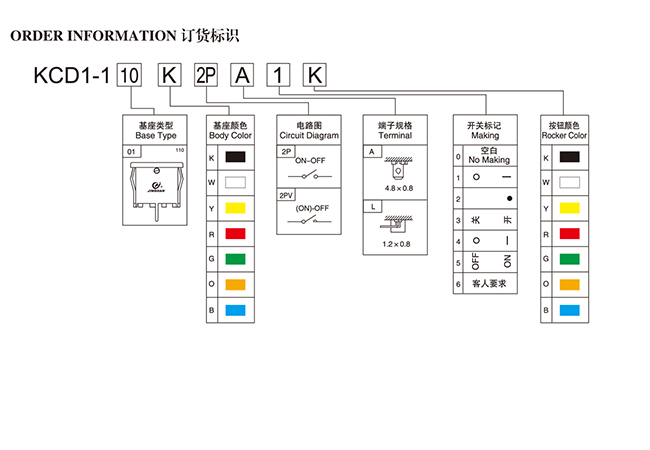

Technical Data

KCD1-110 PST big current switch/ 2pins rocker canal series rocker switch

KCD1-110K2PA1KC
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton ColorActuator
Black KCD1-110 PST big current switch/ 2pins rocker canal series rocker switchON-OFF KCD1-110 PST big current switch/ 2pins rocker canal series rocker switch 4.8*0.8 KCD1-110 PST big current switch/ 2pins rocker canal series rocker switch  KCD1-110 PST big current switch/ 2pins rocker canal series rocker switchBlack KCD1-110 PST big current switch/ 2pins rocker canal series rocker switch  KCD1-110 PST big current switch/ 2pins rocker canal series rocker switch
Blue KCD1-110 PST big current switch/ 2pins rocker canal series rocker switchON-OFF KCD1-110 PST big current switch/ 2pins rocker canal series rocker switch3.2*0.8 KCD1-110 PST big current switch/ 2pins rocker canal series rocker switch  KCD1-110 PST big current switch/ 2pins rocker canal series rocker switchBlue KCD1-110 PST big current switch/ 2pins rocker canal series rocker switch  KCD1-110 PST big current switch/ 2pins rocker canal series rocker switch
Green KCD1-110 PST big current switch/ 2pins rocker canal series rocker switchON-OFF KCD1-110 PST big current switch/ 2pins rocker canal series rocker switch1.2*0.8 KCD1-110 PST big current switch/ 2pins rocker canal series rocker switch  KCD1-110 PST big current switch/ 2pins rocker canal series rocker switchGreen KCD1-110 PST big current switch/ 2pins rocker canal series rocker switch  KCD1-110 PST big current switch/ 2pins rocker canal series rocker switch
Orange KCD1-110 PST big current switch/ 2pins rocker canal series rocker switchON-OFF-ON KCD1-110 PST big current switch/ 2pins rocker canal series rocker switch  KCD1-110 PST big current switch/ 2pins rocker canal series rocker switchOrange KCD1-110 PST big current switch/ 2pins rocker canal series rocker switch  KCD1-110 PST big current switch/ 2pins rocker canal series rocker switch
Red KCD1-110 PST big current switch/ 2pins rocker canal series rocker switchON-OFF-(ON) KCD1-110 PST big current switch/ 2pins rocker canal series rocker switch  KCD1-110 PST big current switch/ 2pins rocker canal series rocker switchRed KCD1-110 PST big current switch/ 2pins rocker canal series rocker switch
White KCD1-110 PST big current switch/ 2pins rocker canal series rocker switch(ON)-OFF-(ON) KCD1-110 PST big current switch/ 2pins rocker canal series rocker switch  KCD1-110 PST big current switch/ 2pins rocker canal series rocker switchWhite KCD1-110 PST big current switch/ 2pins rocker canal series rocker switch
Yellow KCD1-110 PST big current switch/ 2pins rocker canal series rocker switch  KCD1-110 PST big current switch/ 2pins rocker canal series rocker switchYellow KCD1-110 PST big current switch/ 2pins rocker canal series rocker switch

Characteristics

Permissible operating frequencyMechanical20 operations/min max.
Electrical7 operations/min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2,000 VAC, 50/60 Hz, for 1 min
Between terminals of the different polarity2,000 VAC, 50/60 Hz, for 1 min
Between charged metal parts and the ground terminal4,000 VAC, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2
Destruction500 m/s2
DurabilityMechanical50,000 operations min.
Electrical10,000 operations min.
Inrush current100 A max. (8.3 ms max.)
Degree of protectionIEC IP40
Ambient operating temperature–20 to +55C (with no icing or condensation)
Ambient operating humidity45 to 85%RH

KCD1-110 PST big current switch/ 2pins rocker canal series rocker switch

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switchrocker switch
