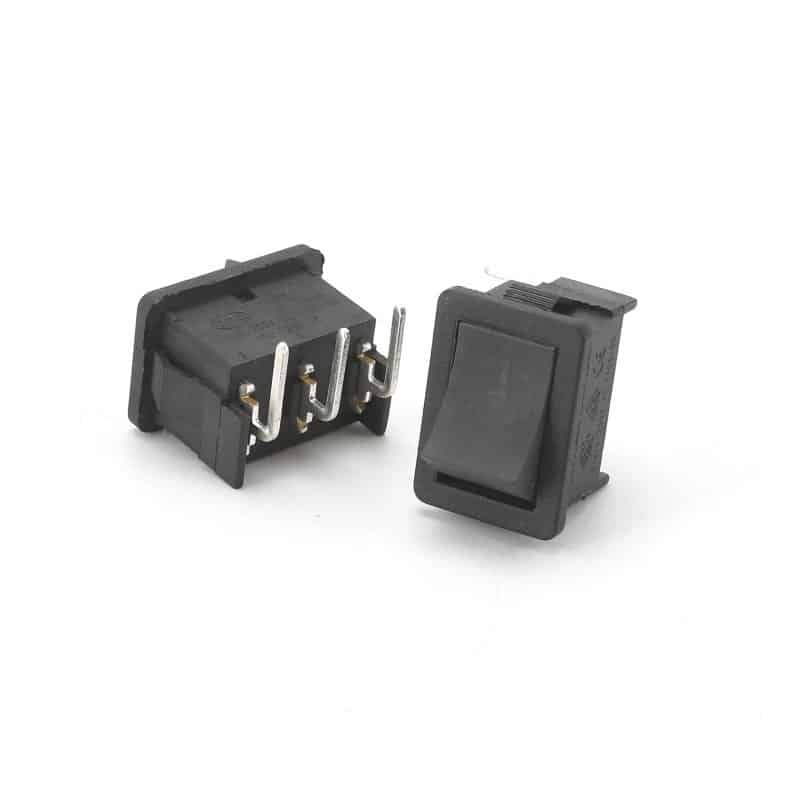

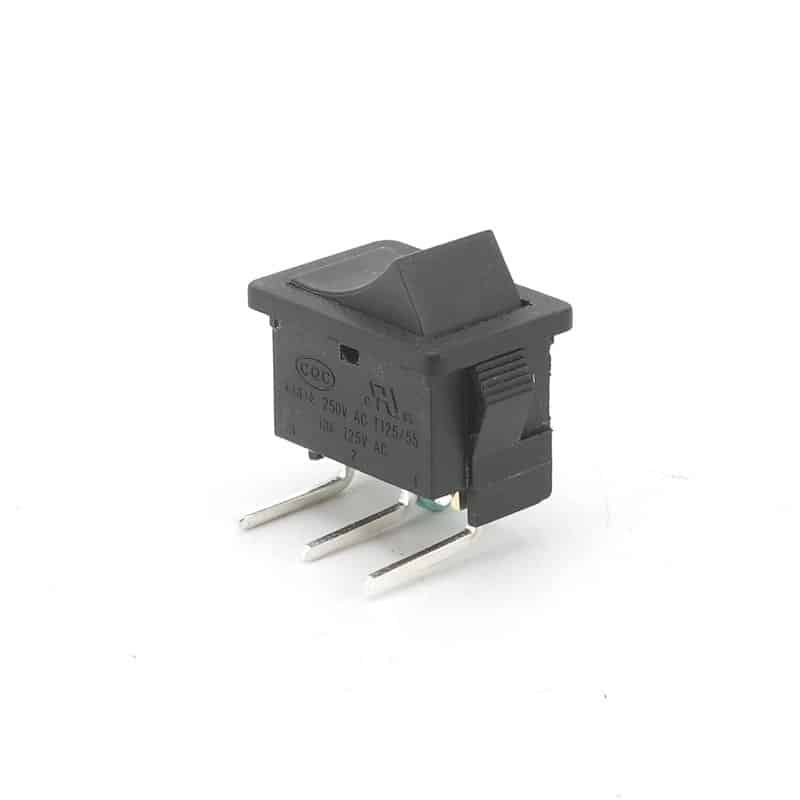

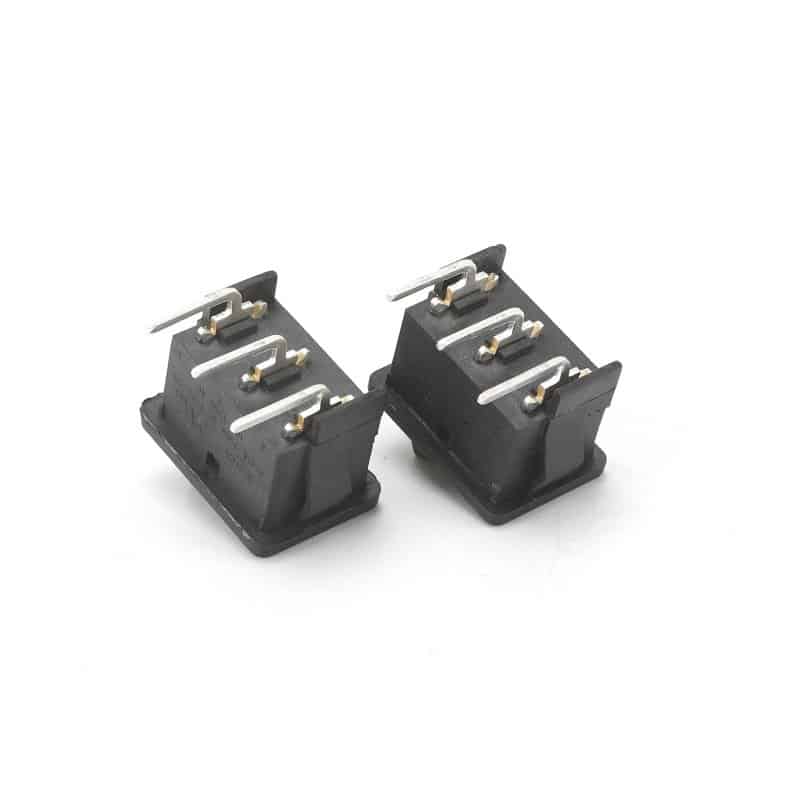

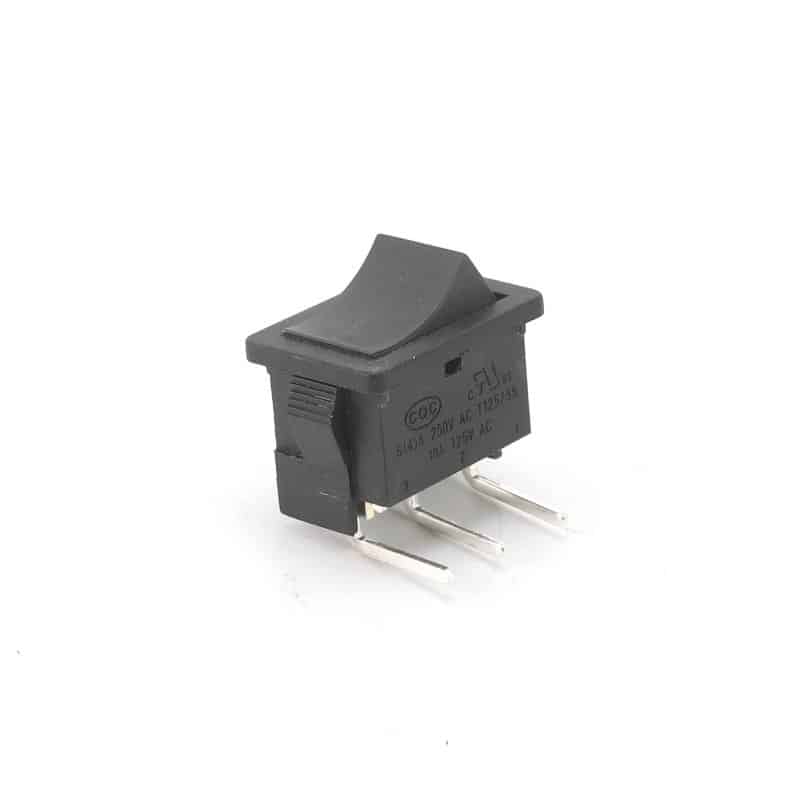

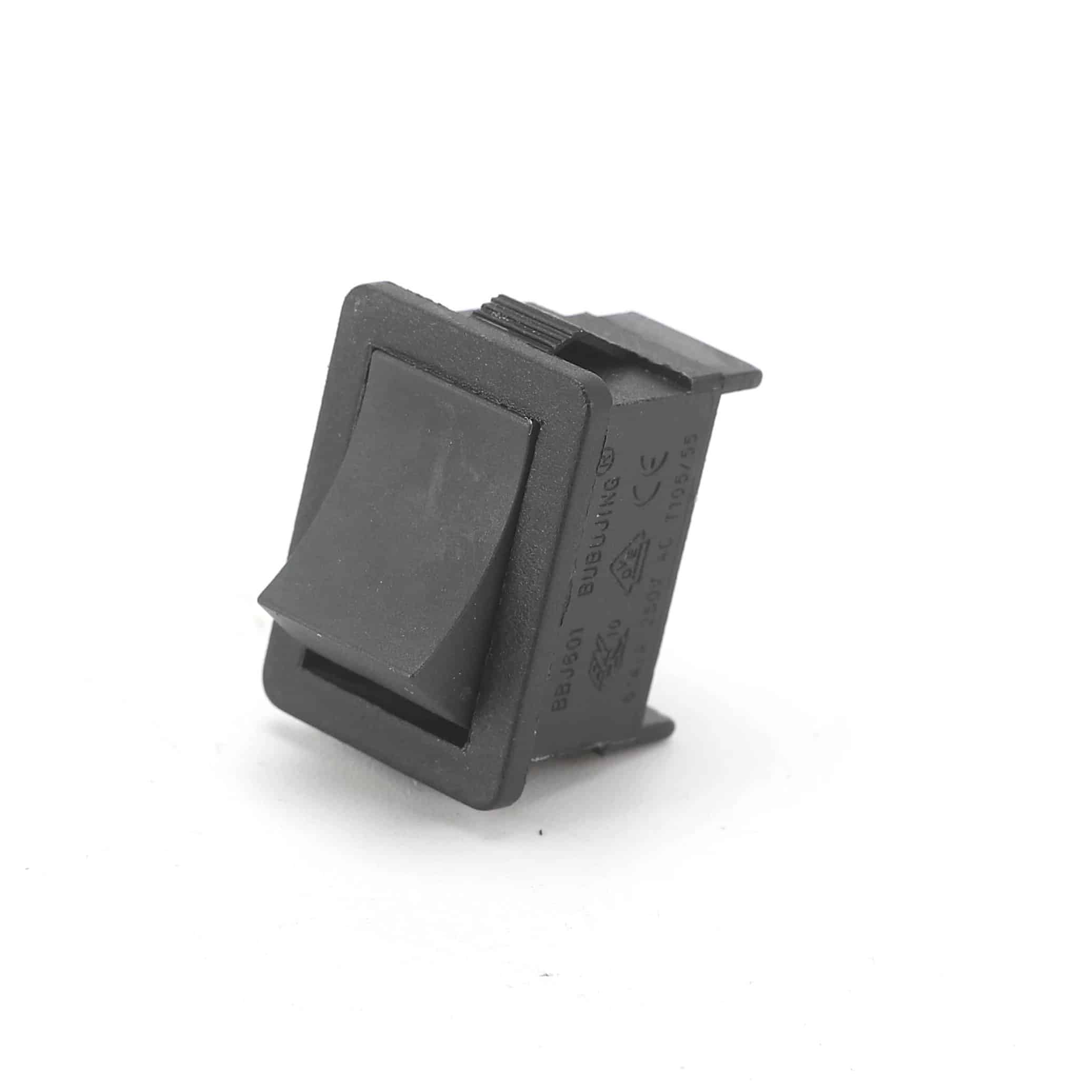

KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPST

KCD1-106

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC  6(4)A 250V AC

10A 125V AC  12(6)A 125V AC

10(6) 250V AC   12GP 125V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • Contact Resistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP Sub-mini Rocker Switch

The WEUP Sub-mini Rocker Switch is a versatile and reliable solution for B2B buyers in the import, distribution, manufacturing, brand, wholesale, and retail sectors. With its exceptional features and functions, this sub-miniature rocker switch stands out among its competitors. Let’s explore why this product is a must-have for your business.

  1. Compact and Efficient Design:
  • The sub-miniature size of the WEUP Sub-mini Rocker Switch allows for a space-saving footprint, making it ideal for applications where limited space is a concern.
  • Its compact design does not compromise on functionality. The switch offers multiple configurations, including two-position On/Off, three-position, momentary, and maintained options.
  1. High-Quality Construction:
  • WEUP takes pride in manufacturing high-quality products. The Sub-mini Rocker Switch is no exception. It is built to withstand rigorous usage with a durability of 50,000 mechanical operations and 10,000 electrical operations minimum.
  • The switch is designed to handle high contact ratings of 6A 250V AC and 10A 125V AC, making it suitable for various applications.
  1. Customization Options:
  • WEUP understands that different businesses have unique requirements. That’s why the Sub-mini Rocker Switch can be customized to meet your specific needs.
  • With our own D&R development, we can create new models according to your requests. Whether it’s a different shape, size, construction, frame, or recessed switch guards, we can accommodate your customization needs.
  • We also offer options like splash-proof rubber boots and sub-miniature sizes for added protection and a space-saving design.
  1. Wide Range of Applications: The versatility of the WEUP Sub-mini Rocker Switch makes it suitable for a variety of industries and applications:
  • Small appliances: This switch can be used in products like air purifiers, dehumidifiers, and more.
  • Computers and peripherals: It is an excellent choice for monitors, copiers, printers, and power supply switches.
  • Medical instrumentation: The switch meets the high standards required in medical equipment.
  1. Supportive Services: WEUP is not just a manufacturer; we are dedicated to providing exceptional customer support. Here’s what we offer:
  • Custom wire harness and actuator marking requests: We can create wire harnesses and markings that align with your specific design requirements.
  • Prompt response and assistance: Our team is always ready to address your inquiries and provide the necessary support throughout the purchasing process.

Why Choose WEUP Sub-mini Rocker Switch?

  1. Quality Assurance:
  • Our rocker switches undergo rigorous testing to ensure high-quality performance. They have a permissible operating frequency of up to 20 operations per minute mechanically and seven operations per minute electrically.
  • With an insulation resistance of at least 100 MΩ and contact resistance of maximum 100 mΩ, you can rely on the durability and reliability of our switches.
  1. Safety Compliance:
  • The WEUP Sub-mini Rocker Switch adheres to international safety standards. It is certified by CQC, CCC, CE, RoHS, ENEC, PAHS, VDE, TUV, UL, ensuring that it meets strict regulatory requirements.
  1. Competitive Advantage:
  • As one of the leading China manufacturers, WEUP offers competitive pricing without compromising on quality.
  • We have a strong network of suppliers and wholesalers, allowing us to provide you with the best deals for bulk orders.
  1. Long-term Partnership:
  • At WEUP, we prioritize building long-lasting partnerships with our clients. We strive to exceed your expectations by delivering reliable products and outstanding customer service.
  • As your trusted partner, we will work closely with you to understand your business needs and provide tailored solutions.

In conclusion, the WEUP Sub-mini Rocker Switch is an exceptional product that offers compactness, reliability, customization options, and wide-ranging applications. As a B2B buyer in the import, distribution, manufacturing, brand, wholesale, or retail sector, incorporating the WEUP Sub-mini Rocker Switch into your product lineup will give you a competitive edge. Choose WEUP as your reliable supplier and witness the difference in quality and service.

Contact us now to explore how the WEUP Sub-mini Rocker Switch can enhance your business!

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPST

KCD1-106K2PA1KC
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton ColorActuator
Black KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPSTON-OFF KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPST 4.8*0.8 KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPST  KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPSTBlack KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPST  KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPST
Blue KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPSTON-OFF KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPST3.2*0.8 KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPST  KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPSTBlue KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPST  KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPST
Green KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPSTON-OFF KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPST1.2*0.8 KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPST  KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPSTGreen KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPST  KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPST
Orange KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPSTON-OFF-ON KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPST  KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPSTOrange KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPST  KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPST
Red KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPSTON-OFF-(ON) KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPST  KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPSTRed KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPST
White KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPST(ON)-OFF-(ON) KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPST  KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPSTWhite KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPST
Yellow KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPST  KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPSTYellow KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPST

Characteristics

Permissible operating frequencyMechanical20 operations/min max.
Electrical7 operations/min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2,000 VAC, 50/60 Hz, for 1 min
Between terminals of the different polarity2,000 VAC, 50/60 Hz, for 1 min
Between charged metal parts and the ground terminal4,000 VAC, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2
Destruction500 m/s2
DurabilityMechanical50,000 operations min.
Electrical10,000 operations min.
Inrush current100 A max. (8.3 ms max.)
Degree of protectionIEC IP40
Ambient operating temperature–20 to +55C (with no icing or condensation)
Ambient operating humidity45 to 85%RH

KCD1-106 T125 3PIN BENT FOOT ROCKER SWITCH SPST

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switchrocker switch
