  • KCD1-106-KR 3 Way Rocker Switch
  • KCD1-106-KR 3 Way Rocker Switch
  • KCD1-106-KR 3 Way Rocker Switch
  • KCD1-106-KR 3 Way Rocker Switch

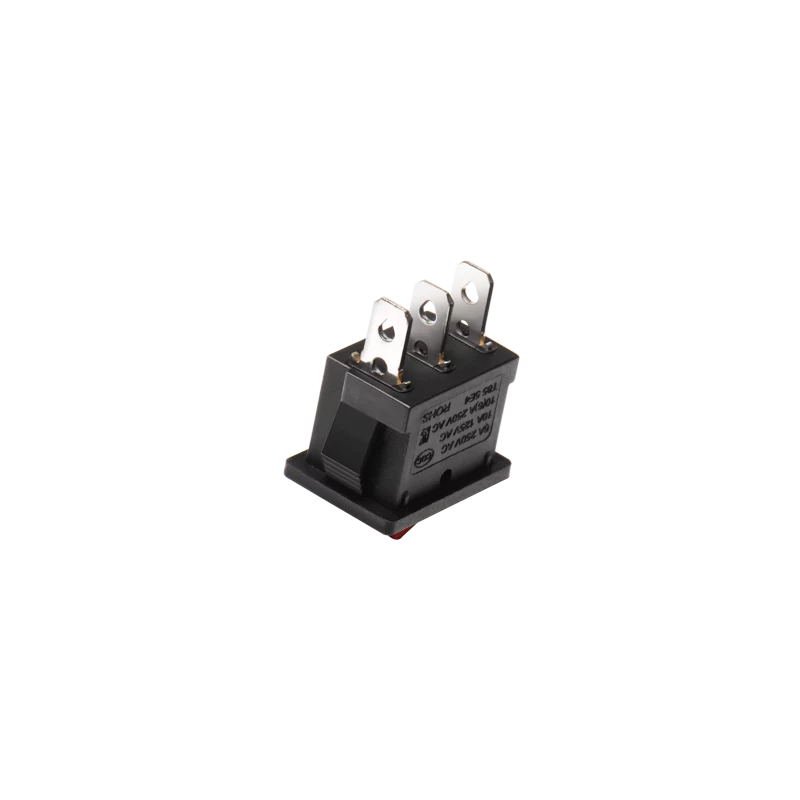

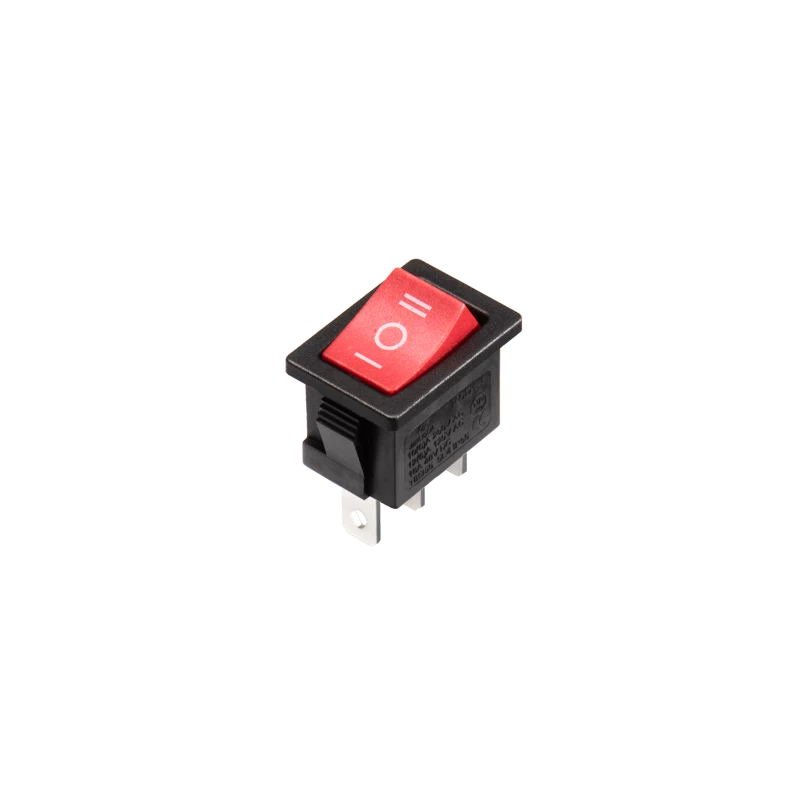

KCD1-106-KR 3 Way Rocker Switch

KCD1-106-KR

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC  6(4)A 250V AC

10A 125V AC  12(6)A 125V AC

10(6) 250V AC   12GP 125V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • Contact Resistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP 3 Way Rocker Switch:

The WEUP 3 Way Rocker Switch (model number: KCD1-106-KR) is a versatile and reliable electrical component designed to control the on/off functions of various home appliances, computers and peripherals, and medical instrumentation. This high-quality rocker switch is an essential tool for B2B buyers such as importers, distributors, manufacturers, brands, wholesalers, and retailers. Let’s explore the compelling features and benefits of this product:

Features and Benefits:

  • Pilot Light or Illumination: The WEUP 3 Way Rocker Switch offers the option of a pilot light or illumination feature, allowing users to easily identify the status of the switch at a glance. This feature is particularly useful in low-light environments or when quick identification is required.
  • Imprinted Markings: The switch comes with imprinted markings that provide clear and durable identification of the switch positions. This ensures ease of use and minimizes the risk of accidental actuation.
  • IP54 Splash Proof Rubber Boot Option: For added durability and protection, the WEUP 3 Way Rocker Switch offers an IP54 splash-proof rubber boot option. This feature makes it suitable for applications where exposure to moisture or water is a concern.
  • Quick Connect or Blade Terminals: The switch is designed with quick connect or blade terminals, allowing for easy and efficient installation. This flexibility in terminal options makes it compatible with a wide range of wiring configurations.

TYPICAL APPLICATIONS:

  • Small Appliances
  • Computers and Peripherals
  • Medical Instrumentation

Specifications:

  • Contact Rating: The switch has a contact rating of 6A 250V AC 6(4)A 250V AC and 10A 125V AC 12(6)A 125V AC. This ensures reliable performance and compatibility with various electrical systems.
  • Electrical Life: With an electrical life of more than 50,000 cycles, the WEUP 3 Way Rocker Switch offers long-lasting durability and dependable operation.
  • Insulation Resistance: The switch has an insulation resistance of more than 100 MΩ, providing effective electrical insulation and safety.
  • Degree of Protection: With an IP55 degree of protection, this switch offers excellent resistance to dust and water, making it suitable for a wide range of environments.
  • Operating Temperature: The switch can operate within a temperature range of T85/55, ensuring reliable performance even in challenging conditions.
  • Contact Resistance: The switch has a contact resistance of less than 50mΩ, ensuring minimal power loss and efficient electrical transmission.

Customizing Rocker Switches: WEUP understands the importance of customization to meet the unique requirements of different applications. With WEUP’s own research and development capabilities, they can create new models according to customers’ requests. The customization options include:

  • Shapes, Size, Construction: WEUP offers flexibility in terms of shapes, sizes, and construction options for the rocker switches. This allows customers to choose the most suitable configuration for their specific needs.
  • Frames and Recessed Switch Guards: To prevent accidental actuation, WEUP provides options for frames and recessed switch guards. This feature enhances safety and ensures reliable operation.
  • Splash-Proof Rubber Boots: The availability of splash-proof rubber boots adds an extra layer of protection to the switches, making them suitable for applications where moisture or water exposure is a concern.
  • Sub-Miniature Sizes: For space-saving requirements, WEUP offers sub-miniature sizes, allowing customers to optimize their designs without compromising functionality.

In addition to these customization options, WEUP also supports custom wire harness and actuator marking requests. This level of customization ensures that the rocker switches meet customers’ specific requirements and enables seamless integration into their products.

Conclusion: The WEUP 3 Way Rocker Switch is a reliable and versatile electrical component that offers a range of features and benefits. Its pilot light or illumination feature, imprinted markings, IP54 splash-proof rubber boot option, quick connect or blade terminals, and customization options make it an ideal choice for B2B buyers such as importers, distributors, manufacturers, brands, wholesalers, and retailers. Whether you are looking for a high-quality rocker switch for small appliances, computers and peripherals, or medical instrumentation, WEUP’s 3 Way Rocker Switch is a trustworthy solution. Choose WEUP as your partner for all your electrical component needs.



Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD1-106-KR 3 Way Rocker Switch

KCD1-106K2PA1KC
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton ColorActuator
Black KCD1-106-KR 3 Way Rocker SwitchON-OFF KCD1-106-KR 3 Way Rocker Switch 4.8*0.8 KCD1-106-KR 3 Way Rocker Switch  KCD1-106-KR 3 Way Rocker SwitchBlack KCD1-106-KR 3 Way Rocker Switch  KCD1-106-KR 3 Way Rocker Switch
Blue KCD1-106-KR 3 Way Rocker SwitchON-OFF KCD1-106-KR 3 Way Rocker Switch3.2*0.8 KCD1-106-KR 3 Way Rocker Switch  KCD1-106-KR 3 Way Rocker SwitchBlue KCD1-106-KR 3 Way Rocker Switch  KCD1-106-KR 3 Way Rocker Switch
Green KCD1-106-KR 3 Way Rocker SwitchON-OFF KCD1-106-KR 3 Way Rocker Switch1.2*0.8 KCD1-106-KR 3 Way Rocker Switch  KCD1-106-KR 3 Way Rocker SwitchGreen KCD1-106-KR 3 Way Rocker Switch  KCD1-106-KR 3 Way Rocker Switch
Orange KCD1-106-KR 3 Way Rocker SwitchON-OFF-ON KCD1-106-KR 3 Way Rocker Switch  KCD1-106-KR 3 Way Rocker SwitchOrange KCD1-106-KR 3 Way Rocker Switch  KCD1-106-KR 3 Way Rocker Switch
Red KCD1-106-KR 3 Way Rocker SwitchON-OFF-(ON) KCD1-106-KR 3 Way Rocker Switch  KCD1-106-KR 3 Way Rocker SwitchRed KCD1-106-KR 3 Way Rocker Switch
White KCD1-106-KR 3 Way Rocker Switch(ON)-OFF-(ON) KCD1-106-KR 3 Way Rocker Switch  KCD1-106-KR 3 Way Rocker SwitchWhite KCD1-106-KR 3 Way Rocker Switch
Yellow KCD1-106-KR 3 Way Rocker Switch  KCD1-106-KR 3 Way Rocker SwitchYellow KCD1-106-KR 3 Way Rocker Switch

KCD1-106-KR 3 Way Rocker Switch
