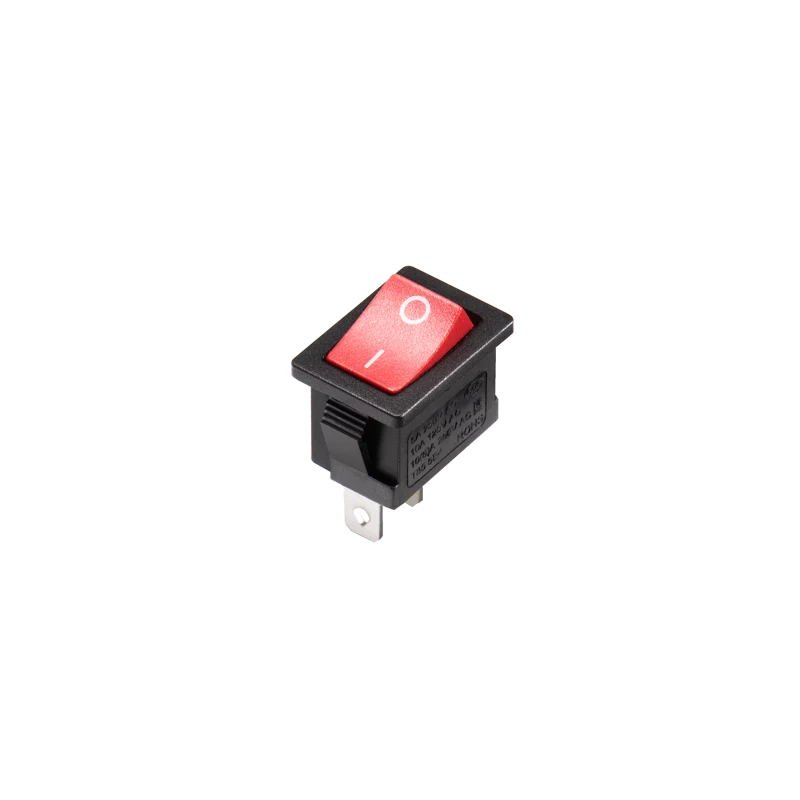

KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker Switch

KCD1-106

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC  6(4)A 250V AC

10A 125V AC  12(6)A 125V AC

10(6) 250V AC   12GP 125V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • Contact Resistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing WEUP’s Sub-mini Rocker Switch

Are you in search of a reliable and versatile rocker switch for your B2B business needs? Look no further than WEUP’s Sub-mini Rocker Switch. With its exceptional features and functions, this product is designed to meet the demands of importers, distributors, manufacturers, brands, wholesalers, and retailers like you. Let’s dive into the compelling reasons why the WEUP Sub-mini Rocker Switch should be your top choice.

1. Superior Quality and Durability

  • The WEUP Sub-mini Rocker Switch is manufactured by trusted China manufacturers who prioritize quality. With their expertise and experience, they have crafted a product that meets international standards.
  • Built to withstand rigorous usage, this rocker switch is durable and long-lasting. It can endure up to 50,000 mechanical operations and 10,000 electrical operations, ensuring reliable performance for an extended period.
  • The switch has been tested for vibration resistance, shock resistance, and destruction, guaranteeing its ability to withstand various environmental conditions.

2. Wide Range of Applications

  • The versatility of the WEUP Sub-mini Rocker Switch makes it suitable for a wide range of applications. Whether you’re in the consumer electronics industry, PC peripherals, or office/commercial equipment, this switch will meet your needs.
  • It is commonly used in small appliances, computers and peripherals, medical instrumentation, power supply switches, air purifiers, monitors, copiers, printers, power outlet strips, and many more.
  • No matter what your business demands, this rocker switch can seamlessly integrate into your products and enhance their functionality.

3. Customizability to Meet Your Requirements

  • As a B2B buyer, you understand the importance of customization. WEUP acknowledges that every business has unique needs. Therefore, they offer custom options for the Sub-mini Rocker Switch.
  • With WEUP’s own D&R development capabilities, they can create new models according to your specific requests. From shapes and sizes to construction and frames, you have the freedom to design a rocker switch that perfectly aligns with your requirements.
  • Additionally, WEUP supports custom wire harness and actuator marking requests. This level of customization ensures that the rocker switch not only meets your technical specifications but also aligns with your branding and aesthetic preferences.

4. Reliable Functionality

  • The Sub-mini Rocker Switch features a dual function that allows for different configurations. Whether you need a two-position On/Off switch, three-position switch, momentary switch, or maintained switch, WEUP has got you covered.
  • The switch comes with SPST, SPDT, DPST, DPDT, 3PDT, and 4DPT functionality options. This versatility ensures compatibility with a wide range of electrical systems and applications.
  • The electrical life of the switch is rated at over 50,000 cycles, guaranteeing consistent performance throughout its lifespan.

5. Enhanced Safety Features

  • Safety is paramount when it comes to electrical components. The WEUP Sub-mini Rocker Switch prioritizes safety with its high insulation resistance of over 100 MΩ. This ensures protection against electrical shocks and malfunctions.
  • With an IP55 degree of protection, this switch offers resistance against dust and water splashes. This feature makes it ideal for various environments where exposure to moisture or dust particles is a concern.

6. Easy Installation and Connection

  • The Sub-mini Rocker Switch is designed for convenience. It offers quick connect or blade terminals, allowing for easy installation without the need for complicated wiring processes.
  • The switch comes with imprinted markings, providing clear identification of different functions and positions. This makes it user-friendly and eliminates confusion during operation.

7. Illumination Options

  • In certain applications where visibility is crucial, the Sub-mini Rocker Switch offers pilot light or illumination options. This feature ensures that users can easily identify the switch status even in low-light conditions.
  • The illuminated versions are available in both LED and incandescent options. This flexibility allows you to choose the illumination type that best suits your specific application.

With all these compelling features and functions, it’s clear why the WEUP Sub-mini Rocker Switch is the ideal choice for B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers. Its superior quality, wide range of applications, customizability, reliability, enhanced safety features, easy installation, and illumination options make it a standout product in the market.

By choosing WEUP as your supplier, you gain access to a reputable manufacturer that prioritizes customer satisfaction. Their expertise in producing high-quality electrical components is well-known among wholesalers and vendors in the industry.

Don’t miss out on the opportunity to enhance your products with the WEUP Sub-mini Rocker Switch. Contact us today to discuss your requirements and place an order that will elevate your business to new heights!

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker Switch

KCD1-106K2PA1KC
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton ColorActuator
Black KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker SwitchON-OFF KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker Switch 4.8*0.8 KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker Switch  KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker SwitchBlack KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker Switch  KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker Switch
Blue KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker SwitchON-OFF KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker Switch3.2*0.8 KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker Switch  KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker SwitchBlue KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker Switch  KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker Switch
Green KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker SwitchON-OFF KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker Switch1.2*0.8 KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker Switch  KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker SwitchGreen KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker Switch  KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker Switch
Orange KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker SwitchON-OFF-ON KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker Switch  KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker SwitchOrange KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker Switch  KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker Switch
Red KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker SwitchON-OFF-(ON) KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker Switch  KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker SwitchRed KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker Switch
White KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker Switch(ON)-OFF-(ON) KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker Switch  KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker SwitchWhite KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker Switch
Yellow KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker Switch  KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker SwitchYellow KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker Switch

Characteristics

Permissible operating frequencyMechanical20 operations/min max.
Electrical7 operations/min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2,000 VAC, 50/60 Hz, for 1 min
Between terminals of the different polarity2,000 VAC, 50/60 Hz, for 1 min
Between charged metal parts and the ground terminal4,000 VAC, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2
Destruction500 m/s2
DurabilityMechanical50,000 operations min.
Electrical10,000 operations min.
Inrush current100 A max. (8.3 ms max.)
Degree of protectionIEC IP40
Ambient operating temperature–20 to +55C (with no icing or condensation)
Ambient operating humidity45 to 85%RH

KCD1-106 CQC 24V KCD1 T85 SPST 2 Pin Brass Dual Function Rocker Switch

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
