  • KCD1-106 3PIN Single Pole Covered Rocker Switch T85/55 With 220V LED SPST
  • KCD1-106 3PIN Single Pole Covered Rocker Switch T85/55 With 220V LED SPST

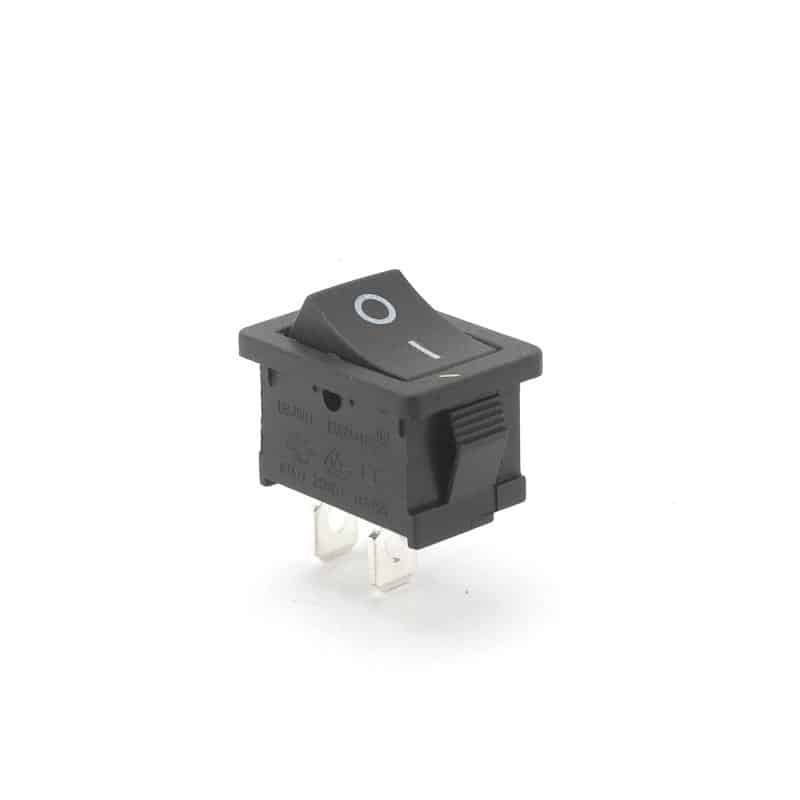

KCD1-106 3PIN Single Pole Covered Rocker Switch T85/55 With 220V LED SPST

KCD1-106

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC  6(4)A 250V AC

10A 125V AC  12(6)A 125V AC

10(6) 250V AC   12GP 125V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • Contact Resistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP Sub-mini Rocker Switch: Efficient and Reliable Electrical Control

The WEUP Sub-mini Rocker Switch (KCD1-106) is a high-quality electrical control component designed to meet the needs of B2B buyers such as importers, distributors, manufacturers, brands, wholesalers, and retailers. This versatile switch offers an array of features and functions that make it an ideal choice for various industries and applications. With its exceptional performance, durability, and customization options, the WEUP Sub-mini Rocker Switch stands out among its competitors in the market.

Reliable Performance

  • Contact Rating: The WEUP Sub-mini Rocker Switch boasts a contact rating of 6A 250V AC and 10A 125V AC, ensuring reliable and efficient operation.
  • Electrical Life: With a lifespan of over 50,000 cycles, this switch guarantees long-term performance and durability.
  • Insulation Resistance: The switch provides insulation resistance of at least 100 MΩ, ensuring safe and reliable electrical control.
  • Degree of Protection: Offering IP55 protection, the switch is resistant to splash-proof and dust-proof, making it suitable for various environments.
  • Operating Temperature: The T85/55 operating temperature range ensures optimal performance even in challenging conditions.

Versatile Applications The WEUP Sub-mini Rocker Switch finds wide-ranging applications across different industries.

  • Small Appliances: From kitchen appliances to electronic devices, this switch provides efficient on/off control for a variety of small appliances.
  • Computers and Peripherals: Whether it’s a desktop computer or peripheral devices like printers and monitors, this switch ensures smooth operation and easy control.
  • Medical Instrumentation: In medical instrumentation, precision and reliability are paramount. The WEUP Sub-mini Rocker Switch delivers exceptional performance in critical healthcare equipment.

Customization Options WEUP understands that every application may have unique requirements. Hence, they offer customization options for the Sub-mini Rocker Switch.

  • D&R Development: With their own development and research capabilities, WEUP can create new models tailored to specific customer requests.
  • Shape, Size, and Construction: The switch can be customized in terms of shape, size, and construction to fit the specific needs of different applications.
  • Wire Harness and Actuator Marking: WEUP supports custom wire harness and actuator marking requests to ensure the switch aligns perfectly with customers’ requirements.

Product Variety WEUP offers a wide range of models and configurations to cater to diverse needs.

  • Illuminated Options: The Sub-mini Rocker Switch is available in illuminated versions featuring LED or incandescent lights. This provides visual feedback for users, enhancing user experience and convenience.
  • Sealed/Waterproof Versions: For applications where moisture or water exposure is a concern, WEUP provides sealed and waterproof models. These switches ensure reliable performance even in challenging environments.
  • Functionality Options: Whether you need two-position On/Off, three-position, momentary, or maintained functionality, WEUP has you covered. With SPST, SPDT, DPST, DPDT, 3PDT, and 4DPT options available, you can find the right switch for your specific requirements.

Why Choose WEUP Sub-mini Rocker Switch?

  1. Exceptional Quality: Manufactured by one of the leading China manufacturers, the Sub-mini Rocker Switch adheres to stringent quality standards. It offers reliable performance and longevity.
  2. Customization Capabilities: WEUP’s ability to create tailor-made models ensures that you get a switch that perfectly fits your application’s unique requirements.
  3. Wide Range of Applications: From small appliances to medical instrumentation, this switch proves its versatility across various industries.
  4. Visual Feedback: The illuminated versions of the switch provide visual indication, enhancing user experience and making it easier to operate.
  5. Sealed/Waterproof Options: If your application demands protection against moisture or water, WEUP offers sealed and waterproof models for reliable performance in such conditions.

Conclusion The WEUP Sub-mini Rocker Switch (KCD1-106) is an excellent choice for B2B buyers seeking a reliable and customizable electrical control solution. With its exceptional performance, versatility in applications, and various customization options, this switch stands out among its competitors. Trust WEUP’s expertise as a manufacturer, supplier, and vendor in delivering high-quality electrical components that meet your specific needs. Choose the WEUP Sub-mini Rocker Switch for efficient on/off control in your appliances, computers, peripherals, and medical instrumentation.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD1-106 Rocker SWitch

KCD1-106 Rocker SWitch

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.



MonitorsCopiersPrinters
MonitorsCopiersPrinters
Power SuppliesMeasuring DevicesPower Outlet Strips
Power SuppliesMeasuring DevicesPower Outlet Strips

Download Latest Catalog

Do you supply samples? Are the Samples free?

Yes. Usually, 1-2 samples are free of charge, please support us by providing us with any express account such as DHL, FedEx, TNT, or UPS.

How is the shipping?

Our nearest port is Ningbo and Shanghai port, but if you collect the goods to ship together, we could send them to the other farther port. Usually, our customers will choose TNT, DHL, FedEx, and UPS to ship them.

How long is the delivery leading time?

Usually the samples 1-5 days to prepare. For orders, it depends on the quantity. Usually 5-15 days.

How is the packing?

For standard packing, dozens per box, 500pcs or 1000pcs per carton. We also provide you with custom box or carton packing with your logo and design.

How do you do regarding quality control?

All the products will be 100% checked before the shipment.
