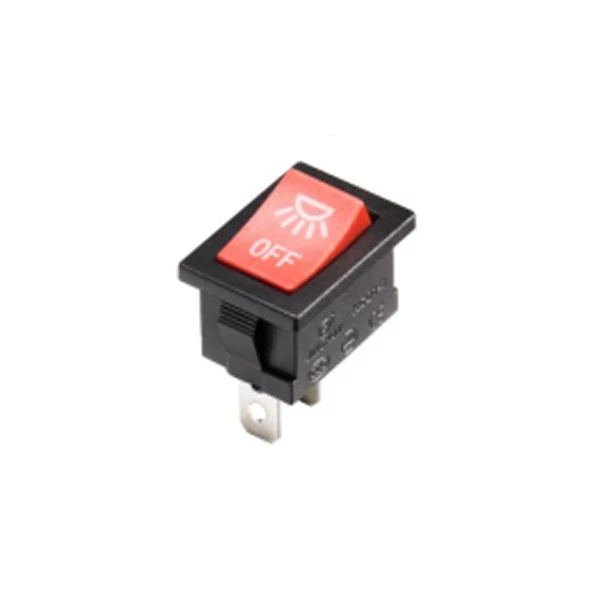

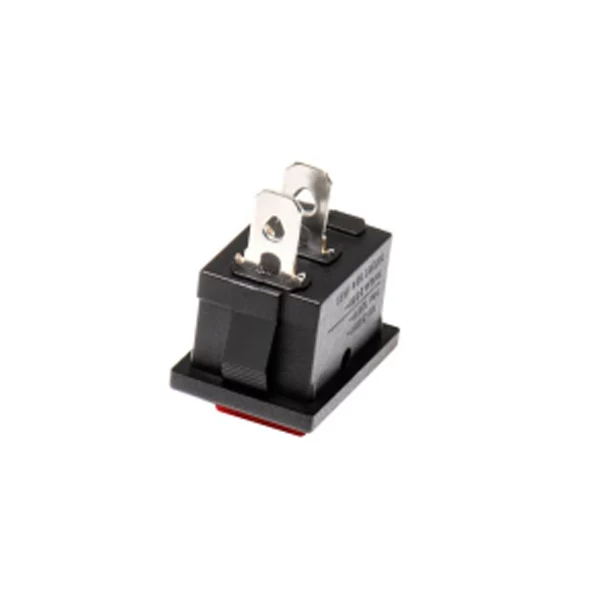

KCD1-106 2pins Rocker Canal Led Rocker Switch

KCD1-106

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC  6(4)A 250V AC

10A 125V AC  12(6)A 125V AC

10(6) 250V AC   12GP 125V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • Contact Resistance:
≦ 50mΩ

Rocker switch control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP Sub-mini Rocker Switch

Are you in search of a reliable, high-quality rocker switch for your business needs? Look no further than the WEUP Sub-mini Rocker Switch. With its exceptional features and versatile functionality, this switch is the perfect choice for importers, distributors, manufacturers, brands, wholesalers, and retailers. Let’s explore why the WEUP Sub-mini Rocker Switch is the ultimate solution for your business.

1. Exceptional Features and Benefits

  • Pilot light or illumination: The WEUP Sub-mini Rocker Switch comes with a pilot light or illumination option, allowing for easy identification of the switch status even in low-light conditions. This feature enhances convenience and safety.
  • Imprinted markings: The switch features clear and durable imprinted markings, ensuring that the labels remain visible and legible even after prolonged use. This makes it easier to identify and operate the switch accurately.
  • IP54 splash proof rubber boot option: The WEUP Sub-mini Rocker Switch offers an IP54 splash-proof rubber boot option, providing protection against water splashes and dust. This feature enhances the switch’s durability and reliability, making it suitable for various environments.
  • Quick connect or blade terminals: With quick connect or blade terminals, the installation process becomes fast and efficient. The WEUP Sub-mini Rocker Switch offers this flexibility, allowing for easy integration into your existing systems.

2. Extensive Applications

The WEUP Sub-mini Rocker Switch finds application in various industries and sectors. Its versatility makes it suitable for a wide range of applications, including:

  • Small appliances: Whether it’s controlling the on/off functions of kitchen appliances or electronic devices, the WEUP Sub-mini Rocker Switch provides reliable performance. It is ideal for use in coffee makers, toasters, blenders, and more.
  • Computers and peripherals: From desktop computers to printers and monitors, the WEUP Sub-mini Rocker Switch ensures smooth operation and control. Its compact size and easy installation make it a perfect fit for computer hardware.
  • Medical instrumentation: In the medical field, precision and reliability are crucial. The WEUP Sub-mini Rocker Switch meets these requirements and is suitable for medical instruments such as diagnostic equipment, patient monitors, and more.

3. Superior Specifications

The WEUP Sub-mini Rocker Switch boasts impressive specifications that guarantee exceptional performance:

  • Contact Rating: The switch has a contact rating of 6A 250V AC and 10A 125V AC, allowing for handling moderate power loads. This ensures reliable operation even in demanding applications.
  • Electrical Life: With a minimum electrical life of 50,000 cycles, the WEUP Sub-mini Rocker Switch offers long-lasting performance. It can withstand frequent switching without compromising its functionality.
  • Insulation Resistance: The switch provides insulation resistance of at least 100 MΩ, ensuring safe and reliable electrical operation. This feature prevents leakage and enhances overall system performance.
  • Degree of Protection: With an IP55 degree of protection, the WEUP Sub-mini Rocker Switch offers excellent resistance to dust and water splashes. It can withstand challenging environmental conditions, making it suitable for both indoor and outdoor use.

4. Customization Options

WEUP understands that every business has unique requirements. That’s why the Sub-mini Rocker Switch offers customization options to meet your specific needs:

  • Shapes, size, and construction: WEUP can create custom models according to your requirements. Whether you need a specific shape, size, or construction, our expert team can deliver a tailored solution.
  • Recessed switch guards: To prevent accidental actuation, we offer recessed switch guards as an option. This feature adds an extra layer of protection to ensure reliable operation.
  • Splash-proof rubber boots: If your application demands additional protection against water splashes, our splash-proof rubber boots are available as a customization option. This ensures enhanced durability and reliability in challenging environments.
  • Custom wire harness and actuator marking: WEUP can support custom wire harness and actuator marking requests to meet your branding and identification needs. This allows you to align the switch with your company’s visual identity.

5. Trusted Manufacturer

As one of the leading China manufacturers, WEUP is known for its commitment to excellence. With a focus on quality assurance and customer satisfaction, WEUP ensures that each Sub-mini Rocker Switch meets stringent standards before leaving the factory. Our reliable products have gained the trust of customers worldwide.

Conclusion

In conclusion, the WEUP Sub-mini Rocker Switch is an exceptional choice for B2B buyers in need of a reliable and versatile switch solution. Its exceptional features such as pilot light or illumination, imprinted markings, and IP54 splash-proof rubber boot option ensure convenience, durability, and safety. The extensive applications, superior specifications, and customization options make it a perfect fit for various industries. Trust in WEUP as your reliable partner for high-quality rocker switches.

Don’t miss out on this opportunity! Contact us today to discuss your requirements and experience the benefits of the WEUP Sub-mini Rocker Switch.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD1-106 2pins rocker canal led rocker switch

KCD1-106K2PA1KC
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton ColorActuator
Black KCD1-106 2pins rocker canal led rocker switchON-OFF KCD1-106 2pins rocker canal led rocker switch 4.8*0.8 KCD1-106 2pins rocker canal led rocker switch  KCD1-106 2pins rocker canal led rocker switchBlack KCD1-106 2pins rocker canal led rocker switch  KCD1-106 2pins rocker canal led rocker switch
Blue KCD1-106 2pins rocker canal led rocker switchON-OFF KCD1-106 2pins rocker canal led rocker switch3.2*0.8 KCD1-106 2pins rocker canal led rocker switch  KCD1-106 2pins rocker canal led rocker switchBlue KCD1-106 2pins rocker canal led rocker switch  KCD1-106 2pins rocker canal led rocker switch
Green KCD1-106 2pins rocker canal led rocker switchON-OFF KCD1-106 2pins rocker canal led rocker switch1.2*0.8 KCD1-106 2pins rocker canal led rocker switch  KCD1-106 2pins rocker canal led rocker switchGreen KCD1-106 2pins rocker canal led rocker switch  KCD1-106 2pins rocker canal led rocker switch
Orange KCD1-106 2pins rocker canal led rocker switchON-OFF-ON KCD1-106 2pins rocker canal led rocker switch  KCD1-106 2pins rocker canal led rocker switchOrange KCD1-106 2pins rocker canal led rocker switch  KCD1-106 2pins rocker canal led rocker switch
Red KCD1-106 2pins rocker canal led rocker switchON-OFF-(ON) KCD1-106 2pins rocker canal led rocker switch  KCD1-106 2pins rocker canal led rocker switchRed KCD1-106 2pins rocker canal led rocker switch
White KCD1-106 2pins rocker canal led rocker switch(ON)-OFF-(ON) KCD1-106 2pins rocker canal led rocker switch  KCD1-106 2pins rocker canal led rocker switchWhite KCD1-106 2pins rocker canal led rocker switch
Yellow KCD1-106 2pins rocker canal led rocker switch  KCD1-106 2pins rocker canal led rocker switchYellow KCD1-106 2pins rocker canal led rocker switch

Characteristics

Permissible operating frequencyMechanical20 operations/min max.
Electrical7 operations/min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2,000 VAC, 50/60 Hz, for 1 min
Between terminals of the different polarity2,000 VAC, 50/60 Hz, for 1 min
Between charged metal parts and the ground terminal4,000 VAC, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2
Destruction500 m/s2
DurabilityMechanical50,000 operations min.
Electrical10,000 operations min.
Inrush current100 A max. (8.3 ms max.)
Degree of protectionIEC IP40
Ambient operating temperature–20 to +55C (with no icing or condensation)
Ambient operating humidity45 to 85%RH

KCD1-106 2pins rocker canal led rocker switch

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switchrocker switch

Related Products (4)

Download Latest Catalog

Do you supply samples? Are the Samples free?

Yes. Usually, 1-2 samples are free of charge, please support us by providing us with any express account such as DHL, FedEx, TNT, or UPS.

How is the shipping?

Our nearest port is Ningbo and Shanghai port, but if you collect the goods to ship together, we could send them to the other farther port. Usually, our customers will choose TNT, DHL, FedEx, and UPS to ship them.

How long is the delivery leading time?

Usually the samples 1-5 days to prepare. For orders, it depends on the quantity. Usually 5-15 days.

How is the packing?

For standard packing, dozens per box, 500pcs or 1000pcs per carton. We also provide you with custom box or carton packing with your logo and design.

How do you do regarding quality control?

All the products will be 100% checked before the shipment.
