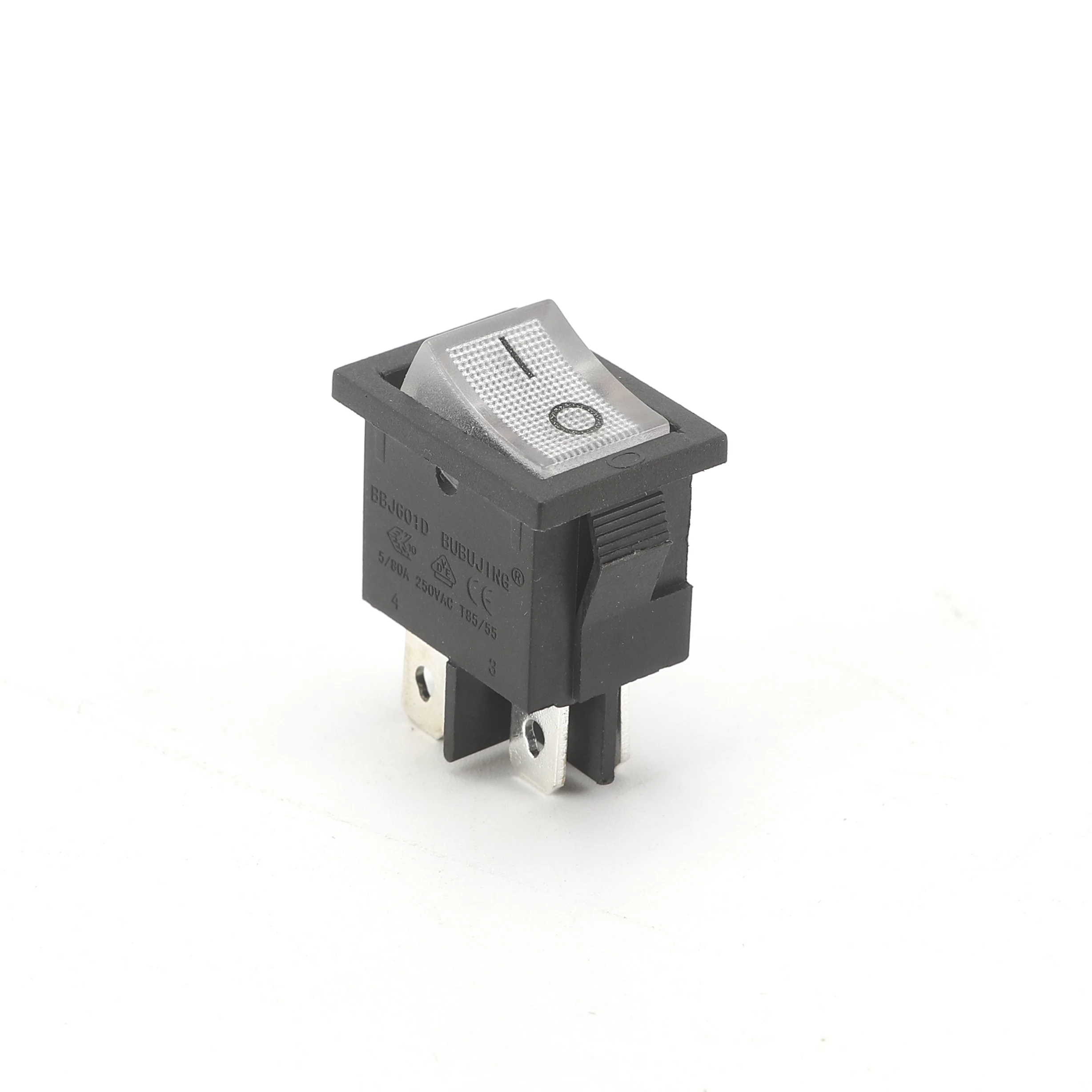

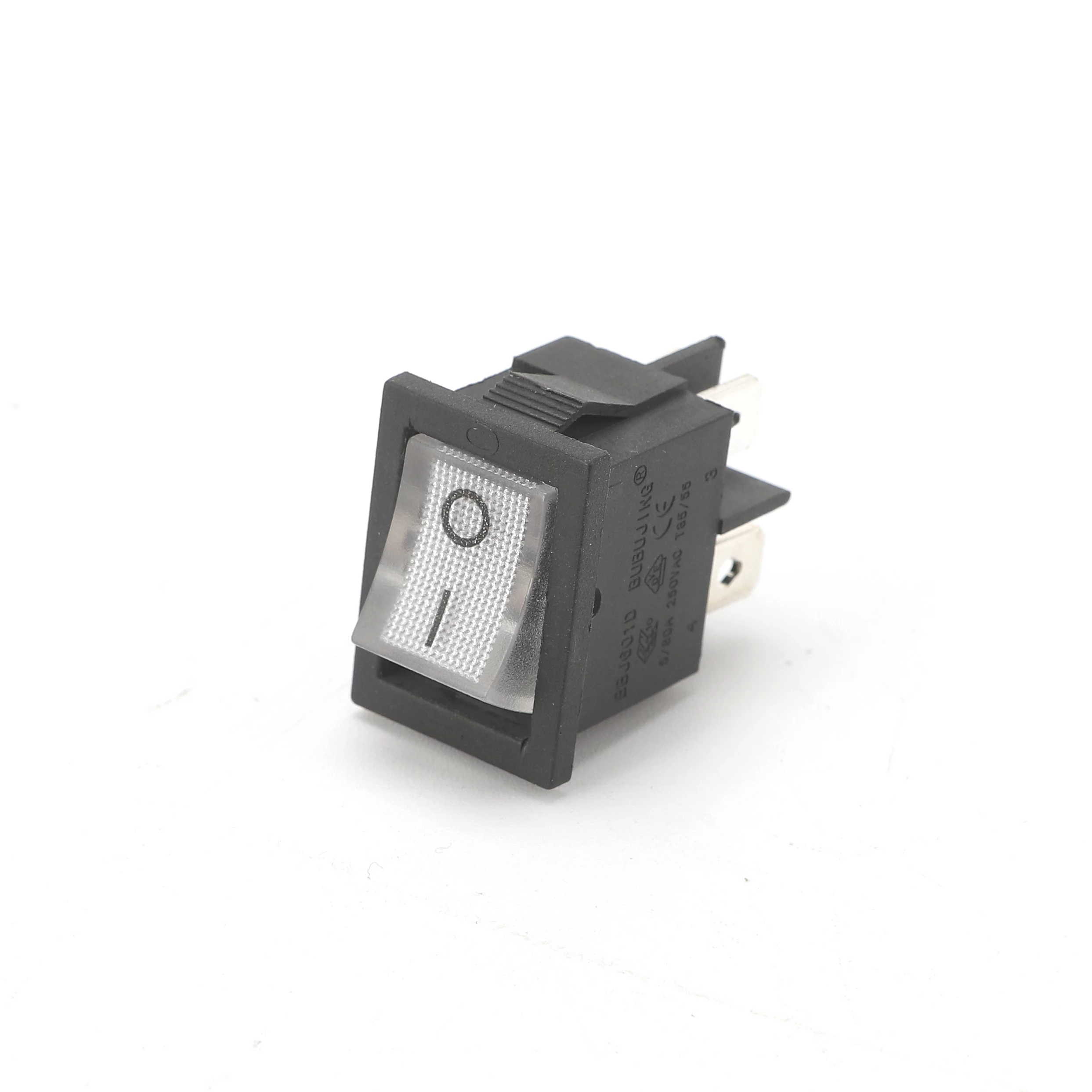

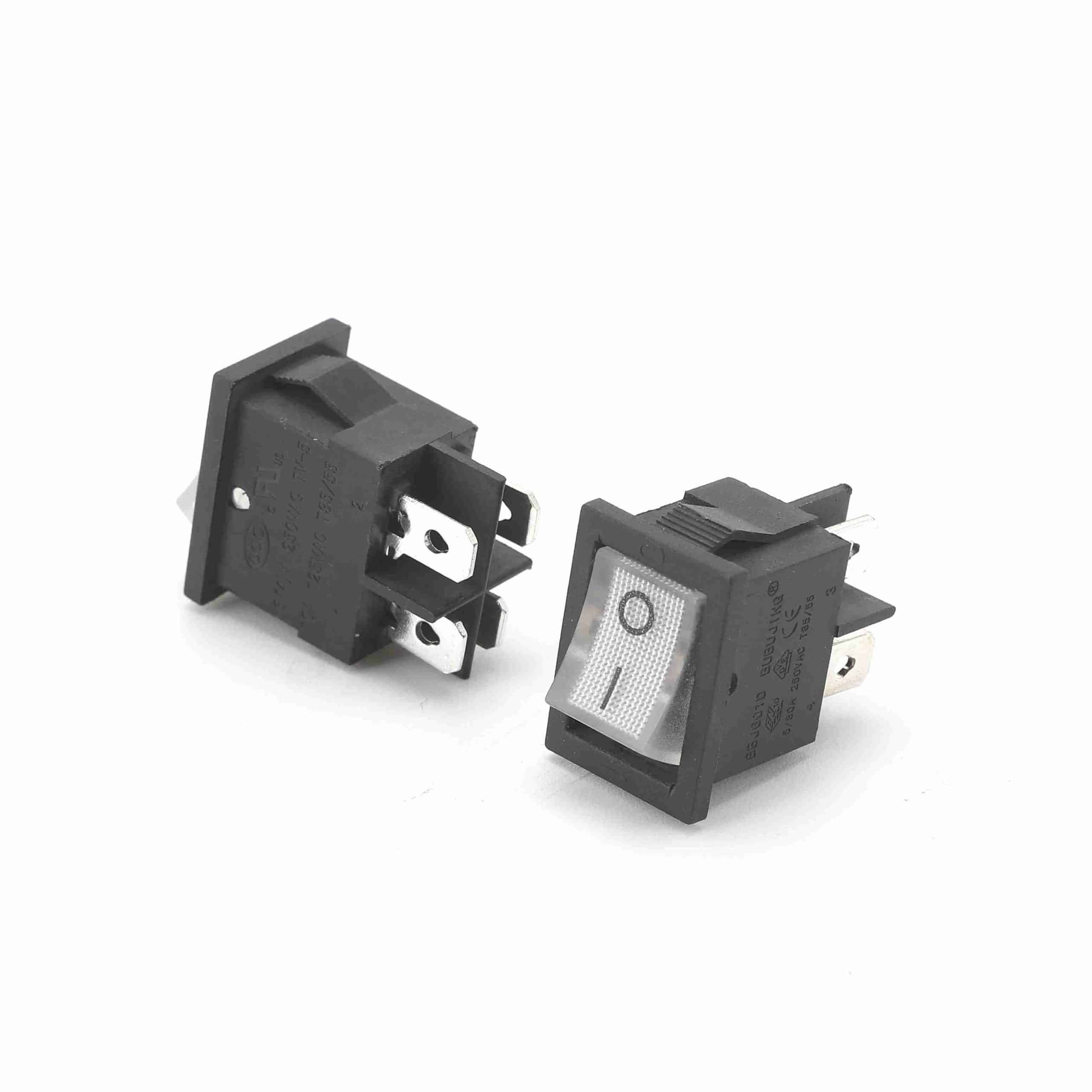

KCD1-104-N-KW- On Off 12v Rocker Switch

KCD1-104-N-KW

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC

10A 125V AC

10(6) 250V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • ContactResistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more. Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like shapes, sizes, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also, WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing WEUP’s 12v Rocker Switch: The Ultimate Solution for B2B Buyers

Are you a B2B buyer looking for a reliable and efficient 12v rocker switch? Look no further! WEUP presents its exceptional 12v Rocker Switch, designed to cater to the needs of importers, distributors, manufacturers, brands, wholesalers, and retailers. With its impressive features and functions, this product is a game-changer in the industry. Let’s delve into the details that make WEUP’s 12v Rocker Switch stand out from the competition:

1. Versatile Functionality:

  • The 12v Rocker Switch is equipped with an essential on/off function, which is crucial for controlling home appliance products effectively.
  • Additionally, this switch offers diverse functionalities such as 3 positions, button, changeover too. This versatility ensures that it meets the requirements of various applications.

2. Wide Range of Configurations:

  • WEUP understands the diverse needs of B2B buyers. Hence, the 12v Rocker Switch is available in different configurations, including two-position on/off, three-position, momentary, maintained, and more.
  • Furthermore, these switches come in illuminated (LED and incandescent) and sealed/waterproof versions to cater to different environmental conditions.
  • The product also offers SPST, SPDT, DPST, DPDT, 3PDT, and 4DPT functionality to meet a wide range of electrical circuit requirements.

3. Customization Options:

  • WEUP takes pride in providing tailor-made solutions to its customers. With multi-pole, multi-position functionality, the 12v Rocker Switch can be customized to suit specific applications.
  • The company’s own D&R development makes it convenient for WEUP to create new models according to customers’ requests. This customization capability sets WEUP apart from other China manufacturers.

4. Superior Quality and Durability:

  • The 12v Rocker Switch from WEUP is built to last. It boasts an impressive electrical life of over 50,000 cycles, ensuring long-term reliability.
  • With insulation resistance of over 100 MΩ and a contact resistance of less than 50mΩ, this switch offers excellent performance and minimal power loss.
  • Moreover, the switch is rated IP55 for degree of protection, making it resistant to dust and water splashes. This feature ensures its reliability even in challenging environments.

5. Extensive Applications:

  • The 12v Rocker Switch is suitable for a wide range of applications. It finds its place in small appliances, computers and peripherals, medical instrumentation, and many more.
  • Its compact size and space-saving footprint make it ideal for various devices where real estate is limited.

By choosing WEUP’s 12v Rocker Switch, B2B buyers can benefit from a reliable, versatile, and customizable solution that meets their specific requirements. The product’s exceptional features and functions make it an excellent choice for importers, distributors, manufacturers, brands, wholesalers, and retailers. With the support of WEUP’s customization capabilities and commitment to quality, buyers can be confident in their decision.

Don’t miss out on the opportunity to enhance your products with this outstanding 12v Rocker Switch from WEUP. Contact us today to explore how we can meet your needs as a trusted supplier.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD1-104-N-KW- On Off 12v Rocker Switch

KCD1-104K4PA1K
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton Color
Black KCD1-104-N-KW- On Off 12v Rocker SwitchON-OFF KCD1-104-N-KW- On Off 12v Rocker Switch 4.8*0.8 KCD1-104-N-KW- On Off 12v Rocker Switch  KCD1-104-N-KW- On Off 12v Rocker SwitchBlack KCD1-104-N-KW- On Off 12v Rocker Switch
Blue KCD1-104-N-KW- On Off 12v Rocker SwitchON-OFF KCD1-104-N-KW- On Off 12v Rocker Switch  KCD1-104-N-KW- On Off 12v Rocker SwitchBlue KCD1-104-N-KW- On Off 12v Rocker Switch
Green KCD1-104-N-KW- On Off 12v Rocker Switch  KCD1-104-N-KW- On Off 12v Rocker SwitchGreen KCD1-104-N-KW- On Off 12v Rocker Switch
Orange KCD1-104-N-KW- On Off 12v Rocker Switch  KCD1-104-N-KW- On Off 12v Rocker SwitchOrange KCD1-104-N-KW- On Off 12v Rocker Switch
Red KCD1-104-N-KW- On Off 12v Rocker Switch  KCD1-104-N-KW- On Off 12v Rocker SwitchRed KCD1-104-N-KW- On Off 12v Rocker Switch
White KCD1-104-N-KW- On Off 12v Rocker Switch  KCD1-104-N-KW- On Off 12v Rocker SwitchWhite KCD1-104-N-KW- On Off 12v Rocker Switch
Yellow KCD1-104-N-KW- On Off 12v Rocker Switch  KCD1-104-N-KW- On Off 12v Rocker SwitchYellow KCD1-104-N-KW- On Off 12v Rocker Switch
Permissible operating frequencyMechanical20 operations/min max.
Electrical7 operations/min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2,000 VAC, 50/60 Hz, for 1 min
Between terminals of the different polarity2,000 VAC, 50/60 Hz, for 1 min
Between charged metal parts and the ground terminal4,000 VAC, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2
Destruction500 m/s2
DurabilityMechanical50,000 operations min.
Electrical10,000 operations min.
Inrush current100 A max. (8.3 ms max.)
Degree of protectionIEC IP40
Ambient operating temperature–20 to +55C (with no icing or condensation)
Ambient operating humidity45 to 85%RH

KCD1-104-N-KW- On Off 12v Rocker Switch

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD1-104-N-KW- On Off 12v Rocker SwitchKCD1-104-N-KW- On Off 12v Rocker SwitchKCD1-104-N-KW- On Off 12v Rocker Switch
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD1-104-N-KW- On Off 12v Rocker SwitchKCD1-104-N-KW- On Off 12v Rocker SwitchKCD1-104-N-KW- On Off 12v Rocker Switch

Related Products (4)

Download Latest Catalog

Do you supply samples? Are the Samples free?

Yes. Usually, 1-2 samples are free of charge, please support us by providing us with any express account such as DHL, FedEx, TNT, or UPS.

How is the shipping?

Our nearest port is Ningbo and Shanghai port, but if you collect the goods to ship together, we could send them to the other farther port. Usually, our customers will choose TNT, DHL, FedEx, and UPS to ship them.

How long is the delivery leading time?

Usually the samples 1-5 days to prepare. For orders, it depends on the quantity. Usually 5-15 days.

How is the packing?

For standard packing, dozens per box, 500pcs or 1000pcs per carton. We also provide you with custom box or carton packing with your logo and design.

How do you do regarding quality control?

All the products will be 100% checked before the shipment.
