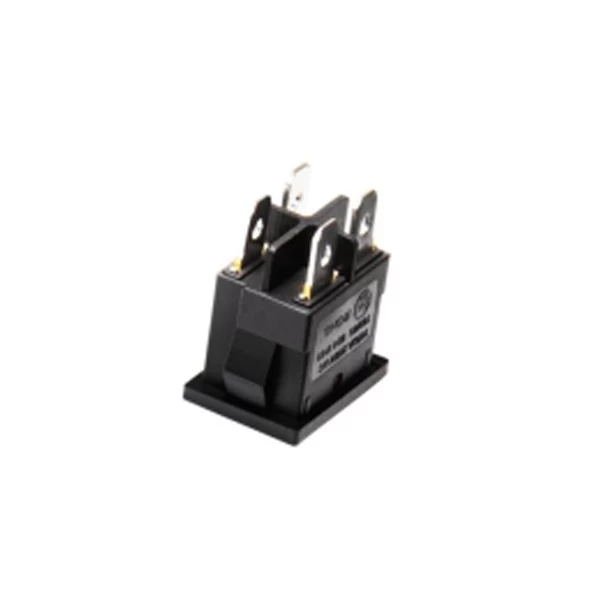

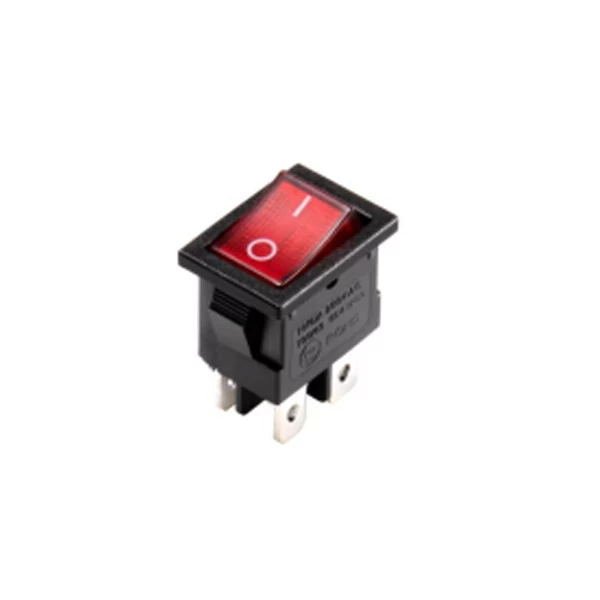

KCD1 104 Lighted Rocker Switch DPDT Red 4pin

KCD1-104

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC

10A 125V AC

10(6) 250V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • ContactResistance:
≦ 50mΩ

Through the provided information, we can see that this product has a variety of features and benefits that make it an excellent choice for various applications such as small appliances, computers, and medical instrumentation. Not only is it rated at 6A 250V AC 6(4)A 250V AC , 10A 125V AC 12(6)A 125V AC, 10 (6) 250V AC 12GP 125V AC, but it also has incredibly long operational life of ≧ 50000 cycles and incredibly low contact resistance of ≦ 50mΩ. Moreover, the IP55 degree of protection guarantees users against potential short circuits or electric shocks which makes this product ideal for many types of projects. Therefore, anyone looking to purchase this product should take into consideration its own specific features and benefits before making a decision.
