  • KCD1-104 6A 250V AC Electrical Lighted Rocker Switch
  • KCD1-104 6A 250V AC Electrical Lighted Rocker Switch

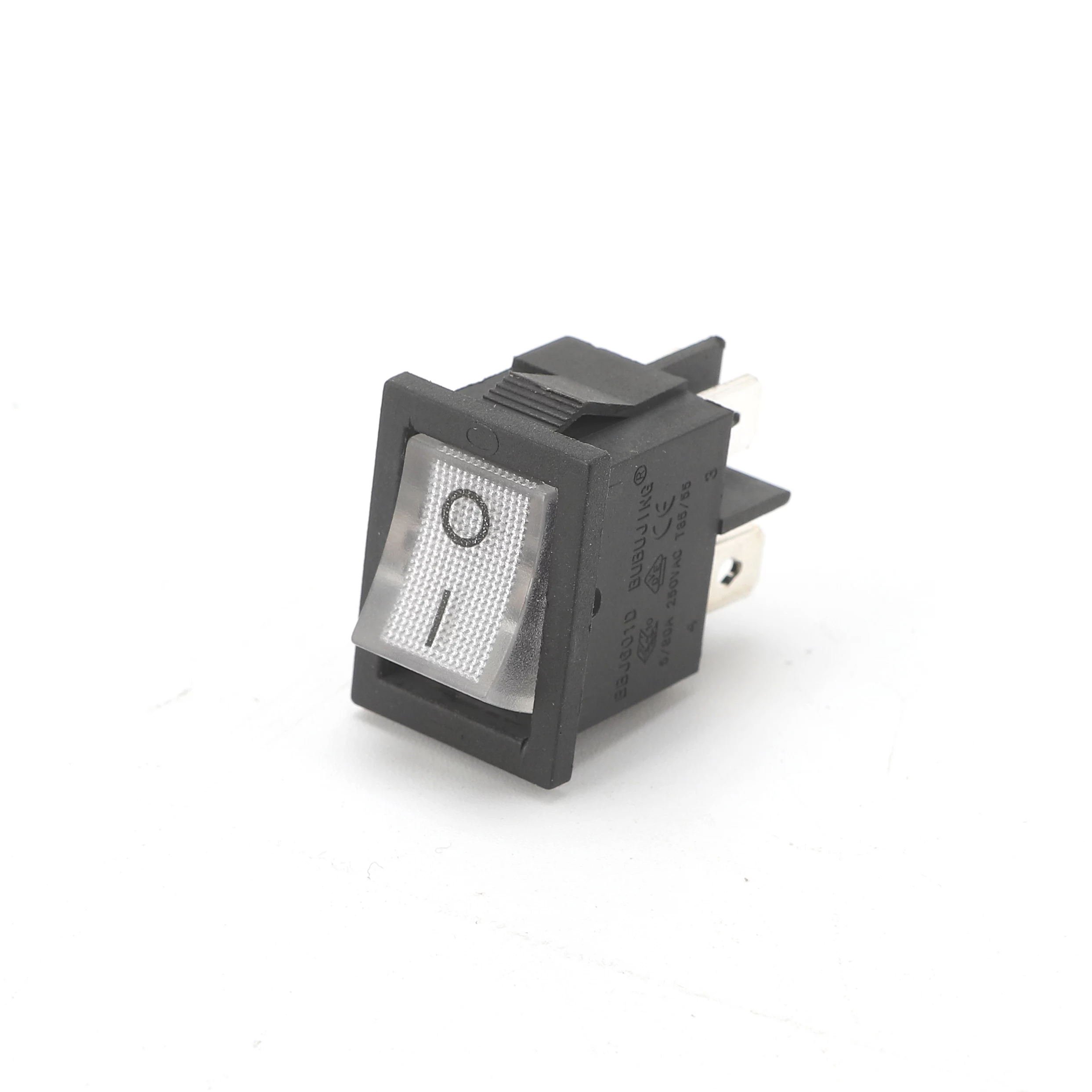

KCD1-104 6A 250V AC Electrical Lighted Rocker Switch

KCD1-104

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC

10A 125V AC

10(6) 250V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • Contact Resistance:
≦ 50mΩ

The professional product engineer and professional sales person should highly recommend this switch to their customers. This is due to its features and benefits; having a pilot light or illumination, imprinted markings, quick connect or blade terminals, IP54 splash proof rubber boot option, improved electrical life of 50000 cycles and insulation resistance≧100MΩ along with a contact rating of 10A 125V AC  12(6)A 125V AC and 10(6) 250V AC   12GP 125V AC. This versatile switch has a variety of potential typical applications such as in small appliances, computers and peripherals and medical instrumentation with an operating temperature degree of T 85/55 with contact resistance 50mΩ. Not only does this switch have tremendous practicality but it’s also built for durability meaning that customers can use this safely and reliably for multiple uses.

Read More

Product Features

Introducing the WEUP Lighted Rocker Switch – Your Go-To Electrical Solution

Are you a B2B buyer in search of a reliable and versatile electrical switch for your business? Look no further than the WEUP Lighted Rocker Switch (KCD1-104 6A 250V AC). This top-of-the-line switch is designed to meet the needs of importers, distributors, manufacturers, brands, wholesalers, and retailers like you. With its impressive features and functions, this switch is a must-have for any business in need of quality electrical components.

Features and Benefits that Set WEUP’s Lighted Rocker Switch Apart

  • Pilot Light or Illumination: The WEUP Lighted Rocker Switch comes with a pilot light or illumination feature, allowing users to easily identify when the switch is in use. This feature adds an extra layer of convenience and safety to your electrical systems.
  • Imprinted Markings: The switch is equipped with clear imprinted markings, ensuring easy identification and operation. You can rely on these markings to guide your users in using the switch correctly, minimizing errors and enhancing user experience.
  • IP54 Splash Proof Rubber Boot Option: With the option to choose an IP54 splash-proof rubber boot, this switch offers enhanced protection against water splashes and dust. This feature makes it ideal for use in various environments, including industrial settings or outdoor applications.
  • Quick Connect or Blade Terminals: The WEUP Lighted Rocker Switch provides you with the flexibility of choosing between quick connect or blade terminals. Whether you prefer quick and easy connections or a more secure blade terminal option, this switch caters to your specific requirements.

Versatile Applications for Various Industries

The WEUP Lighted Rocker Switch finds its place in a wide range of industries and applications. Its versatility makes it an indispensable component for:

  • Small Appliances: From kitchen appliances to household gadgets, this switch is perfect for powering various small appliances. Its robust construction ensures durability even with frequent use.
  • Computers and Peripherals: Whether it’s a desktop computer, printer, or other peripherals, this switch is an excellent choice for powering your electronic devices. Its reliability guarantees uninterrupted performance.
  • Medical Instrumentation: In the medical field, precision and safety are paramount. The WEUP Lighted Rocker Switch meets these requirements, making it suitable for medical instrumentation. It can be confidently used in critical equipment without compromising performance.

Technical Specifications that Ensure Reliability

The WEUP Lighted Rocker Switch boasts impressive technical specifications that guarantee its performance and longevity:

  • Contact Rating: With a contact rating of 6A 250V AC, this switch can handle various electrical loads efficiently. Its robust design ensures reliable operation even under demanding conditions.
  • Electrical Life: The switch has an electrical life of over 50,000 cycles, ensuring long-lasting performance. You can rely on it to withstand continuous use without compromising its functionality.
  • Insulation Resistance: With insulation resistance exceeding 100 MΩ, this switch guarantees safe operation by minimizing the risk of electrical shorts or malfunctions. It meets industry standards for insulation resistance to ensure user safety.
  • Degree of Protection: The IP55 degree of protection shields the switch from dust and water splashes. This feature enhances its durability and reliability, making it suitable for both indoor and outdoor applications.
  • Operating Temperature: The switch can operate within a temperature range of T 85/55, ensuring reliable performance even in extreme temperature conditions. It is built to withstand a wide range of environmental factors.
  • Contact Resistance: With contact resistance less than 50mΩ, this switch ensures efficient electrical conductivity. It minimizes voltage drops and energy losses, optimizing the overall performance of your electrical systems.

WEUP’s Commitment to Quality and Durability

When choosing electrical components for your business, it’s crucial to consider their durability and reliability. The WEUP Lighted Rocker Switch excels in both areas:

  • Tremendous Practicality: This switch combines practicality with durability, making it suitable for multiple uses across industries. You can trust it to perform consistently and reliably in various applications.
  • Built for Durability: WEUP prioritizes durability in its products. The Lighted Rocker Switch is built to withstand the test of time and rigorous use. Its robust construction ensures longevity, reducing the need for frequent replacements or repairs.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD1-104 6A 250V AC Lighted Rocker Switch



KCD1-104K4PA1K
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton Color
Black KCD1-104 6A 250V AC Lighted Rocker SwitchON-OFF KCD1-104 6A 250V AC Lighted Rocker Switch 4.8*0.8 KCD1-104 6A 250V AC Lighted Rocker Switch  KCD1-104 6A 250V AC Lighted Rocker SwitchBlack KCD1-104 6A 250V AC Lighted Rocker Switch
Blue KCD1-104 6A 250V AC Lighted Rocker SwitchON-OFF KCD1-104 6A 250V AC Lighted Rocker Switch  KCD1-104 6A 250V AC Lighted Rocker SwitchBlue KCD1-104 6A 250V AC Lighted Rocker Switch
Green KCD1-104 6A 250V AC Lighted Rocker Switch  KCD1-104 6A 250V AC Lighted Rocker SwitchGreen KCD1-104 6A 250V AC Lighted Rocker Switch
Orange KCD1-104 6A 250V AC Lighted Rocker Switch  KCD1-104 6A 250V AC Lighted Rocker SwitchOrange KCD1-104 6A 250V AC Lighted Rocker Switch
Red KCD1-104 6A 250V AC Lighted Rocker Switch  KCD1-104 6A 250V AC Lighted Rocker SwitchRed KCD1-104 6A 250V AC Lighted Rocker Switch
White KCD1-104 6A 250V AC Lighted Rocker Switch  KCD1-104 6A 250V AC Lighted Rocker SwitchWhite KCD1-104 6A 250V AC Lighted Rocker Switch
Yellow KCD1-104 6A 250V AC Lighted Rocker Switch  KCD1-104 6A 250V AC Lighted Rocker SwitchYellow KCD1-104 6A 250V AC Lighted Rocker Switch

Characteristics

Permissible operating frequencyMechanical20 operations/min max.
Electrical7 operations/min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2,000 VAC, 50/60 Hz, for 1 min
Between terminals of the different polarity2,000 VAC, 50/60 Hz, for 1 min
Between charged metal parts and the ground terminal4,000 VAC, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2
Destruction500 m/s2
DurabilityMechanical50,000 operations min.
Electrical10,000 operations min.
Inrush current100 A max. (8.3 ms max.)
Degree of protectionIEC IP40
Ambient operating temperature–20 to +55C (with no icing or condensation)
Ambient operating humidity45 to 85%RH

KCD1-104 6A 250V AC Lighted Rocker Switch

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.



MonitorsCopiersPrinters
KCD3-101RD WATERPROOF ROCKER SWITCHKCD3-101RD WATERPROOF ROCKER SWITCHKCD3-101RD WATERPROOF ROCKER SWITCH
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD3-101RD WATERPROOF ROCKER SWITCHKCD3-101RD WATERPROOF ROCKER SWITCHKCD3-101RD WATERPROOF ROCKER SWITCH

Related Products (4)

Download Latest Catalog

Do you supply samples? Are the Samples free?

Yes. Usually, 1-2 samples are free of charge, please support us by providing us with any express account such as DHL, FedEx, TNT, or UPS.

How is the shipping?

Our nearest port is Ningbo and Shanghai port, but if you collect the goods to ship together, we could send them to the other farther port. Usually, our customers will choose TNT, DHL, FedEx, and UPS to ship them.

How long is the delivery leading time?

Usually the samples 1-5 days to prepare. For orders, it depends on the quantity. Usually 5-15 days.

How is the packing?

For standard packing, dozens per box, 500pcs or 1000pcs per carton. We also provide you with custom box or carton packing with your logo and design.

How do you do regarding quality control?

All the products will be 100% checked before the shipment.
