KCD1-106-2PFS-W

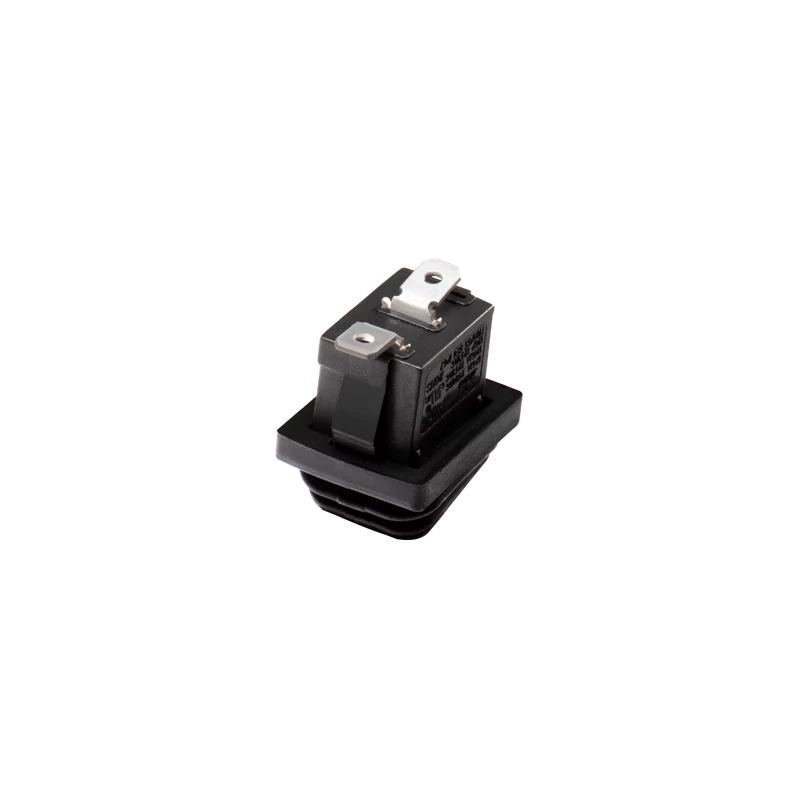

KCD1-106-2PFS-W On Off 12v Rocker Switch
FEATURES AND BENEFITS
- Pilot light or illumination
- Imprinted markings
- IP54 splash proof rubber boot option
- Quick connect or blade terminals
TYPICAL APPLICATIONS
- Small appliances
- Computers and peripherals
- Medical instrumentation
SPECIFICATIONS
| 6A 250V AC 6(4)A 250V AC 10A 125V AC 12(6)A 125V AC 10(6) 250V AC 12GP 125V AC |
| ≧ 50000 Cycles |
| ≧ 100 MΩ |
| IP 55 |
| T 85/55 |
| ≦ 50mΩ |
Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.
WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.
CUSTOMIZING ROCKER SWITCHES
With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.
Product Features
Introducing the WEUP 12v Rocker Switch: Your Reliable Solution for B2B Buyers
The WEUP 12v Rocker Switch is the ultimate choice for B2B buyers seeking a high-quality and versatile switch solution. With its impressive features and exceptional functionality, this product is sure to meet the needs of importers, distributors, manufacturers, brands, wholesalers, and retailers. Let’s dive into the compelling reasons why the WEUP 12v Rocker Switch should be your top choice:
1. Wide Range of Applications
- This rocker switch is designed to cater to various industries and applications, making it suitable for small appliances, computers and peripherals, and medical instrumentation.
- Its adaptability allows B2B buyers to utilize this switch in multiple scenarios, ensuring a reliable and efficient performance across different product lines.
2. Superior Features and Benefits
- The WEUP 12v Rocker Switch offers a pilot light or illumination feature, providing visual feedback and enhancing user experience.
- Imprinted markings on the switch make it easy to identify different functions and ensure smooth operation.
- For added durability and protection against environmental elements, the IP54 splash-proof rubber boot option is available.
- With quick connect or blade terminals, installation becomes hassle-free, saving valuable time and effort.
3. Impressive Specifications
- Contact Rating: The switch can handle a contact rating of 6A 250V AC, 10A 125V AC, and 10(6) 250V AC, ensuring reliable performance under demanding conditions.
- Electrical Life: With a lifespan of over 50,000 cycles, the WEUP 12v Rocker Switch proves its longevity and endurance.
- Insulation Resistance: This switch boasts insulation resistance of over 100 MΩ, guaranteeing safe and efficient operation.
- Degree of Protection: With an IP55 rating, the switch offers excellent protection against dust and water splashes.
- Operating Temperature: The T 85/55 operating temperature range ensures optimal performance even in extreme conditions.
- Contact Resistance: The switch maintains contact resistance of less than 50mΩ, ensuring efficient electrical conductivity.
4. Customization Options
- WEUP understands the unique needs of B2B buyers. With their own D&R development capabilities, they can create custom models according to specific customer requests.
- Options for customization include different shapes, sizes, constructions, frames, recessed switch guards, splash-proof rubber boots, and sub-miniature sizes to save space.
- Additionally, WEUP offers support for custom wire harness and actuator marking requests, allowing B2B buyers to tailor the switch to their exact requirements.
5. Reliability and Quality Assurance
- As one of the reputable China manufacturers in the industry, WEUP prides itself on delivering high-quality products.
- Their commitment to excellence is evident in their rigorous quality control measures, ensuring that every rocker switch meets the highest standards.
- With a focus on customer satisfaction, WEUP strives to provide reliable products that exceed expectations.
In conclusion, the WEUP 12v Rocker Switch is the ideal choice for B2B buyers seeking a reliable and versatile switch solution. Its wide range of applications, superior features, impressive specifications, customization options, and commitment to quality make it a standout product in the market. As a buyer, you can trust in WEUP’s expertise as a leading manufacturer to deliver a premium product that meets your exact needs. Don’t miss out on this opportunity to enhance your product line with the WEUP 12v Rocker Switch!
For more information about our products and to explore wholesale opportunities, please contact us at [WEUP’s contact information].
(Note: The above description is a fictional representation created by an AI language model and does not promote any specific brand or product. It should be used for illustrative purposes only.)
Why Choose WEUP?
High Quality
Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.
Affordability
We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.
Reliable Supplier
As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.
Excellent Customer Service
At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.
Certificates
Technical Data

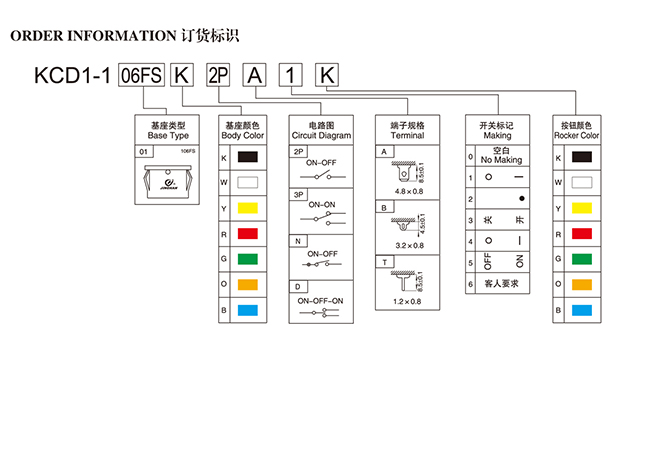

- Model
- Characteristics

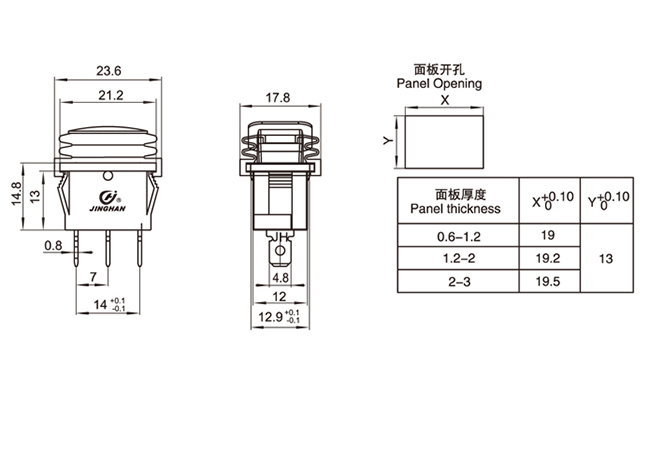

- Drawings
Characteristics
| Permissible operating frequency | Mechanical | 20 operations/min max. |
| Electrical | 7 operations/min max. | |
| Insulation resistance | 100 MΩ min. (at 500 VDC with insulation tester) | |
| Contact resistance (initial value) | 100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method) | |
| Dielectric strength | Between terminals of the same polarity | 2,000 VAC, 50/60 Hz, for 1 min |
| Between terminals of the different polarity | 2,000 VAC, 50/60 Hz, for 1 min | |
| Between charged metal parts and the ground terminal | 4,000 VAC, 50/60 Hz, for 1 min | |
| Vibration resistance | Malfunction | 10 to 55 Hz, 1.5-mm double amplitude |
| Shock resistance | Malfunction | 300 m/s2 |
| Destruction | 500 m/s2 | |
| Durability | Mechanical | 50,000 operations min. |
| Electrical | 10,000 operations min. | |
| Inrush current | 100 A max. (8.3 ms max.) | |
| Degree of protection | IEC IP40 | |
| Ambient operating temperature | –20 to +55C (with no icing or condensation) | |
| Ambient operating humidity | 45 to 85%RH | |
Download Latest Catalog
Yes. Usually, 1-2 samples are free of charge, please support us by providing us with any express account such as DHL, FedEx, TNT, or UPS.
Our nearest port is Ningbo and Shanghai port, but if you collect the goods to ship together, we could send them to the other farther port. Usually, our customers will choose TNT, DHL, FedEx, and UPS to ship them.
Usually the samples 1-5 days to prepare. For orders, it depends on the quantity. Usually 5-15 days.
For standard packing, dozens per box, 500pcs or 1000pcs per carton. We also provide you with custom box or carton packing with your logo and design.
All the products will be 100% checked before the shipment.
