Rocker Switches
Discover our comprehensive range of premium rocker switches. Built to the highest quality standards with over two decades of manufacturing excellence.

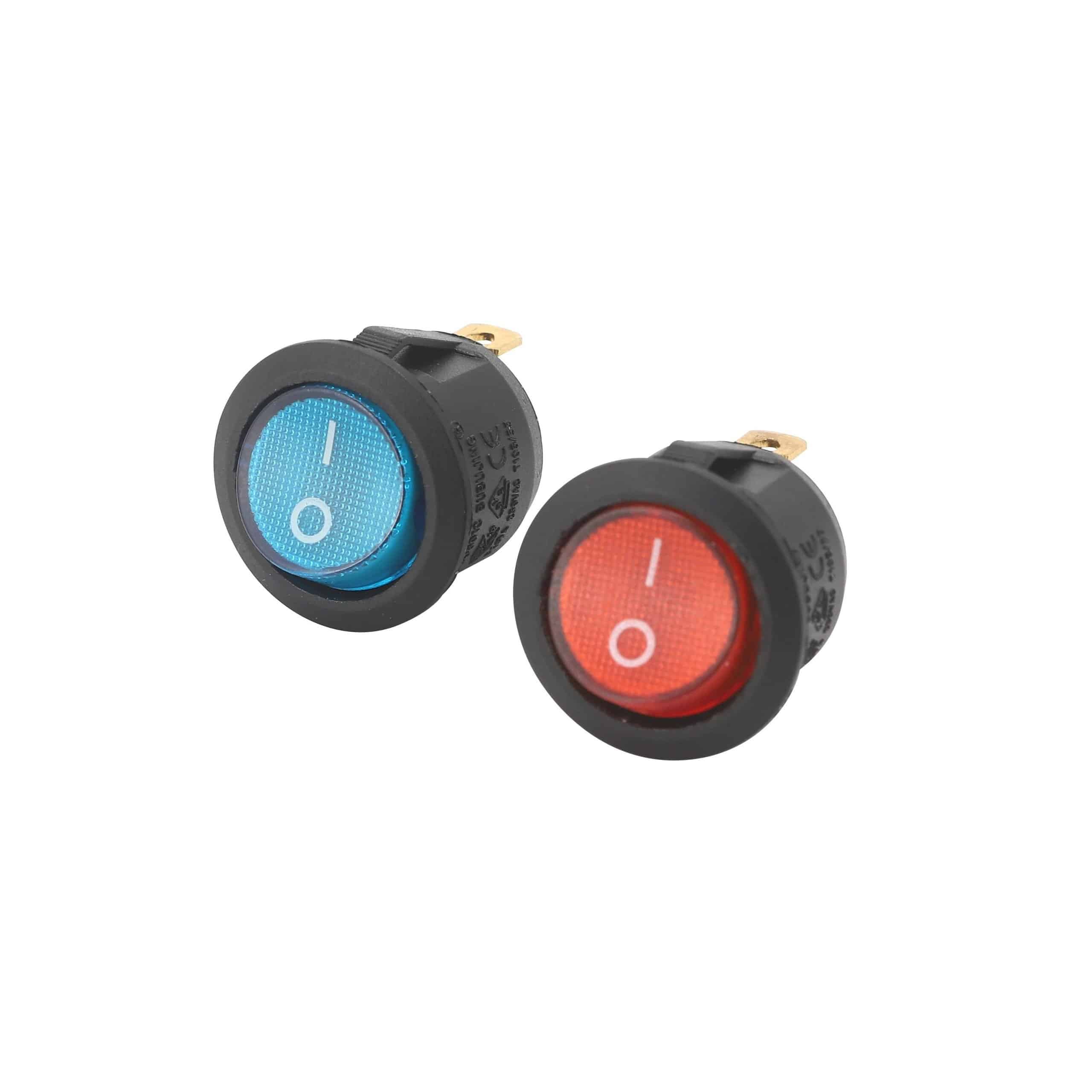

KCD1-202K3P-BLUE-3-WAY-ROUND-Lighted-Rocker-Switch
Model: KCD1-202K3P-BLUE-3-WAY-ROUND-Lighted-Rocker-Switch2
Current: 6A
Voltage: 250V AC
Contact Form: SPDT
View Details

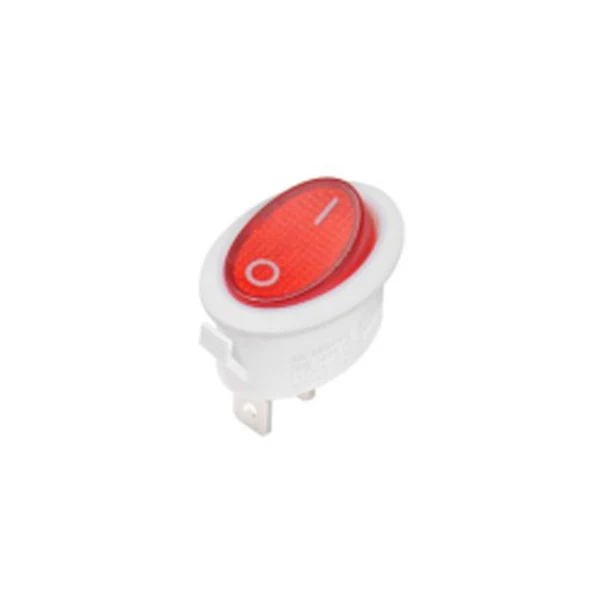

KCD1-311-current-switch-3pins-Lighted-Rocker-Switch
Model: KCD1-311-current-switch-3pins-Lighted-Rocker-Switch
Current: 6A
Voltage: 250V AC
Contact Form: SPST
View Details

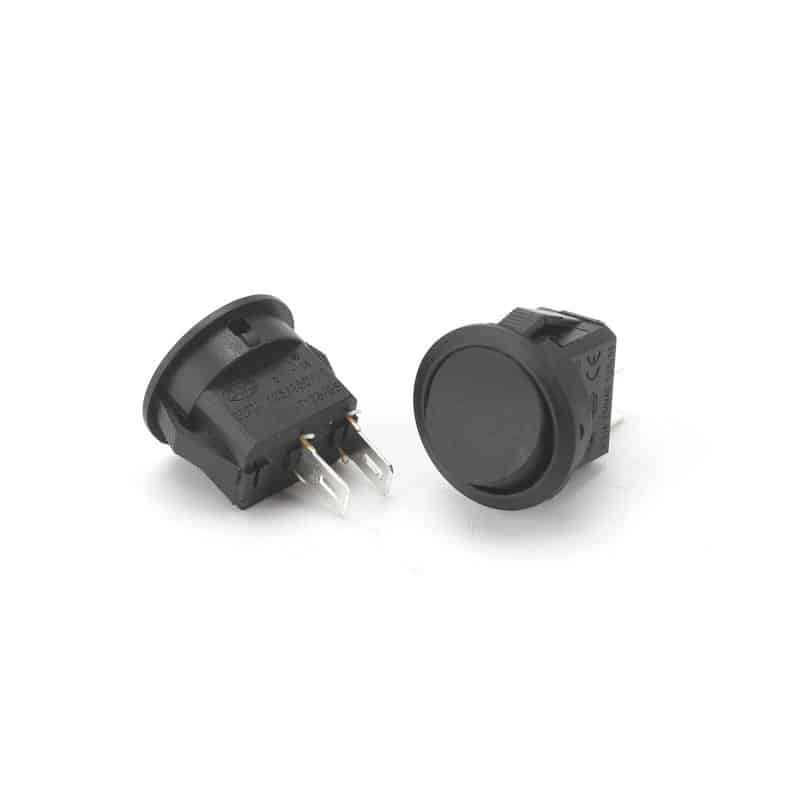

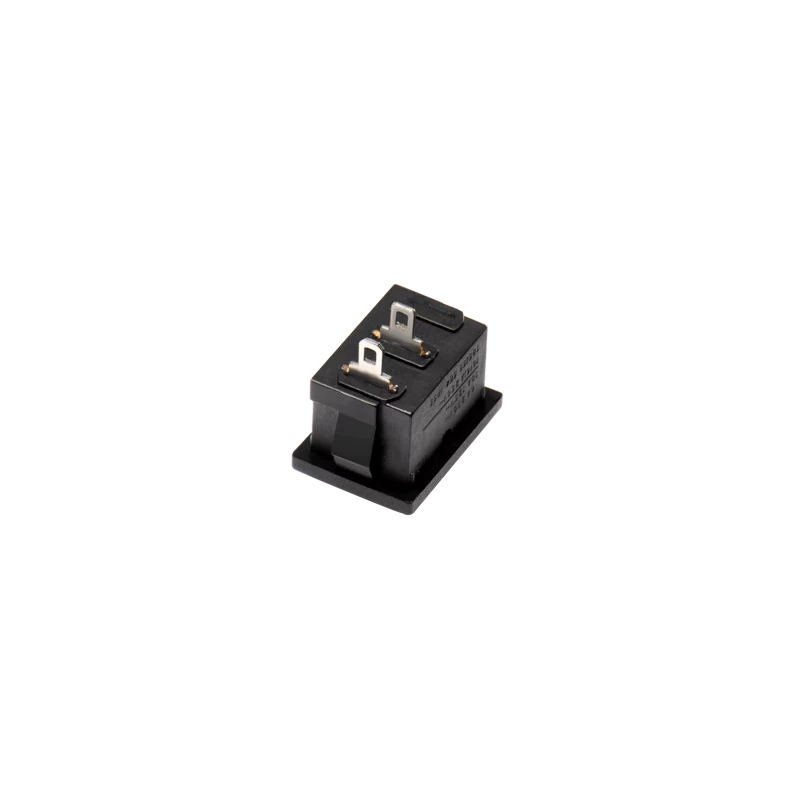

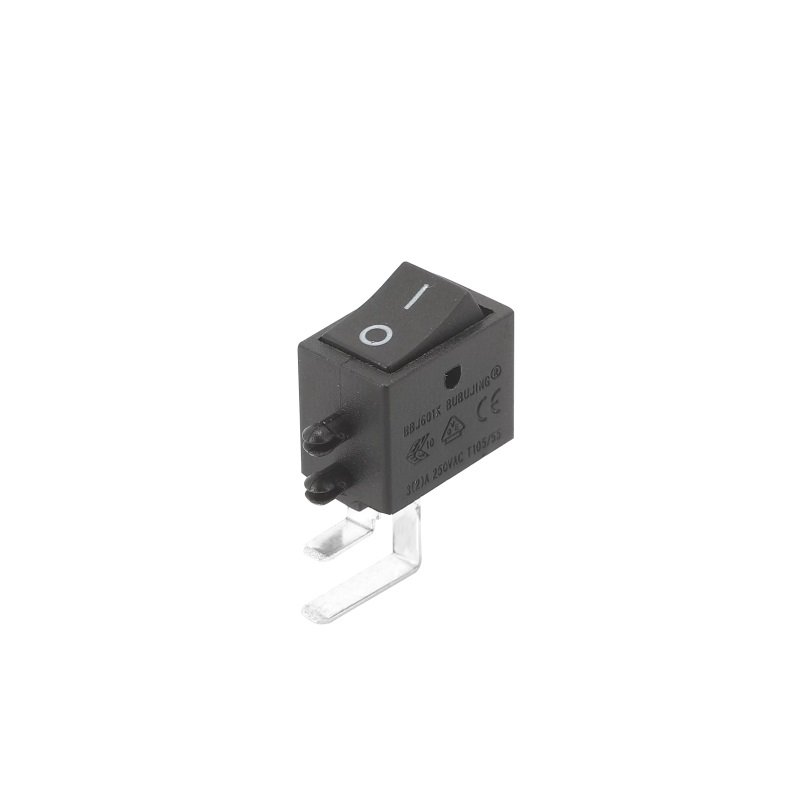

KCD11-101CK2P-SPDT-ON-OFF-MINI-ROCKER-SWITCH1
Model: KCD11-101CK2P-SPDT-ON-OFF-MINI-ROCKER-SWITCH1
Current: 6A
Voltage: 250V AC
Contact Form: SPST
View Details

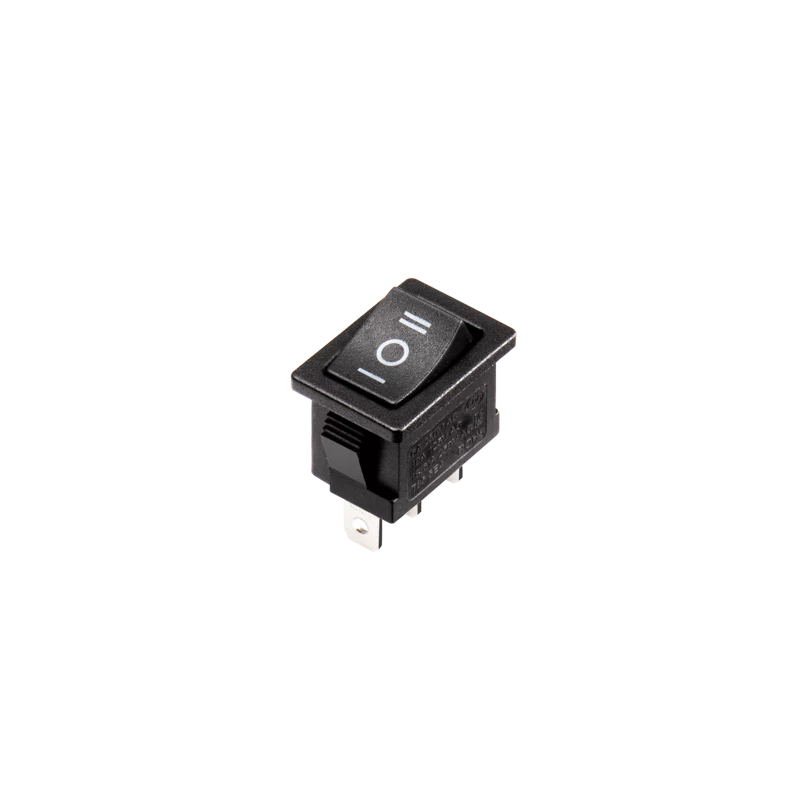

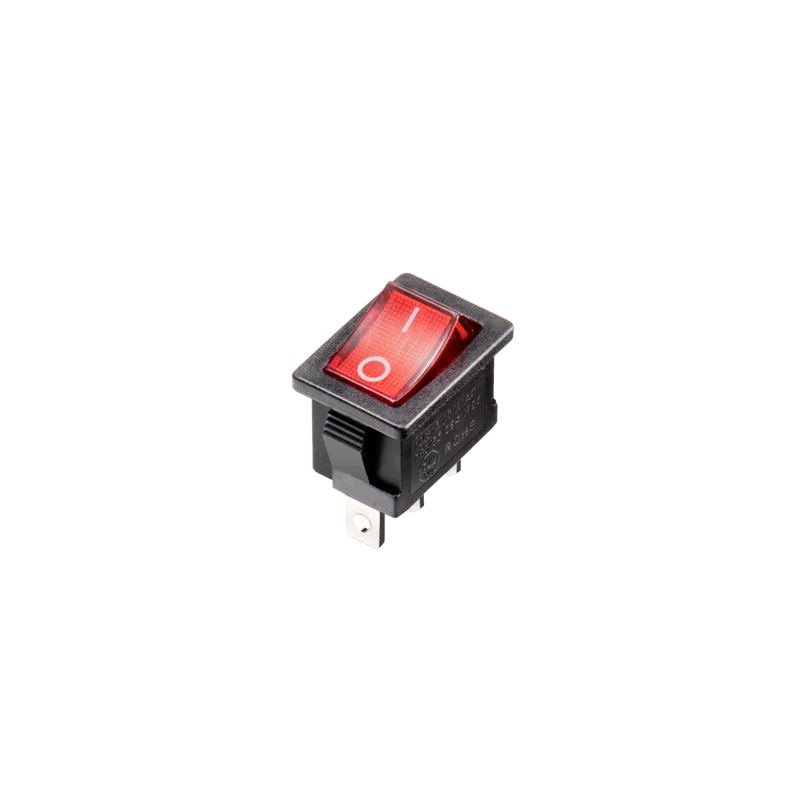

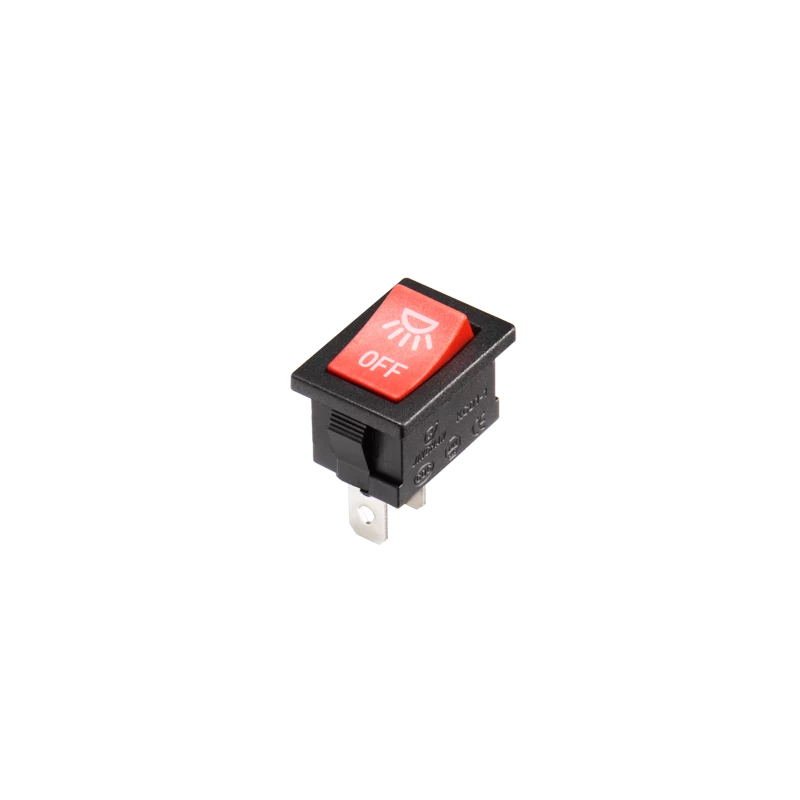

KCD1-106-CQC-24V-KCD1-T85-SPST-2-Pin-Brass-Dual-Function-Rocker-Switch
Model: KCD1-106-CQC-24V-KCD1-T85-SPST-2-Pin-Brass-Dual-Function-Rocker-Switch
Current: 6A
Voltage: 250V AC
Contact Form: SPDT
View Details
KCD1-106-250v-kcd1-t85-rocker-switch-2-pin-rocker-switch-SPST
Model: KCD1-106-250v-kcd1-t85-rocker-switch-2-pin-rocker-switch-SPST
Current: 6A
Voltage: 250V AC
Contact Form: SPDT
View Details

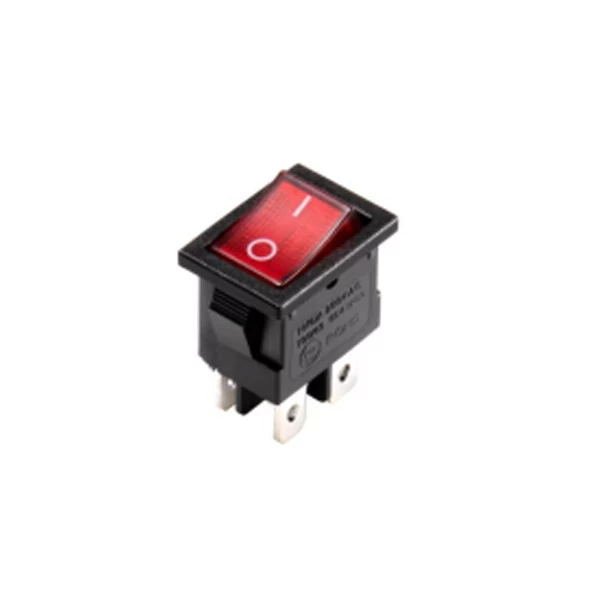

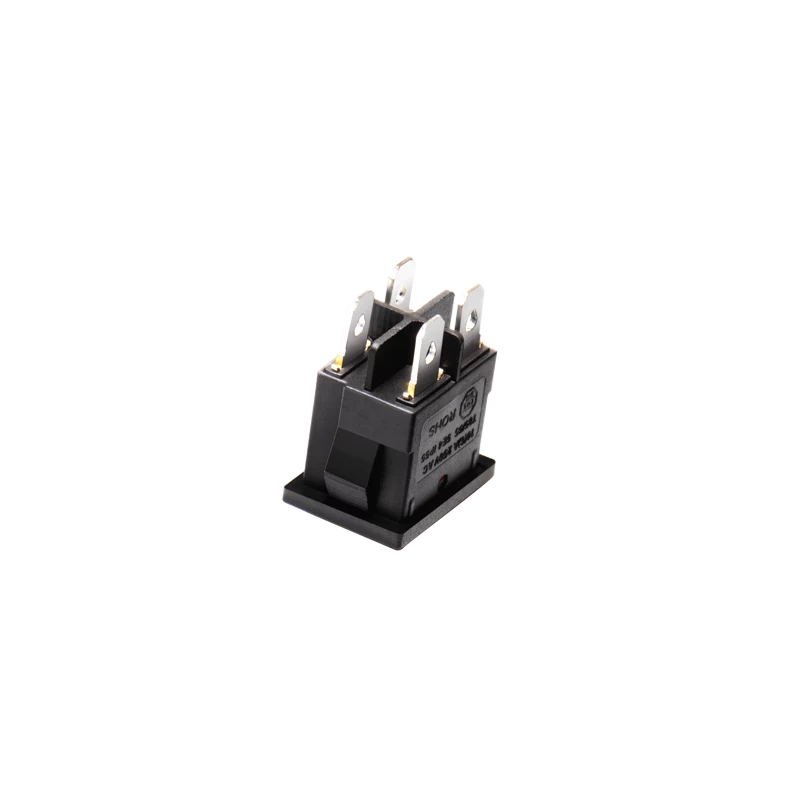

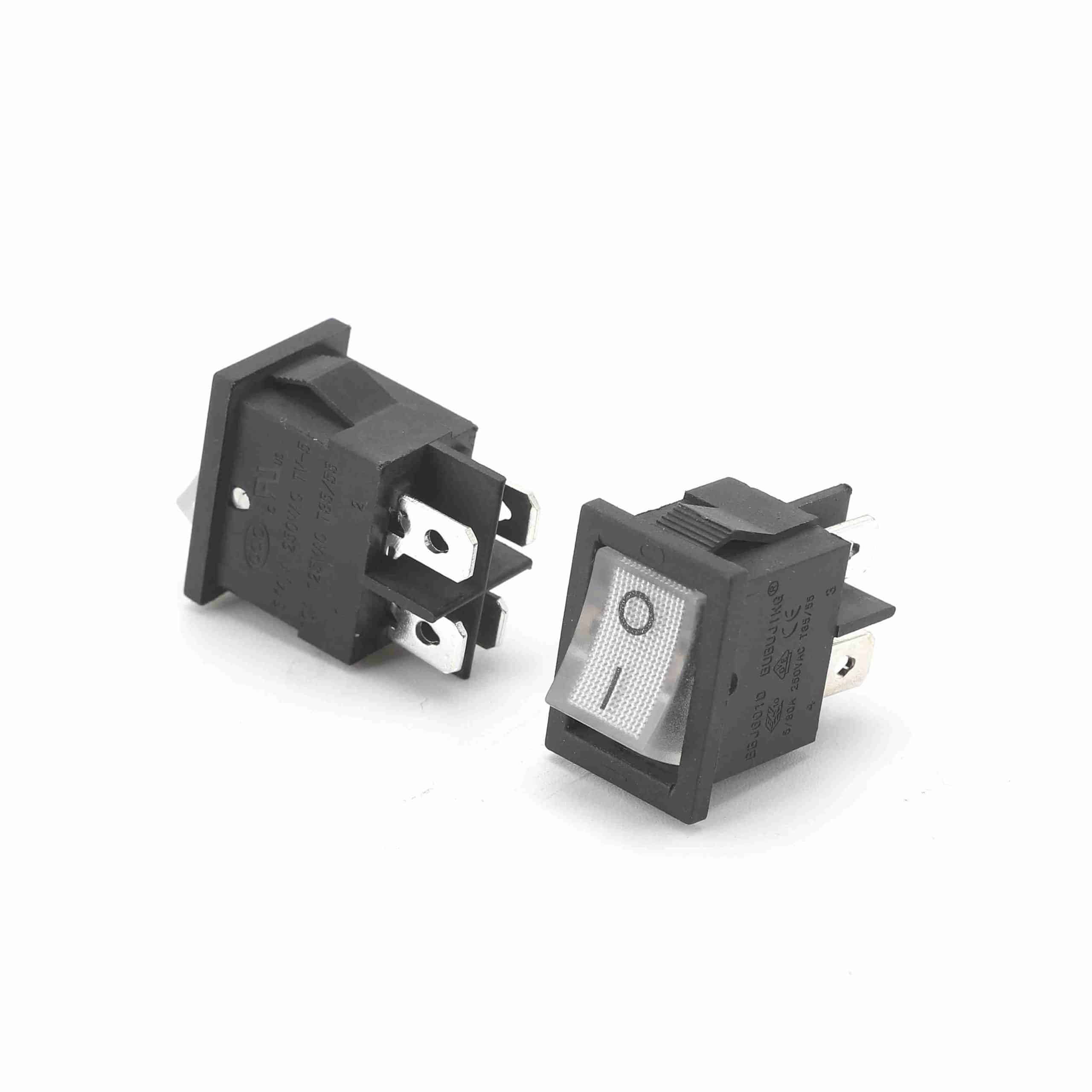

KCD1-104-light-illuminated-switch-DPST-big-current-switch
Model: KCD1-104-light-illuminated-switch-DPST-big-current-switch
Current: 6A
Voltage: 250V AC
Contact Form: DPST
View Details
KCD3-303W8P-3PST-TRIPLE-ROCKER-SWITCH
Model: KCD3-303W8P-3PST-TRIPLE-ROCKER-SWITCH2
Current: 16A
Voltage: 250V AC
Contact Form: 3PDT
View Details

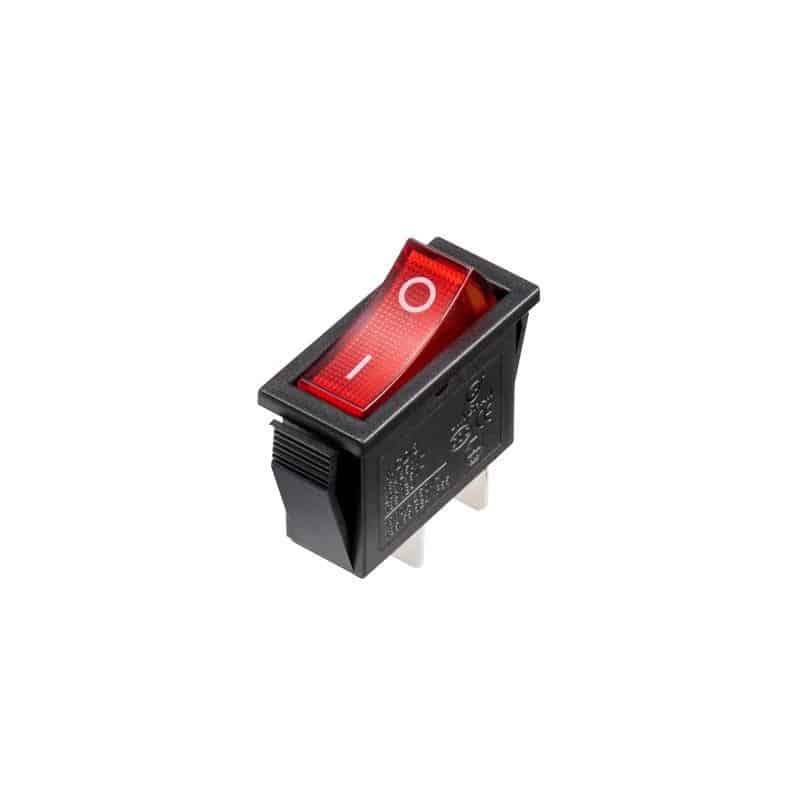

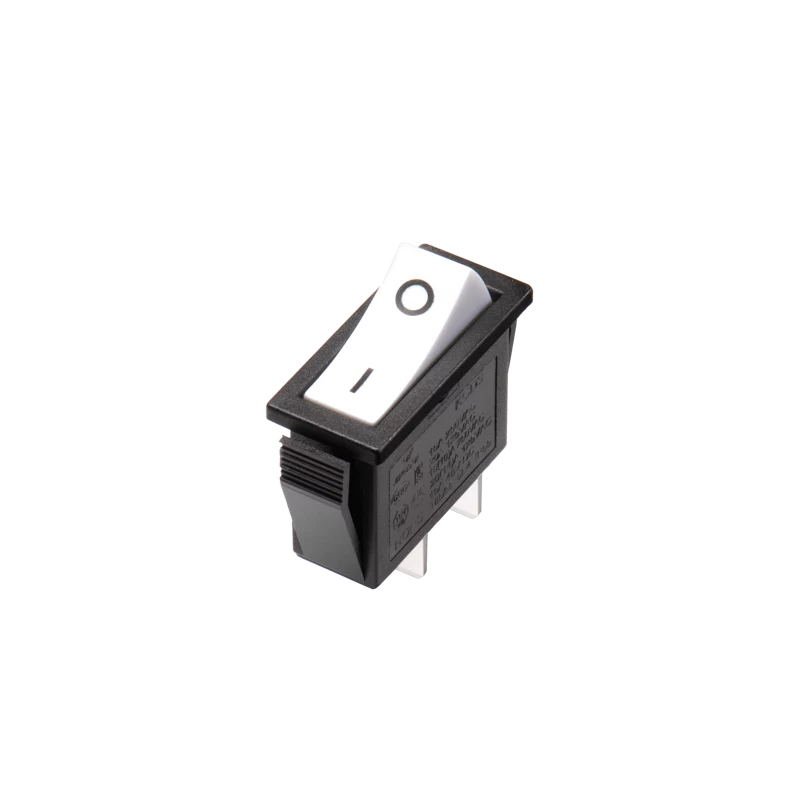

KCD3-101KDW-SPDT-ON-OFF-ON-ROCKER-SWITCH
Model: KCD3-101KDW-SPDT-ON-OFF-ON-ROCKER-SWITCH
Current: 16A
Voltage: 250V AC
Contact Form: SPST
View Details

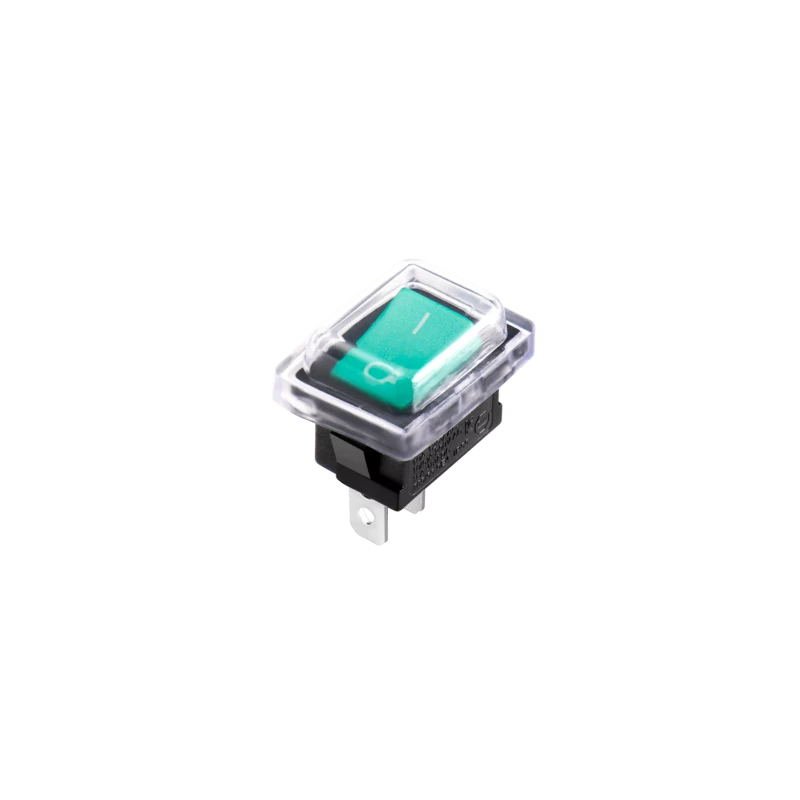

KCD3-101RD-WATERPROOF-ROCKER-SWITCH
Model: KCD3-101RD-WATERPROOF-ROCKER-SWITCH
Current: 16A
Voltage: 250V AC
Contact Form: SPST
View Details
KCD4-30-Amp-Rocker-Switch-3PDT-Welding-Machine
Model: KCD4-30-Amp-Rocker-Switch-3PDT-Welding-Machine
Current: 16A
Voltage: 250V AC
Contact Form: 3PDT
View Details
KCD4 30 Amp Rocker Switch DPDT Welding Machine
Model: KCD4 30 Amp Rocker Switch DPDT Welding Machine
Current: 16A
Voltage: 250V AC
Contact Form: DPDT
View Details
KCD4-30-Amp-On-Off-On-Rocker-Switch-Welding-Machine
Model: KCD4-30
Current: 16A
Voltage: 250V AC
Contact Form: DPDT
View DetailsRocker Switch Wiring Diagram
Professional wiring configurations and terminal connections for WEUP rocker switches. Follow these diagrams for proper installation and optimal performance.
SPST - Single Pole Single Throw
Terminals: 2 terminals (1, 2)
Function: Simple ON/OFF control
Applications: Basic lighting, fan control
SPDT - Single Pole Double Throw
Terminals: 3 terminals (COM, NO, NC)
Function: Switch between two circuits
Applications: Two-speed fans, circuit selection
DPST - Double Pole Single Throw
Terminals: 4 terminals (1-2, 3-4)
Function: Controls two separate circuits simultaneously
Applications: Motor control, dual circuit switching
DPDT - Double Pole Double Throw
Terminals: 6 terminals (COM1/2, NO1/2, NC1/2)
Function: Reverses polarity or switches between two dual circuits
Applications: Motor direction control, circuit changeover
⚡ Safety Guidelines
Before Installation:
- • Turn OFF power at circuit breaker
- • Verify power is OFF with voltage tester
- • Check switch current/voltage ratings
- • Use proper wire gauge for load current
During Installation:
- • Use wire nuts for secure connections
- • Follow color coding (Hot=Black, Neutral=White)
- • Ensure proper grounding connections
- • Double-check all terminal connections
Terminal Identification Guide
Input terminal connected to power source. Always energized when power is ON.
Output terminal that connects to COM when switch is pressed/activated.
Output terminal that disconnects from COM when switch is pressed/activated.
Need Custom Solutions?
As your reliable partner with over 20 years of experience, we offer rapid response and personalized customization services to meet your specific needs.
