KCD1-106-3P-KR

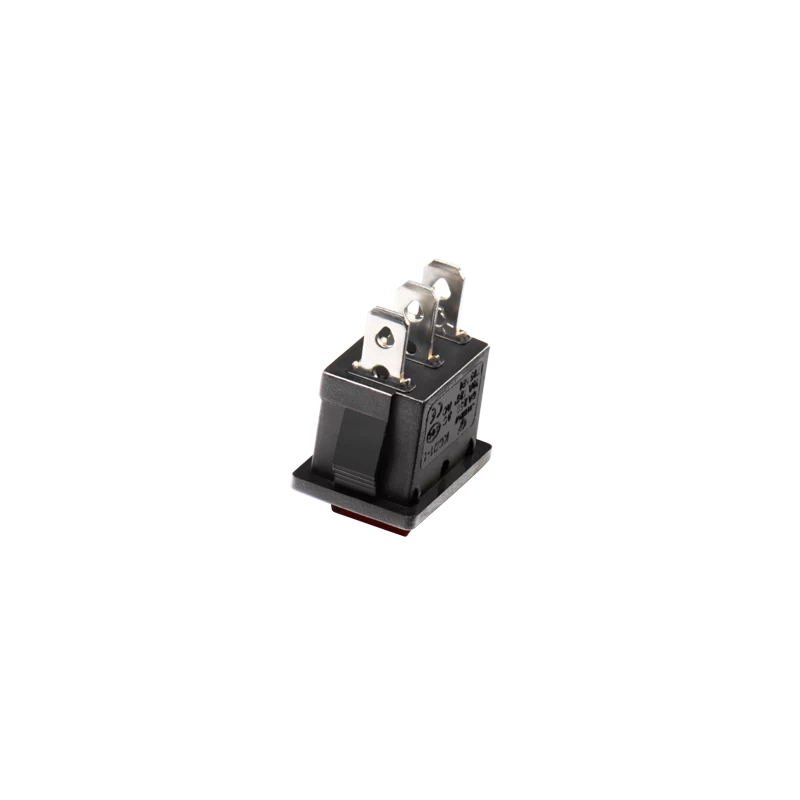

KCD1-106-3P-KR On Off 12v Rocker Switch
FEATURES AND BENEFITS
- Pilot light or illumination
- Imprinted markings
- IP54 splash proof rubber boot option
- Quick connect or blade terminals
TYPICAL APPLICATIONS
- Small appliances
- Computers and peripherals
- Medical instrumentation
SPECIFICATIONS
| 6A 250V AC 6(4)A 250V AC 10A 125V AC 12(6)A 125V AC 10(6) 250V AC 12GP 125V AC |
| ≧ 50000 Cycles |
| ≧ 100 MΩ |
| IP 55 |
| T 85/55 |
| ≦ 50mΩ |
Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.
WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.
CUSTOMIZING ROCKER SWITCHES
With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.
Product Features
Introducing the WEUP 12v Rocker Switch, a versatile and reliable solution for B2B buyers such as importers, distributors, manufacturers, brands, wholesalers, and retailers. This high-quality rocker switch offers a range of features and functions that make it an essential component for various applications.
Product Features:
- Pilot Light or Illumination: The WEUP 12v Rocker Switch comes with a pilot light or illumination option, allowing for easy visibility in low-light conditions. This feature enhances user convenience and safety.
- Imprinted Markings: The switch is equipped with imprinted markings, ensuring clear identification of its different functions and positions. This feature enables users to operate the switch with ease and accuracy.
- IP54 Splash Proof Rubber Boot Option: The IP54 splash-proof rubber boot option provides additional protection against moisture and splashes, making it suitable for use in environments where water resistance is required.
- Quick Connect or Blade Terminals: The switch offers the flexibility of quick connect or blade terminals, allowing for easy and efficient installation. This feature saves time and effort during the assembly process.
Typical Applications:
The WEUP 12v Rocker Switch is suitable for a wide range of applications, including:
- Small appliances: This switch can be used in various small appliances, such as kitchen appliances, home electronics, and power tools.
- Computers and peripherals: The switch is compatible with computers, computer accessories, and other peripheral devices, providing a reliable on/off control function.
- Medical instrumentation: With its robust construction and high electrical rating, the switch is ideal for use in medical instruments and equipment.
Specifications:
- Contact Rating: The switch has a contact rating of 6A 250V AC and 10A 125V AC, making it capable of handling high electrical loads.
- Electrical Life: With a life cycle of over 50,000 cycles, the switch ensures long-lasting performance and durability.
- Insulation Resistance: The switch offers insulation resistance of over 100 MΩ, providing reliable electrical insulation.
- Degree of Protection: With an IP55 rating, the switch is protected against dust and water splashes, making it suitable for various environments.
- Operating Temperature: The switch can operate within a temperature range of T 85/55, ensuring reliable performance even in extreme conditions.
- Contact Resistance: With a contact resistance of less than 50mΩ, the switch provides efficient electrical conductivity.
Customizing Options:
WEUP understands the unique needs of different customers and offers customizing options for the rocker switch. These options include:
- Shapes and Size: WEUP can create a new model according to customers’ requests, providing flexibility in terms of shapes and size to meet specific requirements.
- Construction and Frames: The switch can be customized with different construction and frames options, allowing for seamless integration into various applications.
- Recessed Switch Guards: To prevent accidental actuation, WEUP offers recessed switch guards as a customization option. This feature enhances user safety and reliability.
- Splash-proof Rubber Boots: For applications requiring additional protection against moisture and splashes, WEUP provides splash-proof rubber boots as a customization option.
- Sub-miniature Sizes: If space-saving is a concern, WEUP offers sub-miniature sizes for the rocker switch. This allows for a compact footprint without compromising performance.
In addition to the customization options mentioned above, WEUP also supports custom wire harness and actuator marking requests. This level of customization ensures that the rocker switch meets specific design requirements and provides a tailored solution for customers’ needs.
Conclusion:
The WEUP 12v Rocker Switch is a reliable and versatile product that caters to the needs of B2B buyers such as importers, distributors, manufacturers, brands, wholesalers, and retailers. Its key features such as pilot light or illumination, imprinted markings, IP54 splash-proof rubber boot option, and quick connect or blade terminals make it an excellent choice for various applications. With its high contact rating, long electrical life, insulation resistance, degree of protection, operating temperature range, and low contact resistance, this rocker switch offers exceptional performance and durability. Furthermore, WEUP’s customization options ensure that the switch can be tailored to specific requirements. Whether you are looking for China manufacturers, manufacturer suppliers, factory wholesale vendors or any other B2B buyer, the WEUP 12v Rocker Switch is a reliable choice that delivers outstanding quality and functionality.
Why Choose WEUP?
High Quality
Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.
Affordability
We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.
Reliable Supplier
As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.
Excellent Customer Service
At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.
Certificates
Technical Data
- Model
- Characteristics
- Drawings
Characteristics
| Permissible operating frequency | Mechanical | 20 operations/min max. |
| Electrical | 7 operations/min max. | |
| Insulation resistance | 100 MΩ min. (at 500 VDC with insulation tester) | |
| Contact resistance (initial value) | 100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method) | |
| Dielectric strength | Between terminals of the same polarity | 2,000 VAC, 50/60 Hz, for 1 min |
| Between terminals of the different polarity | 2,000 VAC, 50/60 Hz, for 1 min | |
| Between charged metal parts and the ground terminal | 4,000 VAC, 50/60 Hz, for 1 min | |
| Vibration resistance | Malfunction | 10 to 55 Hz, 1.5-mm double amplitude |
| Shock resistance | Malfunction | 300 m/s2 |
| Destruction | 500 m/s2 | |
| Durability | Mechanical | 50,000 operations min. |
| Electrical | 10,000 operations min. | |
| Inrush current | 100 A max. (8.3 ms max.) | |
| Degree of protection | IEC IP40 | |
| Ambient operating temperature | –20 to +55C (with no icing or condensation) | |
| Ambient operating humidity | 45 to 85%RH | |
