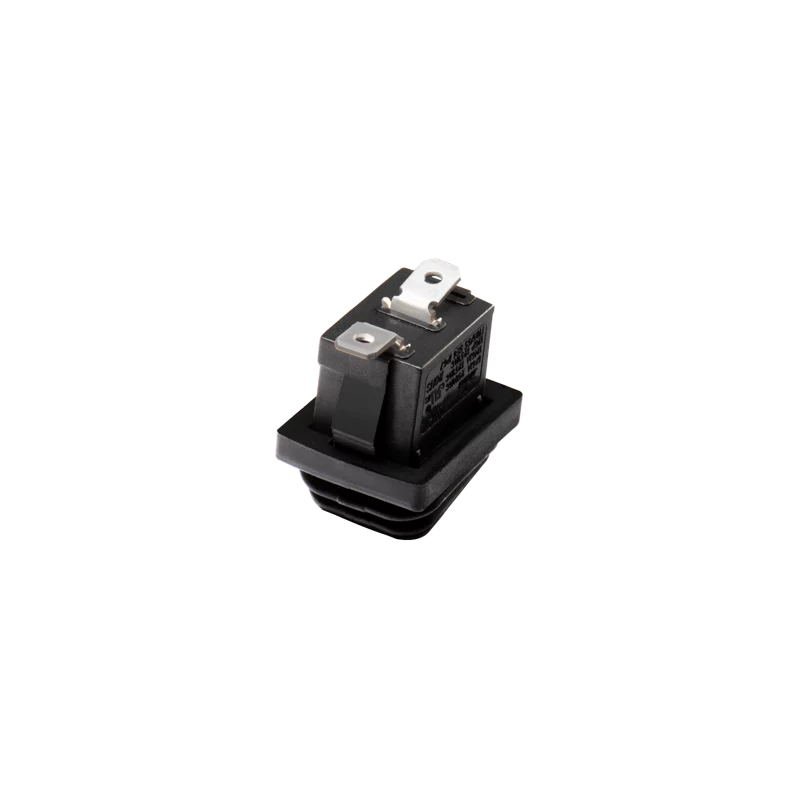

KCD1-106-2PFS-W Custom Rocker Switch

KCD1-106-2PFS-W

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC  6(4)A 250V AC

10A 125V AC  12(6)A 125V AC

10(6) 250V AC   12GP 125V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • Contact Resistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP Custom Rocker Switch: A Versatile Solution for B2B Buyers

The WEUP Custom Rocker Switch is a high-quality and versatile product designed to meet the needs of B2B buyers such as importers, distributors, manufacturers, brands, wholesalers, and retailers. With its impressive features and functions, this rocker switch is sure to impress and provide a reliable solution for a wide range of applications.

Features and Benefits

  • Pilot Light or Illumination: The WEUP Custom Rocker Switch offers the option for a pilot light or illumination, allowing for easy visibility and control even in low-light environments. This feature is particularly useful in applications where quick identification of the switch position is essential.
  • Imprinted Markings: The rocker switch comes with imprinted markings, ensuring clear and durable labeling that will not fade or wear off over time. This feature enhances the switch’s usability and provides convenience for users.
  • IP54 Splash Proof Rubber Boot Option: For added protection against moisture and dust, the WEUP Custom Rocker Switch offers an optional IP54 splash-proof rubber boot. This feature makes it suitable for use in various environments, including outdoor or industrial settings.
  • Quick Connect or Blade Terminals: The rocker switch is designed with flexibility in mind, offering the choice between quick connect or blade terminals. This allows for easy installation and compatibility with different wiring configurations.

Typical Applications

The WEUP Custom Rocker Switch is well-suited for a variety of applications across different industries. Here are some typical examples:

  • Small Appliances: Whether it’s controlling the on/off function of a coffee maker or a toaster, this rocker switch provides a reliable and efficient solution for small appliance manufacturers.
  • Computers and Peripherals: From desktop computers to printers and external devices, the WEUP Custom Rocker Switch can effectively control the power supply of various computer-related equipment.
  • Medical Instrumentation: In the medical field, precision and reliability are crucial. This rocker switch is an ideal choice for medical instrument manufacturers, ensuring accurate control and operation of essential equipment.

Specifications

  • Contact Rating: The WEUP Custom Rocker Switch boasts a contact rating of 6A 250V AC and 10A 125V AC. This ensures its ability to handle the demands of different electrical systems.
  • Electrical Life: With a long electrical life of over 50,000 cycles, this rocker switch offers durability and consistent performance over an extended period.
  • Insulation Resistance: The switch provides excellent insulation resistance of over 100 MΩ, ensuring safe and reliable operation.
  • Degree of Protection: With an IP55 degree of protection, the WEUP Custom Rocker Switch offers resistance against dust and water splashes. This makes it suitable for use in various environments.
  • Operating Temperature: The rocker switch is designed to withstand a wide range of temperatures, with an operating temperature range of T 85/55.
  • Contact Resistance: The low contact resistance of less than 50mΩ ensures efficient electrical conductivity and reduces the risk of heat generation during operation.

Customizing Rocker Switches

WEUP understands the diverse needs of its customers and offers customization options for their rocker switches. With their own D&R development capabilities, WEUP can create new models according to customers’ specific requests. This includes options such as shape, size, construction, frames, recessed switch guards, and splash-proof rubber boots. Additionally, WEUP can support custom wire harness and actuator marking requests, ensuring that each design meets customers’ unique requirements.

Why Choose WEUP’s Custom Rocker Switch?

  • Quality Assurance: As one of China’s leading manufacturers and suppliers in the field of rocker switches, WEUP is committed to delivering high-quality products. Their state-of-the-art factory and rigorous quality control processes ensure that each rocker switch meets international standards.
  • Versatility: The WEUP Custom Rocker Switch offers a wide range of configurations to suit various applications. Whether it’s a two-position On/Off switch, three-position switch, momentary switch, or maintained switch, WEUP has the right solution.
  • Reliability: With excellent electrical life and insulation resistance properties, the rocker switch guarantees reliable performance even under demanding conditions. Its robust construction ensures longevity and durability.
  • Customer Support: WEUP values its customers and strives to provide exceptional service. They work closely with clients to understand their needs and deliver tailored solutions. With their extensive experience in the industry, they offer valuable guidance and support throughout the customization process.

In conclusion, the WEUP Custom Rocker Switch is a top choice for B2B buyers seeking a versatile, high-quality, and customizable solution. Its impressive features, such as pilot light or illumination, imprinted markings, IP54 splash-proof rubber boot option, and quick connect or blade terminals make it an excellent choice for various applications. With WEUP’s commitment to quality assurance, versatility, reliability, and customer support, B2B buyers can trust that they are making a smart investment. Whether you are an importer, distributor, manufacturer, brand, wholesaler, or retailer, the WEUP Custom Rocker Switch is sure to meet your needs and exceed your expectations. Contact WEUP today to discover how their expertise can benefit your business.



Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD1-106-2PFS-W Custom Rocker Switch

KCD1-106K2PA1KC
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton ColorActuator
Black KCD1-106-2PFS-W Custom Rocker SwitchON-OFF KCD1-106-2PFS-W Custom Rocker Switch 4.8*0.8 KCD1-106-2PFS-W Custom Rocker Switch  KCD1-106-2PFS-W Custom Rocker SwitchBlack KCD1-106-2PFS-W Custom Rocker Switch  KCD1-106-2PFS-W Custom Rocker Switch
Blue KCD1-106-2PFS-W Custom Rocker SwitchON-OFF KCD1-106-2PFS-W Custom Rocker Switch3.2*0.8 KCD1-106-2PFS-W Custom Rocker Switch  KCD1-106-2PFS-W Custom Rocker SwitchBlue KCD1-106-2PFS-W Custom Rocker Switch  KCD1-106-2PFS-W Custom Rocker Switch
Green KCD1-106-2PFS-W Custom Rocker SwitchON-OFF KCD1-106-2PFS-W Custom Rocker Switch1.2*0.8 KCD1-106-2PFS-W Custom Rocker Switch  KCD1-106-2PFS-W Custom Rocker SwitchGreen KCD1-106-2PFS-W Custom Rocker Switch  KCD1-106-2PFS-W Custom Rocker Switch
Orange KCD1-106-2PFS-W Custom Rocker SwitchON-OFF-ON KCD1-106-2PFS-W Custom Rocker Switch  KCD1-106-2PFS-W Custom Rocker SwitchOrange KCD1-106-2PFS-W Custom Rocker Switch  KCD1-106-2PFS-W Custom Rocker Switch
Red KCD1-106-2PFS-W Custom Rocker SwitchON-OFF-(ON) KCD1-106-2PFS-W Custom Rocker Switch  KCD1-106-2PFS-W Custom Rocker SwitchRed KCD1-106-2PFS-W Custom Rocker Switch
White KCD1-106-2PFS-W Custom Rocker Switch(ON)-OFF-(ON) KCD1-106-2PFS-W Custom Rocker Switch  KCD1-106-2PFS-W Custom Rocker SwitchWhite KCD1-106-2PFS-W Custom Rocker Switch
Yellow KCD1-106-2PFS-W Custom Rocker Switch  KCD1-106-2PFS-W Custom Rocker SwitchYellow KCD1-106-2PFS-W Custom Rocker Switch

KCD1-106-2PFS-W Custom Rocker Switch

Related Products (4)

Download Latest Catalog

Do you supply samples? Are the Samples free?

Yes. Usually, 1-2 samples are free of charge, please support us by providing us with any express account such as DHL, FedEx, TNT, or UPS.

How is the shipping?

Our nearest port is Ningbo and Shanghai port, but if you collect the goods to ship together, we could send them to the other farther port. Usually, our customers will choose TNT, DHL, FedEx, and UPS to ship them.

How long is the delivery leading time?

Usually the samples 1-5 days to prepare. For orders, it depends on the quantity. Usually 5-15 days.

How is the packing?

For standard packing, dozens per box, 500pcs or 1000pcs per carton. We also provide you with custom box or carton packing with your logo and design.

How do you do regarding quality control?

All the products will be 100% checked before the shipment.
