  • Micro Switch Miniature Basic Switch V-166-1A6
  • Micro Switch Miniature Basic Switch V-166-1A6

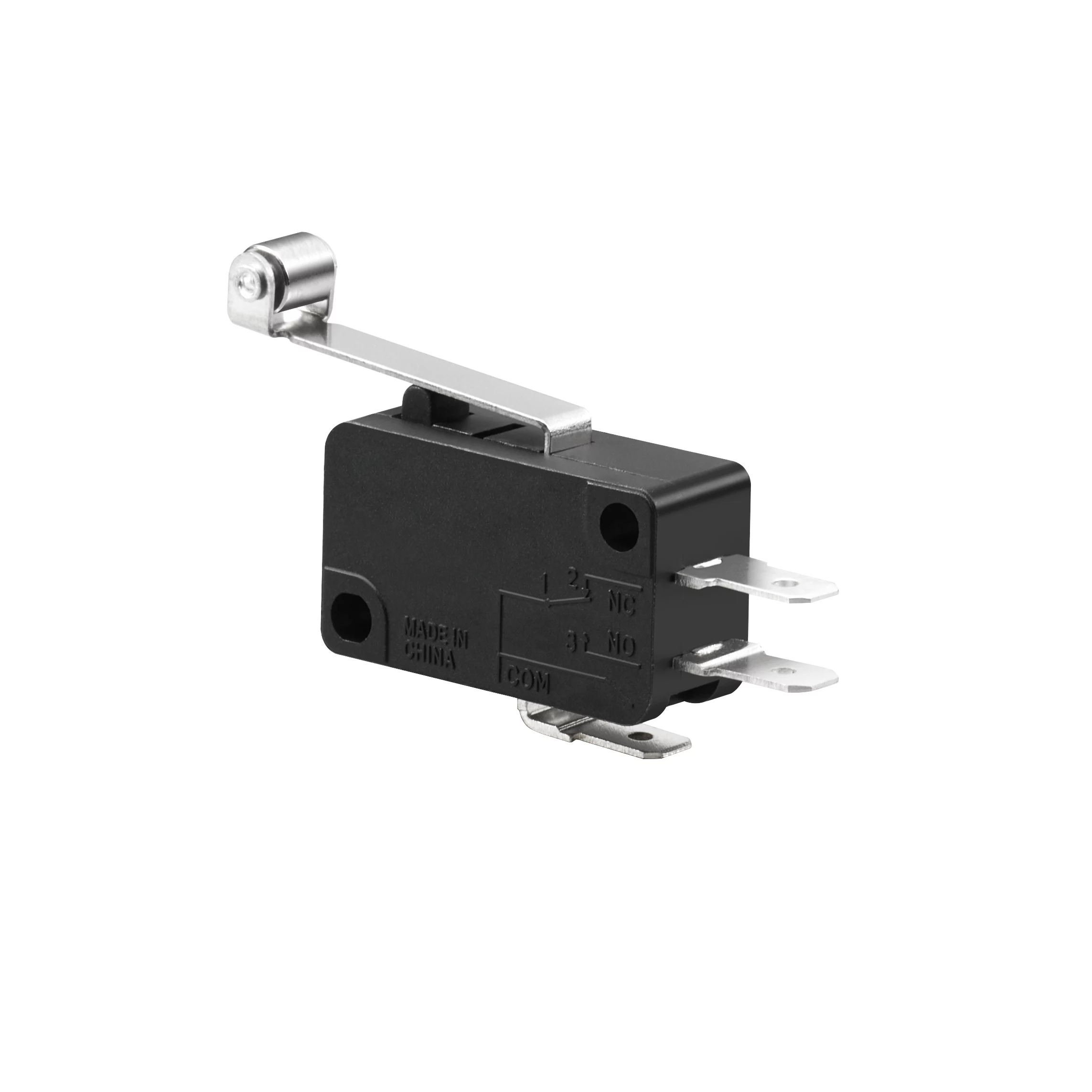

Micro Switch Miniature Basic Switch V-166-1A6

Micro Switch V16

FEATURES AND BENEFITS

● Wide variation of best-selling microswitches with switching currents of 10 to 21 A.
● Can be used for interrupting current when doors are opened or closed.
● Available in two types of cases: thermoplastic resin and thermosetting resin.
● Indium contact models available for DC load

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
21A 250V AC

16A 125V AC

15A 30V DC

10A 30V DC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 40
  • Operating Temperature:
T 105/55
  • Contact Resistance:
≦ 50mΩ

An Enlightening Glimpse into the Role of a Micro Switch in an Electric Clothesline

In a world where automation and convenience have become paramount, employing state-of-the-art technologies to simplify daily chores is no longer uncommon. One such innovative contraption that has taken the market by storm is the electric clothesline that houses an integral component – the micro switch.

A micro switch, as its name suggests, is a small-sized switch that plays an indispensable role in many devices, including an electric clothesline. A quintessential component in enhancing the functionality and efficiency of this device, it significantly contributes to ensuring smooth operation with minimal human intervention. Its primary purpose lies in sensing when the clothesline has reached its maximum limit or if it’s empty and needs retraction. This smart feature eliminates any potential risk of damaging the unit due to undue stress or unnecessary power usage when not required.

The use of a micro switch in an electric clothesline enhances safety measures too. It acts as a protective barrier against any unexpected issues like overloading or overheating by automatically shutting off power when it detects any abnormality. Thus, providing peace of mind while offering utmost efficiency.

How Does a Micro Switch Operate within an Electric Clothesline?

Understanding how this tiny yet potent element operates within an electric clothesline can be truly fascinating. The microswitch is engineered to detect changes through minute force applied upon its actuator button.

When you hang your garments on the clothesline and set it in motion using the remote control or wall switch, the line moves outward until full extension is reached. At this point, the microswitch comes into play; it senses that maximum extension point and triggers an automatic stop to prevent strain on the motor and potential damage to your unit. Similarly, when removing your now-dry clothing from the line, once all weight is removed, it identifies this change and initiates retraction.

If for any reason there’s excess load or rapid temperature fluctuations indicating possible overheating, again, our vigilant friend -the microswitch- jumps into action by cutting off power supply instantly to prevent damage or possible fire hazards.

Enhancing Lifestyle Convenience with Modern Technology

This seemingly simple addition of a micro switch in electronic devices like an electric clothesline significantly upscales user experience and convenience levels by making daily chores almost effortless.

Imagine having to tug at strings physically every time you want your laundry done? Or worse still risk breaking or burning out your machine because there was no system in place to detect potential issues? That’s where micro switches make their grand entrance; they take care of these concerns efficiently making life simpler for users while also adding longevity to devices they are incorporated within.

Key Features:

  • Effective Operation: Micro switches ensure smooth operation of an electric clothesline by correctly identifying when maximum extension has been achieved.
  • Safety Mechanism: They provide additional safety measures by detecting abnormalities like overloading or overheating.
  • Automatic Actions: Capable of triggering automatic stoppage during full extension or initiating retraction once emptied.
  • Preventing Damage: They help avoid potential damage to machines due to overload conditions.
  • Enhanced Life Span: By preventing mishaps before they occur—micro switches indirectly enhance device longevity.
  • Ease Of Use & Convenience: The incorporation of micro switches makes using gadgets like electric clotheslines straightforward and hassle-free for users.



Read More

Product Features

Introducing the Micro Switch Miniature V-166-1A6: Enhancing Efficiency and Safety in Electrical Appliances

In today’s fast-paced world, where automation and convenience are at the forefront of technological advancements, it is crucial for businesses in the B2B market to invest in reliable components that can simplify daily operations. One such innovation that has revolutionized the market is the Micro Switch Miniature V-166-1A6. This small-sized switch, manufactured by WEUP, is a versatile and indispensable component that can greatly enhance the functionality and efficiency of various electrical appliances.

Enhanced Performance and Flexibility

One of the key features of the Micro Switch Miniature V-166-1A6 is its wide variation of best-selling microswitches with switching currents ranging from 10 to 21 A. This range allows B2B buyers to choose the appropriate switch based on their specific requirements and applications. Whether it is for interrupting current when doors are opened or closed, or for sensing changes in load or temperature, this micro switch provides unparalleled performance and flexibility.

Safety Measures and Peace of Mind

Safety is paramount when it comes to electrical appliances. The Micro Switch Miniature V-166-1A6 incorporates advanced safety mechanisms to protect both the appliance and its users. With its ability to detect abnormalities such as overloading or overheating, this micro switch acts as a protective barrier by automatically shutting off power when any abnormality is detected. This feature greatly reduces the risk of potential damage or fire hazards, providing peace of mind to users and ensuring the longevity of the appliance.

Wide Range of Applications

The Micro Switch Miniature V-166-1A6 is a versatile component that finds application in various industries. From small appliances like air purifiers and dehumidifiers to computers and peripherals, this micro switch can be seamlessly integrated into different electrical devices. Its reliability and effectiveness make it an ideal choice for applications in medical instrumentation as well. Furthermore, the availability of two types of cases – thermoplastic resin and thermosetting resin – offers additional flexibility to B2B buyers, allowing them to select the most suitable case for their specific needs.

Quality Assurance from China Manufacturers

When it comes to purchasing electrical components, reliability and quality are of utmost importance. WEUP, as one of the leading manufacturers, stands out in the industry by consistently delivering high-quality products that meet international standards. The Micro Switch Miniature V-166-1A6 undergoes rigorous testing and adheres to strict quality control measures to ensure its performance and durability. By sourcing directly from China manufacturers like WEUP, B2B buyers can have confidence in the quality and reliability of their purchases.

Benefits for B2B Buyers

By choosing the Micro Switch Miniature V-166-1A6 for their electrical appliances, B2B buyers can reap several benefits:

  1. Efficiency: The micro switch ensures smooth operation by accurately identifying maximum extension points or changes in load, allowing for optimal functionality of the appliance.
  2. Safety: With its ability to detect abnormalities and automatically shut off power, this micro switch provides an added layer of safety, protecting both the appliance and its users.
  3. Longevity: By preventing potential damage or strain on the appliance, the Micro Switch Miniature V-166-1A6 indirectly enhances the device’s lifespan, reducing maintenance costs and increasing customer satisfaction.
  4. Flexibility: With a wide range of options available, B2B buyers can select the most suitable micro switch variant based on their specific requirements and applications.
  5. Quality Assurance: Sourcing directly from China manufacturers like WEUP ensures high-quality products that meet international standards, providing peace of mind to B2B buyers.

Conclusion

In conclusion, the Micro Switch Miniature V-166-1A6 is a reliable and efficient component that offers enhanced performance and safety for electrical appliances. Its wide variation of best-selling microswitches with switching currents ranging from 10 to 21 A, coupled with its ability to detect abnormalities and protect against potential damage, makes it an ideal choice for B2B buyers in various industries. By sourcing directly from China manufacturers like WEUP, B2B buyers can ensure the quality and reliability of their purchases. Incorporate this exceptional micro switch into your electrical appliances today and experience unparalleled efficiency and safety.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

Micro Switch Miniature Basic Switch V-164-3C6

RatingsActuatorMaximum Operating Force (OF)Contact FormTerminalsHeat resistance
21:21 A at 250 VACNone: Pin plunger Micro Switch Miniature Basic Switch V-164-3C6
6: 3.92 N {400 gf}
1: SPDT Micro Switch Miniature Basic Switch V-164-3C6
A : Solder terminals
None : Standard (80°C)
16:16A at 250 VAC1 : Short hinge lever Micro Switch Miniature Basic Switch V-164-3C6
5: 1.96 N {200 gf}
2: SPST-NC Micro Switch Miniature Basic Switch V-164-3C6
C2 : Quick-connect terminals (#187)
-T : Heat-resistive (150°C)
15:15 A at 250 VAC2 : Hinge lever Micro Switch Miniature Basic Switch V-164-3C6
4: 0.98 N {100 gf}
3: SPST-NO Micro Switch Miniature Basic Switch V-164-3C6
C : Quick-connect terminals (#250)
10:10 A at 250 VAC3 : Long hinge lever Micro Switch Miniature Basic Switch V-164-3C6
Note: These values are for the pin plunger models.
4 : Simulated roller lever Micro Switch Miniature Basic Switch V-164-3C6
5 : Short hinge roller lever Micro Switch Miniature Basic Switch V-164-3C6
6 : Hinge roller lever Micro Switch Miniature Basic Switch V-164-3C6

Micro Switch Miniature Basic Switch V-164-3C6

Micro Switch Miniature Basic Switch V-164-3C6

ActuatorTerminalsContact formMaximum operating force (OF)21A16A
Pin plunger Micro Switch Miniature Basic Switch V-164-3C6Solder terminals (A)SPDT3.92NV-16-1A6
SPST-NCV-16-2A6
SPST-NOV-16-3A6
SPDT1.96NV-16-1A5
SPST-NCV-16-2A5
SPST-NOV-16-3A5
SPDT0.98N
SPST-NC
SPST-NO
Quick-connect terminals (#187) (C2)SPDT3.92NV-16-1C26
SPST-NCV-16-2C26
SPST-NOV-16-3C26
SPDT1.96NV-16-1C25
SPST-NCV-16-2C25
SPST-NOV-16-3C25
SPDT0.98N
SPST-NC
SPST-NO
Quick-connect terminals (#250) (C)SPDT3.92NV-21-1C6V-16-1C6
SPST-NCV-21-2C6V-16-2C6
SPST-NOV-21-3C6V-16-3C6
SPDT1.96NV-16-1C5
SPST-NCV-16-2C5
SPST-NOV-16-3C5
SPDT0.98N
SPST-NC
SPST-NO
Item                                              ModelV-10V-15V-16V-21V-21(IN)
Permissible operating speed0.1mm to 1 m/s max. (pin plunger models)
Permissible operating frequencyMechanical600 operations/min max. (pin plunger models)
Electrical60 operations/min
Insulation resistance100MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)15mΩ max.
Dielectric strength  *1Between terminals of
the same polarity
AC1,000V  50/60Hz  1min
Between current-carrying metal parts
and ground
AC1,500V  50/60Hz
1min
AC1,500V  50/60Hz
1min
AC2,000V  50/60Hz  1min
Between each terminal and non-current-
carrying metal parts
AC1,500V  50/60Hz
1min
AC1,500V  50/60Hz
1min
AC2,000V  50/60Hz  1min
Vibration
resistance  *2
Malfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistance  *2Durability1,000 m/s2  {approx. 100 G} max.
Malfunction200 m/s2
{approx. 20G} max.
300 m/s2 {approx. 30 G} max.
Durability  *3Mechanical50,000,000 operations min. (60 operations/min)
Electrical300,000 operations min.
(30 operations/min)
Heat resistive: 50,000 operations min
(30 operations/min)
100,000 operations min.
(30 operations/min)
Heat resistive: 20,000 operations min
(30 operations/min)
100,000 operations min.
(30 operations/min)
Degree of protectionIEC IP40
Degree of protection against electric shockClass I
Proof tracking index (PTI)175
Ambient operating temperature-25 to 105C
(Heat resistive: -25 to 150C)
-25 to 105C-25 to 80C
-25 to 105C (V-21 series: -25 to 80C) (Heat resistive: -25 to 150C) at ambient humidity of 60% max.
(with no icing or condensation)
Ambient operating humidity85% max. (for 5 to 35C)
WeightApprox. 6.2g (pin plunger models)

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
Micro Switch Miniature Basic Switch V-164-3C6Micro Switch Miniature Basic Switch V-164-3C6Micro Switch Miniature Basic Switch V-164-3C6
Power SuppliesMeasuring DevicesPower Outlet Strips
Micro Switch Miniature Basic Switch V-164-3C6Micro Switch Miniature Basic Switch V-164-3C6Micro Switch Miniature Basic Switch V-164-3C6

Related Products (4)

Download Latest Catalog

Do you supply samples? Are the Samples free?

Yes. Usually, 1-2 samples are free of charge, please support us by providing us with any express account such as DHL, FedEx, TNT, or UPS.

How is the shipping?

Our nearest port is Ningbo and Shanghai port, but if you collect the goods to ship together, we could send them to the other farther port. Usually, our customers will choose TNT, DHL, FedEx, and UPS to ship them.

How long is the delivery leading time?

Usually the samples 1-5 days to prepare. For orders, it depends on the quantity. Usually 5-15 days.

How is the packing?

For standard packing, dozens per box, 500pcs or 1000pcs per carton. We also provide you with custom box or carton packing with your logo and design.

How do you do regarding quality control?

All the products will be 100% checked before the shipment.
