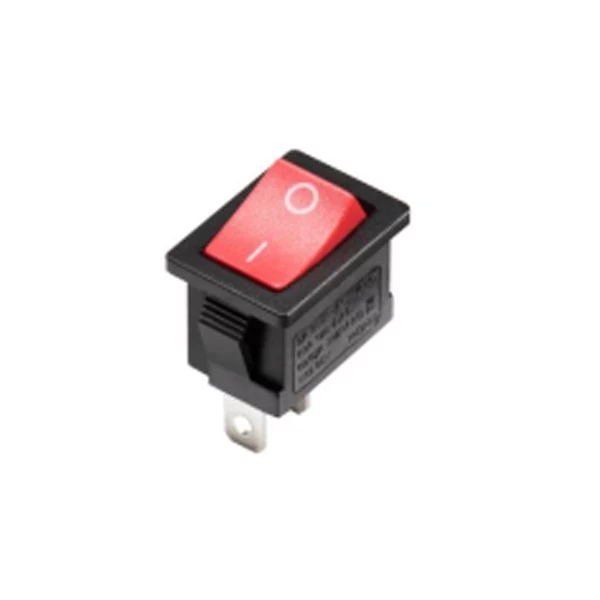

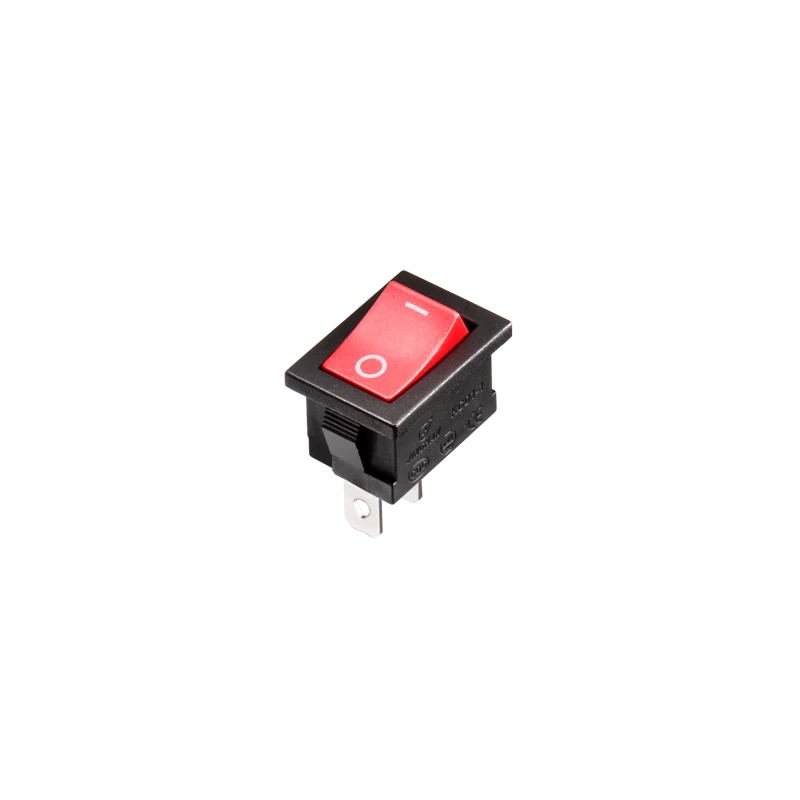

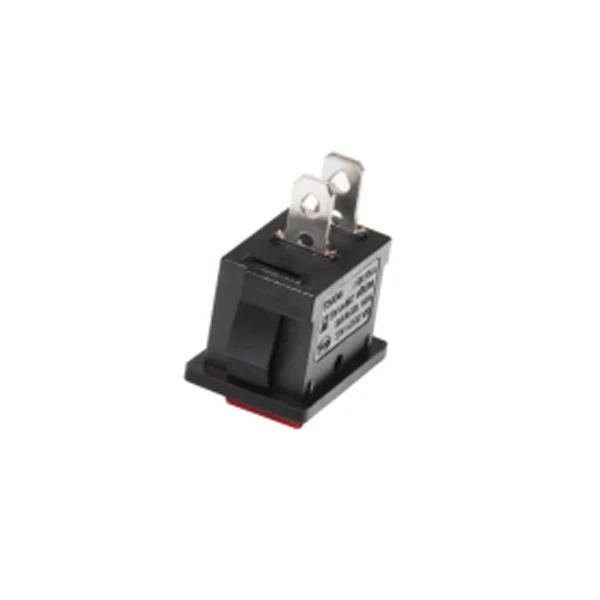

KCD1-106 Rocker Light Switch SPST Big Current Switch/ 2pins Rocker Canal

KCD1-106

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC  6(4)A 250V AC

10A 125V AC  12(6)A 125V AC

10(6) 250V AC   12GP 125V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • Contact Resistance:
≦ 50mΩ

Rocker switch control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP Sub-mini Rocker Switch

Are you in search of a reliable and versatile rocker switch for your business needs? Look no further than the WEUP Sub-mini Rocker Switch. With its exceptional features and wide range of applications, this switch is the ideal choice for B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers.

Efficient and Effective Functionality

  • The WEUP Sub-mini Rocker Switch is designed to control the on/off functions of various home appliances, making it an essential component for many electronic products.
  • With its sub-miniature size and multi-pole, multi-position functionality, this switch offers versatility in a variety of applications.
  • It comes in different configurations, including two-position On/Off, three-position, momentary, maintained, and more, catering to diverse business requirements.

Customizable Options

  • As a China-based manufacturer with our own D&R development, WEUP provides the flexibility to create custom models according to your specific requests. Whether it’s the shape, size, construction, frames, or recessed switch guards, we have you covered.
  • Our sub-miniature sizes ensure a space-saving small footprint, perfect for applications where size matters.
  • Additionally, we offer options like splash-proof rubber boots and custom wire harness and actuator marking requests to meet your unique needs.

Exceptional Quality and Reliability

  • The WEUP Sub-mini Rocker Switch boasts a high-quality build and long-lasting performance. It has an electrical life of over 50,000 cycles, guaranteeing its durability and reliability in demanding environments.
  • With an insulation resistance of over 100 MΩ and a contact resistance of less than 50mΩ, this switch ensures excellent electrical conductivity and minimal power loss.
  • It has a degree of protection rated at IP55, making it resistant to dust and splashes. This feature ensures its suitability for various applications across different industries.

Wide Range of Applications The WEUP Sub-mini Rocker Switch finds its applications in numerous industries and products. Some notable examples include:

  1. Small appliances: This switch can be integrated into small household appliances like air purifiers, dehumidifiers, and kitchen appliances, offering a reliable on/off control mechanism.
  2. Computers and peripherals: From monitors and copiers to printers and power supplies, this switch is essential for controlling the power supply in various computer-related devices.
  3. Medical instrumentation: The WEUP Sub-mini Rocker Switch is suitable for medical instruments where precise control is needed, ensuring seamless operation.

In conclusion, the WEUP Sub-mini Rocker Switch is the perfect choice for B2B buyers seeking a reliable and versatile solution. Backed by exceptional quality, customizable options, and a wide range of applications, this switch offers unmatched value. Trust in WEUP as your preferred supplier and experience the difference that our products can make in your business. Contact us today to explore our offerings and take advantage of our expertise.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canal

KCD1-106K2PA1KC
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton ColorActuator
Black KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canalON-OFF KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canal 4.8*0.8 KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canal  KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canalBlack KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canal  KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canal
Blue KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canalON-OFF KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canal3.2*0.8 KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canal  KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canalBlue KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canal  KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canal
Green KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canalON-OFF KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canal1.2*0.8 KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canal  KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canalGreen KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canal  KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canal
Orange KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canalON-OFF-ON KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canal  KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canalOrange KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canal  KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canal
Red KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canalON-OFF-(ON) KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canal  KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canalRed KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canal
White KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canal(ON)-OFF-(ON) KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canal  KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canalWhite KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canal
Yellow KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canal  KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canalYellow KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canal

Characteristics

Permissible operating frequencyMechanical20 operations/min max.
Electrical7 operations/min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2,000 VAC, 50/60 Hz, for 1 min
Between terminals of the different polarity2,000 VAC, 50/60 Hz, for 1 min
Between charged metal parts and the ground terminal4,000 VAC, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2
Destruction500 m/s2
DurabilityMechanical50,000 operations min.
Electrical10,000 operations min.
Inrush current100 A max. (8.3 ms max.)
Degree of protectionIEC IP40
Ambient operating temperature–20 to +55C (with no icing or condensation)
Ambient operating humidity45 to 85%RH

KCD1-106 rocker light switch SPST big current switch/ 2pins rocker canal

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switchrocker switch
