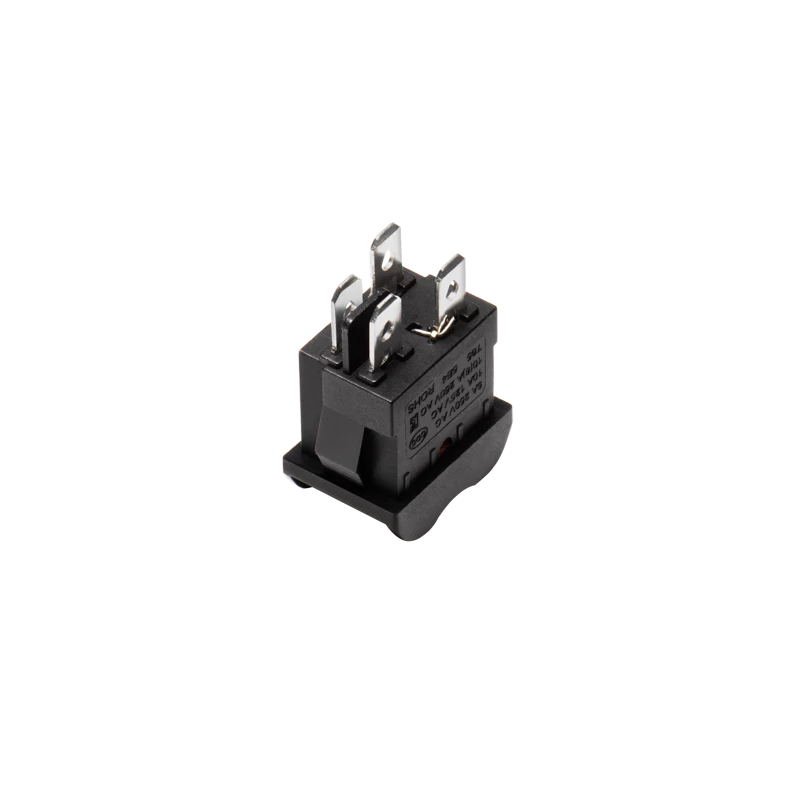

KCD1-104-4PN-KR On Off 12v Rocker Switch

KCD1-104-4PN-KR

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC

10A 125V AC

10(6) 250V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • ContactResistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP 12v Rocker Switch

Are you in search of a reliable and high-quality rocker switch for your B2B business needs? Look no further than the WEUP 12v Rocker Switch. With its exceptional features and versatility, this product is the perfect choice for importers, distributors, manufacturers, brands, wholesalers, and retailers.

Efficiency and Versatility

The WEUP 12v Rocker Switch is designed to control the on/off functions of various home appliances, making it an essential component in a wide range of applications. Its primary function is to provide a reliable and efficient on/off mechanism, ensuring smooth operation of your products.

Wide Range of Functions

This rocker switch offers more than just simple on/off functionality. It comes with different options such as 3 positions, button, and changeover, allowing you to customize its usage according to your specific requirements. Whether you need a momentary switch or a maintained one, the WEUP 12v Rocker Switch has got you covered.

Superior Quality and Durability

When it comes to electrical components, quality and durability are of utmost importance. The WEUP 12v Rocker Switch excels in both areas. With a contact rating of 6A 250V AC and an electrical life of over 50,000 cycles, this switch is built to withstand the test of time. Its insulation resistance of over 100 MΩ ensures safe and reliable operation.

IP54 Splash-Proof Option

In some applications, protection against water splashes is crucial. The WEUP 12v Rocker Switch offers an optional IP54 splash-proof rubber boot, providing an extra layer of protection for your electrical connections. This feature makes it suitable for use in environments where water exposure is a concern, such as outdoor applications or industrial settings.

Easy Installation and Connectivity

The WEUP 12v Rocker Switch offers two convenient options for terminals: quick connect or blade terminals. This flexibility allows for easy installation and connectivity, saving you time and effort during the assembly process. Whether you are a manufacturer or a distributor, the user-friendly design of this switch ensures hassle-free integration into your products.

Customization Options

At WEUP, we understand that every business has unique requirements. That’s why our rocker switches are highly customizable. With our own D&R development capabilities, we can create new models based on your specific requests. Whether you need a different shape, size, construction, or even recessed switch guards to prevent accidental actuation, we can tailor our products to meet your exact needs.

Wide Range of Applications

The versatility of the WEUP 12v Rocker Switch makes it suitable for a diverse range of applications. From small appliances to computers and peripherals, medical instrumentation, and more, this switch can be seamlessly integrated into various products. Its compact size also makes it ideal for space-saving designs.

Reliable Supplier from China

WEUP is a trusted name in the industry when it comes to electrical components. As one of the leading China manufacturers, we pride ourselves on delivering high-quality products that meet international standards. Our switches are manufactured in our own factory using state-of-the-art technology and stringent quality control processes.

Supporting Your Business Needs

In addition to providing top-notch products, WEUP is committed to supporting your business needs. We offer custom wire harness and actuator marking requests for qualifying designs. Our team of experts will work closely with you to ensure that our products meet your specific requirements. With our reliable support and prompt customer service, you can trust us to be your long-term partner.

Conclusion

When it comes to sourcing electrical components for your B2B business, the WEUP 12v Rocker Switch stands out as an excellent choice. Its efficiency, versatility, superior quality, and customization options make it a compelling option for importers, distributors, manufacturers, brands, wholesalers, and retailers.

Partner with WEUP today and experience the reliability and effectiveness of our 12v Rocker Switch for yourself. Contact our friendly team of experts to learn more about our products and how we can support your business needs. Trust WEUP as your reliable supplier from China – manufacturer, suppliers, factory, wholesale vendors – and take your business to new heights.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD1-104-4PN-KR On Off 12v Rocker Switch



KCD1-104K4PA1K
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton Color
Black KCD1-104-4PN-KR On Off 12v Rocker SwitchON-OFF KCD1-104-4PN-KR On Off 12v Rocker Switch 4.8*0.8 KCD1-104-4PN-KR On Off 12v Rocker Switch  KCD1-104-4PN-KR On Off 12v Rocker SwitchBlack KCD1-104-4PN-KR On Off 12v Rocker Switch
Blue KCD1-104-4PN-KR On Off 12v Rocker SwitchON-OFF KCD1-104-4PN-KR On Off 12v Rocker Switch  KCD1-104-4PN-KR On Off 12v Rocker SwitchBlue KCD1-104-4PN-KR On Off 12v Rocker Switch
Green KCD1-104-4PN-KR On Off 12v Rocker Switch  KCD1-104-4PN-KR On Off 12v Rocker SwitchGreen KCD1-104-4PN-KR On Off 12v Rocker Switch
Orange KCD1-104-4PN-KR On Off 12v Rocker Switch  KCD1-104-4PN-KR On Off 12v Rocker SwitchOrange KCD1-104-4PN-KR On Off 12v Rocker Switch
Red KCD1-104-4PN-KR On Off 12v Rocker Switch  KCD1-104-4PN-KR On Off 12v Rocker SwitchRed KCD1-104-4PN-KR On Off 12v Rocker Switch
White KCD1-104-4PN-KR On Off 12v Rocker Switch  KCD1-104-4PN-KR On Off 12v Rocker SwitchWhite KCD1-104-4PN-KR On Off 12v Rocker Switch
Yellow KCD1-104-4PN-KR On Off 12v Rocker Switch  KCD1-104-4PN-KR On Off 12v Rocker SwitchYellow KCD1-104-4PN-KR On Off 12v Rocker Switch

Characteristics

Permissible operating frequencyMechanical20 operations/min max.
Electrical7 operations/min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2,000 VAC, 50/60 Hz, for 1 min
Between terminals of the different polarity2,000 VAC, 50/60 Hz, for 1 min
Between charged metal parts and the ground terminal4,000 VAC, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2
Destruction500 m/s2
DurabilityMechanical50,000 operations min.
Electrical10,000 operations min.
Inrush current100 A max. (8.3 ms max.)
Degree of protectionIEC IP40
Ambient operating temperature–20 to +55C (with no icing or condensation)
Ambient operating humidity45 to 85%RH

KCD1-104-4PN-KR On Off 12v Rocker Switch

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD1-104G-4P-GG On Off 12v Rocker SwitchKCD1-104G-4P-GG On Off 12v Rocker SwitchKCD1-104G-4P-GG On Off 12v Rocker Switch
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD1-104G-4P-GG On Off 12v Rocker SwitchKCD1-104G-4P-GG On Off 12v Rocker SwitchKCD1-104G-4P-GG On Off 12v Rocker Switch
