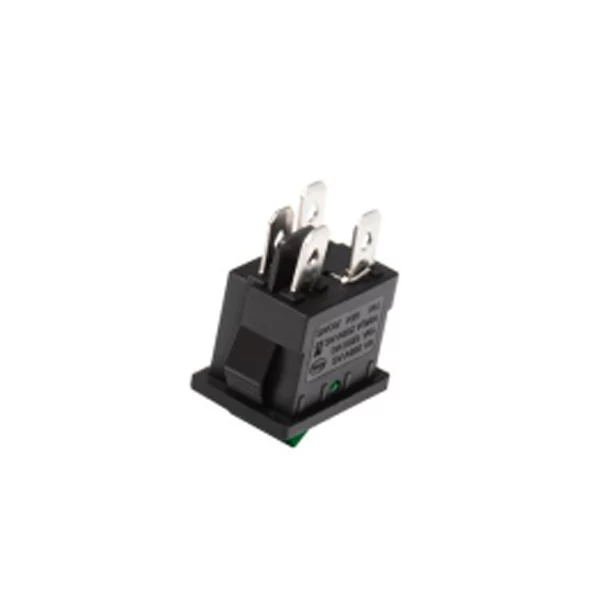

KCD1-104 4 pin Lighted Rocker Switch

KCD1-104

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC

10A 125V AC

10(6) 250V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • Contact Resistance:
≦ 50mΩ

To summarize, the features and benefits of our new commercial grade toggle switch make it an ideal choice for applications like small appliances, computers and peripherals, and medical instrumentation. This toggle switch is intended to save energy, lift spirits or bring true convenience to your business. This product has a 6A 250V AC contact rating and 10A 125V AC 12GP 125 V AC rating with an electrical life of more than 50,000 cycles. It also has impressive 100 MΩ insulation resistance as well as IP55 degree of protection. Equally important are its imprinted markings which make it easier to read in cramped spaces. Furthermore, this high-grade product features a user-friendly quick connect or blade terminals as well as a pilot light or illumination option for the perfect level of visibility. We hope you found this blog post useful and thank you for giving us the opportunity to share our product knowledge with you!

Read More

Product Features

Introducing the WEUP Lighted Rocker Switch – an exceptional choice for B2B buyers looking to enhance their product offerings and deliver a superior user experience. With its impressive features and functions, this rocker switch is the perfect solution for importers, distributors, manufacturers, brands, wholesalers, and retailers. Let’s delve into the details and explore why this product stands out from the competition:

1. Energy-saving and Convenient: The WEUP Lighted Rocker Switch is designed to save energy, making it an environmentally friendly choice. Its toggle mechanism allows for effortless ON-OFF operation, ensuring convenience and ease of use for consumers.

2. Wide Range of Applications: This versatile switch is suitable for various industries and applications. Whether it’s small appliances, computers and peripherals, or medical instrumentation, the WEUP Lighted Rocker Switch excels in delivering reliable performance across different sectors.

3. High-quality Construction: When it comes to durability and longevity, the WEUP Lighted Rocker Switch surpasses expectations. With a contact rating of 6A 250V AC and 10A 125V AC, this switch can withstand demanding electrical loads. It also boasts an electrical life of over 50,000 cycles, ensuring consistent performance over an extended period.

4. Impressive Insulation Resistance: With an insulation resistance of over 100 MΩ, the WEUP Lighted Rocker Switch guarantees safe and reliable electrical operation. This feature is crucial in preventing electrical leakage and minimizing the risk of accidents or malfunctions.

5. Enhanced Visibility: The WEUP Lighted Rocker Switch features a pilot light or illumination option, ensuring optimal visibility even in low-light environments. This makes it particularly useful in applications where visibility is critical, such as medical instrumentation or darkened rooms.

6. Easy Installation: Thanks to its user-friendly quick connect or blade terminals, the WEUP Lighted Rocker Switch offers a hassle-free installation process. This feature saves time and effort during product assembly, making it an ideal choice for manufacturers and brands.

7. Splash-proof Option: For added protection against water splashes, the WEUP Lighted Rocker Switch offers an IP54 splash-proof rubber boot option. This feature ensures the switch’s durability and reliability, making it suitable for use in environments where moisture or water exposure is a concern.

The WEUP Lighted Rocker Switch is manufactured by China manufacturers who are renowned for their expertise in producing high-quality electrical components. These manufacturers adhere to strict quality control standards to ensure that every product meets or exceeds industry specifications.

By partnering with reliable China manufacturers, importers, distributors, and wholesalers can confidently offer the WEUP Lighted Rocker Switch to their customers. Its exceptional quality and reliability will enhance their reputation and provide a competitive edge in the market.
