Why Are IEC Connectors Crucial For Modern Electronics?

With technological advancement, electronics have become part and parcel of our everyday life. Thus, for their effective working, an optimum power supply is crucial. This is where the IEC connectors come into the frame. They have a vital role in connecting and powering modern-day electronics.

IEC is an international organization that sets specific frameworks for manufacturing electrical equipment and components. The word IEC stands for International Electro-Technical Commission.

Originally based in London; currently, the organization operates from Geneva, Switzerland, with 89 member countries and 89 countries in the Affiliate list.

iec-connector

Understanding IEC Connectors: What is an IEC CONNECTOR?

The IEC connectors are not specific products yet simple electric cables designed according to standards set by International Electrotechnical Commission. They come with two parts, a socket and a plug, and can be identified with a general code IEC 60320.

These connectors offer a standardized power flow according to their type through various electronic devices and equipment.

This standardization of these connectors adds to their significance. Their manufacturers around the globe adhere to obligations set by the commission, which ensures that devices connected with IEC connectors can be used across various regions, ultimately curtailing the need to buy new connectors for devices every time.

Their market and use are not limited to any single industry. Whether it’s the medical field, Automotives, industries, Test and Measurement, or any other field, you can easily spot their use in that specific domain.

Common Types of IEC Power Connectors

Versatility is indeed a standout characteristic of IEC connectors. Different IEC connector types cater to specific power requirements. Thus, their use ranges from simple household electronics to industrial machinery.

Below discussed are some most commonly used types of IEC connectors.

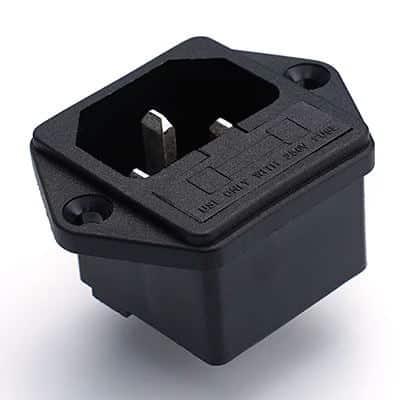

IEC C13 and IEC C14 Connectors

While classifying connectors, the odd numbers usually refer to sockets or female connectors, while you can get the number of related male connectors by adding one.

IEC C13 is also known as a kettle plug or cloverleaf. It features a three-pin design paired with an IEC C14 inlet creating a secure and standardized power connection. They offer 3 conductors, 10 amperes of current, and temperatures up to 70 degrees Celsius. They cover a length of approximately 10 meters.

These types of connectors are also named cold connectors and are commonly found in desktop computers, monitors, and other household items.

IEC C19 and IEC C20 Connectors

These connectors feature the same three-pin design, conductors, and temperatures as C13 and C14. But their specific manufacturing requirements set them apart. These connectors are designed to allow the flow of high currents up to 16 amperes to pass.

Their everyday use includes high-power devices like servers, data center equipment, and industrial machinery.

IEC C5 and IEC C6 Connectors

Also termed Mickey Mouse connectors, they feature three round prongs in a clover field pattern. C6 acts as an inlet. The temperature ranges are up to 70OC, current up to 2.5 amperes, and 3 conductors.

Their primary use includes connecting power cords to laptops and some audiovisual equipment.

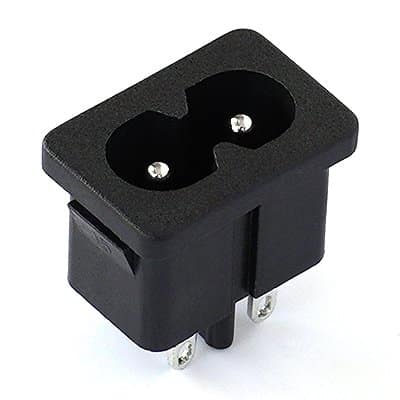

IEC C7 and IEC C8 Connectors

Also known as figure-eight or non-polarized connectors, these connectors come with a distinctive figure-eight shape and two round prongs. The C8 is used as an inlet. They are non-polarized and can be inserted into the power inlet in either orientation.

They are commonly found on power cords for small appliances like gaming consoles, audio devices, and laptops or chargers.

One important thing to mention is that while the other connectors below C7 offer a 2-meter cable length, their range is up to 4 meters.

IEC C15 and IEC C16 Connectors

The design of C15 and C16 is greatly influenced by C13 and C14. However, one nominal feature that makes distinctions is the addition of a notch on one side of the connector. This notch tolerates vast ranges of temperature and helps adjust the heat up to 155 degrees Celsius, which is the highest heat capacity of IEC connectors.

Their use is mostly in devices with heat production. These include kettles, coffee makers, and other high-temperature appliances.

IEC C19 and IEC C20 Connectors

These connectors feature a three-pin design. This is same as C13 but have a larger form factor. Plus current-carrying capacity is also increased which is up to 16 amperes. However, their number of conductors and temperature ranges are same.

The use of IEC C19 connectors is most common in data center equipment, high-power servers, network switches, and industrial machinery.

The Role of IEC Connectors in Powering Electronic Devices

Power is fundamental for the working of any electronic. Quality power connections can substantially boost the shelf life and effective operations of an electric device. According to a report published by the International Energy Agency, there was a 6% rise in overall energy demands around the globe in 2021.

With this change in energy consumption patterns, power interruptions are the norm around many parts of the globe. And electronic equipment is becoming increasingly sensitive to fluctuations in power.

Secure and reliable power connections not only ensure the uninterrupted performance of electrical devices but also curtail the risk of potential damages and protect vulnerable electric components from electrical irregularities.

Though the IEC power connectors come with multiple advantages, their safety feature is top of the list. This includes:

Pin and Socket configuration

Arcing and loss connections are among the primary reasons for short circuits. All the IEC connectors have built-in standardized pin and socket configurations. These manufacturing standards ensure that the connectors are made with precision and offer consistency. Thus, eventually minimizing the chance of short circuits due to losing connections.

Lock Mechanisms

Another reason for electrical device failure is sudden disconnections due to vibrations and movement. The IEC connectors feature a lock mechanism. These locks bind the connecter with power sources and ensure that your devices remain connected to power sources even during small movements.

Furthermore, the lock mechanism in new IEC models is specially designed and can fit in closed spaces.

Handling of specific Voltage Ratings

Voltage drops impose some serious threats to the longevity of electric devices. Last but not least, the IEC connectors are engineered specifically to handle various current and voltage ratings. This ensures that electronic devices receive the required energy without overheating or experiencing voltage fluctuations.

Ensuring Reliability with IEC Connectors

The global standardization of IEC connectors is well known. This ensures their safety and application with a range of devices.
Talking about compatibility, one significant safety feature of these connectors is the incorporation of insulation materials. This prevents accidental contact with live components and eventually posits a more safe and more reliable working environment.

Additionally, electromagnetic interference (EMI) and electrical noises are big issues of concern while operating sensitive electronic devices. Some IEC connectors have built-in shielding or grounding features. This protects against electromagnetic interference (EMI) and reduces the risk of electrical noise affecting performance.

Furthermore, the locking mechanisms, as discussed above, prevent accidental disconnections. This is particularly vital in critical applications, such as medical equipment, data centers, and industrial machinery, where an interrupted power supply could have severe consequences.

Specialty and Advanced IEC Power Connectors

The availability of electrical devices in today’s modern world is countless. From minor tasks to hefty mechanical processes are completed by using electrical machines. In such diverse conditions, standard IEC connectors may not be sufficient to withstand exposure to harsh weather and environmental factors.

Thus specialized connectors are designed to ease the process. Below are the two most commonly used specialized IEC connectors.

Waterproof IEC Connectors

The threats of electric shocks significantly increase in highly humid environments. Thus, in such conditions, more safe and water-resilient connectors are required.

Waterproof IEC connectors, also known as IP-rated connectors, are designed to provide a reliable power connection in outdoor, marine, and other challenging environments.

They are constructed with robust materials that offer excellent sealing properties, eventually preventing dust, water, and moisture ingress.

Right Angle IEC Connectors

Space constraints are a common issue when setting multiple electrical devices in a limited area. In such scenarios, the standard IEC connections add to the problem, as they require sufficient space to settle.

Thus in such cases, Right-angle IEC connectors can offer a sigh of relief. They come with a 90-degree bend in the connector body, eventually redirecting the power cord’s direction. These space-saving solutions devices are positioned closer to the wall or other structures.

The Bottom Line

IEC connectors ensure safety, reliability, and compatibility by following global standards. They come in various types to cater to unique needs. From waterproof connectors to use outdoors and right-angle connectors for space-saving, various types can help you according to your needs.

Furthermore, with changing global trends for the use of eco-friendly products, IEC connectors have not been left behind. These modern-day cables are eco-friendly and recyclable, eventually boosting a greener electronics industry.

Simply, the importance of IEC connectors in electronics doesn’t need any long paragraphs to explain. This is immense and cannot be neglected. They are crucial in modern electronics, providing a standardized and reliable power connection solution.
