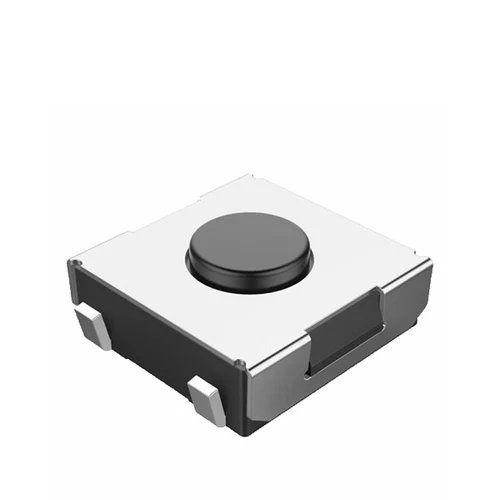

TVEU01 6.2X6.2mm Micro Tactile Switch Push Button Switches SMT SMD

TVEU01

FEATURES AND BENEFITS

  • Fully encapsulated contacts for increased reliability
  • Ultra Small Tactile Switches
  • IP67 splashproof rubber boot option
  • Suitable for high-density installations

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
DC 12V  50mA

DC   1V  10μA

  • Bounce
<5mS
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 67
  • Operating Temperature:
T +5/+35
  • Contact Resistance:
≦ 100mΩ

A tactile switch allows electricity to flow in an electrical circuit by manually pressing the operating section. The switch is used to supply input signal to actuate a device or equipment. It is designed with a small footprint suited for mounting onto the surface of printed circuit
boards (PCBs) made to connect electronic components to form electronic circuits (Figure 1). The switch activates when pressed and then turns off when released. This action is called ‘momentary action’ and can only be performed at low voltage and low current.
There are many different types of tactile switches, also known as tactile push switches or tact switches, used in a variety of applications including household appliances, office equipment, commercial equipment, and industrial machinery.
There are optional features such as size (external dimension), board mounting, and sealing structure for users to select for their applications. A tactile switch is literally a switch that users can “feel a click sense of touch”.
<Click response>
A click response of a button is the most characteristic feature of a tactile switch that lets users
feel the response of the operation from a switch. A clicking feel is generated from the contact
dome embedded in the switch. How large an operation stroke and how sharp a click sense of
touch depends on the materials and shapes of the contact dome.
<High Durability>
The contact dome also acts as a movable contact in a tactile switch. The resistance value
(contact resistance) which is generated between a movable contact and a fixed contact when a
switch is turned on can be stabilized by using specific materials, surface processing, and shape
enabling high durability capable of withstanding 100 thousand to 10 million times of use.

Models

There are two types of tactile switches: Standard tactile switches and sealed tactile switches. The
sealed tactile switches are dust-protected and water-resistant to withstand harsh environmental
conditions. They are further sub-categorized into two types: PCB insert hole terminals type
and PCB surface mounted terminals type. For PCB insert hole terminals type, terminals are
inserted into holes on the PCB and are fixed by soldering. For PCB surface-mounted terminals
type, terminals are surface-mounted and soldered on the PCB. These switches can be
transported in a standalone package, or using a taping packaging method where a carrier tape
holds the switches in place with clearance between them.
Other variations include horizontal push button type, long-stroke type, and ultra subminiature
type switches and many more, ranging from different shapes and specifications that cater to
various applications

Read More

Product Features

              • Introducing the WEUP Tact Switch: A Reliable Solution for B2B BuyersAre you a B2B buyer looking for a high-quality tactile switch? Look no further than the WEUP Tact Switch. With its impressive features and functions, this switch is the perfect choice for importers, distributors, manufacturers, brands, wholesalers, and retailers. Let’s delve into the compelling reasons why the WEUP Tact Switch is the best option for your business.

                1. Fully Encapsulated Contacts for Increased Reliability

                • The WEUP Tact Switch is designed with fully encapsulated contacts, ensuring enhanced reliability. This feature guarantees consistent performance, minimizing the risk of switch failure and the need for frequent replacements.
                • The reliable performance of this switch makes it an ideal choice for various applications, including small appliances, computers and peripherals, and medical instrumentation.

                2. Ultra Small Tactile Switches for High Density Installations

                • The WEUP Tact Switch boasts an ultra-small size of 6.2×6.2mm, making it perfect for high density installations. This compact design allows for efficient use of space on printed circuit boards (PCB), commonly used in electronic circuits.
                • B2B buyers will appreciate the convenience and flexibility offered by this compact switch in their manufacturing processes.

                3. IP67 Splash Proof Rubber Boot Option

                • For applications that require protection against splashes and dust, the WEUP Tact Switch offers an optional IP67 splash proof rubber boot. This feature ensures the durability of the switch, even in harsh environmental conditions.
                • The water-resistant design of this switch makes it an excellent choice for appliances like dishwashers and washing machines.

                4. Wide Range of Applications

                • The WEUP Tact Switch is suitable for a wide range of applications, including household appliances, office equipment, and industrial machinery. This versatility allows B2B buyers to cater to various customer needs with a single product.
                • Whether you are involved in the production of temperature controllers, air conditioning systems, printers, or measuring instruments, this switch can meet your specific requirements.

                5. High Durability for Longevity

                • One of the key advantages of the WEUP Tact Switch is its high durability. With a lifespan of up to 500,000 operations (for standard force models), this switch can withstand the demands of continuous use.
                • The long-lasting nature of this switch minimizes downtime and maintenance costs, providing businesses with cost-effective solutions.

                6. Reliable Performance

                • The WEUP Tact Switch offers reliable performance with low contact resistance (≦100mΩ) and excellent insulation resistance (≧100 MΩ). These specifications ensure stable electrical conductivity and minimize the risk of signal loss or interference.
                • B2B buyers can trust the WEUP Tact Switch to deliver consistent performance, enabling their products to operate effectively and efficiently.

                7. Wide Operating Temperature Range

                • The WEUP Tact Switch can operate in a wide range of temperatures, from -25°C to +70°C (with no icing or condensation). This temperature tolerance allows businesses to use this switch in various environments without worrying about performance issues.
                • Whether your products are exposed to extreme cold or heat, the WEUP Tact Switch will continue to function reliably.

                In conclusion, the WEUP Tact Switch is a top choice for B2B buyers seeking a reliable and versatile tactile switch. Its fully encapsulated contacts, ultra-small size, IP67 splash proof rubber boot option, and wide operating temperature range make it ideal for high density installations and various applications. The high durability and reliable performance ensure longevity and effective functionality. With the WEUP Tact Switch, B2B buyers can confidently meet their customer’s needs while benefiting from cost-effective solutions.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

Rating (resistive load)1 to 50 mA, 3 to 24 VDC
Minimum applicable load (reference value)10 A at 1 VDC (resistive load)
Ambient operating temperature-25C to +70C at 60%RH max. (with no icing or condensation)
Ambient operating humidity35% to 85% (at +5 to +35C)
Contact formSPST-NO
Contact resistance (initial value)100 mΩ max.
Insulation resistance100 MΩ min. (at 250 VDC with insulation tester)
Dielectric strength500 VAC, 50/60 Hz for 1 min
Bounce time5 ms max.
Vibration resistanceMalfunction: 10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceDestruction: 1,000 m/s2 {approx. 100G} max. Malfunction: 100 m/s2 {approx. 10G} max.
DurabilityStandard force models (1.57 N {160 gf}): 500,000 operations min. High-force models (2.26 N {230 gf}): 300,000 operations min.
WeightApprox. 0.3 g
Degree of protectionIEC IP67
WashingPossible
