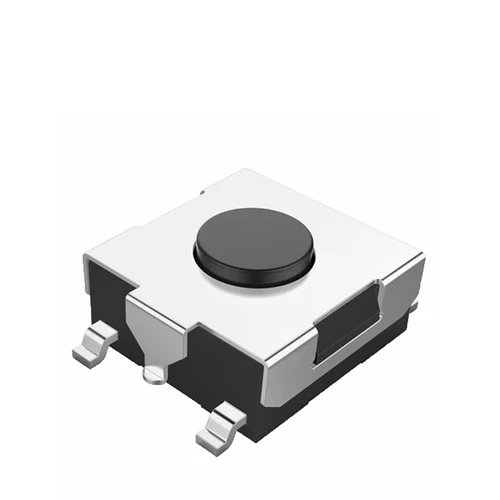

TVEM03 6.2X6.2mm Micro Tactile Switch Push Button Switches SMT SMD

TVEM03

FEATURES AND BENEFITS

Fully encapsulated contacts for increased reliability
Ultra Small Tactile Switches
IP67 splashproof rubber boot option
Suitable for high-density installations

TYPICAL APPLICATIONS

Small appliances
Computers and peripherals
Medical instrumentation

SPECIFICATIONS

Contact Rating:	DC 12V 50mA DC 1V 10μA
Bounce	＜5mS
Insulation Resistance:	≧ 100 MΩ
Degree of Protection:	IP 67
Operating Temperature:	T +5/+35
Contact Resistance:	≦ 100mΩ

PRODUCT DETAILS

Send Your Inquiry

Details
Features
Why Choose WEUP?
Certificates
Technical Data
Related Products
Catalog
Top

A tactile switch allows electricity to flow in an electrical circuit by manually pressing the operating section. The switch is used to supply input signal to actuate a device or equipment. It is designed with a small footprint suited for mounting onto the surface of printed circuit

boards (PCBs) made to connect electronic components to form electronic circuits (Figure 1). The switch activates when pressed and then turns off when released. This action is called ‘momentary action’ and can only be performed at low voltage and low current.

There are many different types of tactile switches, also known as tactile push switches or tact switches, used in a variety of applications including household appliances, office equipment, commercial equipment, and industrial machinery.

There are optional features such as size (external dimension), board mounting, and sealing structure for users to select for their applications. A tactile switch is literally a switch that users can “feel a click sense of touch”.

<Click response>

A click response of a button is the most characteristic feature of a tactile switch that lets users

feel the response of the operation from a switch. A clicking feel is generated from the contact

dome embedded in the switch. How large an operation stroke and how sharp a click sense of

touch depends on the materials and shapes of the contact dome.

<High Durability>

The contact dome also acts as a movable contact in a tactile switch. The resistance value

(contact resistance) which is generated between a movable contact and a fixed contact when a

switch is turned on can be stabilized by using specific materials, surface processing, and shape

enabling high durability capable of withstanding 100 thousand to 10 million times of use.

Models

There are two types of tactile switches: Standard tactile switches and sealed tactile switches. The
sealed tactile switches are dust-protected and water-resistant to withstand harsh environmental
conditions. They are further sub-categorized into two types: PCB insert hole terminals type
and PCB surface mounted terminals type. For PCB insert hole terminals type, terminals are
inserted into holes on the PCB and are fixed by soldering. For PCB surface-mounted terminals
type, terminals are surface-mounted and soldered on the PCB. These switches can be
transported in a standalone package, or using a taping packaging method where a carrier tape
holds the switches in place with clearance between them.
Other variations include horizontal push button type, long-stroke type, and ultra subminiature
type switches and many more, ranging from different shapes and specifications that cater to
various applications

Introducing the WEUP Tact Switch (Model: TVEM03) – A Reliable and Versatile Solution for Your BusinessAre you a B2B buyer looking for a high-quality tactile switch that combines reliability, versatility, and compact design? Look no further than the WEUP Tact Switch (Model: TVEM03). With its advanced features and exceptional performance, this switch is the perfect choice for importers, distributors, manufacturers, brands, wholesalers, and retailers.Reliability at Its Best
One of the standout features of the TVEM03 Tact Switch is its fully encapsulated contacts. This design ensures increased reliability by protecting the internal components from external elements such as dust and moisture. Whether you’re operating in harsh environmental conditions or require a durable switch for long-term use, the TVEM03 won’t disappoint.
Ultra Small and Suitable for High Density Installations
Size matters, especially when it comes to compact electronic devices and high-density installations. The TVEM03 is specifically designed with a small footprint, making it ideal for mounting onto printed circuit boards (PCBs). Its slim profile allows for efficient use of space without compromising on functionality. This makes it a perfect choice for small appliances, computers and peripherals, as well as medical instrumentation.
IP67 Splash Proof Option
In environments where water splashes are a concern, the IP67 splash-proof rubber boot option provides an extra layer of protection. This feature ensures that your devices are safeguarded against water damage, making the TVEM03 suitable for a wide range of applications.
Wide Range of Applications
The TVEM03 Tact Switch caters to diverse industry needs with its versatility. Its application extends across various sectors including:
- Small Appliances: From kitchen gadgets to personal electronics, the TVEM03 enhances the user experience by providing a reliable and responsive switch.
- Computers and Peripherals: Whether it’s a keyboard, mouse, or gaming controller, the TVEM03 delivers precise tactile feedback for seamless operation.
- Medical Instrumentation: In the healthcare industry, precision and reliability are paramount. The TVEM03 meets these requirements, making it an ideal choice for medical devices and instruments.
Exceptional Specifications
The TVEM03 Tact Switch boasts impressive specifications that ensure optimal performance in demanding scenarios. Take a look at some of its key specifications:
- Contact Rating: DC 12V 50mA; DC 1V 10μA
- Bounce: ＜5mS
- Insulation Resistance: ≥ 100 MΩ
- Degree of Protection: IP67
- Operating Temperature: T +5/+35
- Contact Resistance: ≤ 100mΩ

In conclusion, the WEUP Tact Switch (Model: TVEM03) offers an unbeatable combination of reliability, versatility, and compact design. Its fully encapsulated contacts ensure increased durability, while the ultra-small footprint allows for high-density installations. With optional IP67 splash-proof rubber boot protection, this switch can withstand harsh environments. Its exceptional specifications and features make it suitable for a wide range of applications in small appliances, computers and peripherals, as well as medical instrumentation.

Choose the TVEM03 Tact Switch for your business needs and experience the difference it brings to your products and operations. Trust in this reliable solution to elevate your business to new heights.
