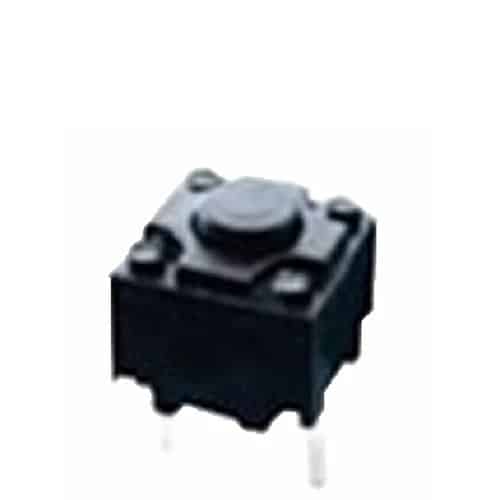

TVDP20 6.2X6.2mm Micro Tactile Switch Push Button Switches SMT SMD

TVDP20

FEATURES AND BENEFITS

Fully encapsulated contacts for increased reliability
Ultra Small Tactile Switches
IP67 splashproof rubber boot option
Suitable for high-density installations

TYPICAL APPLICATIONS

Small appliances
Computers and peripherals
Medical instrumentation

SPECIFICATIONS

Contact Rating:	DC 12V 50mA DC 1V 10μA
Bounce	＜5mS
Insulation Resistance:	≧ 100 MΩ
Degree of Protection:	IP 67
Operating Temperature:	T +5/+35
Contact Resistance:	≦ 100mΩ

PRODUCT DETAILS

Send Your Inquiry

Details
Features
Why Choose WEUP?
Certificates
Technical Data
Related Products
Catalog
Top

A tactile switch allows electricity to flow in an electrical circuit by manually pressing the operating section. The switch is used to supply input signal to actuate a device or equipment. It is designed with a small footprint suited for mounting onto the surface of printed circuit

boards (PCBs) made to connect electronic components to form electronic circuits (Figure 1). The switch activates when pressed and then turns off when released. This action is called ‘momentary action’ and can only be performed at low voltage and low current.

There are many different types of tactile switches, also known as tactile push switches or tact switches, used in a variety of applications including household appliances, office equipment, commercial equipment, and industrial machinery.

There are optional features such as size (external dimension), board mounting, and sealing structure for users to select for their applications. A tactile switch is literally a switch that users can “feel a click sense of touch”.

<Click response>

A click response of a button is the most characteristic feature of a tactile switch that lets users

feel the response of the operation from a switch. A clicking feel is generated from the contact

dome embedded in the switch. How large an operation stroke and how sharp a click sense of

touch depends on the materials and shapes of the contact dome.

<High Durability>

The contact dome also acts as a movable contact in a tactile switch. The resistance value

(contact resistance) which is generated between a movable contact and a fixed contact when a

switch is turned on can be stabilized by using specific materials, surface processing, and shape

enabling high durability capable of withstanding 100 thousand to 10 million times of use.

Models

There are two types of tactile switches: Standard tactile switches and sealed tactile switches. The
sealed tactile switches are dust-protected and water-resistant to withstand harsh environmental
conditions. They are further sub-categorized into two types: PCB insert hole terminals type
and PCB surface mounted terminals type. For PCB insert hole terminals type, terminals are
inserted into holes on the PCB and are fixed by soldering. For PCB surface-mounted terminals
type, terminals are surface-mounted and soldered on the PCB. These switches can be
transported in a standalone package, or using a taping packaging method where a carrier tape
holds the switches in place with clearance between them.
Other variations include horizontal push button type, long-stroke type, and ultra subminiature
type switches and many more, ranging from different shapes and specifications that cater to
various applications

- - - - WEUP’s Tact Switch: The Perfect Choice for B2B Buyers
      Introducing the WEUP Tact Switch, a game-changing solution for importers, distributors, manufacturers, brands, wholesalers, and retailers. With its exceptional features and functionality, this product is set to revolutionize the industry. Let’s explore why the WEUP Tact Switch is the ultimate choice for B2B buyers.
      Unparalleled Reliability and Durability
      - Fully encapsulated contacts: The WEUP Tact Switch is designed with fully encapsulated contacts, ensuring increased reliability and longevity. This feature makes it a perfect fit for high-density installations and applications where durability is paramount.
      - High durability: With the use of specific materials, surface processing, and shape optimization, the WEUP Tact Switch offers unparalleled durability. It can withstand an impressive 100 thousand to 10 million times of use, making it ideal for demanding environments.
      Compact Design for Versatile Applications
      - Ultra Small Size: The WEUP Tact Switch comes in a compact 6.2×6.2mm size, making it suitable for a wide range of applications. Its small footprint allows for easy mounting onto printed circuit boards (PCB), enabling seamless integration into electronic circuits.
      - Wide range of applications: Whether it’s small appliances, computers and peripherals, or medical instrumentation, the WEUP Tact Switch is a versatile solution that meets the needs of various industries. Its adaptability makes it an excellent choice for B2B buyers in diverse sectors.
      Enhanced Functionality
      - Click response: One of the most distinguishing features of the WEUP Tact Switch is its click response. Users can “feel a click sense of touch” when operating the switch, providing a satisfying tactile experience. This feature enhances user interaction and ensures accurate input signals.
      - Sealed options available: The WEUP Tact Switch offers an optional IP67 splash-proof rubber boot, providing protection against water and dust. This makes it an excellent choice for applications where harsh environmental conditions are a concern.
      Specifications and Certifications
      - Rating: The WEUP Tact Switch has a contact rating of DC 12V 50mA and DC 1V 10μA, ensuring reliable performance in various electrical circuits.
      - Insulation Resistance: With an insulation resistance of ≥ 100 MΩ, the WEUP Tact Switch guarantees electrical safety and prevents any unwanted leakage.
      - Degree of Protection: The IP67 rating ensures the WEUP Tact Switch is dustproof and water-resistant, making it suitable for demanding environments.
      - Certifications: The WEUP Tact Switch has obtained certifications such as CQC, CCC, CE, RoHS, ENEC, PAHS, VDE, TUV, and UL, providing reassurance of its quality and compliance with industry standards.
      Applications in Various Industries
      The WEUP Tact Switch finds application in a wide range of industries:
      1. Small Appliances: From kitchen appliances to consumer electronics, the compact size and reliable performance of the WEUP Tact Switch make it a perfect fit for small appliances.
      2. Computers and Peripherals: Keyboards, mice, and other computer peripherals benefit from the enhanced functionality and durability offered by the WEUP Tact Switch.
      3. Medical Instrumentation: The medical industry demands precision and reliability. The WEUP Tact Switch meets these requirements, making it an ideal choice for medical instrumentation.
      Why Choose WEUP?
      - China manufacturers: WEUP is backed by reputable China manufacturers with years of experience in producing top-quality electronic components. Their expertise ensures that the WEUP Tact Switch meets the highest standards of quality and performance.
      - Manufacturer direct supply: With a direct supply chain from the manufacturer to B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers, WEUP eliminates unnecessary intermediaries and ensures competitive pricing.
      - Excellent customer support: WEUP values its customers and provides comprehensive customer support throughout the purchasing process. Their dedicated team is always ready to assist with any inquiries or concerns.
      In conclusion, the WEUP Tact Switch is an exceptional product that offers unparalleled reliability, durability, and functionality. Its compact design, wide range of applications, and certifications make it an excellent choice for B2B buyers in various industries. With the backing of reputable China manufacturers and excellent customer support, choosing the WEUP Tact Switch is a decision that guarantees top-quality electronic components.

Why Choose WEUP?

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Certificates

VDE Certificates

CCC Certificates

CE Certificates

CQC Certificates

ENEC Certificates

PAHS Certificates

RoHS Certificates

TUV Certificates

UL Certificates

Technical Data

Characteristics
Drawings

Rating (resistive load)	1 to 50 mA, 3 to 24 VDC
Minimum applicable load (reference value)	10 A at 1 VDC (resistive load)
Ambient operating temperature	-25C to +70C at 60%RH max. (with no icing or condensation)
Ambient operating humidity	35% to 85% (at +5 to +35C)
Contact form	SPST-NO
Contact resistance (initial value)	100 mΩ max.
Insulation resistance	100 MΩ min. (at 250 VDC with insulation tester)
Dielectric strength	500 VAC, 50/60 Hz for 1 min
Bounce time	5 ms max.
Vibration resistance	Malfunction: 10 to 55 Hz, 1.5-mm double amplitude
Shock resistance	Destruction: 1,000 m/s2 {approx. 100G} max. Malfunction: 100 m/s2 {approx. 10G} max.
Durability	Standard force models (1.57 N {160 gf}): 500,000 operations min. High-force models (2.26 N {230 gf}): 300,000 operations min.
Weight	Approx. 0.3 g
Degree of protection	IEC IP67
Washing	Possible

Download Latest Catalog

Guide

Switch Guide

PDF

Do you supply samples? Are the Samples free?

Yes. Usually, 1-2 samples are free of charge, please support us by providing us with any express account such as DHL, FedEx, TNT, or UPS.

How is the shipping？

Our nearest port is Ningbo and Shanghai port, but if you collect the goods to ship together, we could send them to the other farther port. Usually, our customers will choose TNT, DHL, FedEx, and UPS to ship them.

How long is the delivery leading time?

Usually the samples 1-5 days to prepare. For orders, it depends on the quantity. Usually 5-15 days.

How is the packing？

For standard packing, dozens per box, 500pcs or 1000pcs per carton. We also provide you with custom box or carton packing with your logo and design.

How do you do regarding quality control?

All the products will be 100% checked before the shipment.
