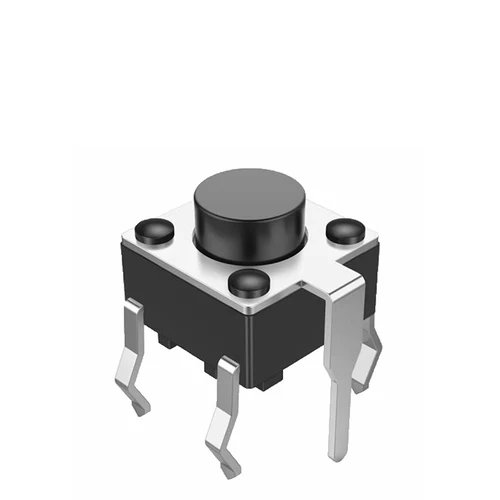

TVDP02 6.0X6.0mm Micro Tactile Switch Push Button Switches SMT SMD

TVDP02

FEATURES AND BENEFITS

  • Fully encapsulated contacts for increased reliability
  • Ultra Small Tactile Switches
  • IP67 splashproof rubber boot option
  • Suitable for high-density installations

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
DC 12V  50mA

DC   1V  10μA

  • Bounce
<5mS
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 67
  • Operating Temperature:
T +5/+35
  • Contact Resistance:
≦ 100mΩ

A tactile switch allows electricity to flow in an electrical circuit by manually pressing the operating section. The switch is used to supply input signal to actuate a device or equipment. It is designed with a small footprint suited for mounting onto the surface of printed circuit
boards (PCBs) made to connect electronic components to form electronic circuits (Figure 1). The switch activates when pressed and then turns off when released. This action is called ‘momentary action’ and can only be performed at low voltage and low current.
There are many different types of tactile switches, also known as tactile push switches or tact switches, used in a variety of applications including household appliances, office equipment, commercial equipment, and industrial machinery.
There are optional features such as size (external dimension), board mounting, and sealing structure for users to select for their applications. A tactile switch is literally a switch that users can “feel a click sense of touch”.
<Click response>
A click response of a button is the most characteristic feature of a tactile switch that lets users
feel the response of the operation from a switch. A clicking feel is generated from the contact
dome embedded in the switch. How large an operation stroke and how sharp a click sense of
touch depends on the materials and shapes of the contact dome.
<High Durability>
The contact dome also acts as a movable contact in a tactile switch. The resistance value
(contact resistance) which is generated between a movable contact and a fixed contact when a
switch is turned on can be stabilized by using specific materials, surface processing, and shape
enabling high durability capable of withstanding 100 thousand to 10 million times of use.

Models

There are two types of tactile switches: Standard tactile switches and sealed tactile switches. The
sealed tactile switches are dust-protected and water-resistant to withstand harsh environmental
conditions. They are further sub-categorized into two types: PCB insert hole terminals type
and PCB surface mounted terminals type. For PCB insert hole terminals type, terminals are
inserted into holes on the PCB and are fixed by soldering. For PCB surface-mounted terminals
type, terminals are surface-mounted and soldered on the PCB. These switches can be
transported in a standalone package, or using a taping packaging method where a carrier tape
holds the switches in place with clearance between them.
Other variations include horizontal push button type, long-stroke type, and ultra subminiature
type switches and many more, ranging from different shapes and specifications that cater to
various applications

Read More

Product Features

          • Introducing the WEUP Tact Switch: Enhancing Efficiency and Reliability in Electrical CircuitsThe WEUP Tact Switch (TVDP02) is a game-changer in the field of electrical switches, offering a range of features and benefits that make it a superior choice for B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers. With its cutting-edge design and impeccable performance, the WEUP Tact Switch is poised to revolutionize the industry.Reliability and Durability
            • Fully encapsulated contacts: The WEUP Tact Switch is built with fully encapsulated contacts, ensuring increased reliability and longevity. This feature protects the switch from external factors such as dust and moisture, making it ideal for a wide range of applications.
            • High durability: With a contact resistance of less than 100mΩ and an insulation resistance of at least 100 MΩ, the WEUP Tact Switch guarantees optimal performance even after extensive use. It can withstand up to 100,000 to 10 million operations, providing long-lasting reliability for various industries.

            Compact Design

            • Ultra Small Tactile Switches: The WEUP Tact Switch boasts an ultra-small form factor of 6.0X6.0mm, making it suitable for high-density installations. This compact design allows for efficient use of space in electronic circuits.

            Versatility in Applications

            The WEUP Tact Switch excels in a wide range of applications, making it a versatile choice for B2B buyers:

            • Small appliances: From kitchen appliances to consumer electronics, the WEUP Tact Switch is perfect for small appliances that require reliable and responsive user input.
            • Computers and peripherals: The WEUP Tact Switch is well-suited for use in computers and peripherals, ensuring smooth operation and enhanced user experience.
            • Medical instrumentation: With its high durability and reliability, the WEUP Tact Switch is an excellent choice for medical instruments that require precise input and long-term functionality.

            Ease of Installation

            • SMT SMD compatibility: The WEUP Tact Switch is designed for easy installation on printed circuit boards (PCBs) through surface-mount technology (SMT) and surface-mount device (SMD) compatibility. This feature streamlines the manufacturing process for B2B buyers, reducing production time and costs.

            IP67 Splash Proof Option

            • Rubber boot option: The WEUP Tact Switch offers an IP67 splash-proof rubber boot option, providing additional protection against water and dust. This feature ensures the switch’s performance even in harsh environmental conditions, making it suitable for outdoor applications or devices that may encounter moisture.

            Wide Range of Specifications

            The WEUP Tact Switch comes with specifications that cater to various requirements:

            • Contact Rating: The switch supports DC 12V 50mA and DC 1V 10μA, allowing it to handle different voltage and current loads effectively.
            • Operating Temperature: With an operating temperature range of T +5/+35, the WEUP Tact Switch operates reliably in diverse environments.

            Applications and Certifications

            The WEUP Tact Switch finds its application in a multitude of devices and equipment:

            • Commercial equipment and industrial machinery: Tactile switches are essential in operating units of devices and equipment used for mode settings, operation conditions, and starting or stopping operations. They are widely used in temperature controllers, air conditioning systems, control panels, measuring instruments, and medical devices.
            • Household appliances and office equipment: The WEUP Tact Switch is suitable for control panels in printers, multifunction printers, dishwashers, washing machines, and more. Its sealed tactile switch variants are particularly useful in water-resistant appliances like dishwashers and washing machines.

            Conclusion

            In conclusion, the WEUP Tact Switch (TVDP02) stands out as a top choice for B2B buyers seeking reliable, durable, and versatile tactile switches. Its fully encapsulated contacts ensure increased reliability, while its compact design allows for high-density installations. With its IP67 splash-proof option and wide range of specifications, the WEUP Tact Switch is well-equipped to handle diverse applications in various industries.

            Whether you are a manufacturer, distributor, or retailer looking for superior quality tactile switches, WEUP’s commitment to excellence makes them the perfect partner. With their China-based manufacturers, suppliers, factory, wholesale options, and reputable vendors network, you can trust WEUP to provide you with top-of-the-line products that meet your specific requirements. Upgrade your electrical circuits today with the WEUP Tact Switch – the ultimate choice for efficiency and reliability.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

Rating (resistive load)1 to 50 mA, 3 to 24 VDC
Minimum applicable load (reference value)10 A at 1 VDC (resistive load)
Ambient operating temperature-25C to +70C at 60%RH max. (with no icing or condensation)
Ambient operating humidity35% to 85% (at +5 to +35C)
Contact formSPST-NO
Contact resistance (initial value)100 mΩ max.
Insulation resistance100 MΩ min. (at 250 VDC with insulation tester)
Dielectric strength500 VAC, 50/60 Hz for 1 min
Bounce time5 ms max.
Vibration resistanceMalfunction: 10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceDestruction: 1,000 m/s2 {approx. 100G} max. Malfunction: 100 m/s2 {approx. 10G} max.
DurabilityStandard force models (1.57 N {160 gf}): 500,000 operations min. High-force models (2.26 N {230 gf}): 300,000 operations min.
WeightApprox. 0.3 g
Degree of protectionIEC IP67
WashingPossible

TVDP02 6.0X6.0mm Micro Tactile Switch Push Button Switches SMT SMDTVDP02 6.0X6.0mm Micro Tactile Switch Push Button Switches SMT SMD
