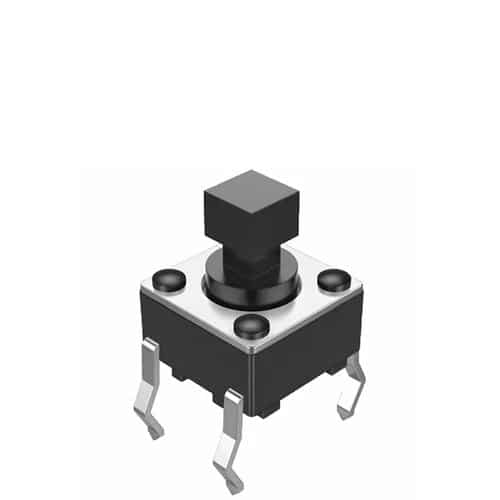

TVDP01-G73 6.0X6.0mm Micro Tactile Switch Push Button Switches SMT SMD

TVDP01-G73

FEATURES AND BENEFITS

  • Fully encapsulated contacts for increased reliability
  • Ultra Small Tactile Switches
  • IP67 splashproof rubber boot option
  • Suitable for high-density installations

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
DC 12V  50mA

DC   1V  10μA

  • Bounce
<5mS
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 67
  • Operating Temperature:
T +5/+35
  • Contact Resistance:
≦ 100mΩ

A tactile switch allows electricity to flow in an electrical circuit by manually pressing the operating section. The switch is used to supply input signal to actuate a device or equipment. It is designed with a small footprint suited for mounting onto the surface of printed circuit
boards (PCBs) made to connect electronic components to form electronic circuits (Figure 1). The switch activates when pressed and then turns off when released. This action is called ‘momentary action’ and can only be performed at low voltage and low current.
There are many different types of tactile switches, also known as tactile push switches or tact switches, used in a variety of applications including household appliances, office equipment, commercial equipment, and industrial machinery.
There are optional features such as size (external dimension), board mounting, and sealing structure for users to select for their applications. A tactile switch is literally a switch that users can “feel a click sense of touch”.
<Click response>
A click response of a button is the most characteristic feature of a tactile switch that lets users
feel the response of the operation from a switch. A clicking feel is generated from the contact
dome embedded in the switch. How large an operation stroke and how sharp a click sense of
touch depends on the materials and shapes of the contact dome.
<High Durability>
The contact dome also acts as a movable contact in a tactile switch. The resistance value
(contact resistance) which is generated between a movable contact and a fixed contact when a
switch is turned on can be stabilized by using specific materials, surface processing, and shape
enabling high durability capable of withstanding 100 thousand to 10 million times of use.

Models

There are two types of tactile switches: Standard tactile switches and sealed tactile switches. The
sealed tactile switches are dust-protected and water-resistant to withstand harsh environmental
conditions. They are further sub-categorized into two types: PCB insert hole terminals type
and PCB surface mounted terminals type. For PCB insert hole terminals type, terminals are
inserted into holes on the PCB and are fixed by soldering. For PCB surface-mounted terminals
type, terminals are surface-mounted and soldered on the PCB. These switches can be
transported in a standalone package, or using a taping packaging method where a carrier tape
holds the switches in place with clearance between them.
Other variations include horizontal push button type, long-stroke type, and ultra subminiature
type switches and many more, ranging from different shapes and specifications that cater to
various applications

Read More

Product Features

            • WEUP’s Tact Switch: The Ultimate Choice for Your BusinessAre you a B2B buyer looking for a reliable and high-quality tactile switch solution? Look no further than WEUP’s Tact Switch! With its exceptional features and functions, this product is the perfect choice for importers, distributors, manufacturers, brands, wholesalers, and retailers. Let’s delve into the numerous reasons why WEUP’s Tact Switch should be at the top of your list.1. Fully encapsulated contacts for increased reliability
              • The Tact Switch is designed with fully encapsulated contacts, ensuring enhanced reliability. This feature protects the switch from external elements such as dust, moisture, and debris, resulting in a longer lifespan and improved performance.

              2. Ultra Small Tactile Switches

              • WEUP’s Tact Switch offers an ultra-small form factor, making it ideal for high-density installations. Its compact size allows for efficient use of space on printed circuit boards (PCBs) without compromising functionality.

              3. IP67 splash-proof rubber boot option

              • If you require additional protection against water splashes and dust ingress, WEUP provides an optional IP67 splash-proof rubber boot. This feature ensures that the Tact Switch can withstand harsh environmental conditions, making it suitable for a wide range of applications.

              4. Suitable for various industries and applications

              • The Tact Switch is highly versatile, making it suitable for a wide range of industries and applications. Whether you need a switch for small appliances, computers and peripherals, or medical instrumentation, WEUP’s Tact Switch has got you covered. Its durability and reliability make it perfect for demanding environments.

              5. High durability with long lifespan

              • When it comes to tactile switches, durability is paramount. WEUP’s Tact Switch offers exceptional durability with a long lifespan. Withstand 100 thousand to 10 million times of use, this switch is built to last. Its high resistance to wear and tear ensures consistent performance over an extended period.

              6. Click response for enhanced user experience

              • The click response of the Tact Switch provides users with a satisfying tactile feedback. This feature enhances the user experience by providing a clear indication of the switch activation. The materials and shapes of the contact dome are carefully designed to deliver a sharp and precise click sense of touch.

              7. Wide range of models to choose from

              • WEUP offers a wide range of models to cater to different requirements. Whether you need standard tactile switches or sealed tactile switches, PCB insert hole terminals type or PCB surface-mounted terminals type, WEUP has the right solution for you. This extensive selection ensures that you can find the perfect fit for your specific application.

              8. Excellent performance specifications

              • The Tact Switch boasts impressive performance specifications that guarantee optimal functionality. With a contact rating of DC 12V 50mA and DC 1V 10μA, it can handle various resistive loads. The bounce time is less than 5ms, ensuring quick and reliable switch activation. Additionally, the insulation resistance is equal to or greater than 100 MΩ, providing excellent electrical insulation properties.

              9. Compliance with industry standards and certifications

              • WEUP’s Tact Switch meets industry standards and certifications, ensuring its reliability and safety. It is compliant with RoHS regulations and holds certifications such as CQC, CCC, CE, ENEC, PAHS, VDE, TUV, and UL. These certifications serve as a testament to the product’s quality and adherence to international standards.

              10. Sourced from reputable China manufacturers

              • WEUP collaborates with reputable China manufacturers who specialize in producing high-quality tactile switches. These manufacturers prioritize quality control and adhere to strict production standards. By choosing WEUP’s Tact Switch, you can be confident that you are sourcing from reliable suppliers who deliver consistent excellence.

              In conclusion, WEUP’s Tact Switch is the ultimate choice for B2B buyers seeking a reliable and high-quality tactile switch solution. Its fully encapsulated contacts, ultra-small form factor, optional IP67 splash-proof rubber boot, and wide range of models make it suitable for various industries and applications. With its excellent performance specifications, long lifespan, click response feature, and compliance with industry standards and certifications, this switch offers unparalleled reliability and performance.

              When you choose WEUP’s Tact Switch, you are not only investing in a superior product but also partnering with reputable China manufacturers who prioritize quality control. Don’t miss out on this opportunity to enhance your business operations with a top-notch tactile switch solution.

              Contact us today to explore the wide range of options available and discover how WEUP’s Tact Switch can benefit your business.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

Rating (resistive load)1 to 50 mA, 3 to 24 VDC
Minimum applicable load (reference value)10 A at 1 VDC (resistive load)
Ambient operating temperature-25C to +70C at 60%RH max. (with no icing or condensation)
Ambient operating humidity35% to 85% (at +5 to +35C)
Contact formSPST-NO
Contact resistance (initial value)100 mΩ max.
Insulation resistance100 MΩ min. (at 250 VDC with insulation tester)
Dielectric strength500 VAC, 50/60 Hz for 1 min
Bounce time5 ms max.
Vibration resistanceMalfunction: 10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceDestruction: 1,000 m/s2 {approx. 100G} max. Malfunction: 100 m/s2 {approx. 10G} max.
DurabilityStandard force models (1.57 N {160 gf}): 500,000 operations min. High-force models (2.26 N {230 gf}): 300,000 operations min.
WeightApprox. 0.3 g
Degree of protectionIEC IP67
WashingPossible
